Controlador LED regulable 5 en 1 de 200 W (electrónico, homologado por UL) - 24 voltios

SKU: PWR-G24V-200-66-U-D-JH
1 reseña
Precio:
$169.99

American Express Apple Pay Diners Club Discover Google Pay Mastercard PayPal Shop Pay Visa

Su información de pago se procesa de forma segura. No almacenamos los detalles de la tarjeta de crédito ni tenemos acceso a la información de su tarjeta de crédito.

5-in-1 LED Dimmable Drivers: One of the safest 12V dimmable LED drivers out there - This dimmable driver includes knockouts for safe connection,  comes with short circuit protection, over current protection, over-voltage protection, low-voltage protection, and auto-recovery mode. No buzzing noise, No overheating. This product is UL listed, meaning that it will automatically shut off if overloaded, preventing overheating and fire hazards caused by components exceeding their power ratings.

Our range of Dimmable Drivers are the ultimate solution in any of your LED lighting projects and are compatible with most Lutron and Leviton dimmer switches. Phase Dimmable with Leading (Forward) Edge MLV TRIAC Dimmers.

  • Input Voltage: 100-277V AC (108 ~ 132VAC), 47-63Hz
  • Output Voltage: 24V DC, 200 Watts (8.33 Amps)

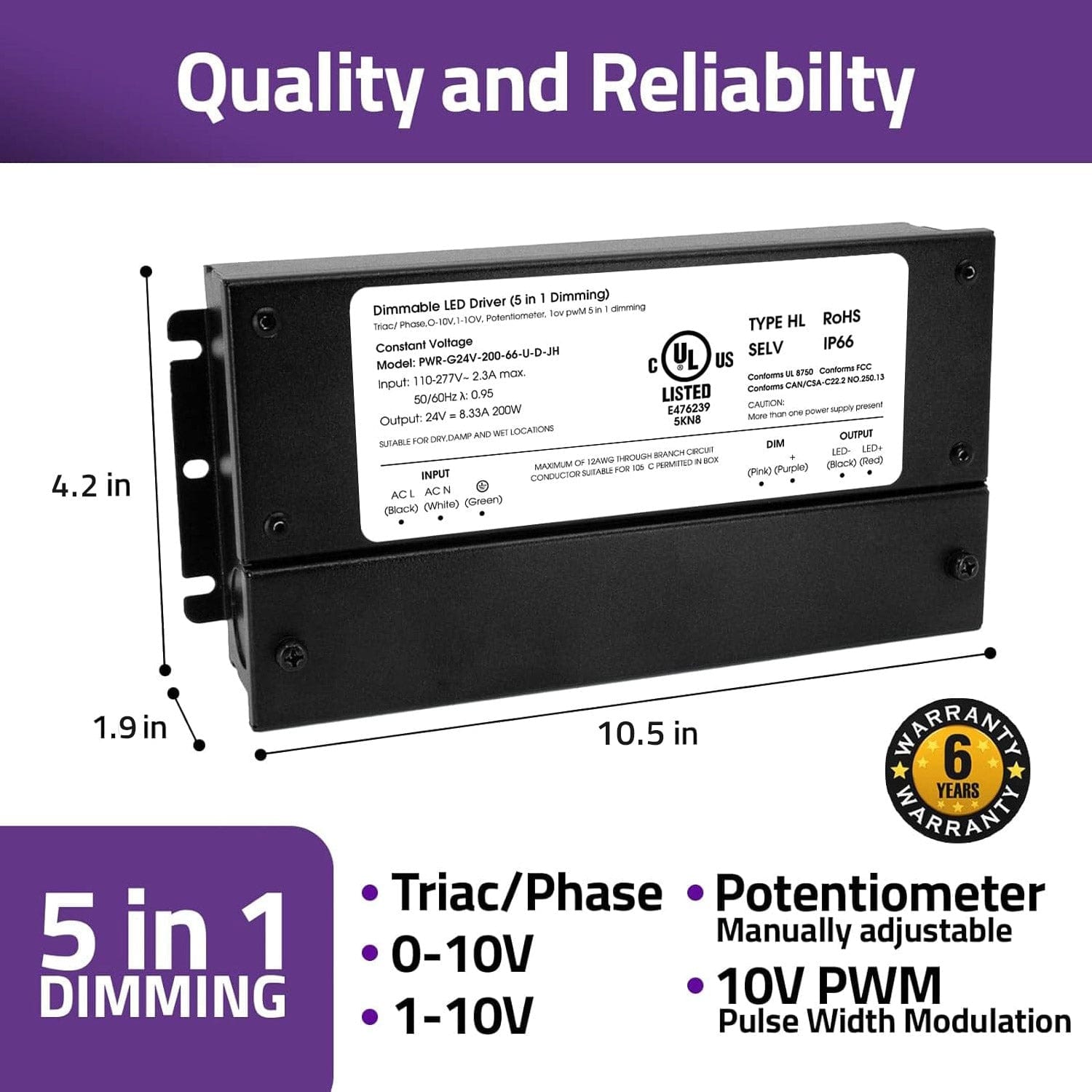

  • Dimension: 10.5 x 4.2 x 1.9 inches (260.6 x 106 x 49mm)
  • Power Factor: 0.98 @ 120VAC
  • THD: ≤ 20% @ 120VAC
  • Minimum Load: ~10%
  • Protections: Short circuit, overload, over temperature
  • IP Rating: IP-66
  • Certifications : UL Listed
  • Connection Type: Bare wire connection and knockouts
  • Efficiency: ≥88% @ 120VAC
  • In-Rush Current: 120V-15A, 50%, 1.4ms
  • Leakage Current: <0.50mA @ 120VAC
  • Dimming Range: 0-100
  • Working Humidity: 20～95%RH, non-condensing
  • Working Temp: -40°C to +60°C
  • Warranty: 6 years
SKU Input
Output
Wattage Weight
 PWR-G12V-200-66-U-D-JH 120V AC 12V DC 200W 3.7 lbs
 PWR-G12V-300-66-U-D-JH 120V AC 12V DC 300W 4.8 lbs
 PWR-G24V-200-66-U-D-JH 120V AC 24V DC 200W 3.7 lbs
PWR-G24V-300-66-U-D-JH 120V AC 24V DC 300W 4.8 lbs



Certifications:

The input voltage is 120V AC.

The output is 12V DC at 300 watts (25 Amps).

The dimensions are 110.5 x 4.2 x 1.9 inches (260.6 x 106 x 49mm)

This driver works with Triac/Phase/MLV/ELV/0-10V/Potentiometer/10V PWM dimmers and is compatible with most AC wall dimmers, including popular brands like Lutron and Leviton, as well as many other household dimmers. It can be used for a variety of applications, including 12V LED Strip Lights, 12V Power Supply, LED modules, LED bulbs, and more.

Yes, this dimmable driver is rated IP 66 which is suitable for dry, damp and wet locations.

No, it only works with single color 12V LED strips.

The warranty of this unit is for 6 years.

Make sure to leave sufficient ventilation space around the driver and secure it properly before closing off the wall space.

SPEC SHEET

CERTIFICATION

UL Listing FKSZ.E476239
