Name: 24 Watt DC Power Supply (UL-Listed) - 12 Volt
Brand: HitLights
SKU: PWR-12V-024-30-U
Price: 11.97 USD
Availability: InStock

HitLights LED Light Strip Power Supplies and Batteries 24 Watt DC Power Supply (UL-Listed) - 12 Volt

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

UL Listed Power Supplies: Our UL-Listed 12V DC power supplies provide the power you need to light up your LED light strips or other low voltage devices by converting your 110-240V AC power to the 12V DC that LED strips run on. They're available in various power ratings, from 24 Watts to 96 Watts, and in various styles, from compact models that plug directly into your wall outlet to larger units capable of powering several rolls of strip.

Rated for 24W / 2A - enough to power one Premium Luma5 LED Light Strip - Standard Density. Dimmable with 12-volt single color PWM dimmers like the R110 Remote Dimmer and compatible with RGB controllers

EASY PLUG & PLAY INSTALLATION - Compact plug-in design. No electrician or wiring experience needed.

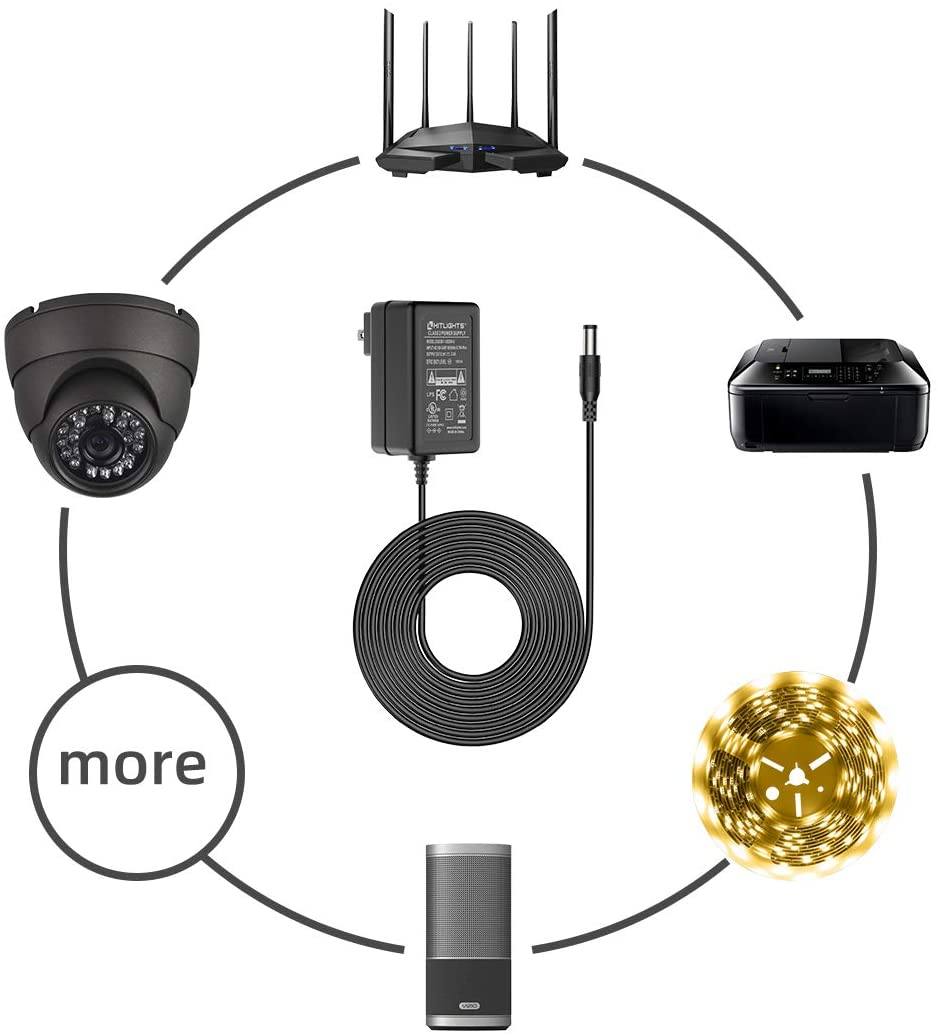

COMPATIBILITY WITH - 12V LED strip lights and other low voltage devices (CCTV Cameras, Radio, Mini Amplifiers, Routers, etc.)
UL Listed - tested and certified for safety and reliability.
SHIPPING DETAILS -

Standard Shipping (3-5 Days) - Shipping cutoff 3pm(PST).
FREE ground shipping (UPS or FedEx) on orders of $199 or more.

Input Voltage: 110V-240V AC - (Direct wall plug - standard North American NEMA 1)
Output Voltage: 12V DC / 24 Watts (2 Amps)

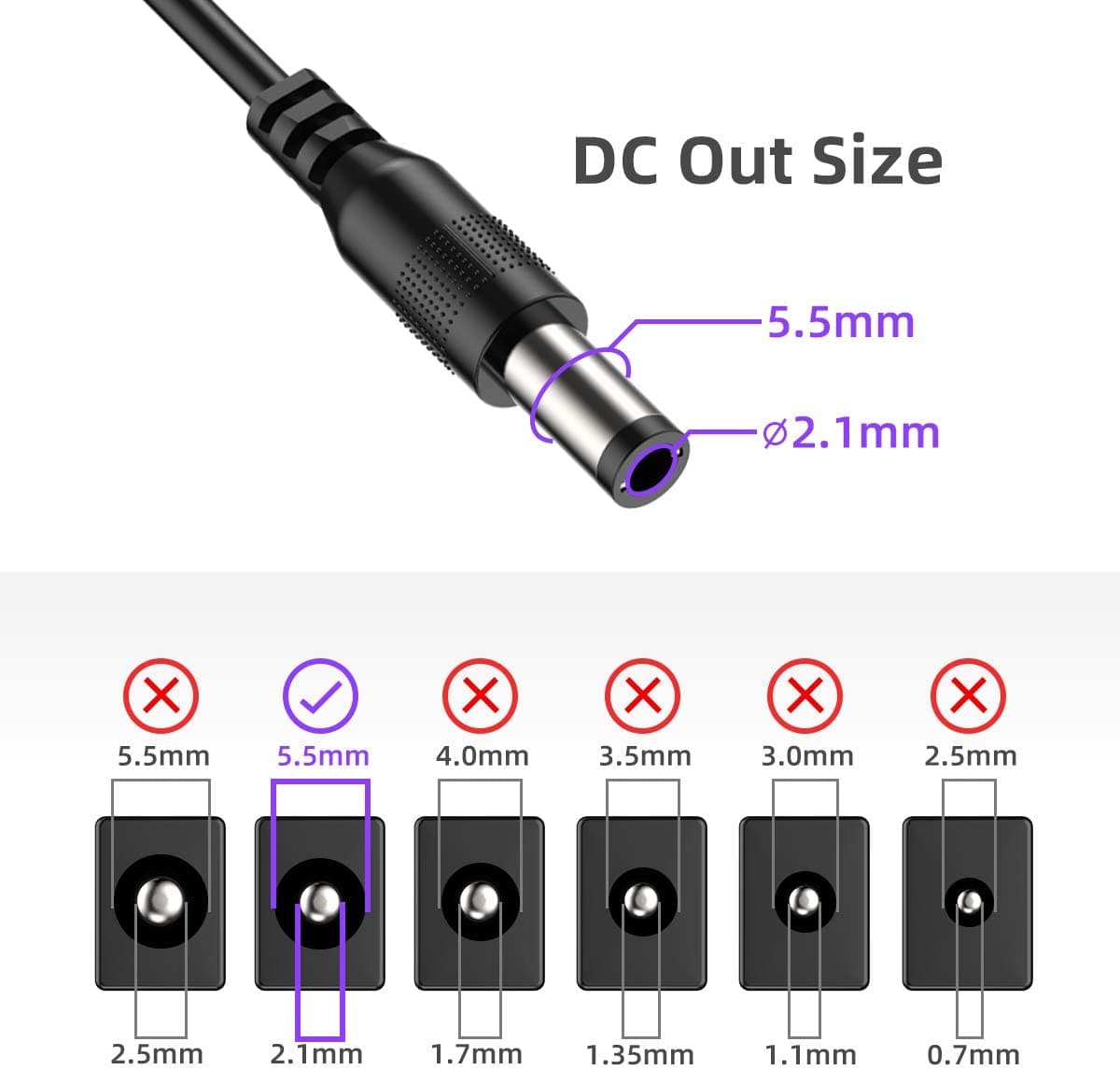

Cable Details: 4ft output cable with 5.5 x 2.1 mm DC jack
Dimensions: 86 x 48 x 33 mm (3-3/8 x 1-7/8 x 1-5/16 inches)

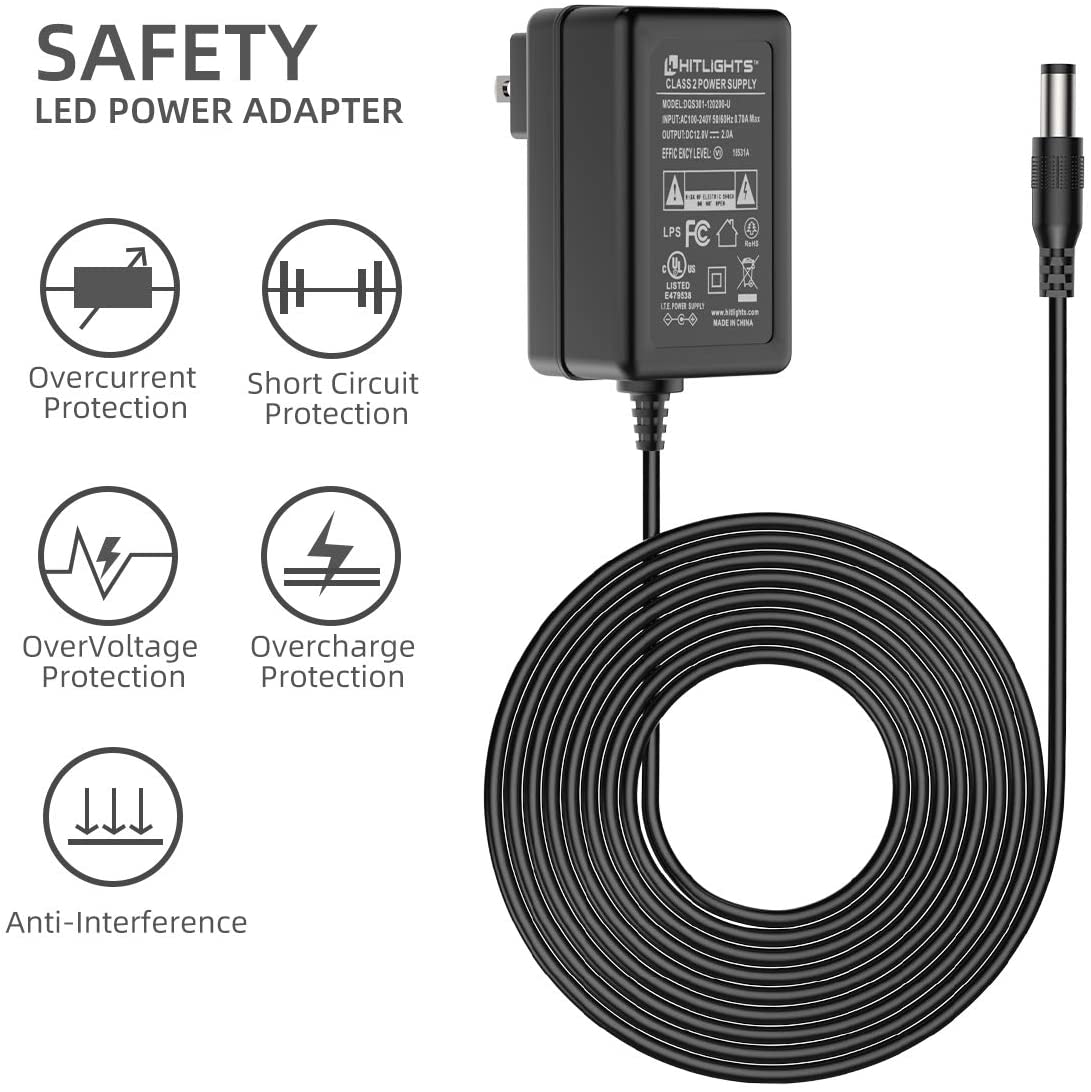

Protection: Short Circuit/Over Current
Certifications : UL Listed
Connection Type: Plug and use DC jack
Efficiency: 86 % (12VDC)
Frequency Range: 47-63Hz
Dimming: Non-dimmable on its own
IP Rating: IP30 Indoor use only
Warranty: 3 years
Part Number: TGC24-120200-05

SKU	Input	Output	Wattage	Connection Type
PWR-12V-024-30-U	110V-240V AC	12V DC	24W	DC jack
PWR-12V-060-30-U	110V-240V AC	12V DC	60W	DC jack
PWR-12V-096-30-U	110V-240V AC	12V DC	96W	DC jack
PWR-24V-060-30-U	110V-240V AC	24V DC	60W	DC jack
PWR-24V-096-30-U	110V-240V AC	24V DC	96W	DC jack
PWR-24V-120-30-U	110V-240V AC	24V DC	120W	DC jack

Certifications:

What is the input voltage for this low voltage transformer?

The input voltage range is 110V-240V AC. It can handle both 110V and 240V AC.

What type of plug does this power supply have?

It has a standard North American NEMA 1 plug for directly plugging into wall outlets.

What are the dimensions of this 24W, 12V non-dimmable driver?

The dimensions are 86 x 48 x 33 mm (3-3/8 x 1-7/8 x 1-5/16 inches)

What devices can I use this power supply for?

It can power 12V LED strip lights, LED controllers, and other 12V DC low voltage devices like CCTV cameras, mini amplifiers, setup boxes, speakers, etc

Does this require any wiring?

No, it is plug and play. Just connect the DC jack to your lights.

Can this power supply be used outdoors?

No, it is for indoor use only. An outdoor rated power supply would be required for outdoor use.

How long is the warranty of this power supply?

This power supply comes with a 3 year warranty from HitLights.

Does this power supply work with RGB/RGBW LED strips?

Yes, as long as the RGB/RGBW LED strips are 12V rated and it is best paired with an RGB/ RGBW controller to control your lights.

CERTIFICATION

UL Listing FKSZ.E476239

VIDEO

https://youtu.be/SPWqYcSLSKI

Works fine. Does not power one roll of ribbon.

Great Service!

Had my power supply die on me but HitLights 5 year warranty saved the day. Reached out, explained my situation, and a new one was shipped just like that. Best customer service I have had in a long time. Thanks again!

I haven’t used them yet so I cannot write a review at this time

Excellent power supply

Excellent power supply. Switching power supply suffers from lots of noise, spikes, fluctuations, you name it. This one passed the test. Compare to a noise power supply, this one is clean.

Useful replacement.

Bought as a replacement for a missing adaptor. Seems fine - a good value compared to having to rebuy the whole product. Suggest using it with a power strip with a surge protector. Be sure to get the right adaptor though
