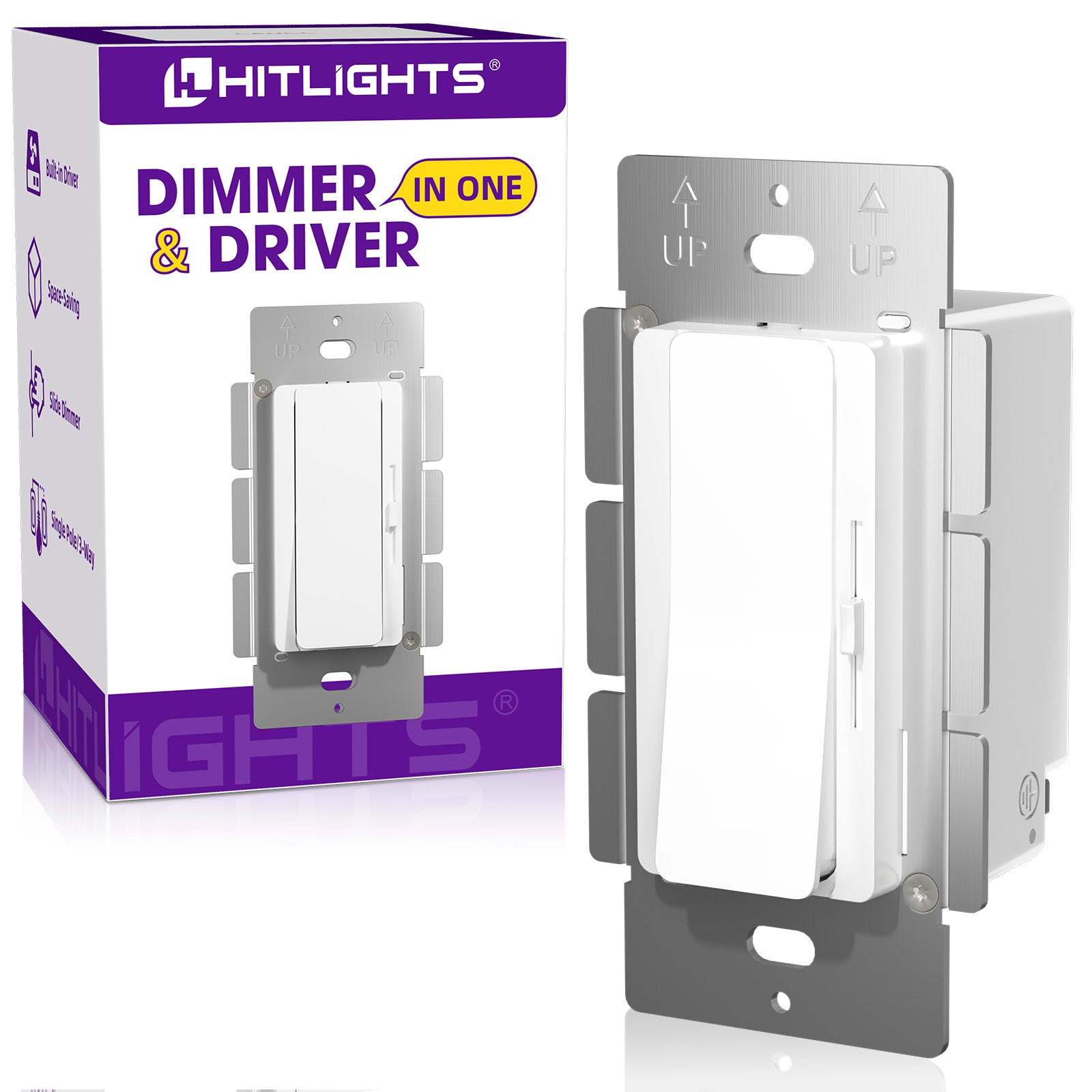

Name: 24 Volt EZDim® Pro Dimmer & Driver Switch - 160Watt
Brand: HitLights
SKU: SWX-24V-160-30-DIM
Price: 135.75 USD
Availability: InStock

24 Volt EZDim® Pro Dimmer & Driver Switch - 160Watt

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

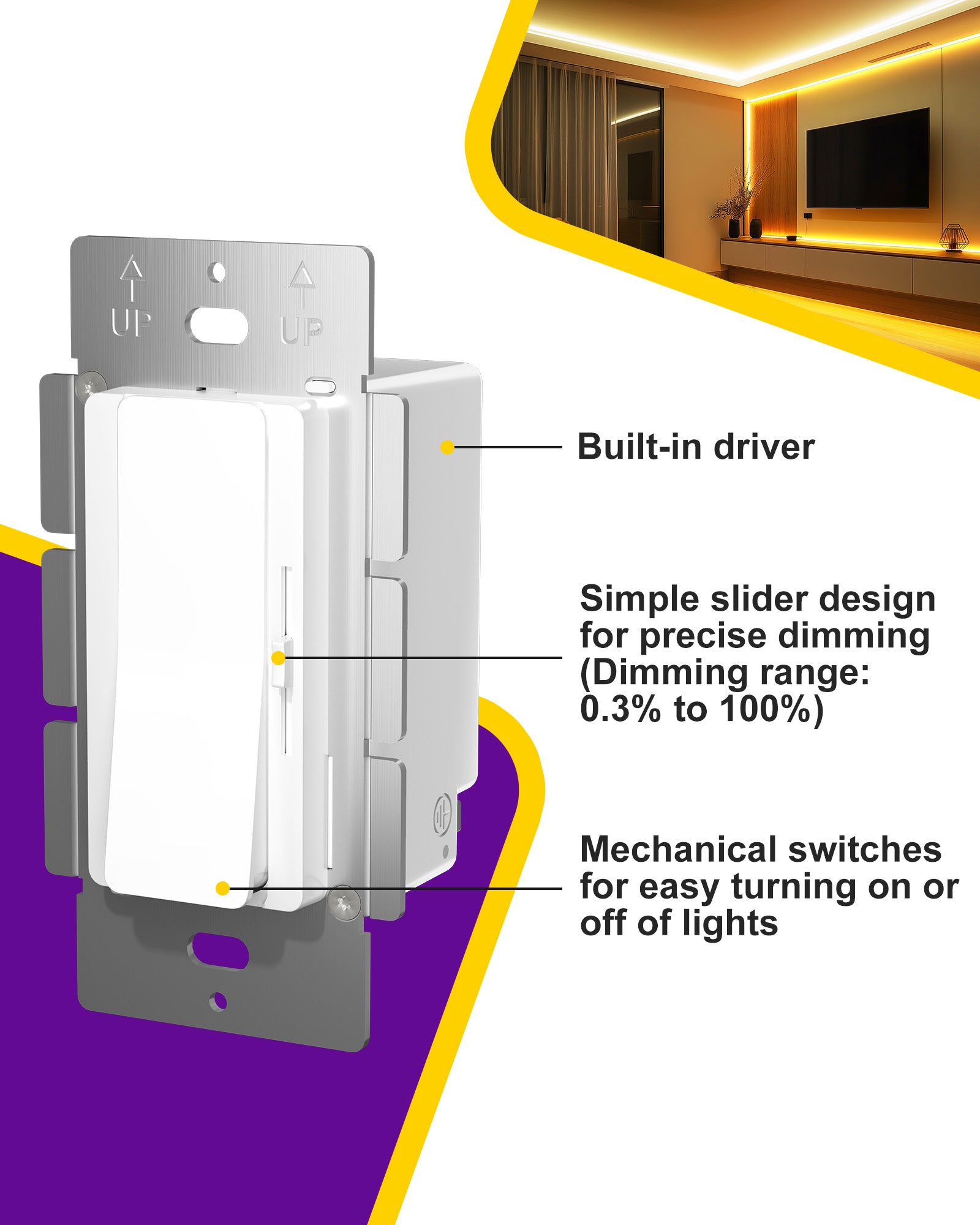

EZDim Pro: EZDim Pro is a faster, cleaner, more professional solution combining an in-wall LED dimmer switch and power supply into a single integrated unit. It features a familiar design with a 10% dimming slider and a 90% on/off toggle button for intuitive use. EZDim Pro fits standard in-wall switch boxes, accepts 120V AC, and converts it to low-voltage DC. Perfectly compatible with HitLights 24V LED strip lights, it supports both single-pole and 3-way switch configurations, offering premium performance at a competitive price point.

Integrated driver + dimmer eliminates compatibility issues.
Fits in a standard recessed electrical box

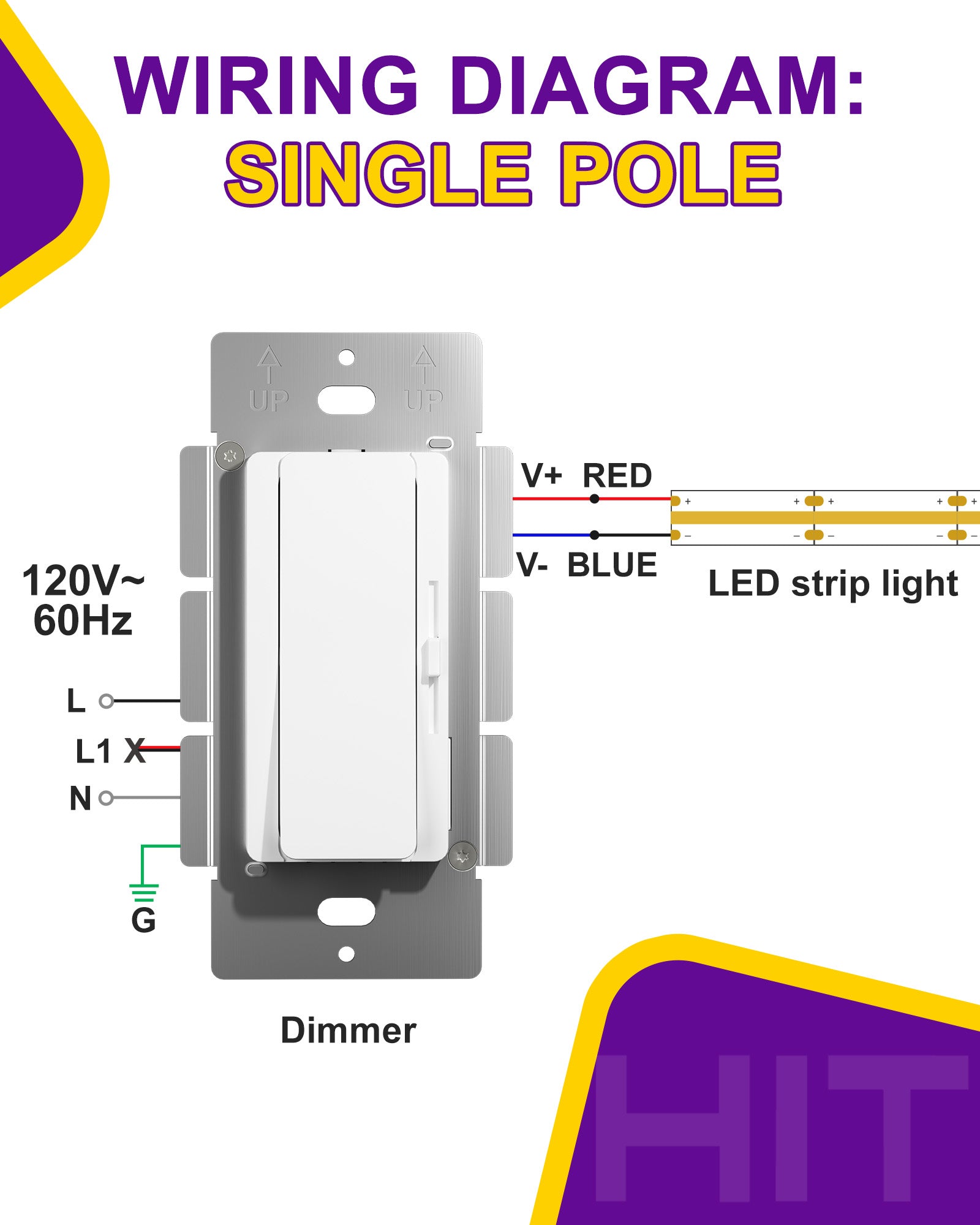

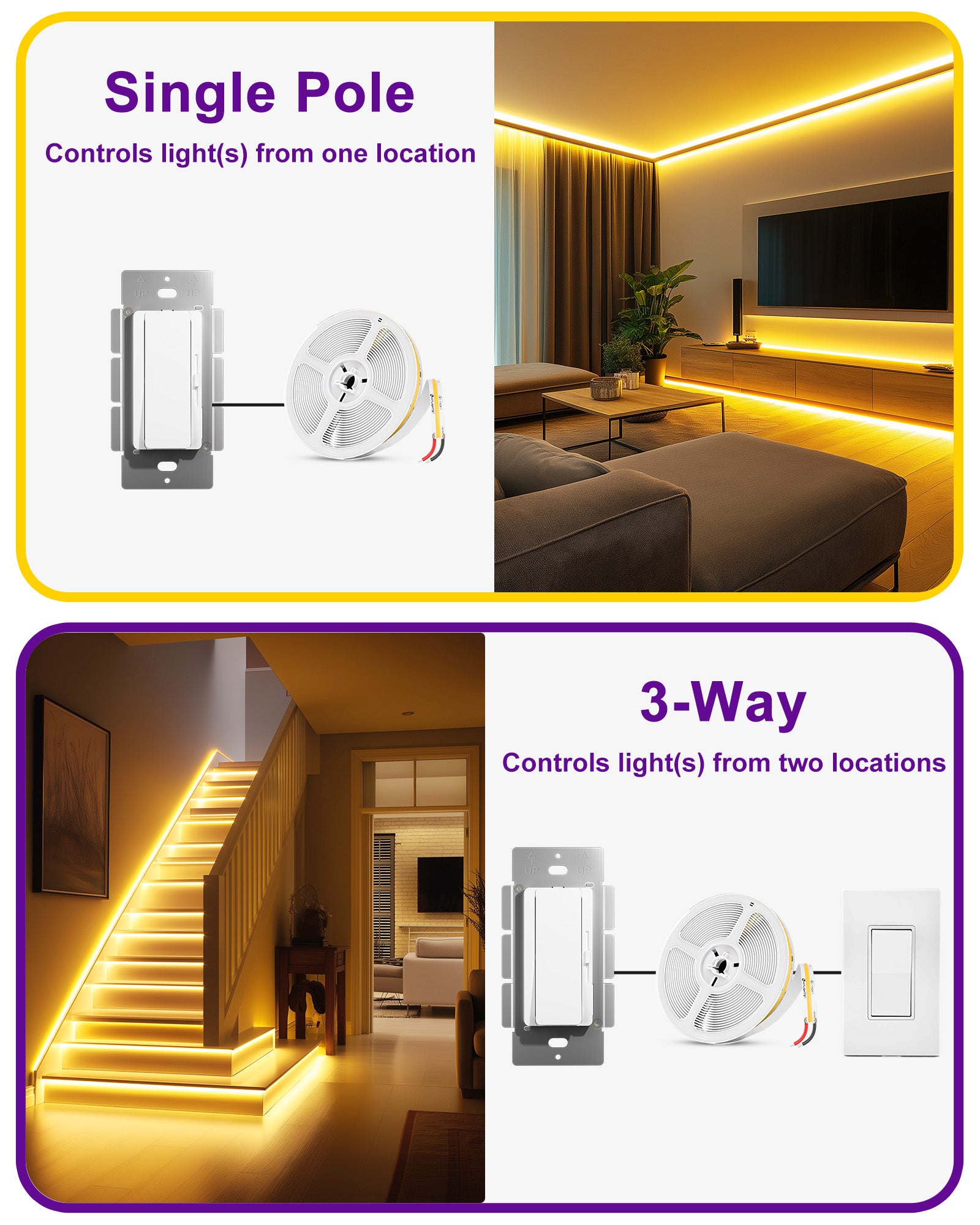

Compatible with 3-way switches.
One of the most affordable premium combo units in the market.
Power failure memory: If power is interrupted, EZDim will return to the setting before the interruption

SIMPLIFIED INSTALLATION: Combines LED power conversion and dimming control into a single device, simplifying installation and reducing compatibility issues.
ULTRA SMOOTH DIMMING: Precision dimming performance perfect for residential and commercial environments. Dims from 100% full power to lowest power 0.3% perfect for ambient or mood lighting. Toggle the switch to turn on/off.

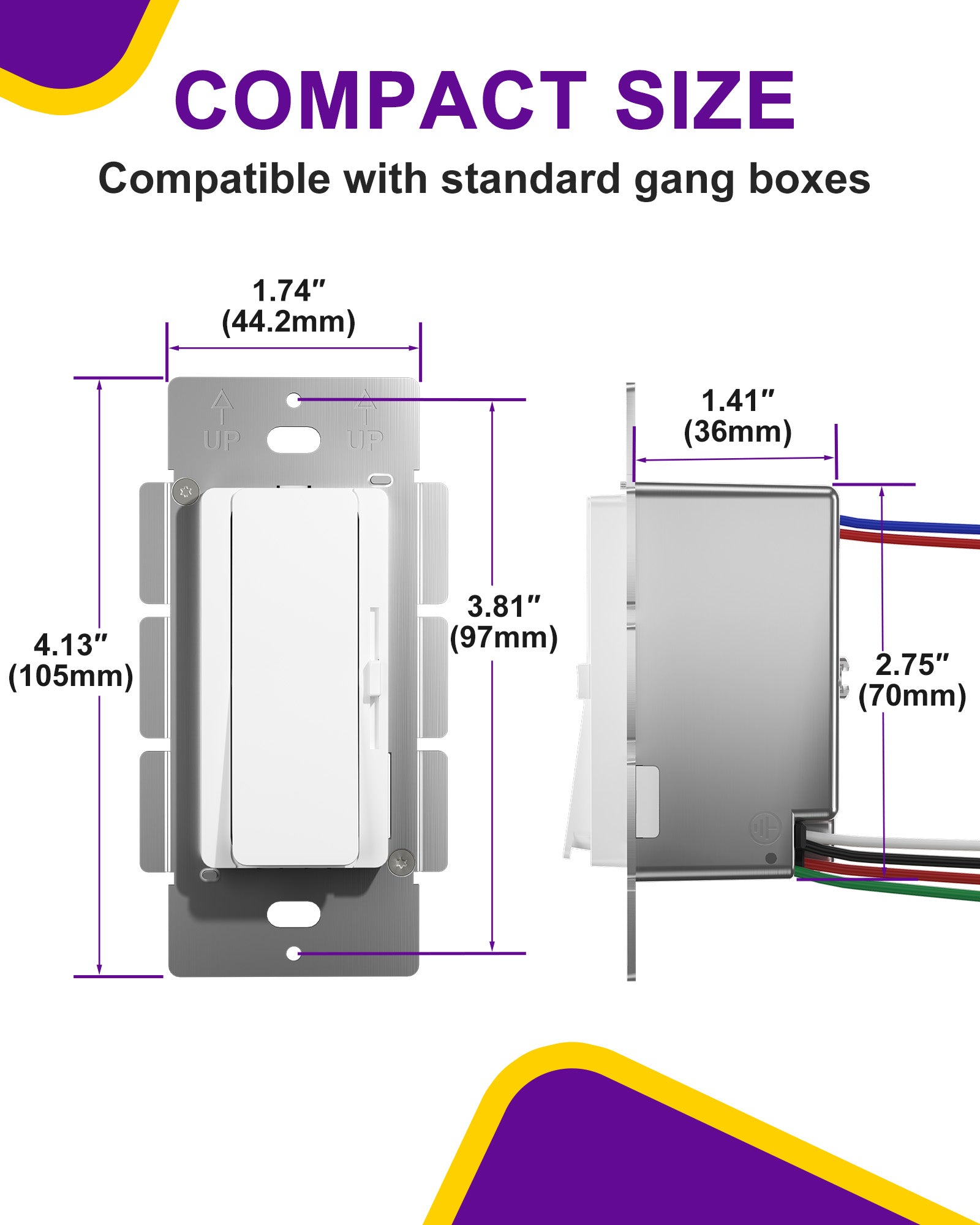

COMPACT DESIGN: Installs into a standard gang box with optional removable fins for multi-gang installations.
CODE COMPLIANT & SAFE: Includes voltage partition for separating Class 1 and Class 2 wiring; meets UL and NEC standards.
SHIPPING DETAILS:

Standard Shipping (3-5 Days) - Shipping cutoff 3pm(PST).
FREE ground shipping (UPS or FedEx) on orders of $199 or more.

Input Voltage: 120VAC (108 ~ 132VAC), 50/60Hz (47 ~ 63Hz)
Output Voltage: 24V DC, 160 Watts (6.67 Amps)
Dimension: 4.13 x 2.13 x 2.04 Inches
Weight: 0.55 Lbs
Power Factor: >0.99 @ 120VAC max load.
THD: ≤10% @ 120VAC 60Hz max load. Tested to comply in accordance with IEC 61000-3-2
Dimming Performance: (100% – 0.3%)
Protections: Short circuit protection, over-current protection, over voltage protection,low-voltage protection, and auto-recovery mode.
Temperature Rating: -20°C to 45°C
Connection Type: Hard-Wired
Efficiency: ≥94.5% @ 120VAC max load
In-Rush Current: 54A, 290us@50%Ipeak
Leakage Current: <.05mA @ 120VAC
Surge/Transient: Tested to meet transients defined in IEC 6100-4-4, level 3 & IEC 6100-4-5, level 3
Dimming: Output voltage is adjustable via sliding lever
Humidity: 20 ~ 95% relative humidity, non-condensing
IP Rating: IP30 Dry Location
Warranty: 6 years
Certifications : UL Listed, FCC, Class 2, Class P, RoHS, Reach

SKU	LEDS/m	Output	Wattage	Class 2
SWX-12V-060-30-DIM	120V AC	12V DC	60W	Yes
SWX-12V-120-30-DIM	120V AC	12V DC	120W	Yes
SWX-24V-60-30-DIM	120V AC	24V DC	60W	Yes
SWX-24V-100-30-DIM	120V AC	24V DC	100W	Yes
SWX-24V-160-30-DIM	120V AC	24V DC	160W	Yes

Certifications:

What is the EZDim Pro Driver and Dimmer Switch?

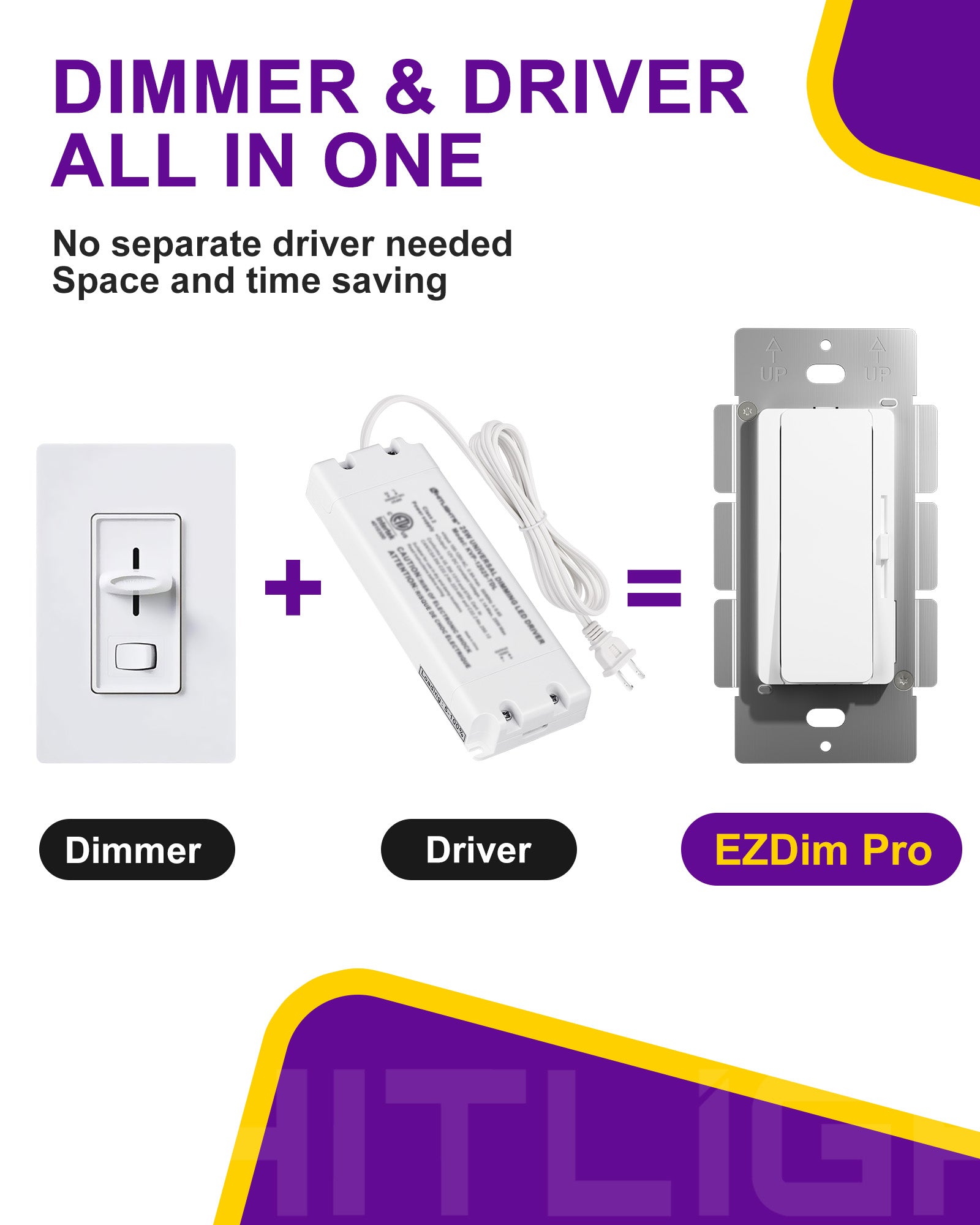

The EZDim Pro is an all-in-one dimmable LED driver and dimmer switch that provides both power and dimming control for low voltage LED lighting. It combines a dimmer switch and LED driver into a single unit that fits into a standard electrical box.

Can this replace both the driver and wall dimmer?

Yes. It’s a 2-in-1 that integrates both components into a single Class 2 certified unit.

What voltage does the EZDim Pro output?

The 24V version outputs 24V DC power to run 24V LED lighting. There is also a 21V version available.

How much power does the 160W model provide?

The 160W EZDim® model provides up to 160 watts (6.67 amps) of 24V DC power to LED lighting. However, it is best to use up to 80% of the driver capacity only for longevity.

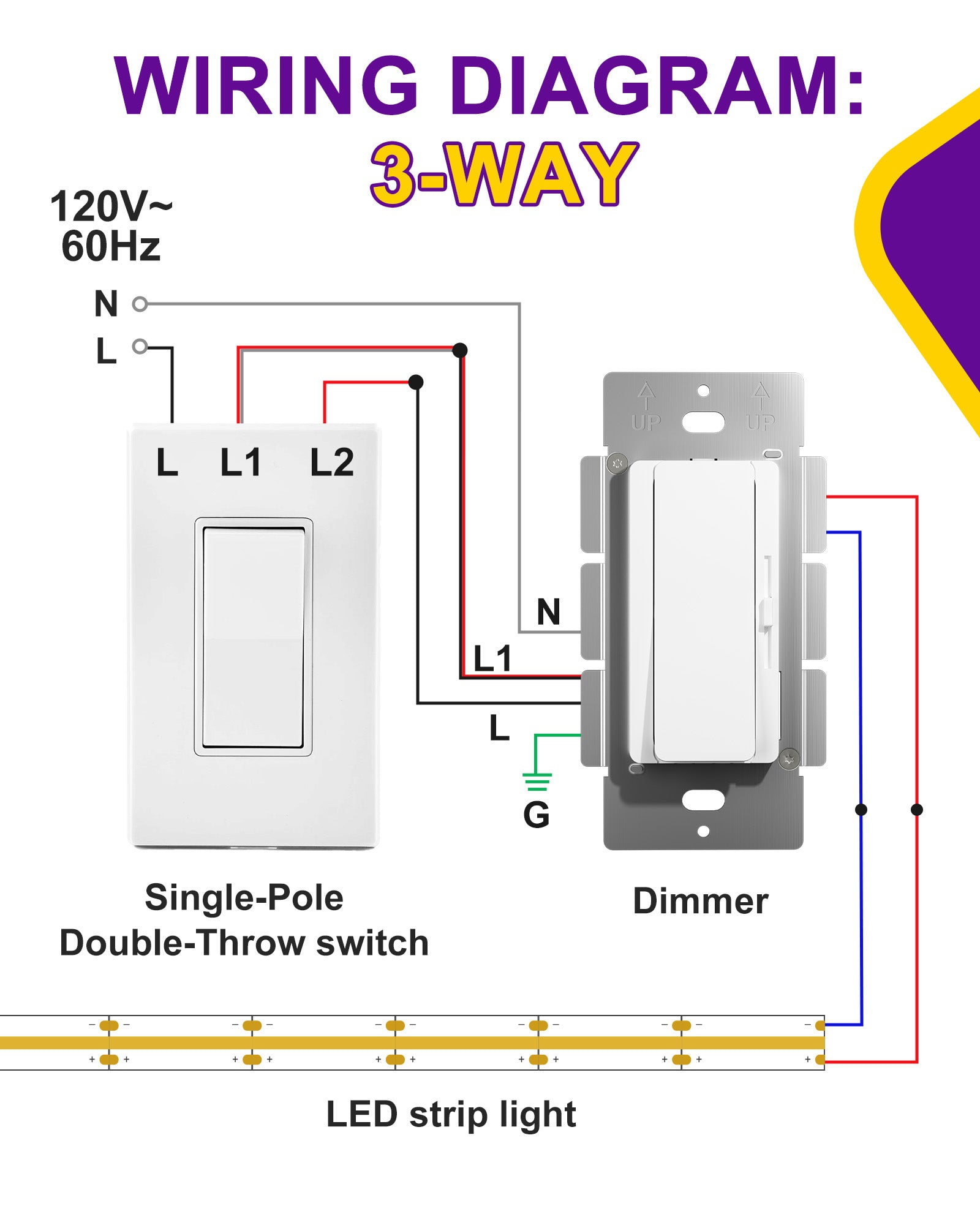

Is it compatible with 3-way switch wiring?

Yes. The EZDim Pro supports 3-way dimming control with compatible wiring.

Can I put this be used outdoors?

No, since this is IP30 rated it is for indoor use only.

Will this work with the LED strips I already use?

If they are constant voltage single-color strips, yes. It won’t work with RGB, RGBW, or addressable strips, but for most standard applications, it’s plug-and-play.

How long is the warranty?

The warranty of this unit is for 6 years.

Does the EZDim Pro require a neutral wire?

Yes, the EZDim® requires a neutral connection in addition to line and load wires. It will not work without a neutral.

What size electrical box does the EZDim Pro fit in?

The EZDim Pro is designed to fit into a single gang electrical box.

It the EZDim Pro dimmable?

Yes, the EZDim Pro allows you to dim your LED lighting from 100% down to 0.3% brightness. It uses PWM (pulse width modulation) dimming optimized for LED loads.

Is the EZDim Pro UL listed?

Yes, the EZDim® is UL listed and meets safety standards for use in the US and Canada.

DATA SHEET

24 Volt EZDim® Pro Driver and Dimmer Switch - 160 Watt Spec Sheet

CERTIFICATION

UL Listing FKSZ.E476239
