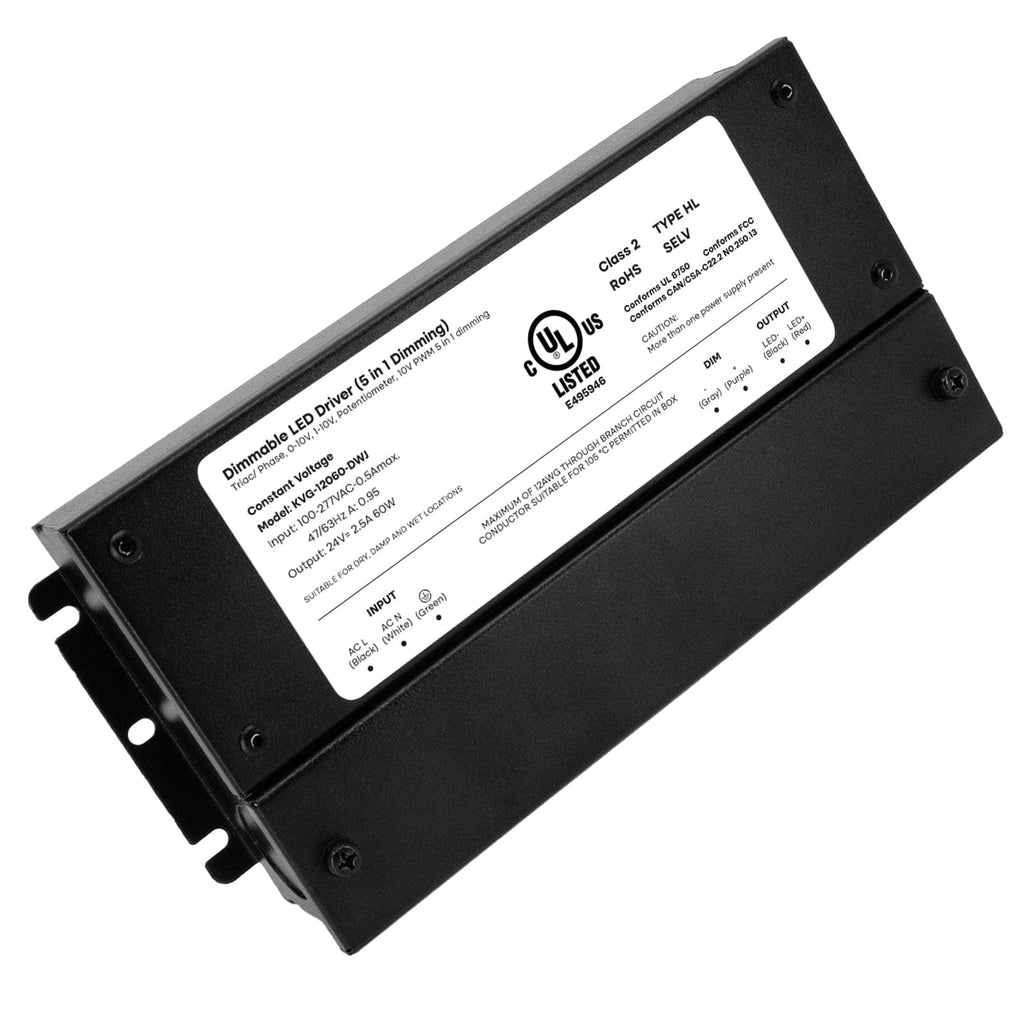

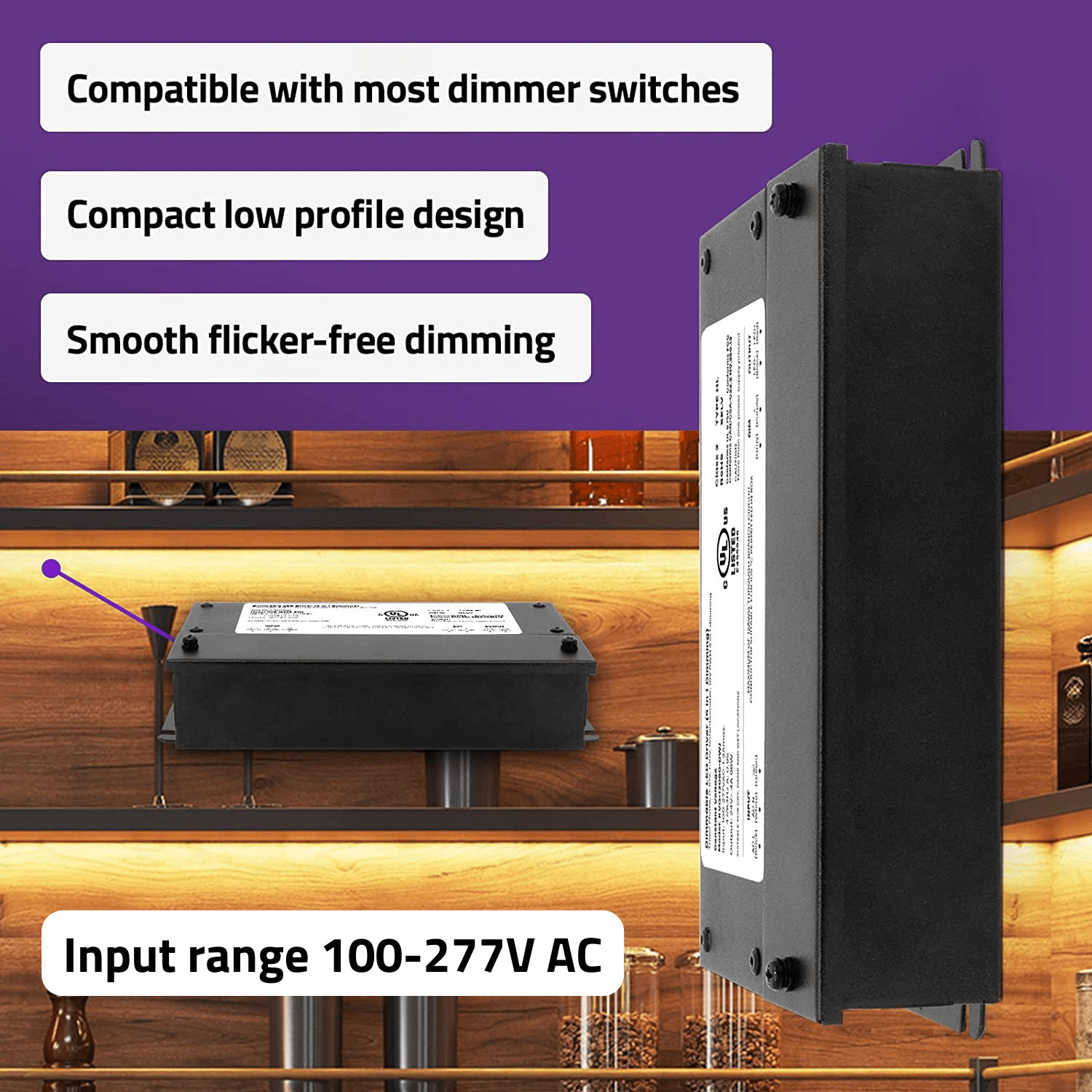

60W LED Dimmable Driver (Electronic, UL Listed) - 24 Volt

SKU: PWR-G24V-060-66-U-D-JH
No reviews
Price:
$72.50

American Express Apple Pay Diners Club Discover Google Pay Mastercard PayPal Shop Pay Visa

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

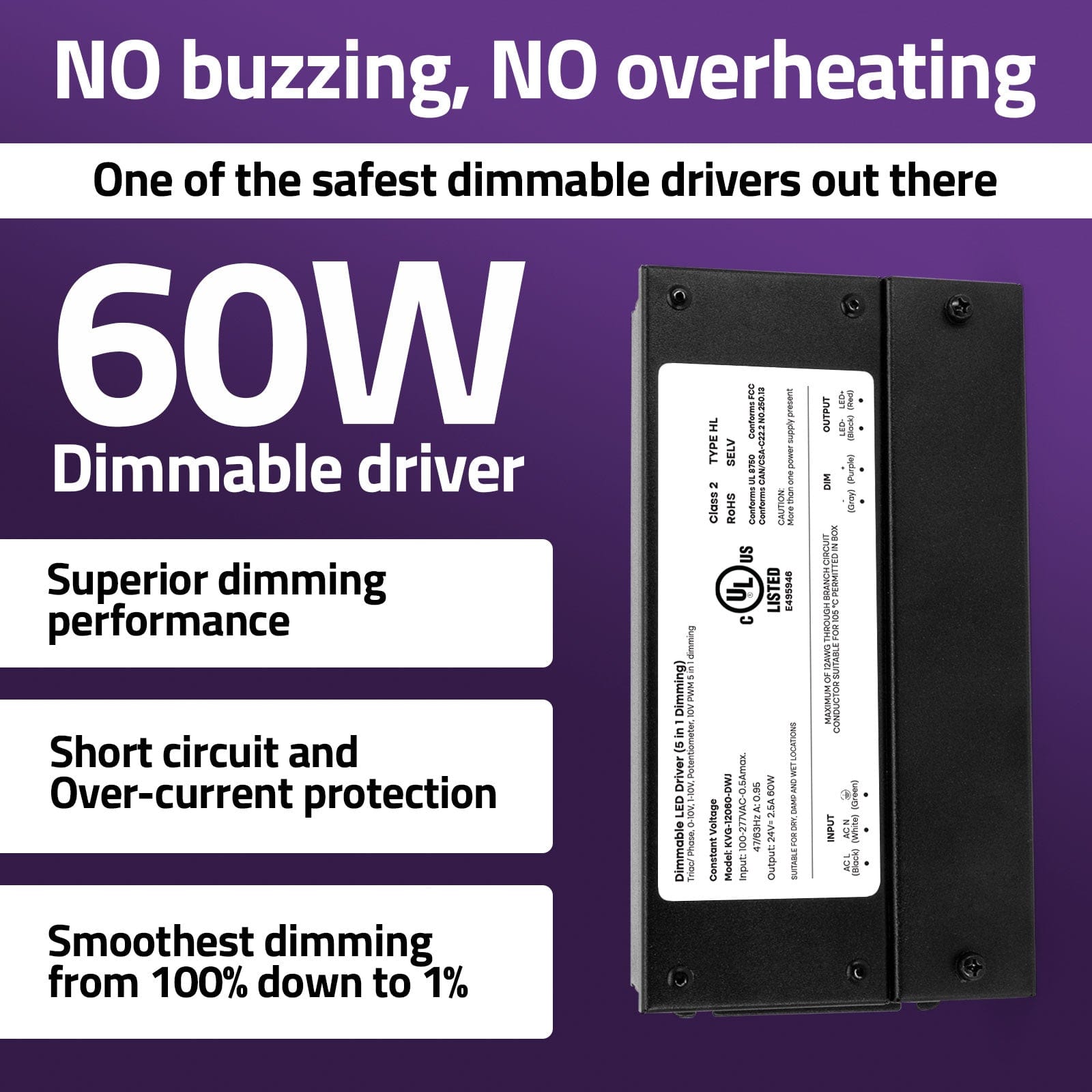

5-in-1 LED Dimmable Drivers: One of the safest 24V dimmable LED drivers out there - This dimmable driver comes with short circuit protection, over current protection, over-voltage protection, low-voltage protection, and auto-recovery mode. No buzzing noise, No overheating. This product is UL listed, meaning that it will automatically shut off if overloaded, preventing overheating and fire hazards caused by components exceeding their power ratings. Product is phase dimmable with Leading (Forward) Edge MLV TRIAC Dimmers.

SEAMLESS DIMMING - From ambient downlight to direct and indirect lighting. No buzzing noise and no over heating
5-IN-1 COMPATIBILITY - Compatible with 24V LED light strips, LED modules, LED bulbs, controllers, and other low voltage devices. Compatible with Lutron and Leviton dimmer switches
UL Listed, Class 2 - Independently tested and certified for safety.
SHIPPING DETAILS:
Standard Shipping (3-5 Days) - Shipping cutoff 3pm(PST).
FREE ground shipping (UPS or FedEx) on orders of $199 or more.

  • Input Voltage: 120VAC (108 ~ 132VAC), 47-63Hz
  • Output Voltage: 24V DC, 60 Watts (2.5 Amps)

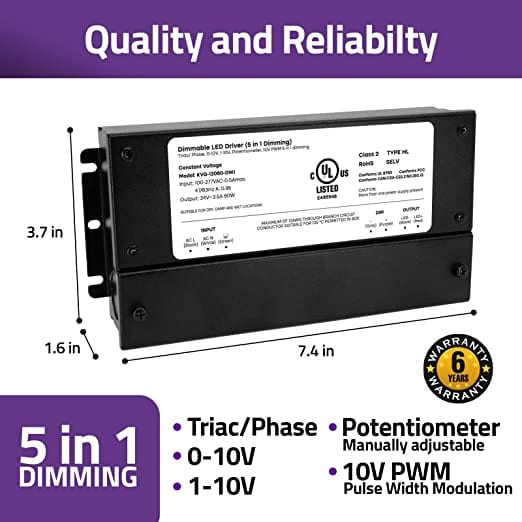

  • Dimension: 188 x 94.5 x 40mm ( 7.40x 3.72 x1.57  inches)
  • Protection: Short circuit protection, over current protection, over-voltage protection, low-voltage protection, and auto-recovery mode
  • Housing: Aluminum
  • IP Rating: IP-66
  • Connection Type: Bare wire connections and knockouts
  • Efficiency: >86% (24VDC)
  • Dimming Range: 0-100%
  • Power Factor: >98%
  • Minimum Load: ~10%
  • Warranty: 6 years
  • Certifications : UL Listed, Class 2
SKU Input
Output
Wattage Weight
 PWR-G24V-060-66-U-D-JH 100-277V AC 24V DC 60W 2.48 lbs
 PWR-G24V-096-66-U-D-JH 100-277V AC
 24V DC 96W 3 lbs



Certifications:

The input voltage is 120V AC.

The output is 24V DC at 60 Watts (2.5 Amps)

The dimensions are 188 x 94.5 x 40mm ( 7.40x 3.72 x1.57 inches)

This driver works with Triac/Phase/MLV/ELV/0-10V/Potentiometer/10V PWM dimmers and is compatible with most AC wall dimmers, including popular brands like Lutron and Leviton, as well as many other household dimmers. It can be used for a variety of applications, including 24V LED Strip Lights, 24V Power Supply, LED modules, LED bulbs, and more.

Connect the black wire to live, white to neutral, green to ground. Red output to positive, blue to negative of the LED strip.

Yes, this dimmable driver is rated IP 66 which is suitable for dry, damp and wet locations.

The warranty of this unit is for 6 years.

No, it only works with single color 24V LED strips.

SPEC SHEET

CERTIFICATION

COMPATIBILITY LIST

INSTALLATION GUIDE
