Name: 24 Volt EZDim® Driver and Dimmer Switch - 100 Watt
Brand: HitLights
SKU: SWX-24V-100-30-U
Price: 151.97 USD
Availability: InStock

HitLights LED Light Strip Controllers and Dimmers 24 Volt EZDim® Driver and Dimmer Switch - 100 Watt

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

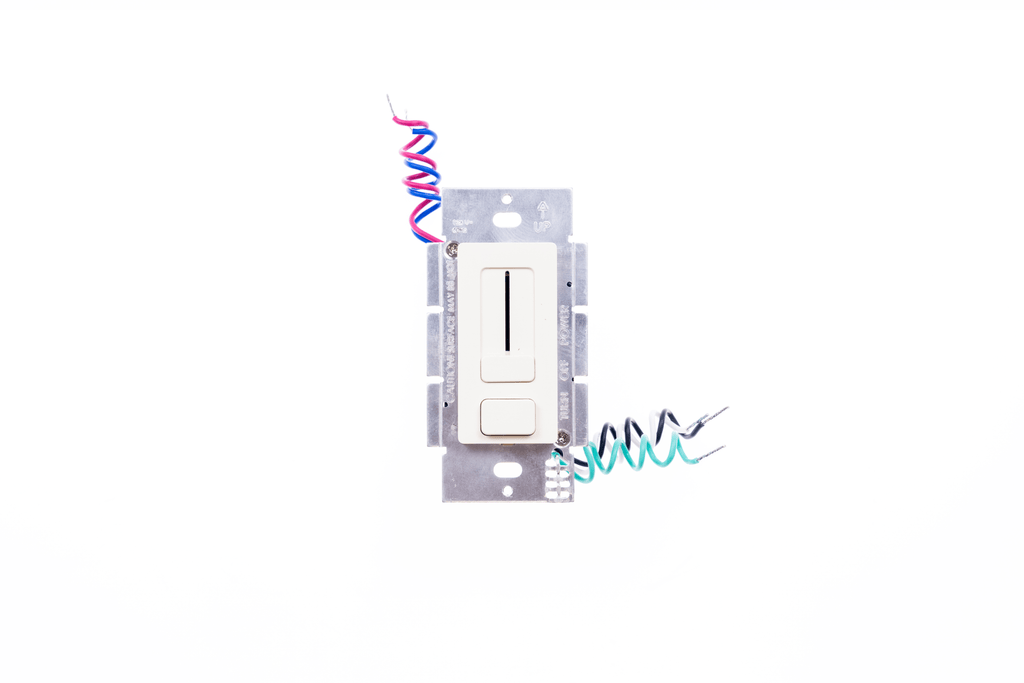

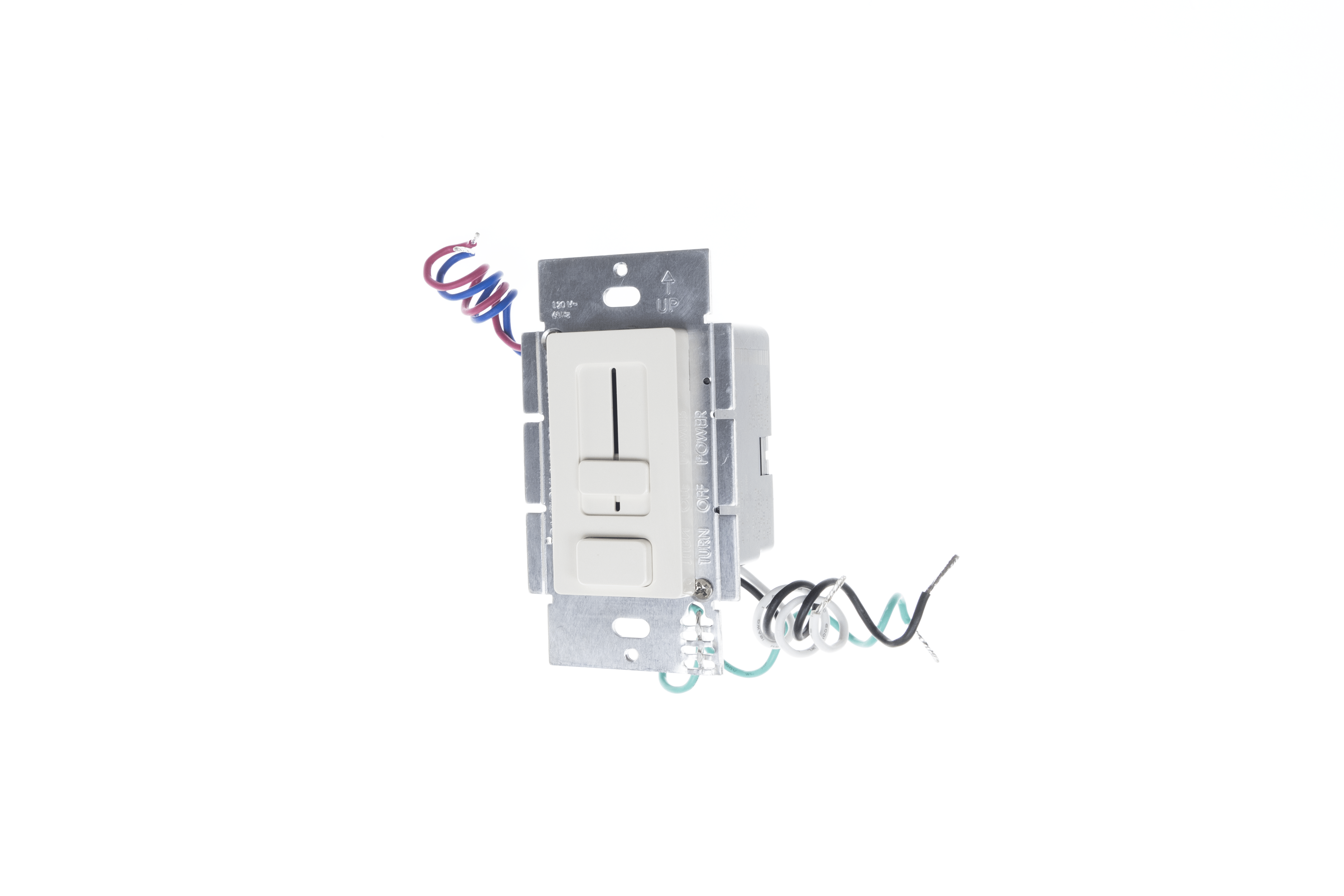

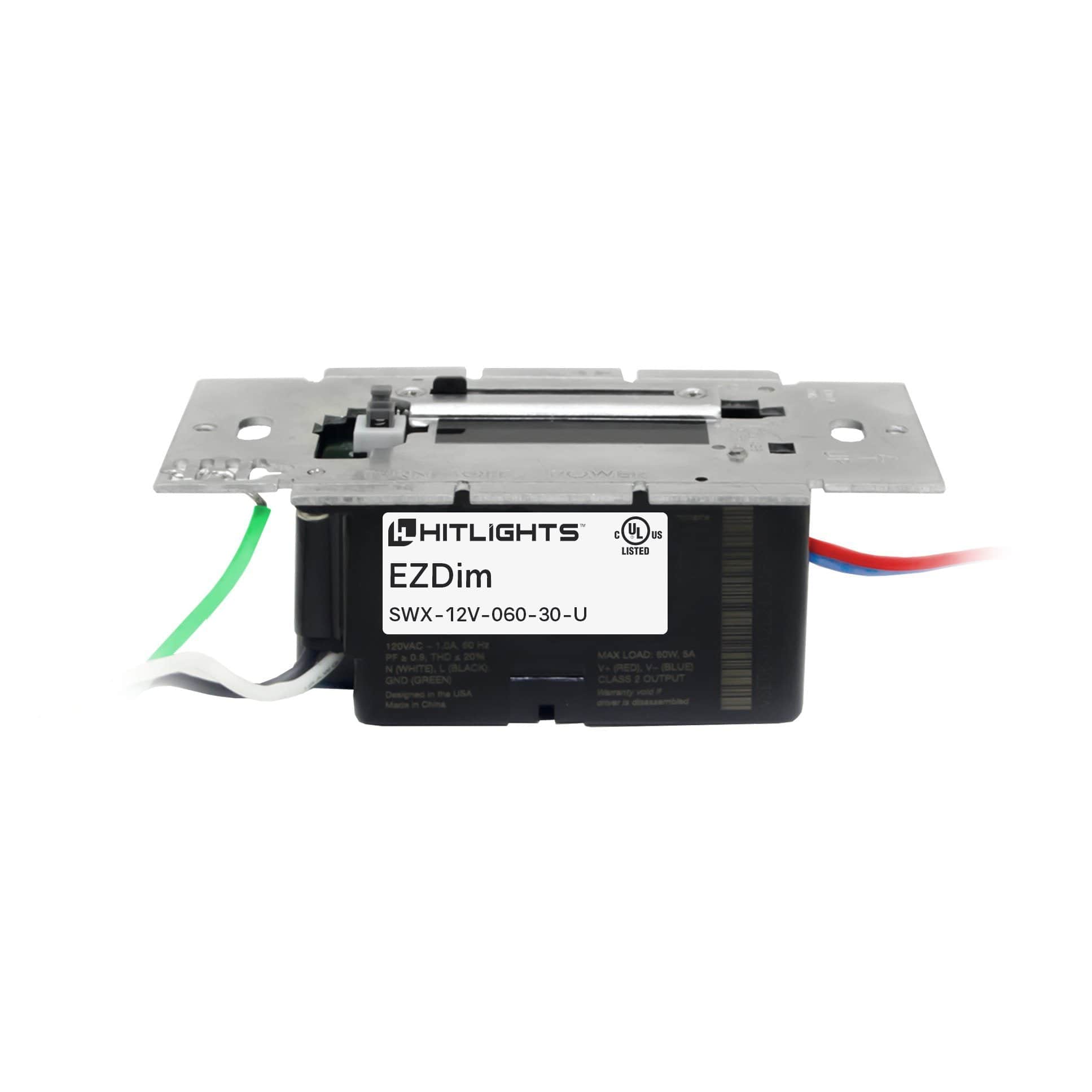

EZDim®: Combines an LED dimmer switch and low-voltage LED power supply into a single integrated unit. The EZDim Dimmer + Driver accepts 120 VAC and converts it to low-voltage DC, all within a standard electrical box. With power options up to 100W, it is a true evolutionary step forward for power and control of LED applications.

Preset dimmer with on/off switch
Fits in a standard recessed electrical box
No minimum load
No derating required when ganging units
Power failure memory: If power is interrupted, EZDim will return to the setting before the interruption

SIMPLIFIED INSTALLATION: EZDim® simplifies your installation by combining your dimmable driver and switch in one unit.
ELIMINATES COMPATIBILITY ISSUES: Integrating your LED driver and switch in one is all you need to power up and control your lights.
SUPERIOR LED DIMMING PERFORMANCE: This compact unit allows you to control your light from 100% – 10% dimming.
SHIPPING DETAILS:

Standard Shipping (3-5 Days) - Shipping cutoff 3pm(PST).
FREE ground shipping (UPS or FedEx) on orders of $199 or more.

Input Voltage: 120VAC (108 ~ 132VAC), 50/60Hz (47 ~ 63Hz)
Output Voltage: 24V DC, 60 Watts (2.5 Amps)

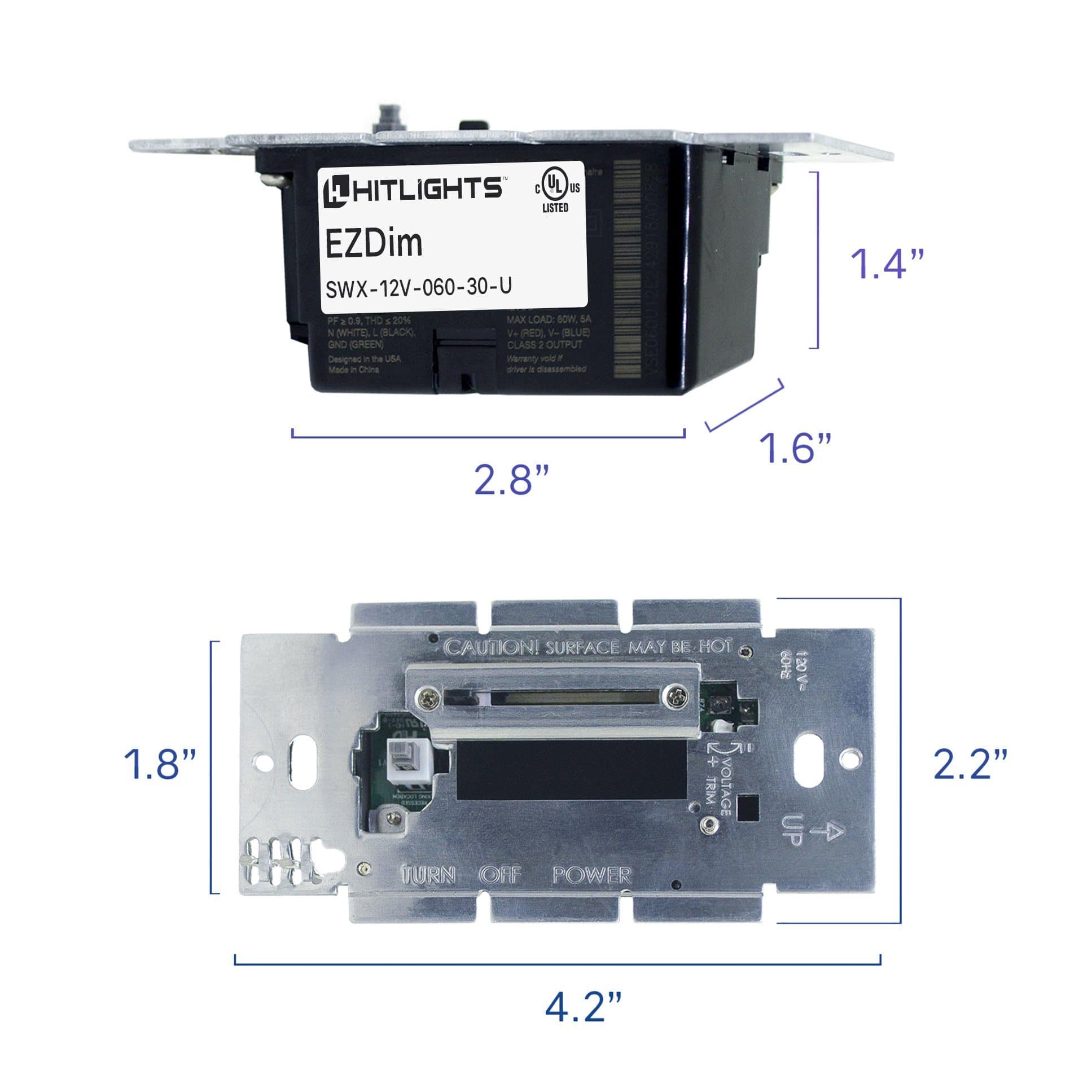

Dimension: 1.4 x 2.1 x 4.1 Inches
Power Factor: >0.9 @ 120VAC 60Hz max load.
THD: ≤20% @ 120VAC 60Hz max load. Tested to comply in accordance with IEC 61000-3-2
Stand-by Power: ≤0.5W
Dimming Performance: (100% – 5%)
Protections: Short circuit, thermal runway, and over voltage
Ambient Operating Temp: 0°C to 40°C
IP Rating: IP30 Dry Location
Certifications : FCC, UL Listed, Class 2

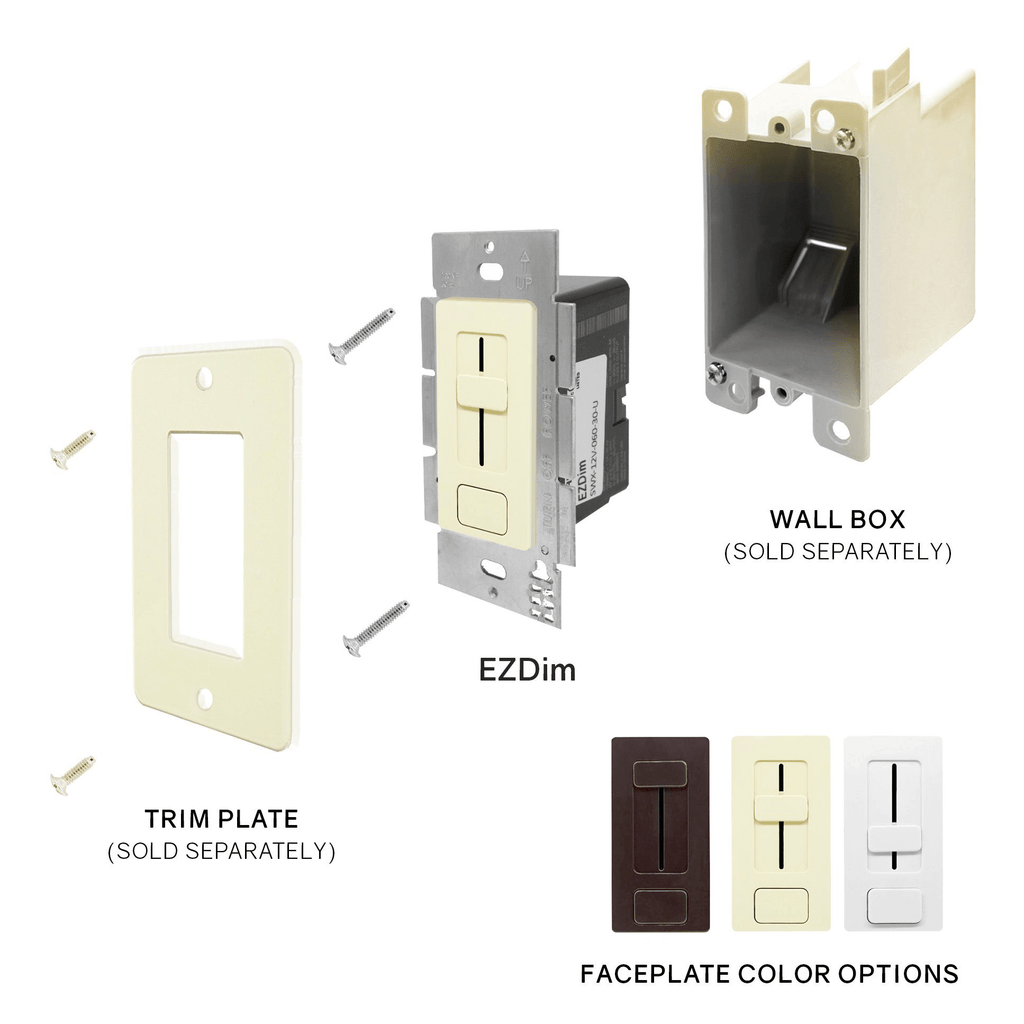

Included Face Plates: Glossy White, Glossy Light Almond and Glossy Dark Brown
Connection Type: Hard-Wired
Efficiency: ≥91% @ 120VAC max load
In-Rush Current: Meets NEMA-410 requirement at any nominal input full sine wave voltage and maximum load at 25°C
Leakage Current: <500μA @ 120VAC
Surge/Transient: Tested to meet transients defined in IEC 6100-4-4, level 3 & IEC 6100-4-5, level 3
Dimming: Output voltage is adjustable via sliding lever
Humidity: 8 ~ 90% relative humidity, non-condensing
Warranty: 6 years

SKU	Input	Output	Wattage	Class 2
SWX-12V-040-30-U	120V AC	12V DC	40W	Yes
SWX-12V-060-30-U	120V AC	12V DC	60W	Yes
SWX-24V-060-30-U	120V AC	24V DC	60W	Yes
SWX-24V-100-30-U	120V AC	24V DC	100W	Yes

Certifications:

What is the EZDim® Driver and Dimmer Switch?

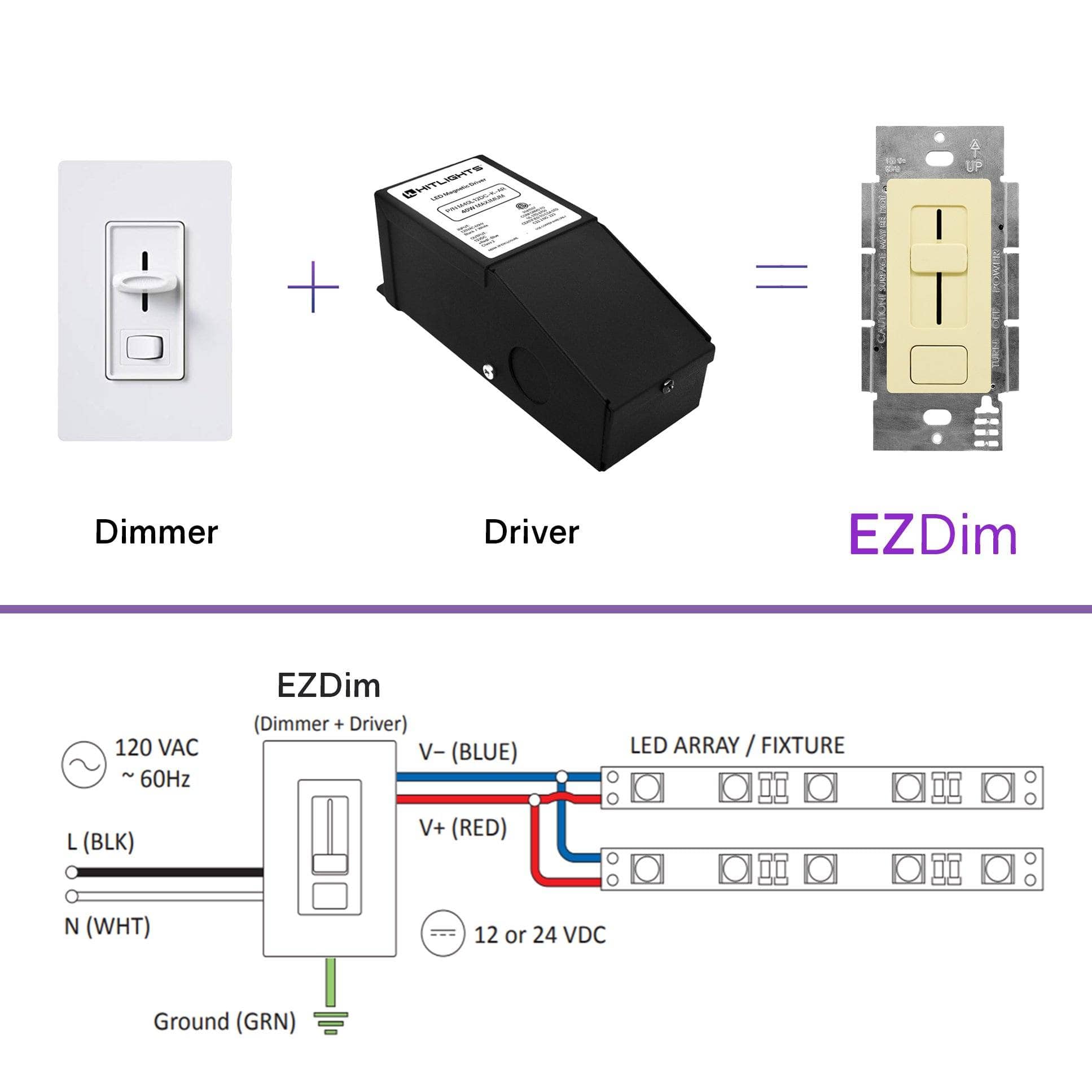

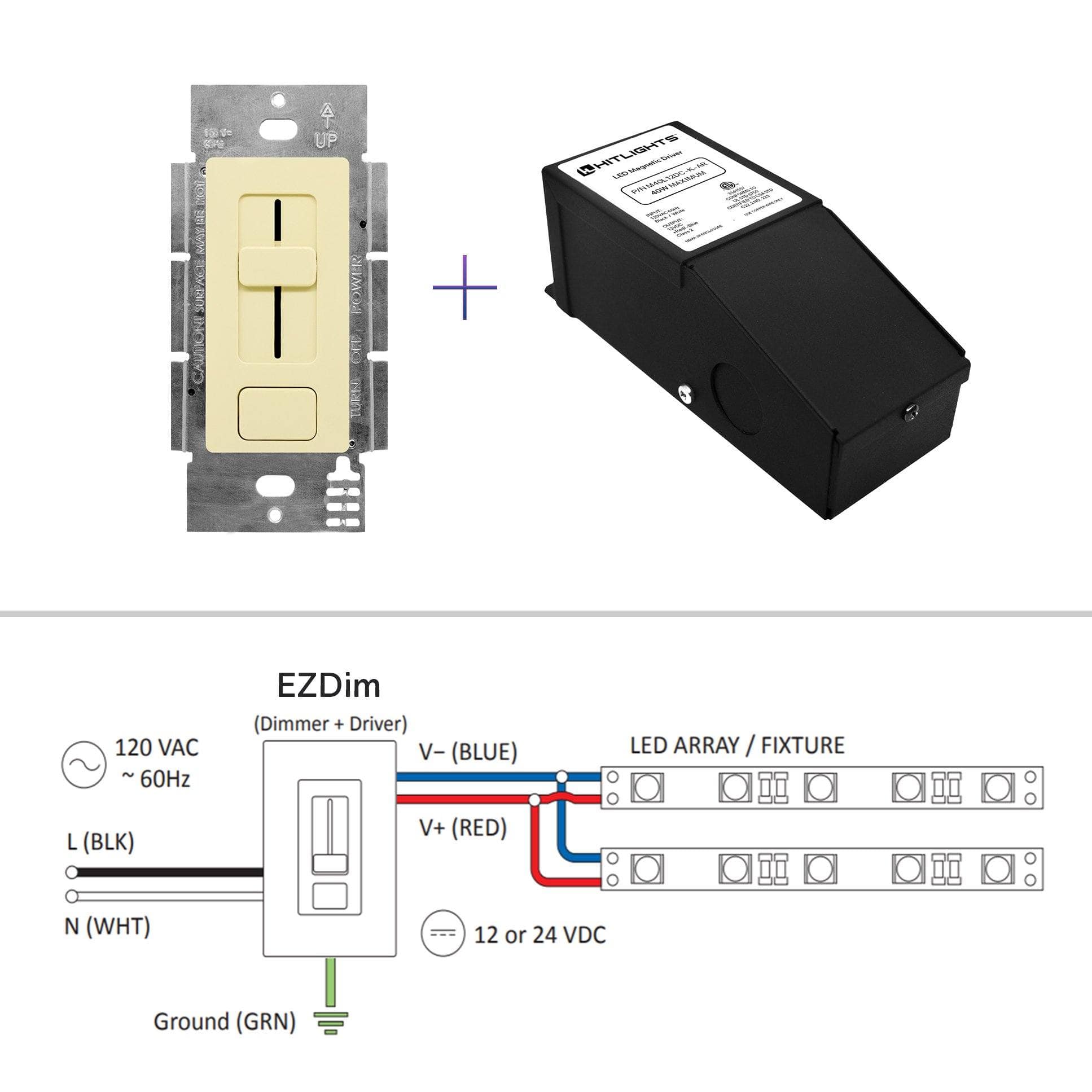

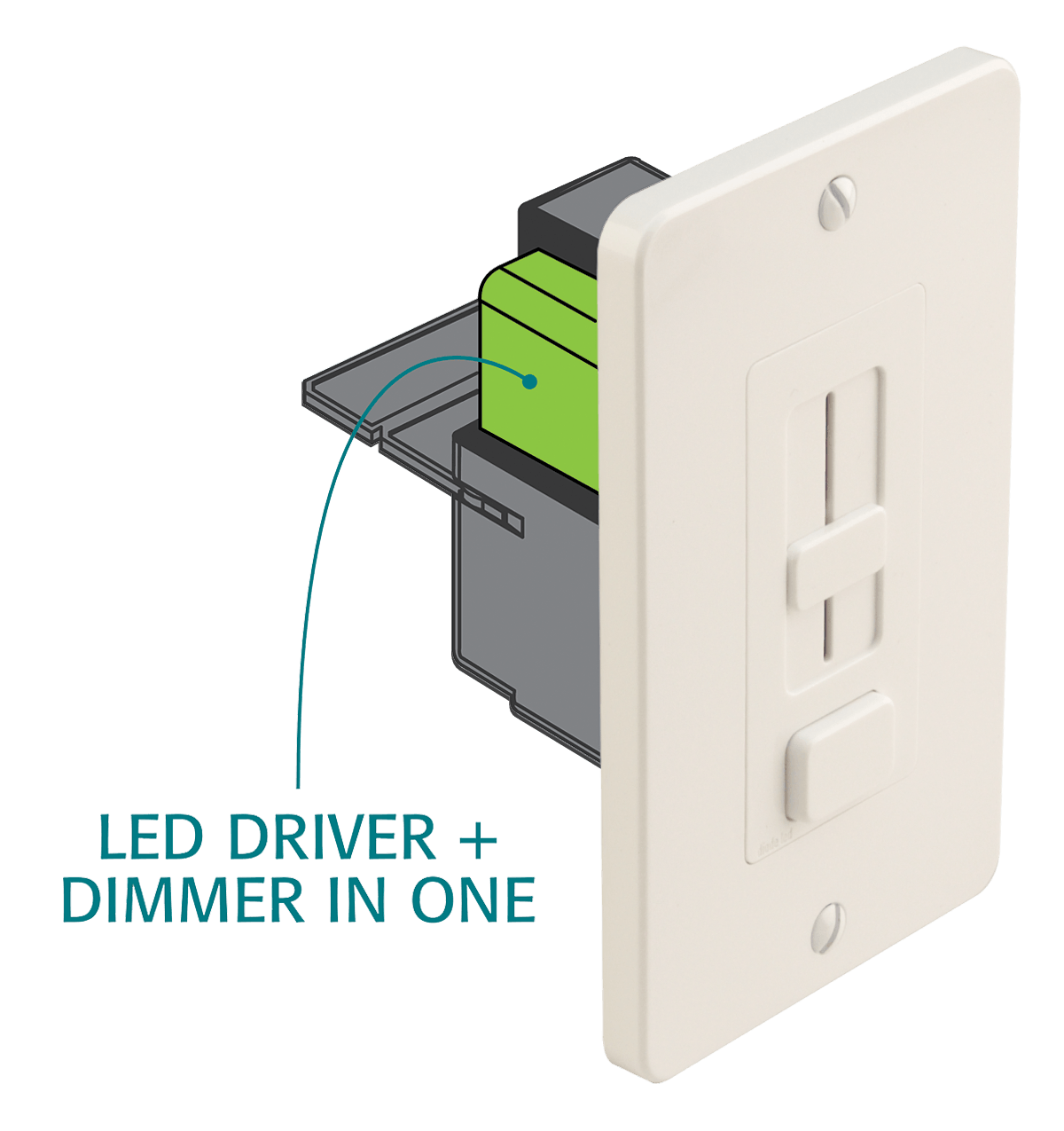

The EZDim® is an all-in-one dimmable LED driver and dimmer switch that provides both power and dimming control for low voltage LED lighting. It combines a dimmer switch and LED driver into a single unit that fits into a standard electrical box.

What voltage does the 24V EZDim® output?

The 24V version of the EZDim® outputs 24V DC power to run 24V LED lighting. There is also a 12V version available.

How much power does the 100W, 24V EZDim model provide?

The 100W EZDim® model provides up to 100 watts (4.1 amps) of 24V DC power to LED lighting. However, it is best to use up to 80% of the driver capacity only for longevity.

What types of faceplates are included in this EZDim?

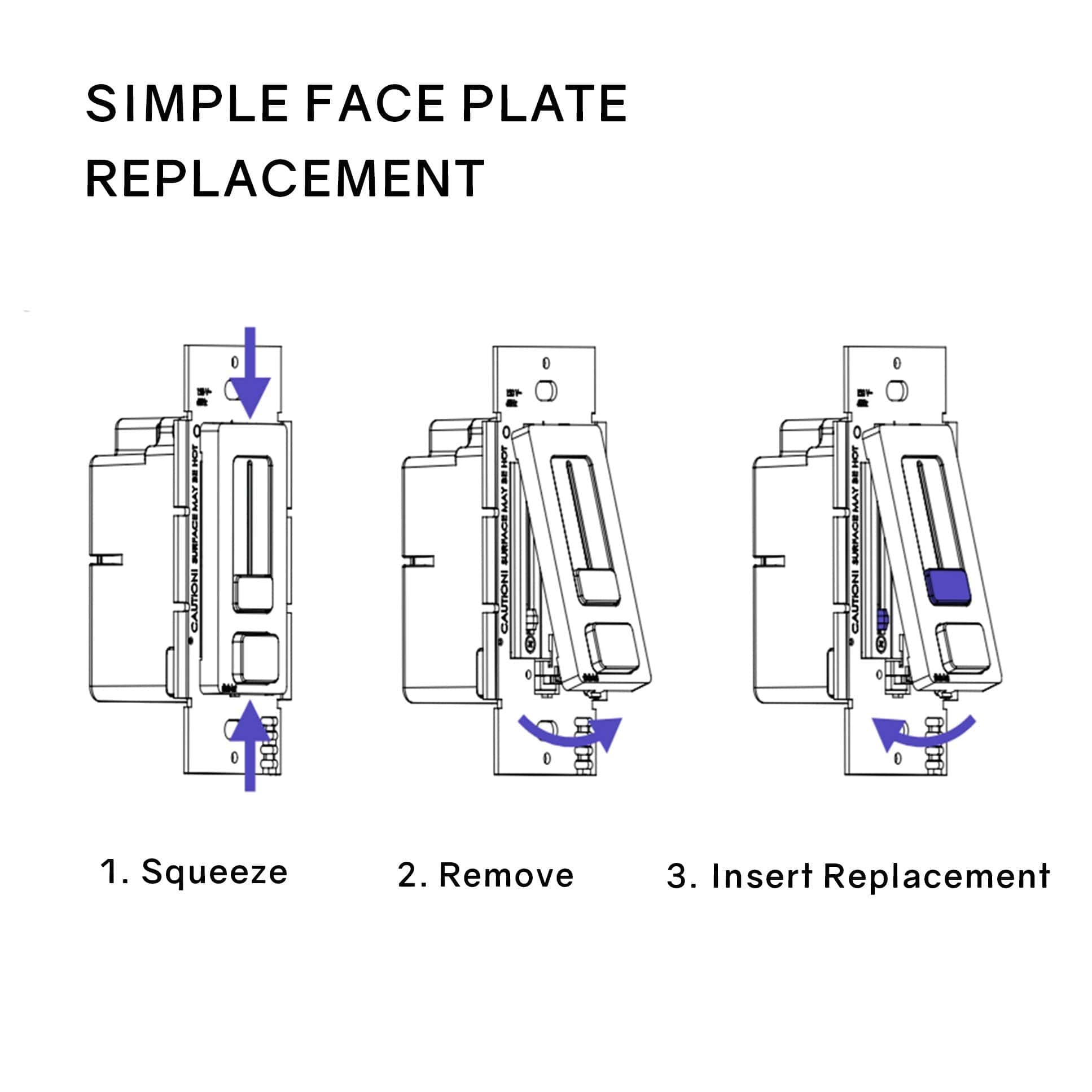

The EZDim® comes with three interchangeable faceplates in glossy white, light almond, and glossy dark brown to match different decors. A wall plate is not included.

Can I put this be used outdoors?

No, since this is IP30 rated it is for indoor use only.

How long is the warranty?

The warranty of this unit is for 6 years.

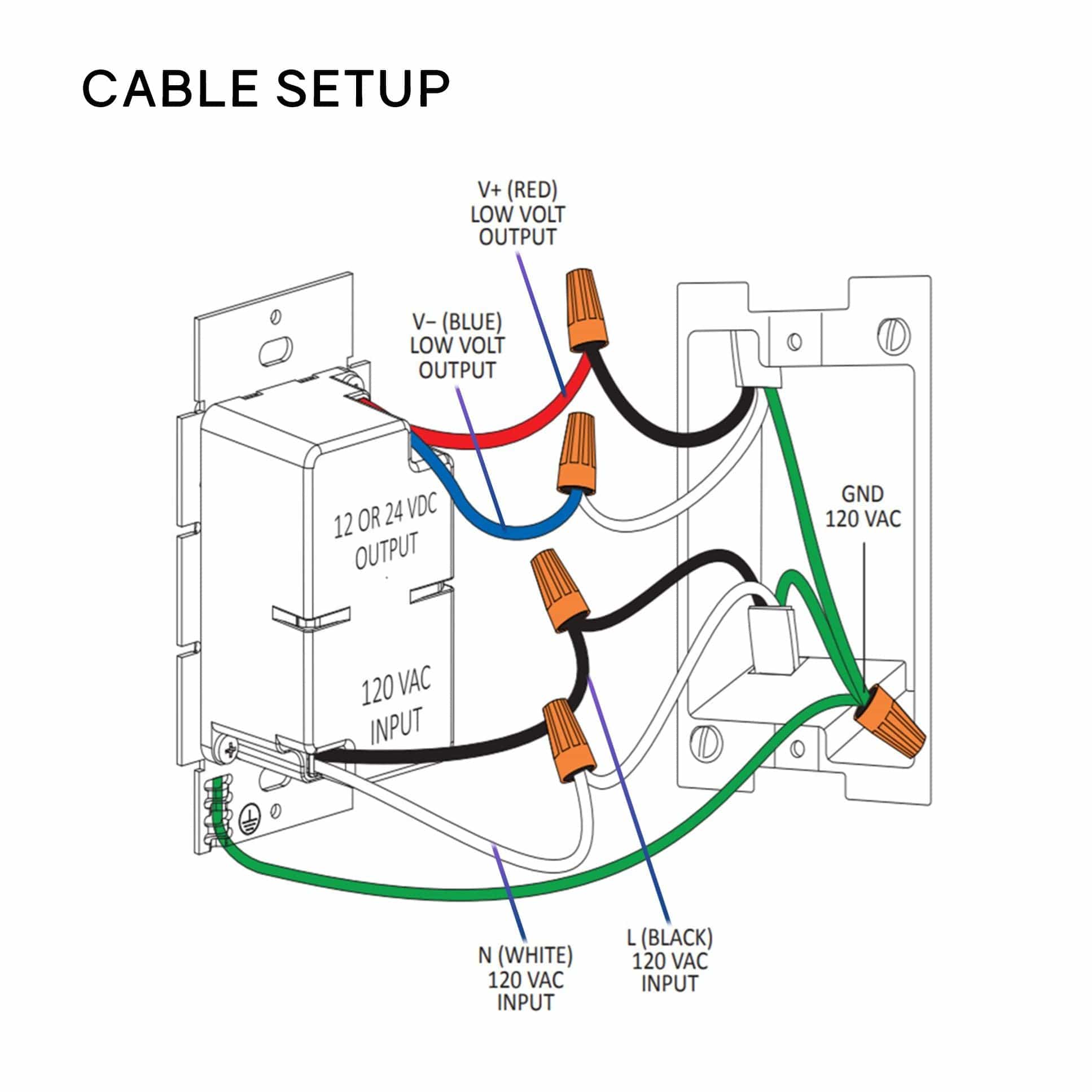

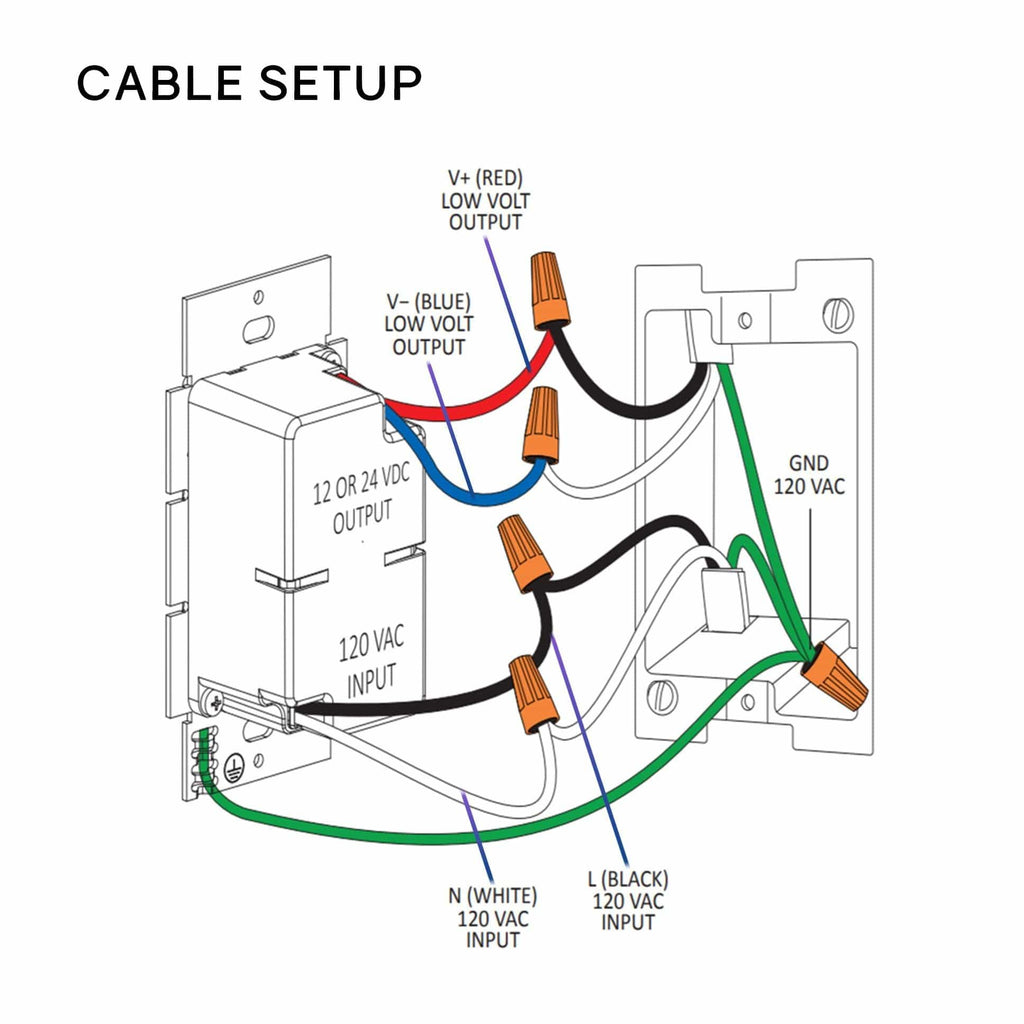

Does the EZDim® require a neutral wire?

Yes, the EZDim® requires a neutral connection in addition to line and load wires. It will not work without a neutral.

What size electrical box does the EZDim® fit in?

The warranty of this unit The EZDim® is designed to fit into a single gang electrical box.for 6 years.

It the EZDim® dimmable?

Yes, the EZDim® allows you to dim your LED lighting from 100% down to 10% brightness. It uses PWM (pulse width modulation) dimming optimized for LED loads.

Is the EZDim® UL listed?

Yes, the EZDim® is UL listed and meets safety standards for use in the US and Canada.

DATA SHEET

24 Volt EZDim® Driver and Dimmer Switch - 60 Watt Spec Sheet

CERTIFICATION

UL Listing FKSZ.E476239

Great product and great customer service

I installed the dimmer to light up my floating shelves and they look great; I had a problem during installation and Erick from customer service helped me to figure everything out.
Thanks again

Works with Schluter and others

This was a breeze to install, and power's three LED strips including a Schluter Niche. Best deal in town. I'm sure eventually these will come down in price significantly but as a "niche" item, they're pretty awesome. Especially if you don't want remote options. I much prefer a hardwired option.

Item Did Not Work

I'm still waiting on a response to be able to return this item and be reimbursed.

Quality Product

I'v installed approximately 75 of these units and had no issues. Highly recommend. Excellent customer service.

Unique product that solves a key problem with LED install

Having the dimmer and driver in the same unit allows LED installs where they would otherwise not be possible or very difficult.

The downside of this one is it is trapped in a small box so the heat is far more problematic than if your driver was in an open attic.

In spite of this, it was still a better solutions than any other I had so I bought a second one of these and added more strip light to make up for the lower light level than I anticipated.

1 2

Premium 24V COB LED Strip Light, Single Color (UL-Listed) 16.4ft [IP-30]

$49.97

7 reviews

HitLights 6 Inch Any Angle (10 Pack) 2Pin 10mm Solderless LED Light Strip Connector : Single Color

5 Inch Any Angle (10 Pack) 2Pin 10mm Solderless LED Light Strip Connector : Single Color

$19.47

1 review

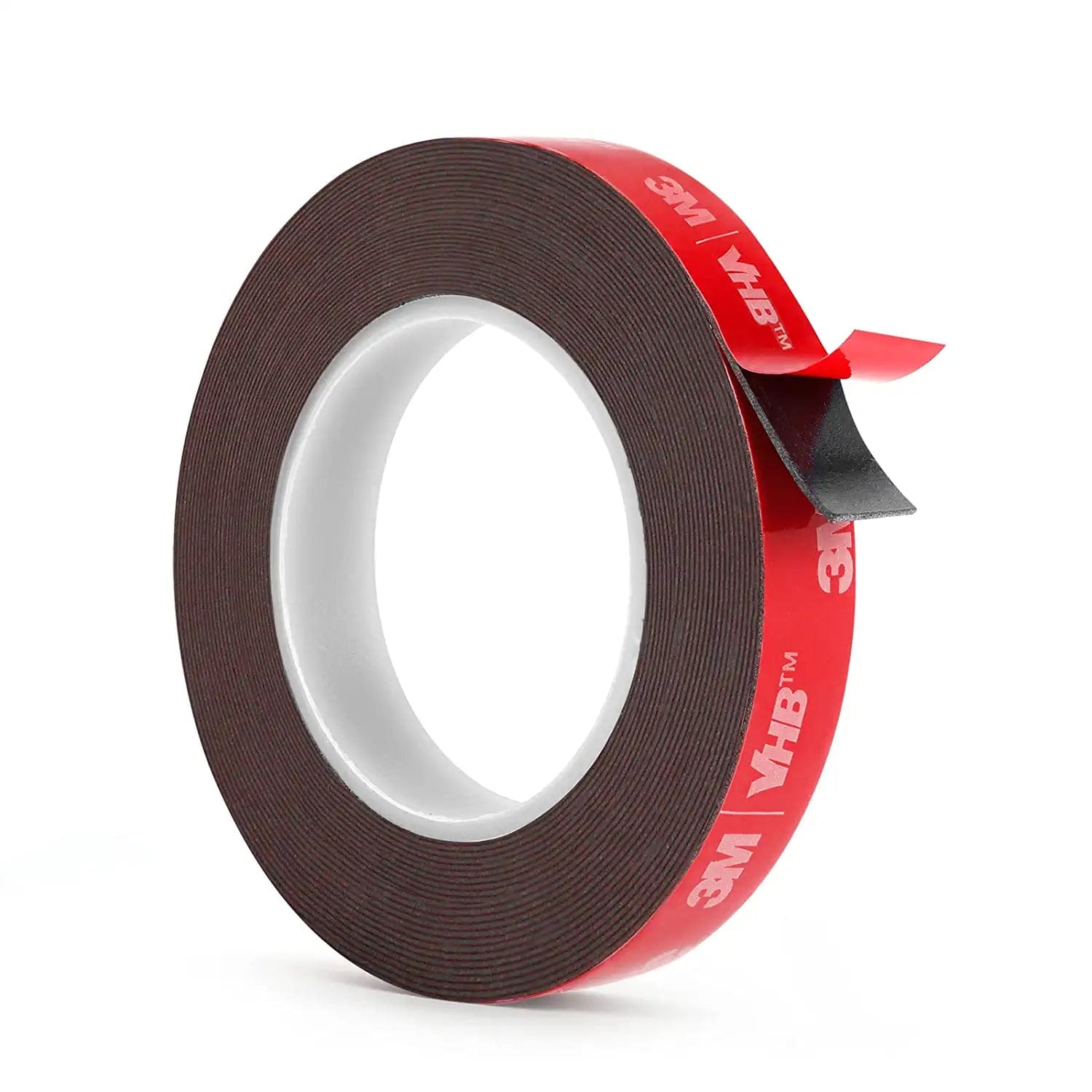

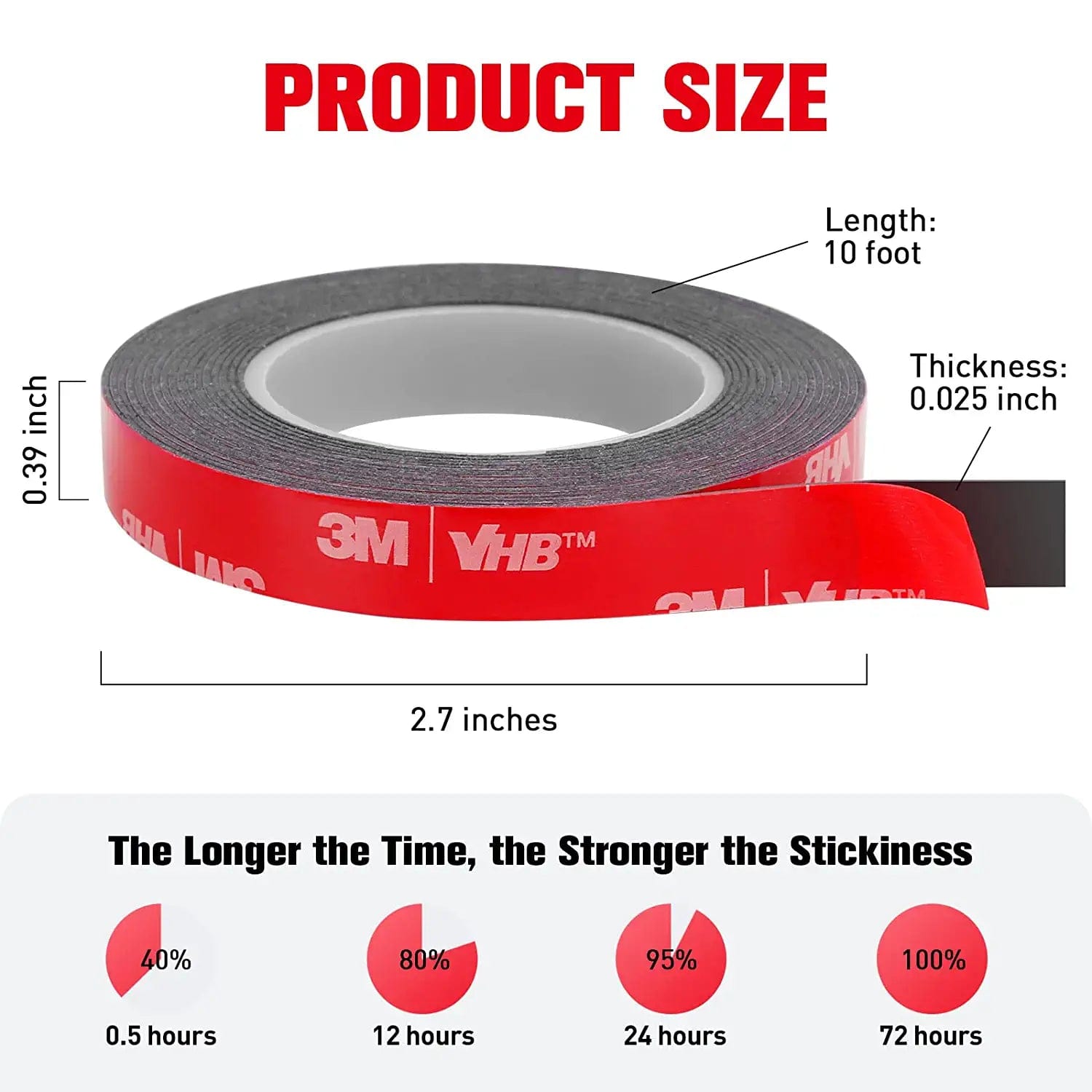

Double Sided Mounting Tape, Heavy Duty, Waterproof Foam Tape, Made of 3M VHB, 10FT
