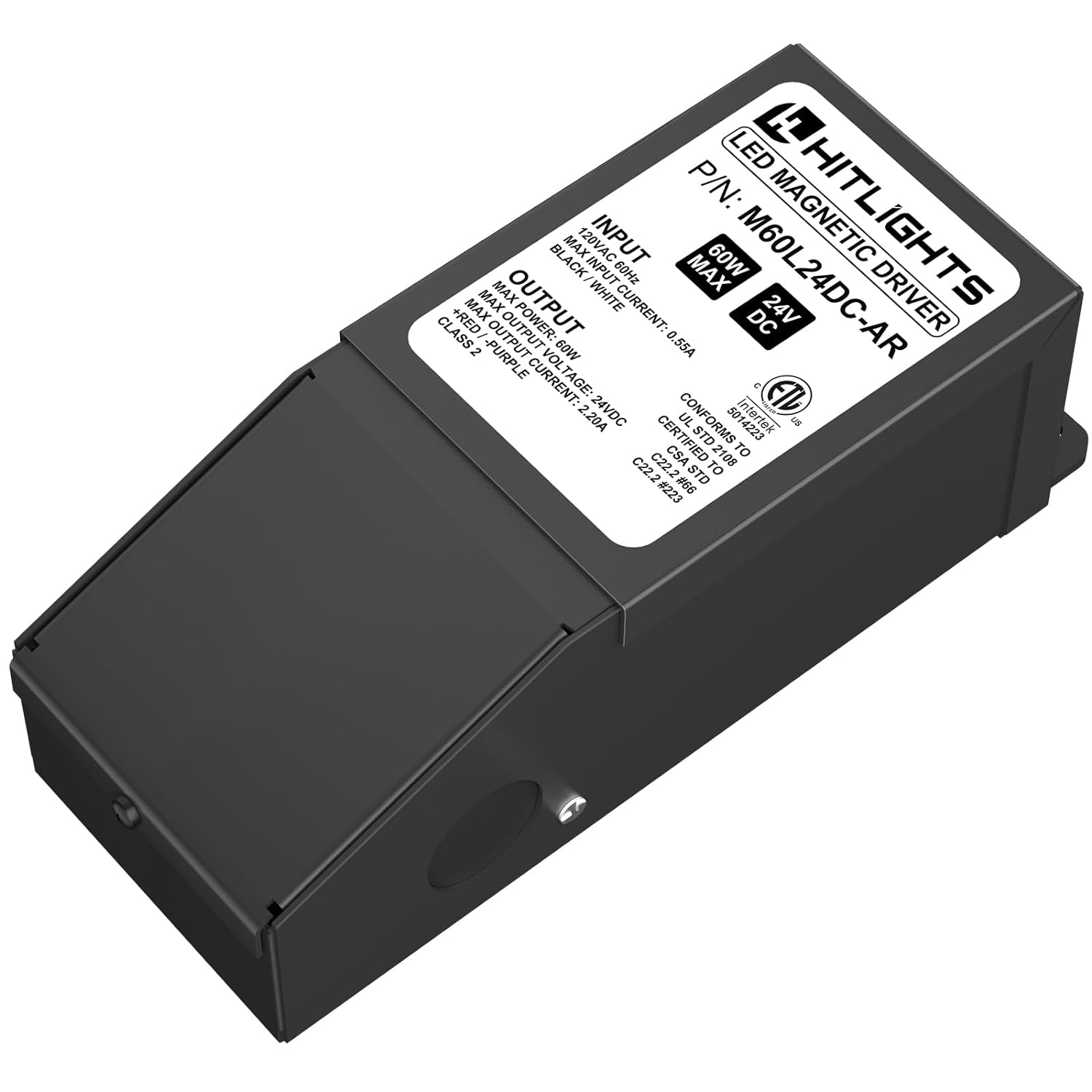

Name: 60 Watt M-Series Dimmable Driver (Magnetic, ETL, USA Assembled) - 24 Volt
Brand: HitLights
SKU: PWR-24V-060-30-D
Price: 90.47 USD
Availability: InStock

60 Watt M-Series Dimmable Driver (Magnetic, ETL, USA Assembled) - 24 Volt

HitLights LED Light Strip Power Supplies and Batteries 60 Watt M-Series Dimmable Driver (Magnetic, ETL, USA Assembled) - 24 Volt

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

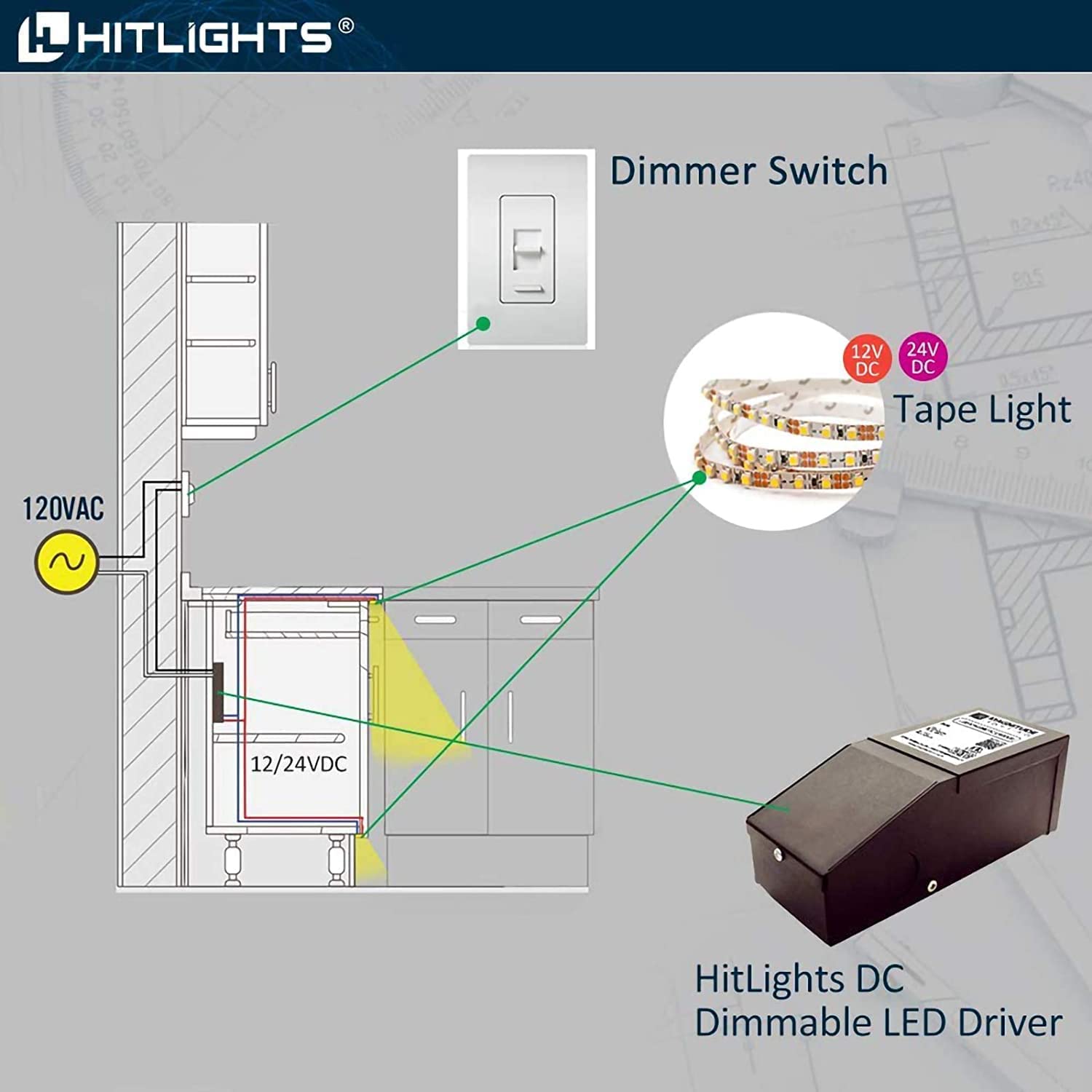

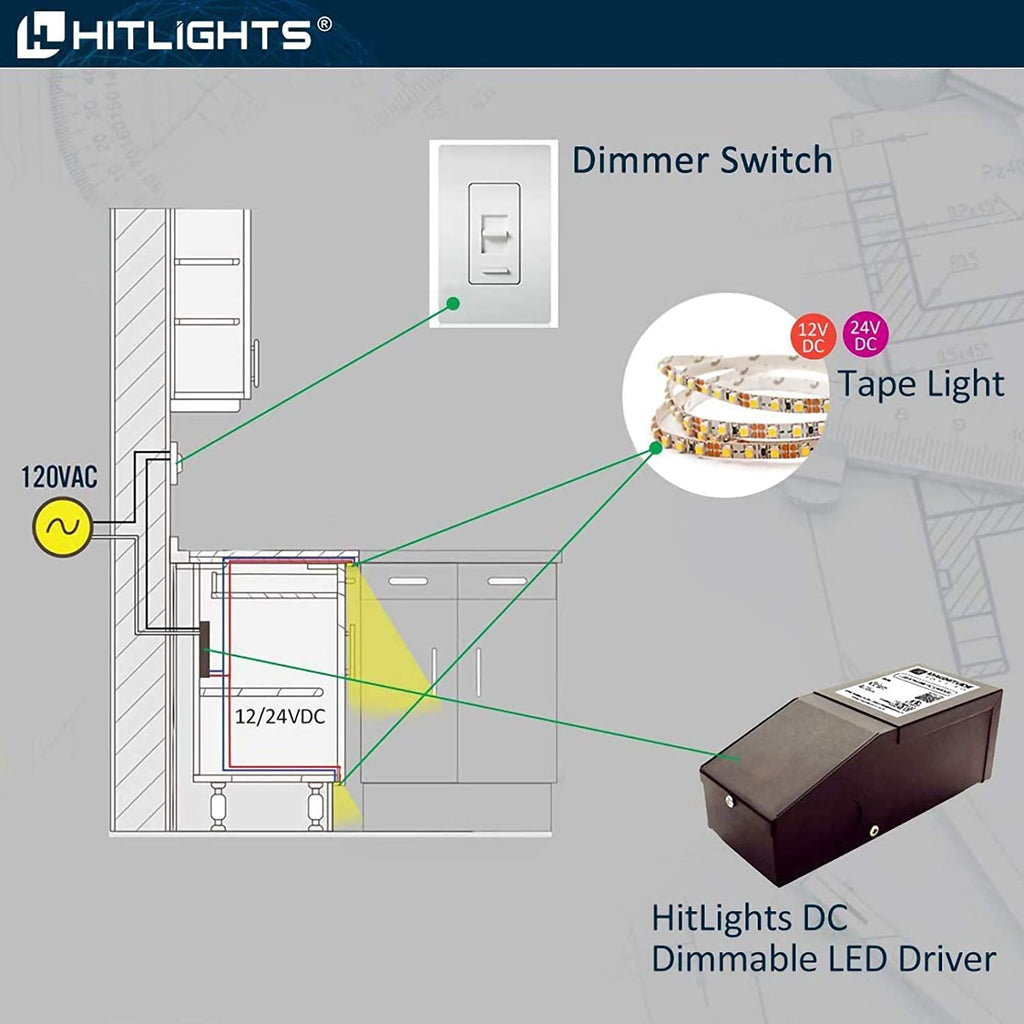

M-Series Dimmable Drivers: Our Dimmable Drivers offer an elegant control and dimming solution for any of your LED light strip projects. These 40 to 300 Watt Dimmable Drivers allow you to control the brightness of your LED light strips with a dimmer switch mounted in your wall - a more elegant and permanent solution than a dial dimmer or remote unit.

Additionally, the wide range of compatible wall dimmers means that you get to choose the wall dimmer that best suits your home, office, or other building. These drivers are manufactured to our exacting technical specifications here in the United States, meaning that we are able to offer an unsurpassed five year warranty on these units.

Our range of Dimmable Drivers are the ultimate solution in any of your LED lighting projects and are compatible with most Lutron and Leviton dimmer switches.

ASSEMBLED IN USA - These drivers are manufactured to our exacting technical specifications here in the United States.
COMPATIBILITY - Highly recommended for 24V LED strip lights only. Not compatible with COB strip lights
FLEXIBLE CONFIGURATION - The M-Series are the most compact magnetic core dimmable LED drivers on the market. With 12V and 24V output and 120VAC or 277VAC input voltage options
MLV TRIAC DIMMABILITY - Phase or Forward MLV TRIAC dimming that allows for smooth and flicker-free dimming control.
ETL LISTED - Independently tested and certified for safety.
SHIPPING DETAILS -
Standard Shipping (3-5 Days) - Shipping cutoff 3pm(PST).
FREE ground shipping (UPS or FedEx) on orders of $199 or more.

Input Voltage: 120VAC (108 ~ 132VAC), 50/60Hz
Output Voltage: 24V DC, 60 Watts (2.5 Amps)

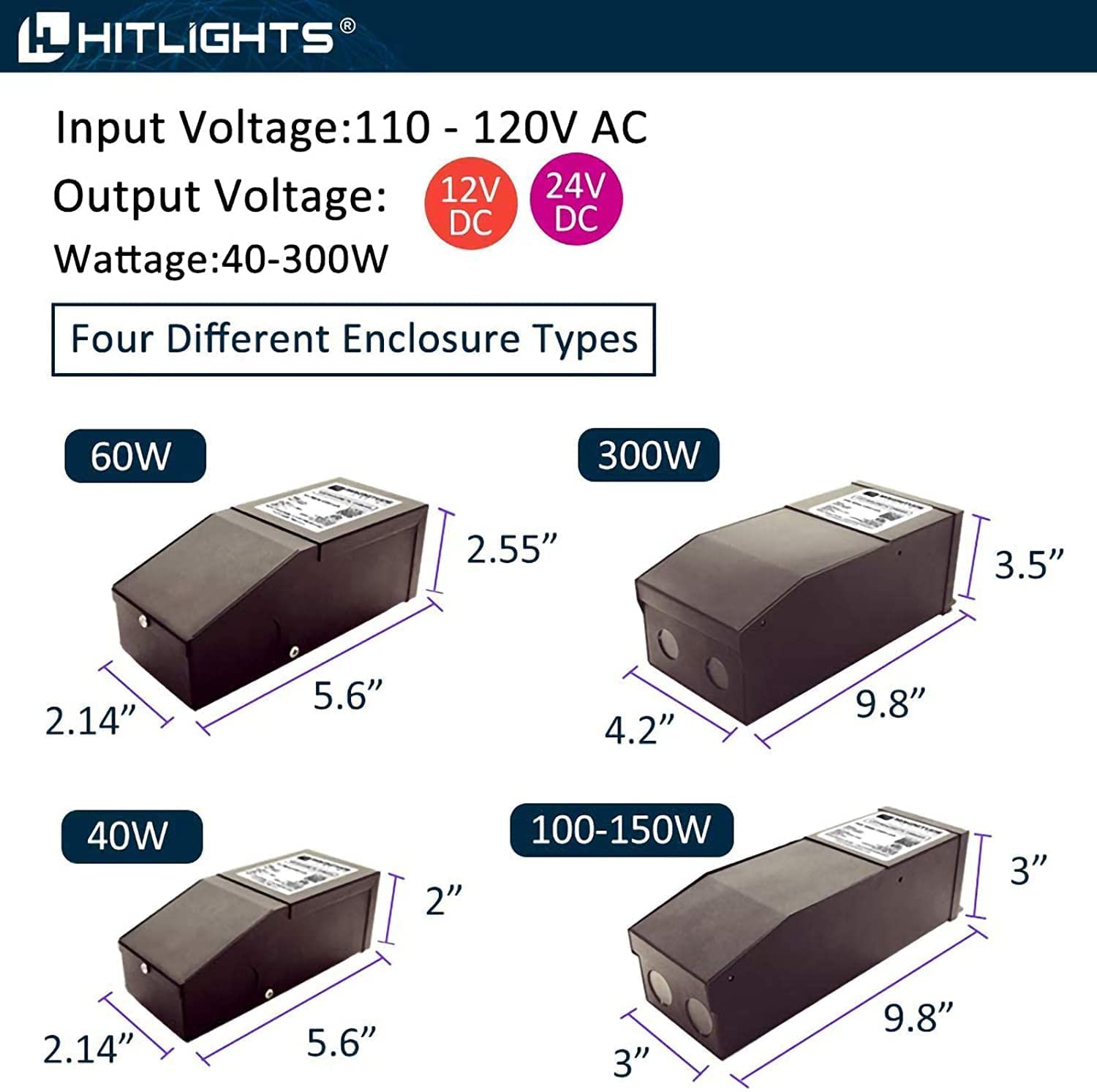

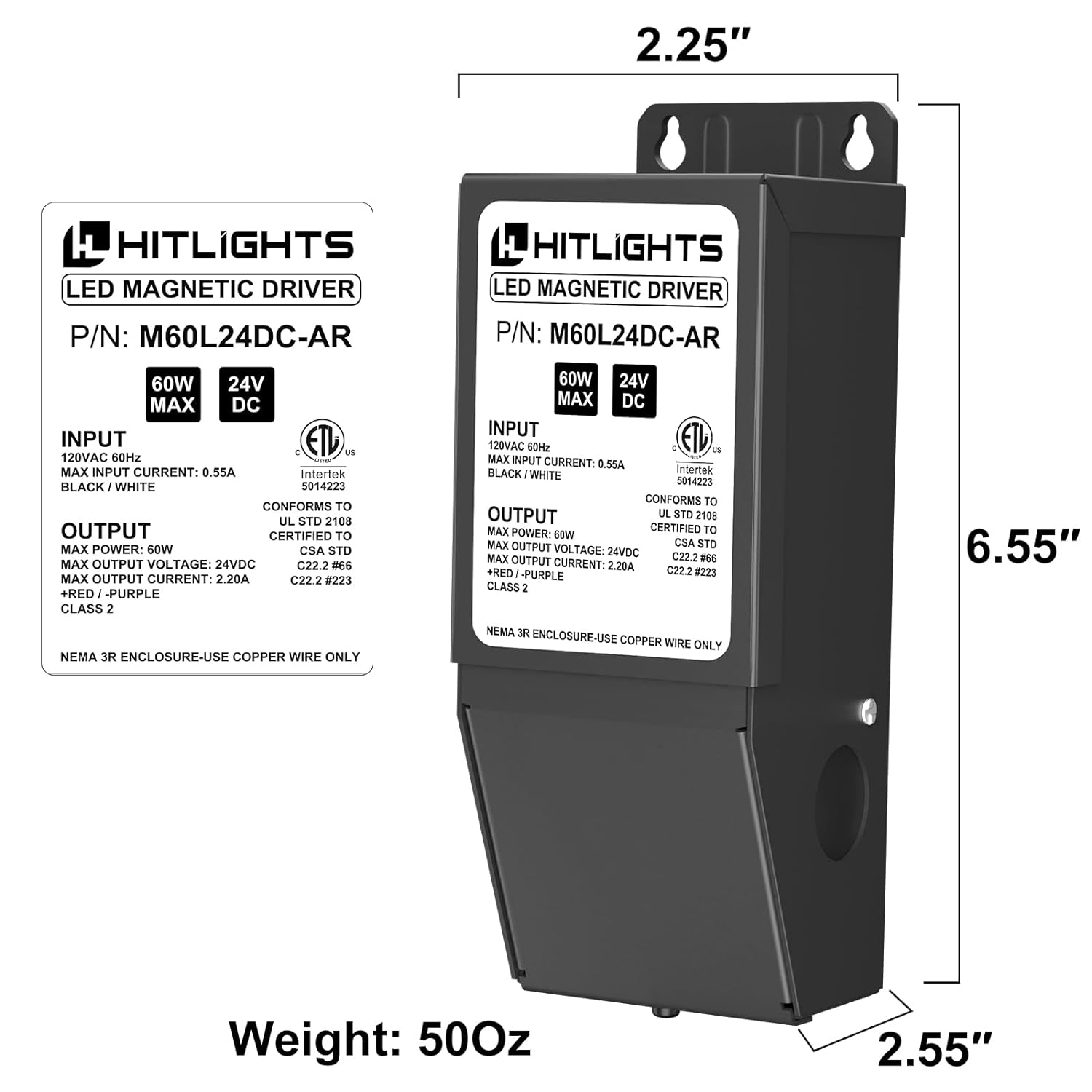

Dimension: 57 x 166 x 65mm (2-1/4 x 6-9/16 x 2-9/16 inches)
Power Factor: 0.93 (24VDC)
Protection: Auto Reset (Primary & Secondary)
Environmental: NEMA 3R (dry and damp)

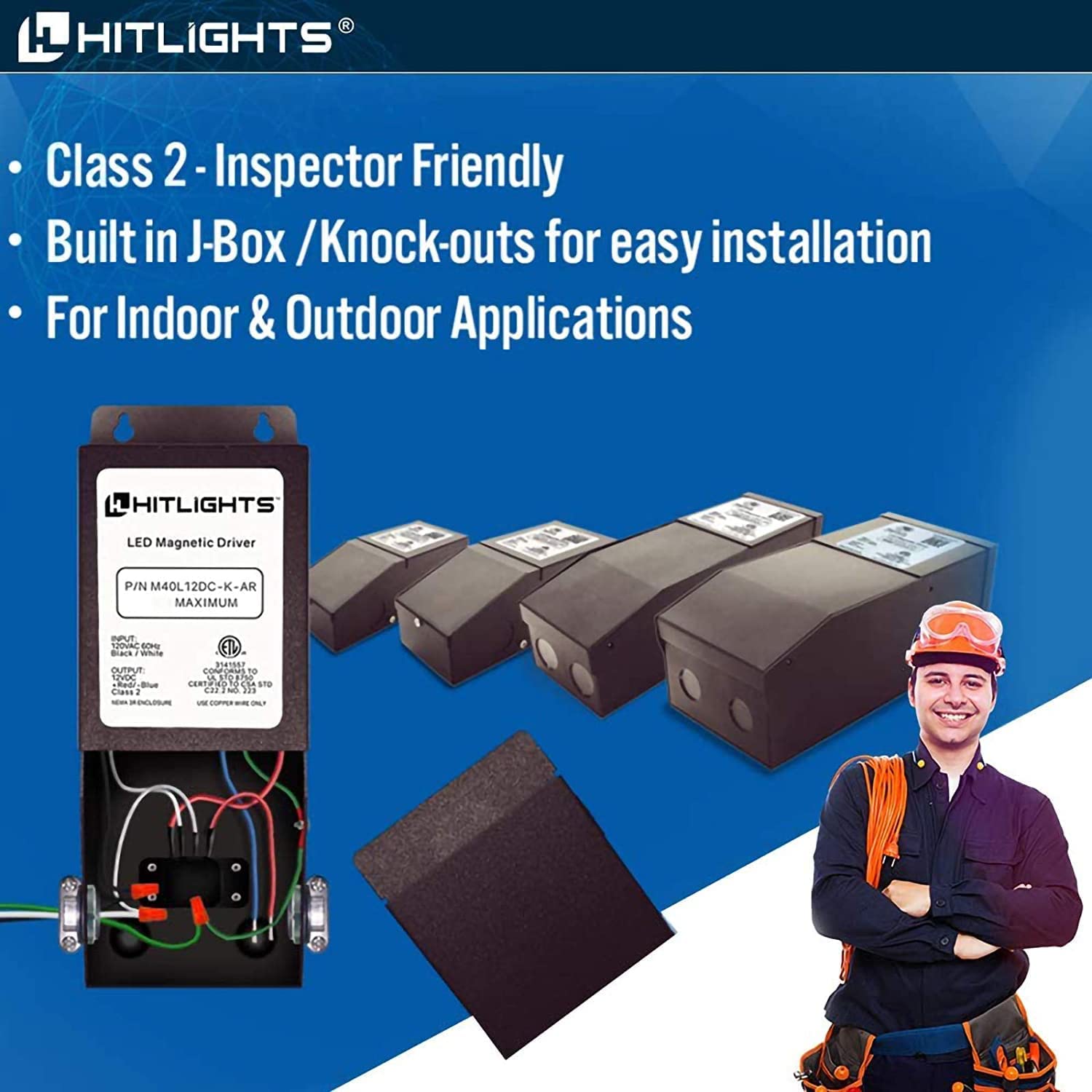

Certifications : ETL Listed, Class 2
Connection Type: Bare wire connections
Efficiency: 80 % (24VDC)

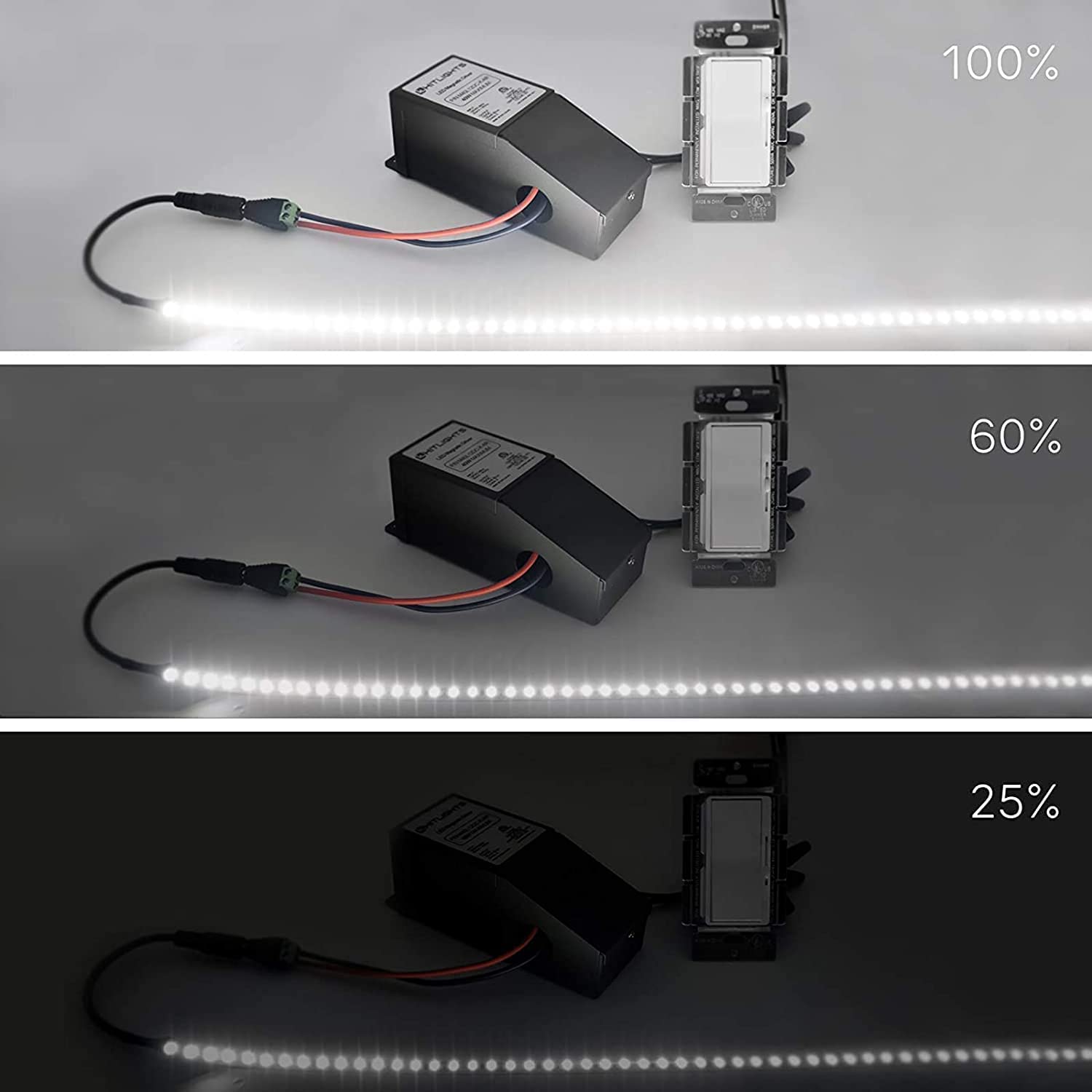

Dimming Range: 0-100%
Thermal Class: B130°C
Working Temp: -22°F to 113°F (-30°C to 45°C)
Warranty: 6 years

SKU	Input	Output	Wattage	Weight
PWR-12V-040-30-D	120V AC	12V DC	40W	2.2 lbs
PWR-12V-060-30-D	120V AC	12V DC	60W	3.2 lbs
PWR-12V-100-30-D	120V AC	12V DC	100W	4.8lbs
PWR-12V-150-30-D	120V AC	12V DC	150W	5.4 lbs
PWR-12V-300-30-D	120V AC	12V DC	300W	8.75 lbs
PWR-24V-040-30-D	120V AC	24V DC	40W	2.2 lbs
PWR-24V-060-30-D	120V AC	24V DC	60W	3.1 lbs
PWR-24V-150-30-D	120V AC	24V DC	150W	5.4 lbs
PWR-24V-300-30-D	120V AC	24V DC	300W	8.75 lbs

Certifications:

What is the input voltage for this dimmable driver?

The input voltage is 120V AC.

What is the output voltage and wattage of this m-series driver?

The output is 24V DC at 60 Watts (2.5 Amps)

What are the dimensions of this m-series driver?

The dimensions are 57 x 166 x 65mm (2-1/4 x 6-9/16 x 2-9/16 inches)

What type of dimmers can I use with this m-series driver?

It is compatible with Lutron dimmers like Ariadni, Vareo, Nova, Ceana, Diva, Gyder, Lyneo, Nova T and Skylark . It also works with Leviton dimmers like Leviton dimmers like Mural, SureSlide, ToggleTouch and Vizia.

How do I connect this driver to my LED strip lights?

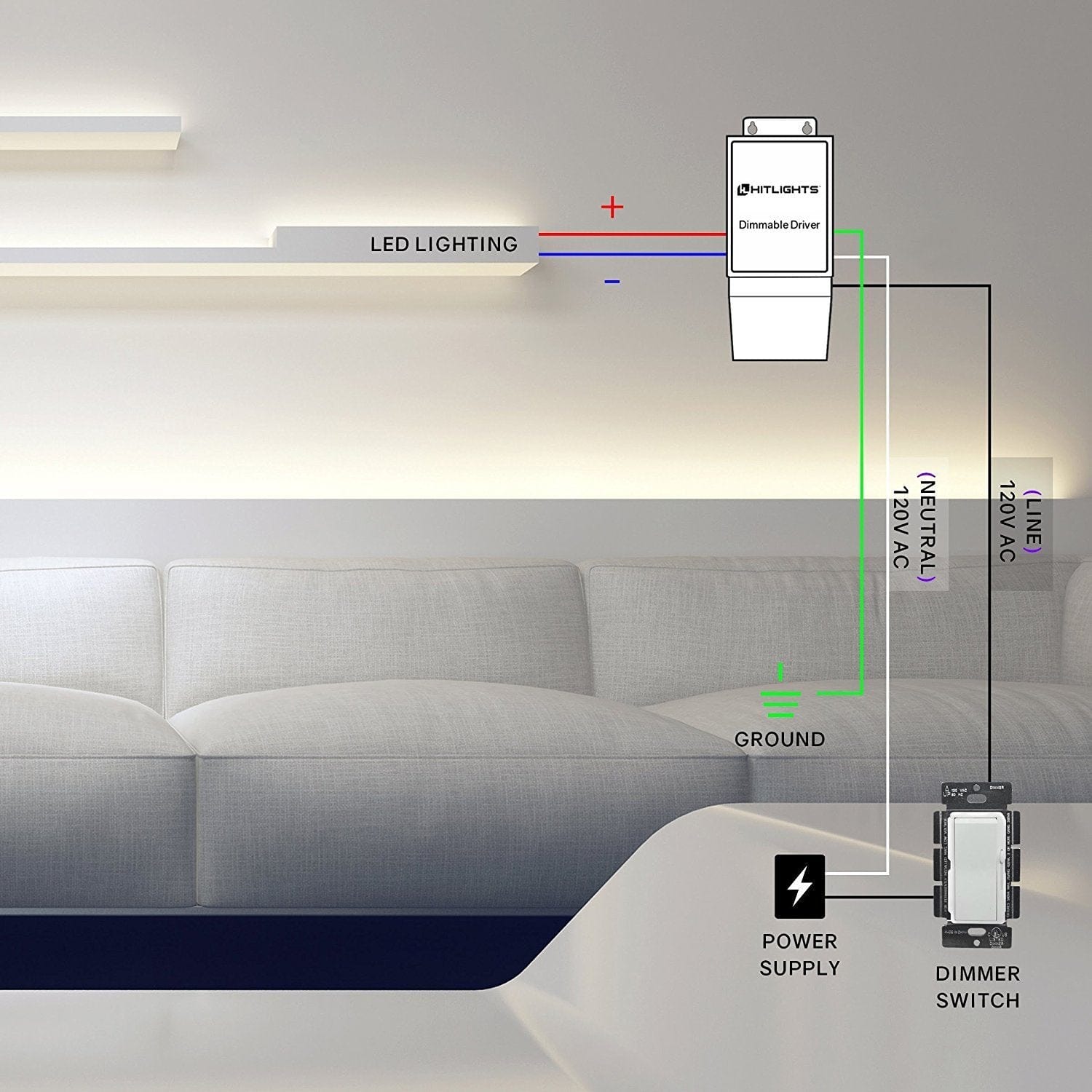

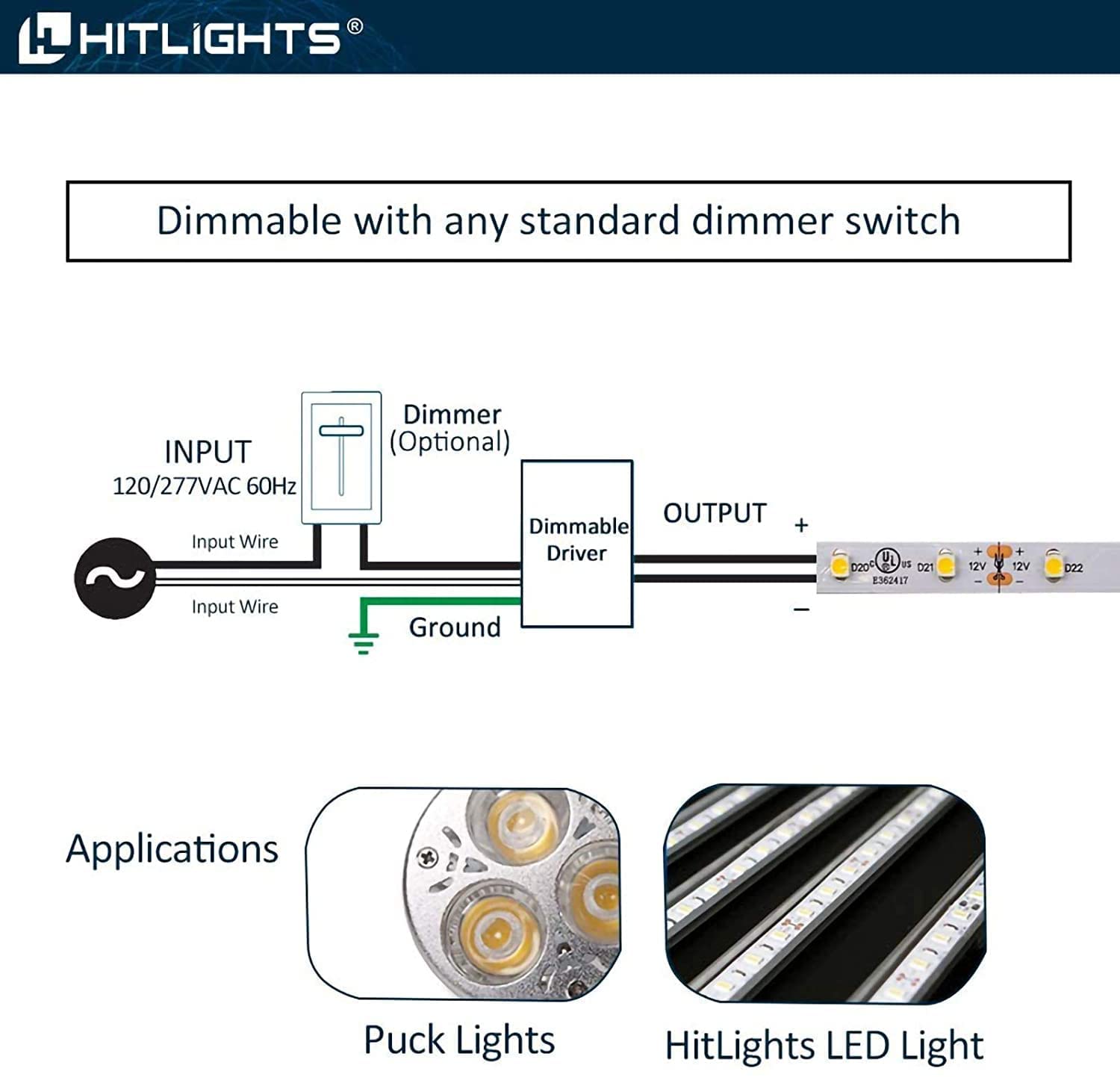

Connect the black wire to live, white to neutral, green to ground. Red output to positive, blue to negative of the LED strip.

How long is the warranty?

The warranty of this unit is for 6 years.

Is this m-series dimmable driver safe to use?

Yes, it is ETL certified for safety and reliability.

Can I use this m-series driver outdoors?

No, this is for indoor use only. Outdoor drivers are waterproof.

Does this m-series driver work with COB strip lights?

This dimmable driver is recommended for 24V LED strip lights only. This is not compatible with COB strip lights.

Does this m-series driver work with RGB LED strips?

No, it only works with single color 24V LED strips.
