HitLights LED Light Strip Power Supplies and Batteries 96 Watt EK-Series Dimmable Driver (Knockout version), Waterproof (Electronic, UL-Listed) - 24 Volt

96 Watt EK-Series Dimmable Driver (Knockout version), Waterproof (Electronic, UL-Listed) - 24 Volt

Name: 96 Watt EK-Series Dimmable Driver (Knockout version), Waterproof (Electronic, UL-Listed) - 24 Volt
Brand: HitLights
SKU: PWR-24V-096-67-D-KO
Price: 105.47 USD
Availability: InStock

SKU: PWR-24V-096-67-D-KO

3 reviews

Price:

$105.47

Quantity:

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

EK-Series Dimmable Drivers: Our Dimmable Drivers offer an elegant control and dimming solution for any of your LED light strip projects. These 40 and 60 Watt Dimmable Drivers allow you to control the brightness of your LED light strips with a dimmer switch mounted in your wall - a more elegant and permanent solution than a dial dimmer or remote unit.

Additionally, the wide range of compatible wall dimmers means that you get to choose the wall dimmer that best suits your home, office, or other building. These drivers are manufactured to our exacting technical specifications here in the United States, meaning that we are able to offer an unsurpassed five year warranty on these units.

Our range of Dimmable Drivers are the ultimate solution in any of your LED lighting projects and are compatible with most Lutron and Leviton dimmer switches. Compatible with Lutron and Leviton dimmer switches all dimmable, single color 24V LED light strips and with 24V output and 40 and 60 Watt capacity options.

ASSEMBLED IN USA - These drivers are manufactured to our exacting technical specifications here in the United States.

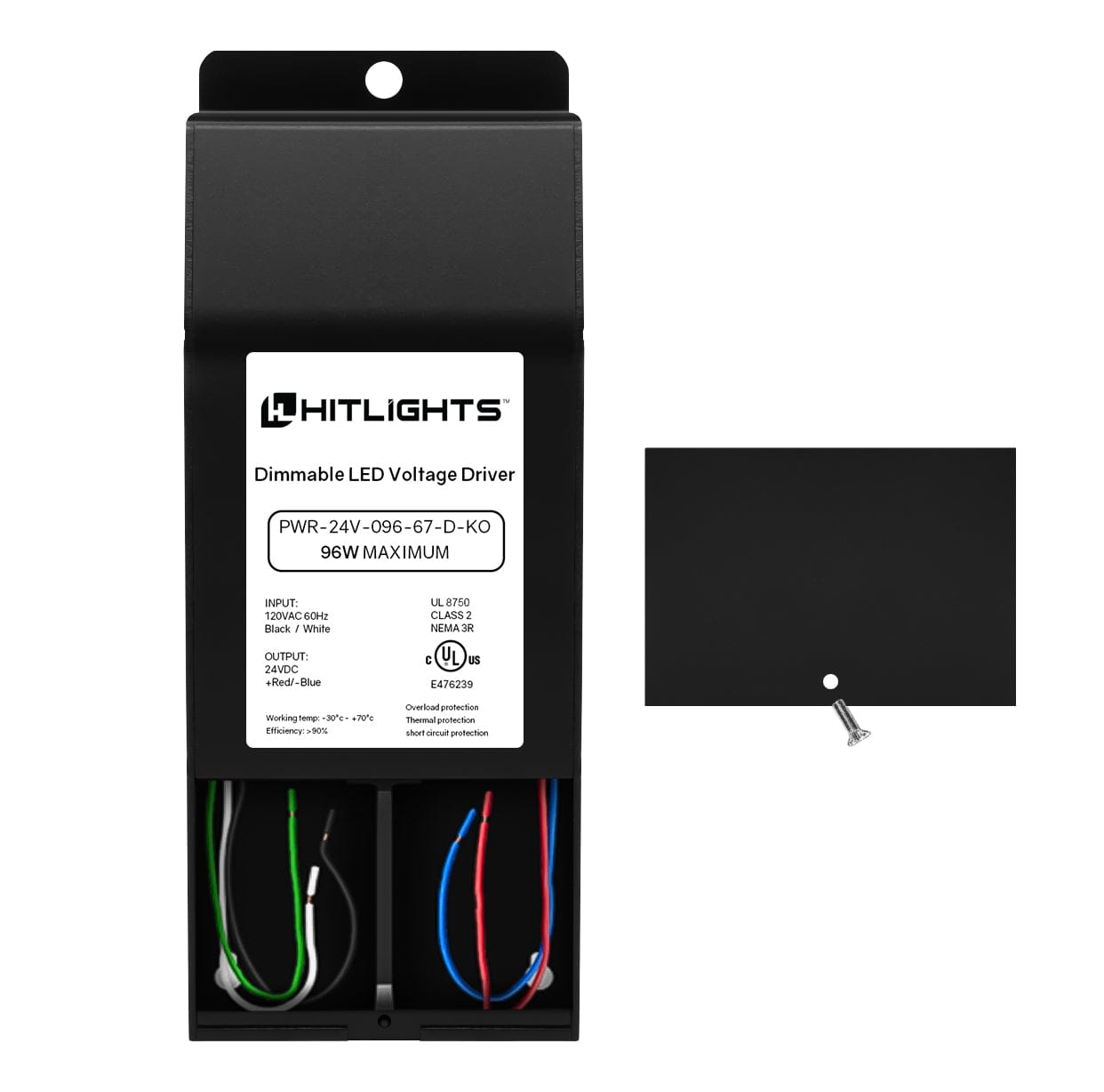

SAFE CONNECTION - This drivers include knockouts in the enclosure so you can make all your connections internal to the driver for a safe installation
MLV TRIAC DIMMABILITY - Phase or Forward MLV TRIAC dimming that allows for smooth and flicker-free dimming control.
UL Listed, Class 2 - Independently tested and certified for safety.
SHIPPING DETAILS:
Standard Shipping (3-5 Days) - Shipping cutoff 3pm(PST).
FREE ground shipping (UPS or FedEx) on orders of $199 or more.

Input Voltage: 120VAC (108 ~ 132VAC), 50/60Hz
Output Voltage: 24V DC, 96 Watts (4 Amps)

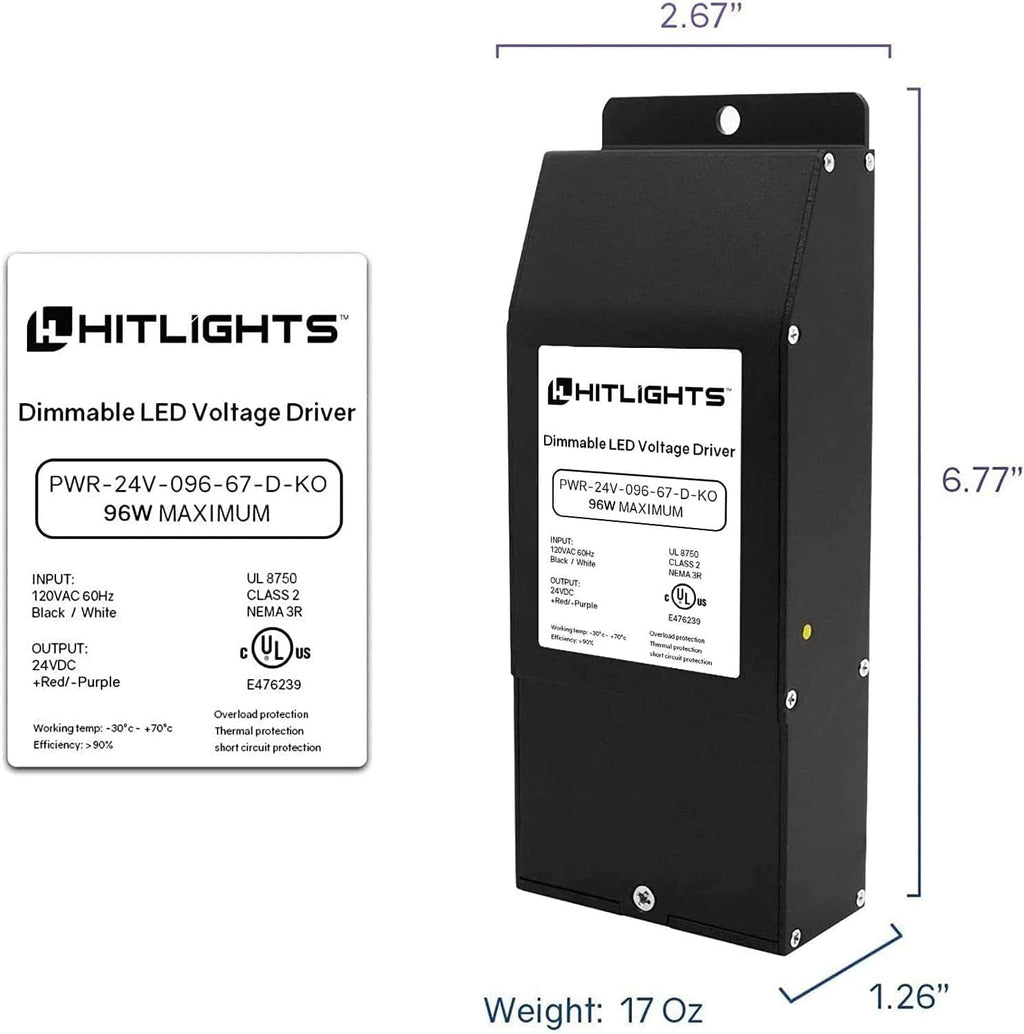

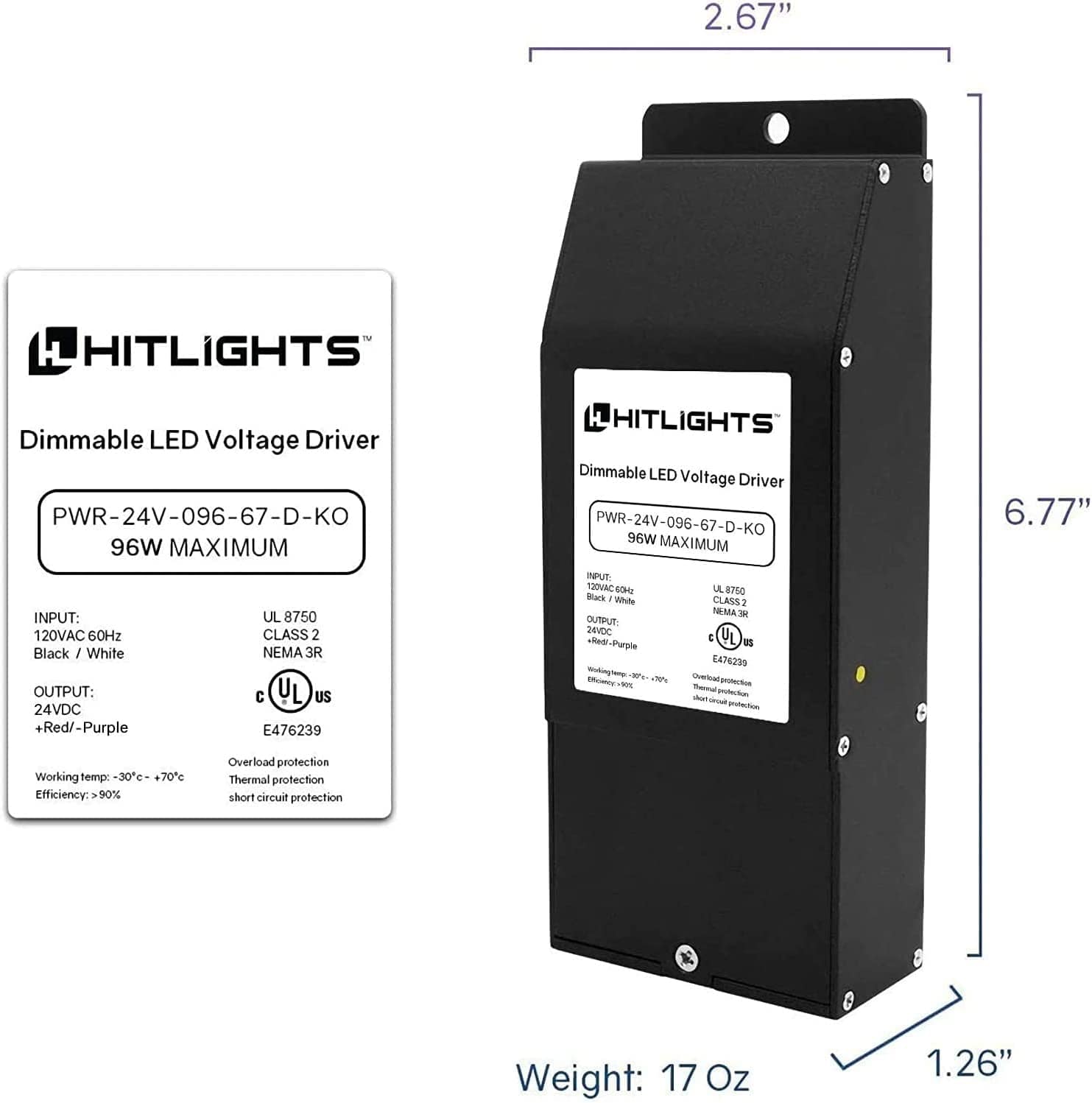

Dimension: 32 x 172 x 68mm (1.26 x 6.77 x 2.67 inches)
Protection: Over Voltage, Short Circuit, Thermal
Environmental: NEMA 3R (dry and damp)
Waterproof Rating:IP-67 (Outdoor)
Connection Type: Bare wire connections and knockouts
Efficiency: 90% (24VDC)
Dimming Range: 0-100%
Working Temp: -22°F to 158°F (-30°C to 70°C)
Warranty: 6years
Certifications : UL Listed, Class 2

SKU	Input	Output	Wattage	Weight
PWR-12V-040-67-D-KO	120V AC	12V DC	40W	1.98 lbs
PWR-12V-060-67-D-KO	120V AC	12V DC	60W	1.23 lbs
PWR-24V-096-67-D-KO	120V AC	24V DC	96W	1.30 lbs

Certifications:

What is the input voltage for this dimmable driver?

The input voltage is 120V AC.

What is the output voltage and wattage of this EK-Series Dimmable Driver?

The output is 24V DC at 96 Watts (4 Amps)

What are the dimensions of this driver?

The dimensions are 32 x 172 x 68mm (1.26 x 6.77 x 2.67 inches)

What type of dimmers can I use with this driver?

It is compatible with Lutron dimmers like Ariadni, Vareo, Nova, Ceana, Diva, Gyder, Lyneo, Nova T and Skylark . It also works with Leviton dimmers like Leviton dimmers like Mural, SureSlide, ToggleTouch and Vizia.

How do I connect this driver to my LED strip lights?

Connect the black wire to live, white to neutral, green to ground. Red output to positive, blue to negative of the LED strip.

Can I put this be used outdoors?

Yes, this driver is rated IP-67 and can be used outdoors

How long is the warranty?

This driver comes with a 6 year warranty from the manufacturer.

Does this driver work with RGB LED strips?

No, it only works with single color 12V LED strips. For RGB, you would need an RGB controller.

SPEC SHEET

96 Watt EK-Series Dimmable Driver (Electronic) - 24 Volt

CERTIFICATION

UL Listing FKSZ.E476239

COMPATIBILITY LIST

Compatibility Sheet
