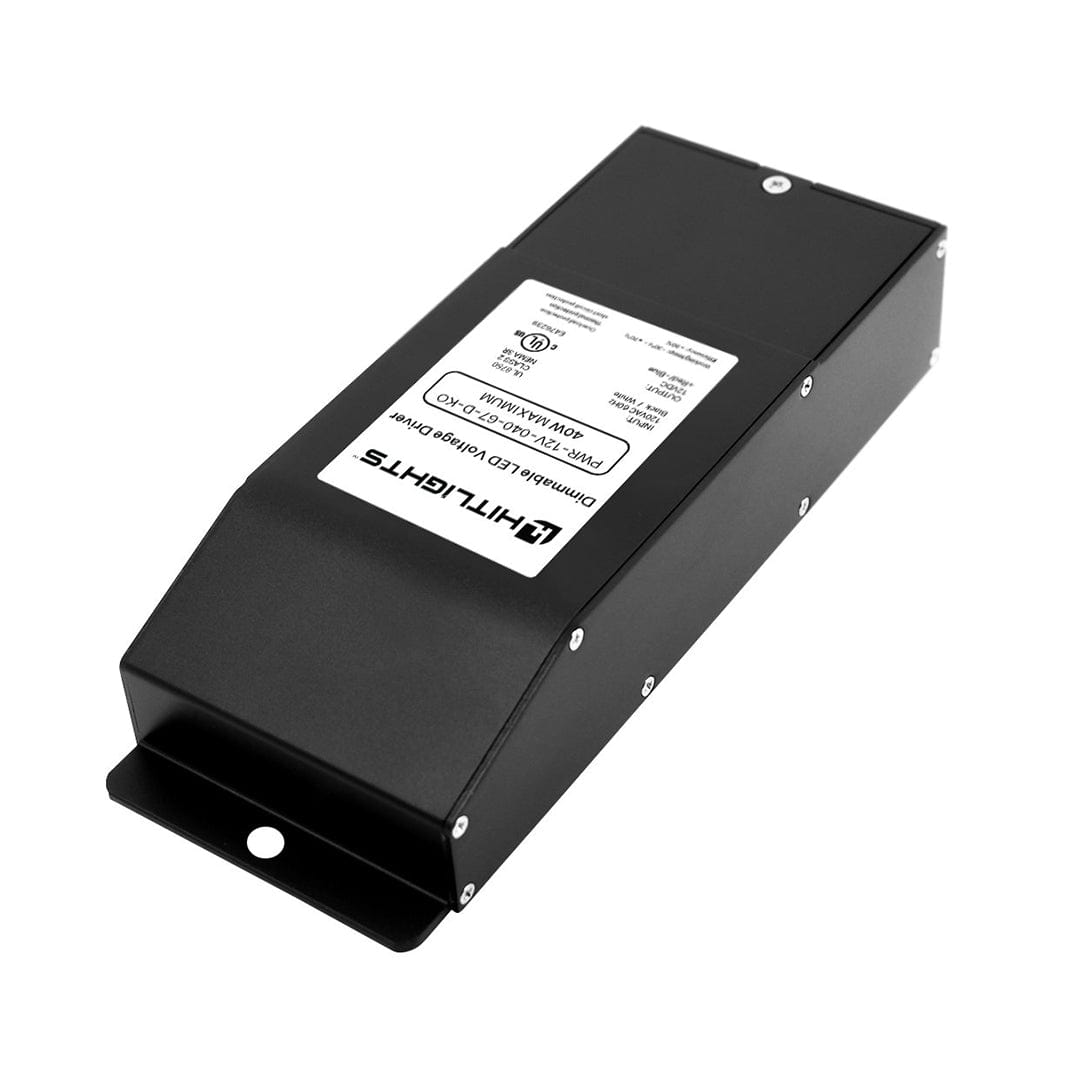

40 Watt EK-Series Dimmable Driver (Knockout version), Waterproof (Electronic, UL-Listed) - 12 Volt

SKU: PWR-12V-040-67-D-KO
4 reviews

Price:
Sale price$82.95

American Express Apple Pay Diners Club Discover Google Pay Mastercard PayPal Shop Pay Visa

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

EK-Series Dimmable Drivers: Our Dimmable Drivers offer an elegant control and dimming solution for any of your LED light strip projects. These 40 and 60 Watt Dimmable Drivers allow you to control the brightness of your LED light strips with a dimmer switch mounted in your wall - a more elegant and permanent solution than a dial dimmer or remote unit.

Additionally, the wide range of compatible wall dimmers means that you get to choose the wall dimmer that best suits your home, office, or other building. These drivers are manufactured to our exacting technical specifications here in the United States, meaning that we are able to offer an unsurpassed five year warranty on these units.

Our range of Dimmable Drivers are the ultimate solution in any of your LED lighting projects and are compatible with most Lutron and Leviton dimmer switches.  Compatible with Lutron and Leviton dimmer switches all dimmable, single color 12V LED light strips and with 12V output and 40 and 60 Watt capacity options.

  • ASSEMBLED IN USA - These drivers are manufactured to our exacting technical specifications here in the United States.

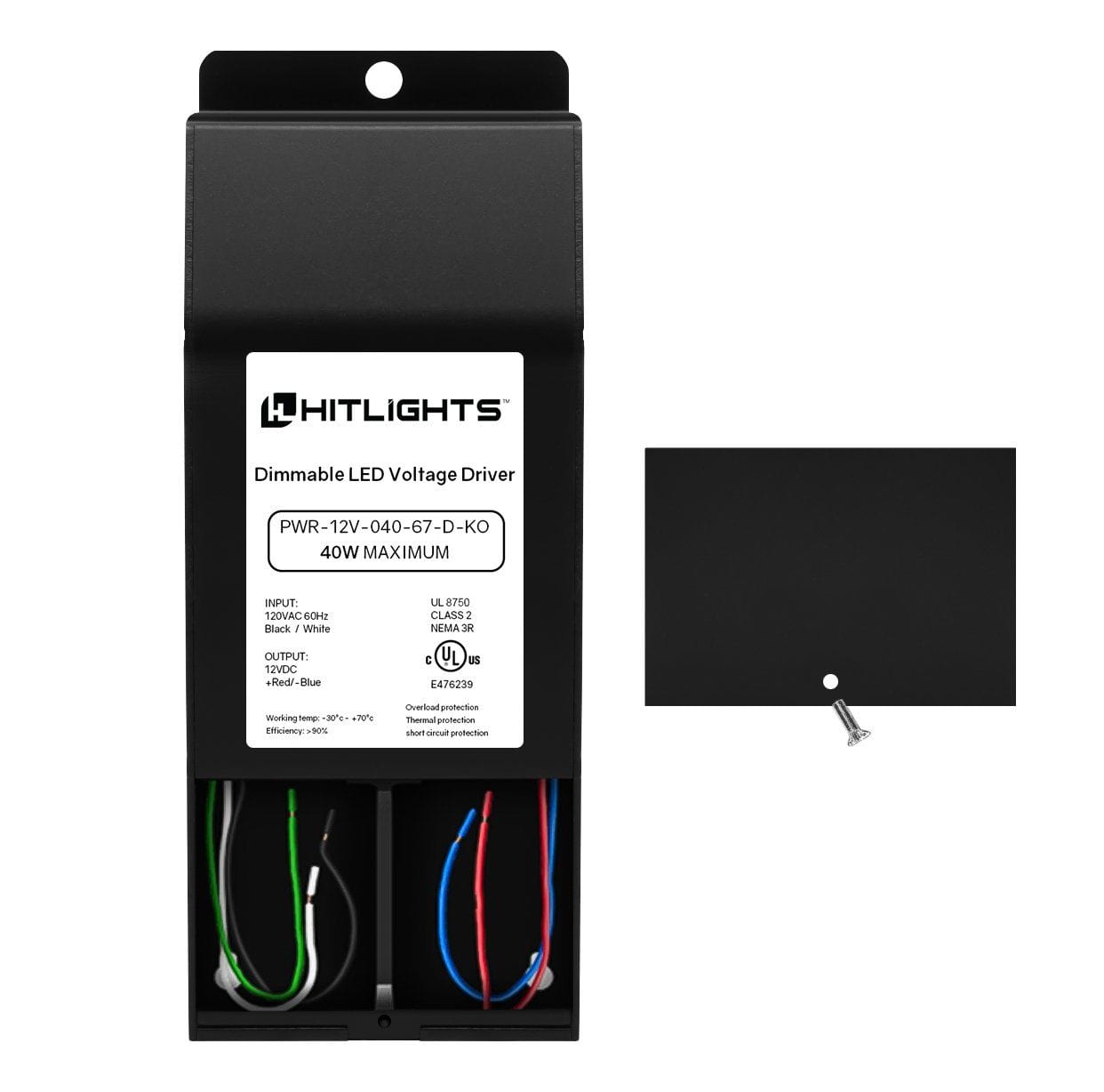

  • SAFE CONNECTION - This drivers include knockouts in the enclosure so you can make all your connections internal to the driver for a safe installation
  • MLV TRIAC DIMMABILITY - Phase or Forward MLV TRIAC dimming that allows for smooth and flicker-free dimming control.
  • UL Listed, Class 2 - Independently tested and certified for safety.
  • SHIPPING DETAILS:
    Standard Shipping (3-5 Days) - Shipping cutoff 3pm(PST).
    FREE ground shipping (UPS or FedEx) on orders of $199 or more.
  • Input Voltage: 120VAC (108 ~ 132VAC), 50/60Hz
  • Output Voltage: 12V DC, 40 Watts (3.3 Amps)

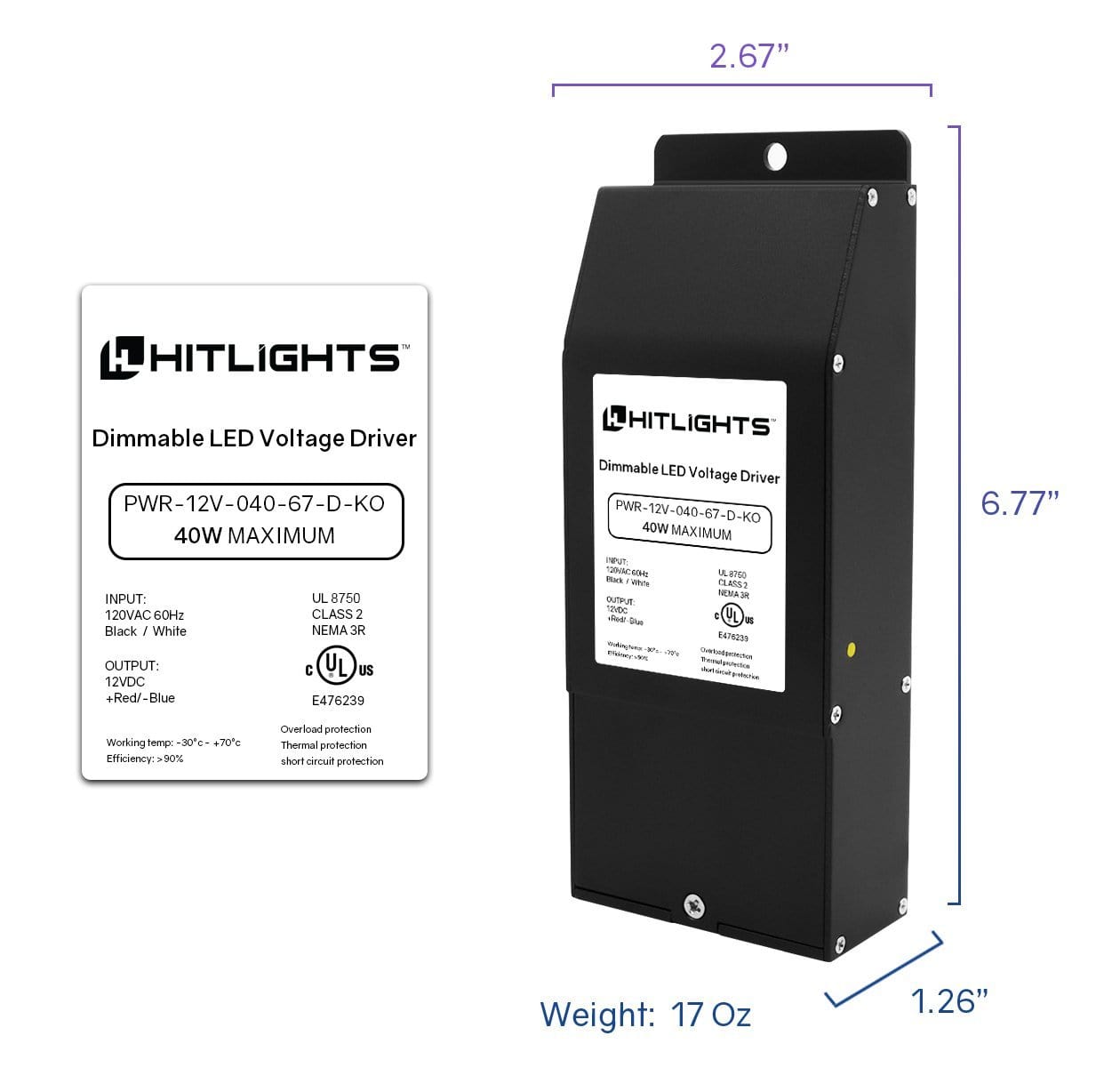

  • Dimension: 32 x 172 x 68mm (1.26 x 6.77 x 2.67 inches)
  • Power Factor: 0.95 (12VDC)
  • Protection: Over Voltage, Short Circuit Auto Reset features
  • Environmental: NEMA 3R (dry and damp)
  • Waterproof Rating: IP-67 (Outdoor)
  • Connection Type: Bare wire connections and knockouts
  • Efficiency: 90% (12VDC)
  • Dimming Range: 0-100%
  • Working Temp: -22°F to 122°F (-30°C to 50°C)
  • Warranty: 6 years
  • Certifications : ETL Listed, Class 2
SKU Input
Output
Wattage Weight
 PWR-12V-040-67-D-KO 120V AC 12V DC 40W 1.98 lbs
 PWR-12V-060-67-D-KO 120V AC 12V DC 60W 1.23 lbs
 PWR-24V-096-67-D-KO 120V AC 24V DC 96W 1.30 lbs



Certifications:

The input voltage is 120V AC.

The output is 12V DC at 40 Watts (3.3 Amps)

The dimensions are 32 x 172 x 68mm (1.26 x 6.77 x 2.67 inches)

It is compatible with Lutron dimmers like Ariadni, Vareo, Nova, Ceana, Diva, Gyder, Lyneo, Nova T and Skylark . It also works with Leviton dimmers like Leviton dimmers like Mural, SureSlide, ToggleTouch and Vizia.

Connect the black wire to live, white to neutral, green to ground. Red output to positive, blue to negative of the LED strip.

Yes, this driver is rated IP-67 and can be used outdoors

This driver comes with a 6 year warranty from the manufacturer.

No, it only works with single color 12V LED strips. For RGB, you would need an RGB controller.
