Controlador y regulador de intensidad EZDim® de 12 voltios: 40 vatios

SKU: SWX-12V-040-30-U
6 reseñas
Precio:
$149.49

American Express Apple Pay Diners Club Discover Google Pay Mastercard PayPal Shop Pay Visa

Su información de pago se procesa de forma segura. No almacenamos los detalles de la tarjeta de crédito ni tenemos acceso a la información de su tarjeta de crédito.


-
Características del producto:
• Simplifica la instalación de LED
• Elimina problemas de compatibilidad entre controladores y conmutadores.
• Rendimiento de atenuación de LED superior (100% – 1%)
• Regulador de intensidad preestablecido con interruptor de encendido/apagado
• 6 años de garantía

40 vatios / 3,3 amperios / 12 voltios CC

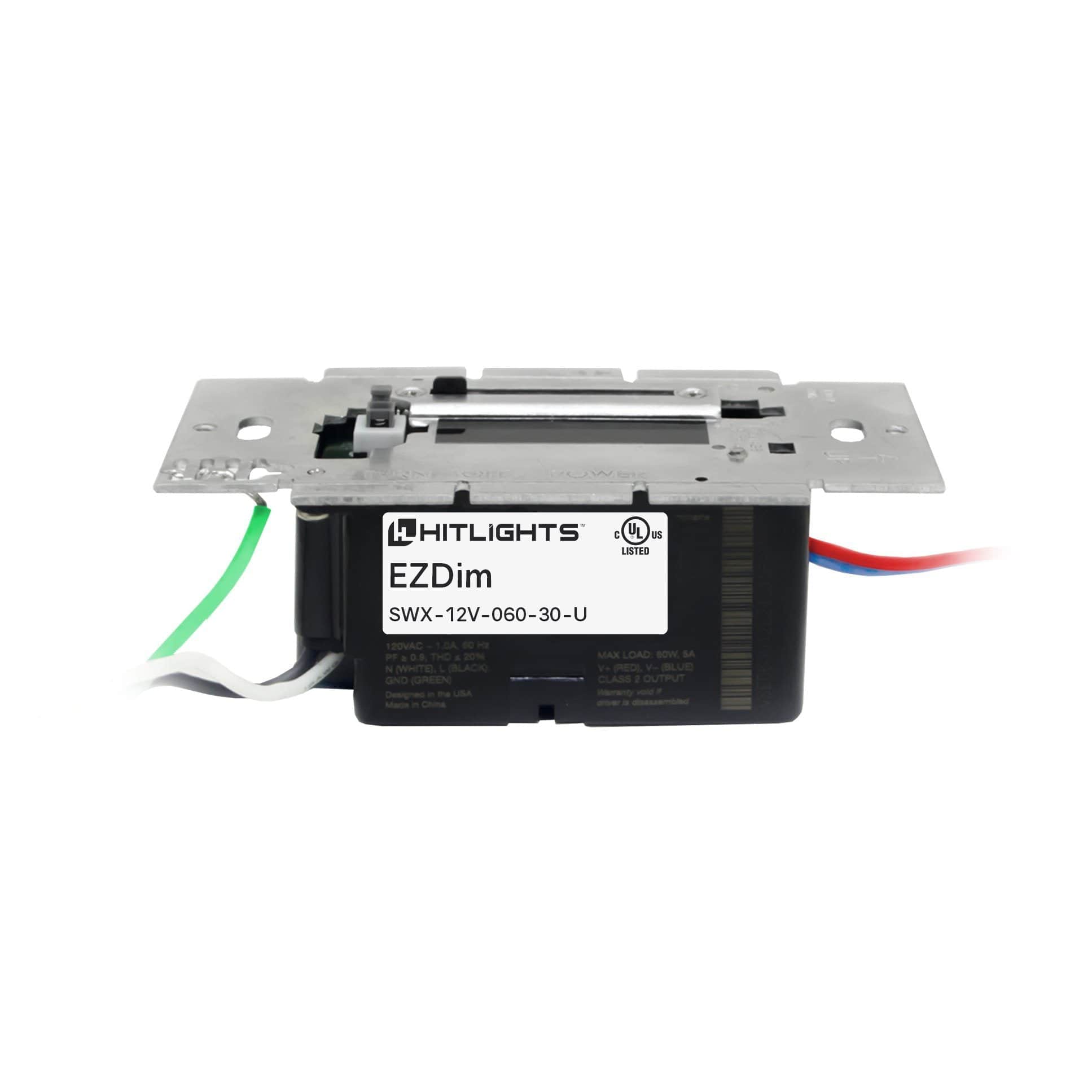

  • EZDim® combina un regulador de intensidad LED y una fuente de alimentación LED de bajo voltaje en una única unidad integrada. El regulador de intensidad + controlador EZDim acepta 120 V CA y la convierte en CC de bajo voltaje, todo dentro de una caja eléctrica estándar. Con opciones de alimentación de hasta 100 W, es un verdadero avance evolutivo para la alimentación y el control de aplicaciones LED.

    El controlador LED integrado que convierte 120 V CA en 12 V CC o 24 V CC. Esto significa que es todo lo que necesita entre el voltaje de línea y la iluminación de bajo voltaje. Lo mejor de todo es que todo cabe en una sola caja.

    Con cuatro modelos EZDim diferentes, se incluyen tres colores de placa frontal intercambiables en cada caja EZDim, lo que permite a los clientes elegir el aspecto que combina con la decoración de su instalación. Las placas frontales incluidas son: blanco brillante, almendra clara brillante y marrón brillante (placa de moldura no incluida).

  • Especificaciones:

    • Entrada: 120 V CA
    • Salida: 12 V CC, 40 vatios (3,3 amperios)
    • Dimensiones: 1,4 x 2,1 x 4,1 pulgadas
    • Certificaciones: FCC, UL
  • ¿Es usted propietario de una empresa o realiza compras en nombre de una empresa o corporación? HitLights ofrece cuentas comerciales que ofrecen ahorros promedio de un 12 % de descuento en artículos individuales en HitLights.com y hasta un 50 % de descuento con descuentos por cantidad en artículos seleccionados.

  • Las cuentas comerciales también califican para opciones de envío ampliadas, inventario personalizado y opciones de pedido, y pueden calificar para condiciones de pago.

    Obtenga más información sobre las cuentas comerciales y solicite una aquí .
  • Input Voltage: 120VAC (108 ~ 132VAC), 50/60Hz (47 ~ 63Hz)
  • Output Voltage: 12V DC, 40 Watts (3.3 Amps)

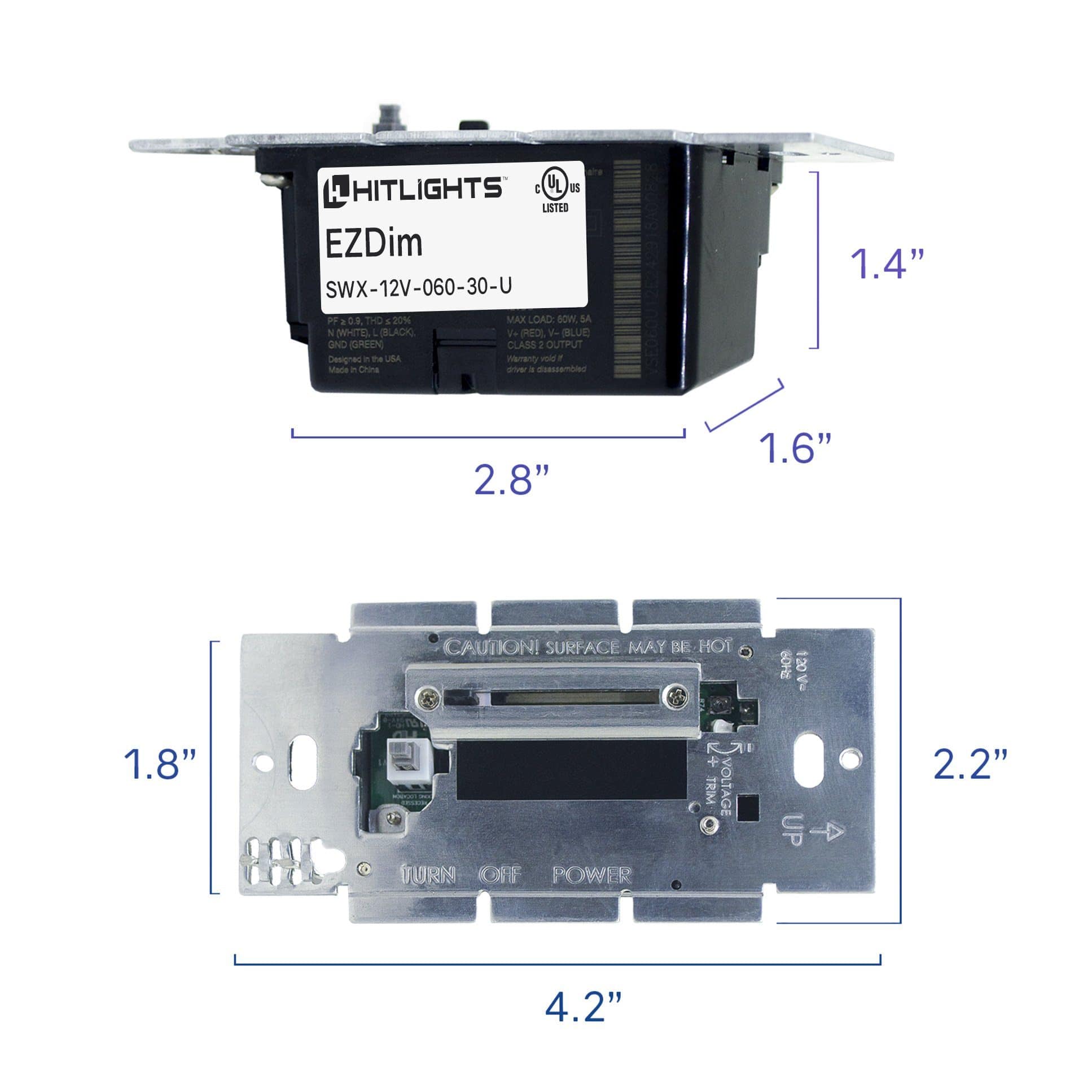

  • Dimension: 1.4 x 2.1 x 4.1 Inches
  • Power Factor: >0.9 @ 120VAC 60Hz max load.
  • THD: ≤20% @ 120VAC 60Hz max load. Tested to comply in accordance with IEC 61000-3-2
  • Stand-by Power: ≤0.5W
  • Dimming Performance: (100% – 5%)
  • Protections: Short circuit, thermal runway, and over voltage
  • Ambient Operating Temp: 0°C to 40°C
  • IP Rating: IP30 Dry Location
  • Certifications : FCC, UL Listed, Class 2
  • Included Face Plates: Glossy White, Glossy Light Almond and Glossy Dark Brown
  • Connection Type: Hard-Wired
  • Efficiency: ≥91% @ 120VAC max load
  • In-Rush Current: Meets NEMA-410 requirement at any nominal input full sine wave voltage and maximum load at 25°C
  • Leakage Current: <500μA @ 120VAC
  • Surge/Transient: Tested to meet transients defined in IEC 6100-4-4, level 3 & IEC 6100-4-5, level 3
  • Dimming: Output voltage is adjustable via sliding lever
  • Humidity: 8 ~ 90% relative humidity, non-condensing
  • Warranty: 6 years
SKU Input
Output
Wattage Class 2
 SWX-12V-040-30-U 120V AC 12V DC 40W Yes
 SWX-12V-060-30-U 120V AC 12V DC 60W Yes
 SWX-24V-060-30-U 120V AC 24V DC 60W Yes

 SWX-24V-100-30-U

 120V AC 24V DC 100W Yes



Certifications:

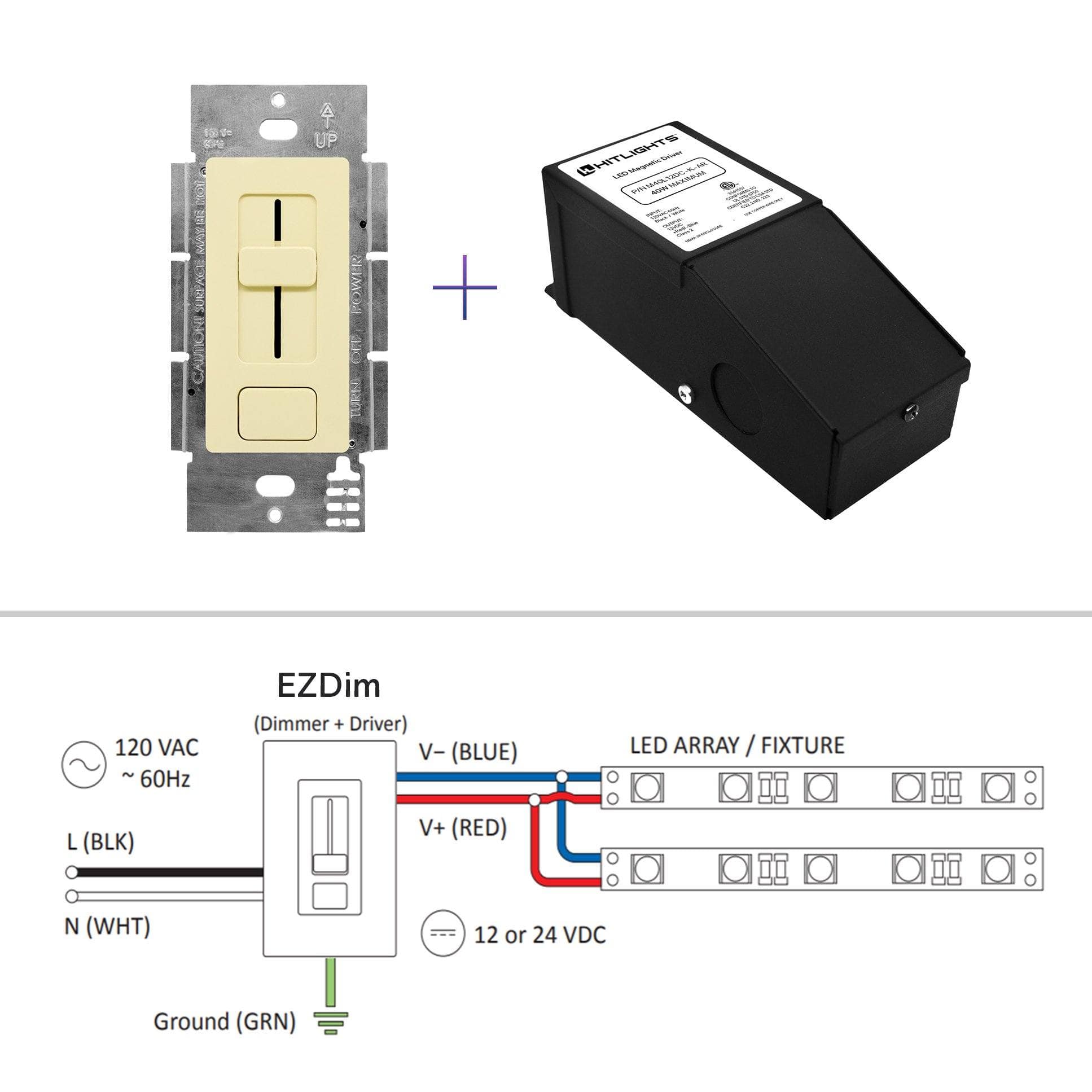

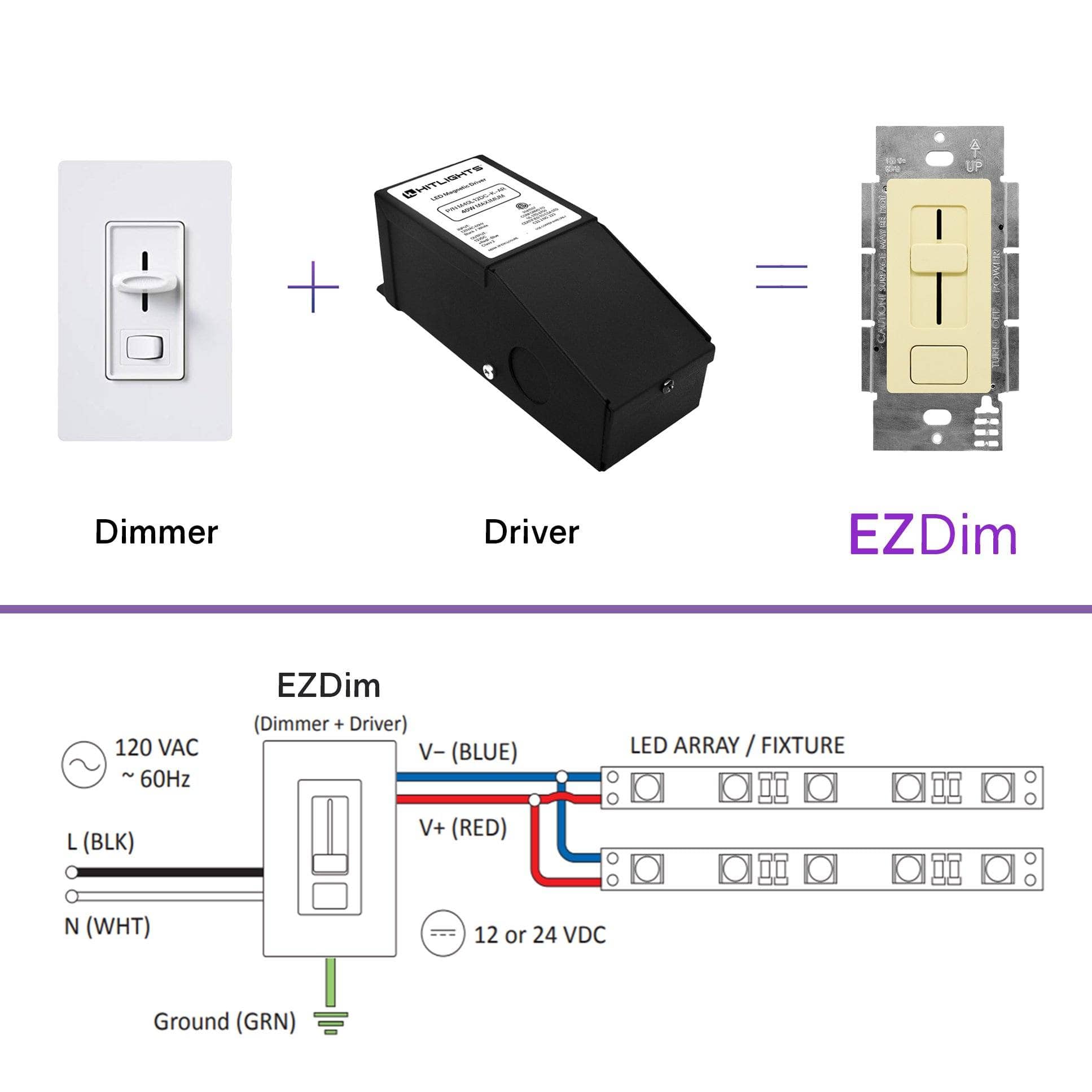

The EZDim® is an all-in-one dimmable LED driver and dimmer switch that provides both power and dimming control for low voltage LED lighting. It combines a dimmer switch and LED driver into a single unit that fits into a standard electrical box.

The 12V version of the EZDim® outputs 12V DC power to run 12V LED lighting. There is also a 24V version available.

The 40W EZDim® model provides up to 40 watts (3.3 amps) of 12V DC power to LED lighting. However, it is best to use up to 80% of the driver capacity only for longevity.

The EZDim® comes with three interchangeable faceplates in glossy white, light almond, and glossy dark brown to match different decors. A wall plate is not included.

No, since this is IP30 rated it is for indoor use only.

The warranty of this unit is for 6 years.

The warranty of this unit The EZDim® is designed to fit into a single gang electrical box.for 6 years.

Yes, the EZDim® requires a neutral connection in addition to line and load wires. It will not work without a neutral.

Yes, the EZDim® allows you to dim your LED lighting from 100% down to 10% brightness. It uses PWM (pulse width modulation) dimming optimized for LED loads.

Yes, the EZDim® is UL listed and meets safety standards for use in the US and Canada.

DATA SHEET

CERTIFICATION

Customer Reviews

Based on 6 reviews
83%
(5)
17%
(1)
0%
(0)
0%
(0)
0%
(0)
J
J.M.
Great product!

I have used several of these devices.
Love how easy the install is .
No additional equipment needed, just your light strip and this driver.
Great Co. to work with!
Thanks!

E
Edward D Lang
Great Service Easy Install

We installed the single color 12 volt digital strip light under counter. The dimmer/driver made the power supply really easy. Soldering the 18ga wires to the connector was tedious but did work. Under cabinet install went well and the tape holds nicely. Very satisfied with our new Hitlights.

P
Patrick Adams
DIM/DRIVER/DONE

It only makes sense to buy one component and not have to worry about mounting a driver elsewhere and running additional wires. I haven't had a chance to hook this up yet as I'm still in the process of my build. But I have bough HIT products before and loved them, hence may coming back to buy more... Thanks for putting out a great product, Patrick

J
Jacob Rothenbuhler
Much better then traditional method

Really easy to install, works great. Way better than getting an external transformer and trying to find the right place to hide it.

P
Peter
Works well

Installed this in a gang box instead of LED driver plus switch. Dimmer button could be designed prettier. A bit pricey but worth the cost.
