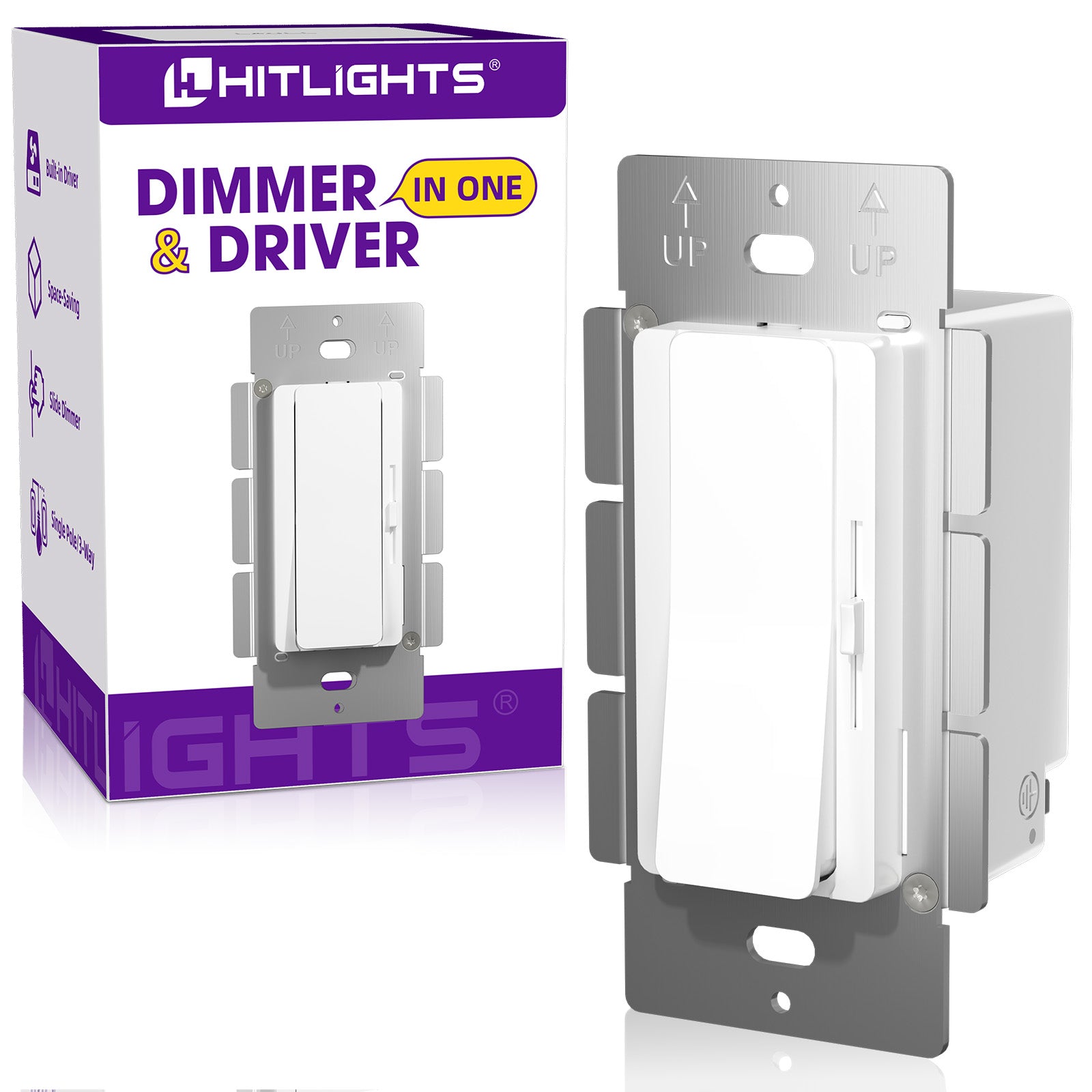

HitLights EZDim Pro 12V 60W is a 2-in-1 in-wall 12V dimmer driver that powers and controls low-voltage LED strip lighting from a single device. It accepts 120V AC at the wall, converts it to 12V DC, and delivers smooth, flicker-free dimming without a separate LED driver or external dimmer.

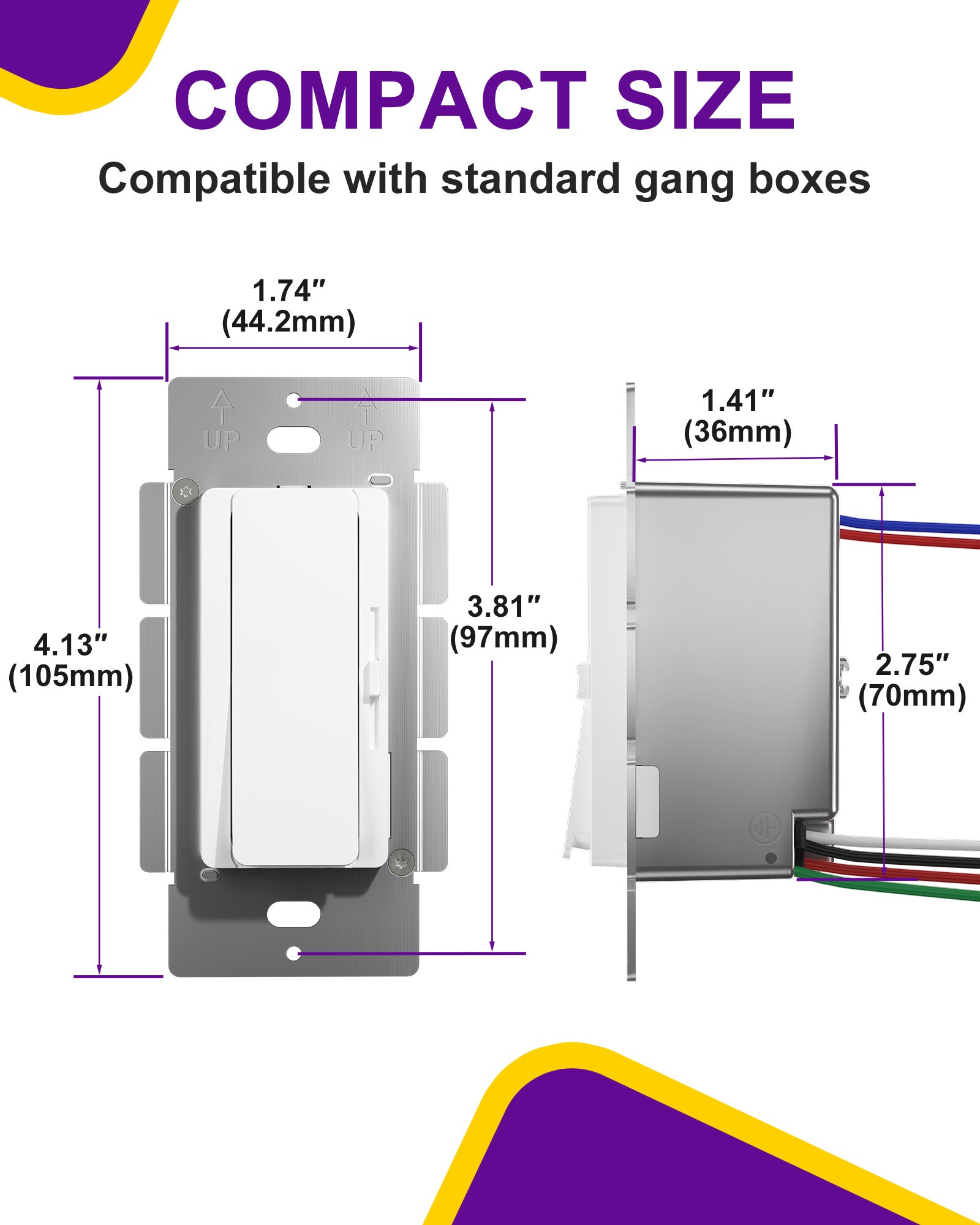

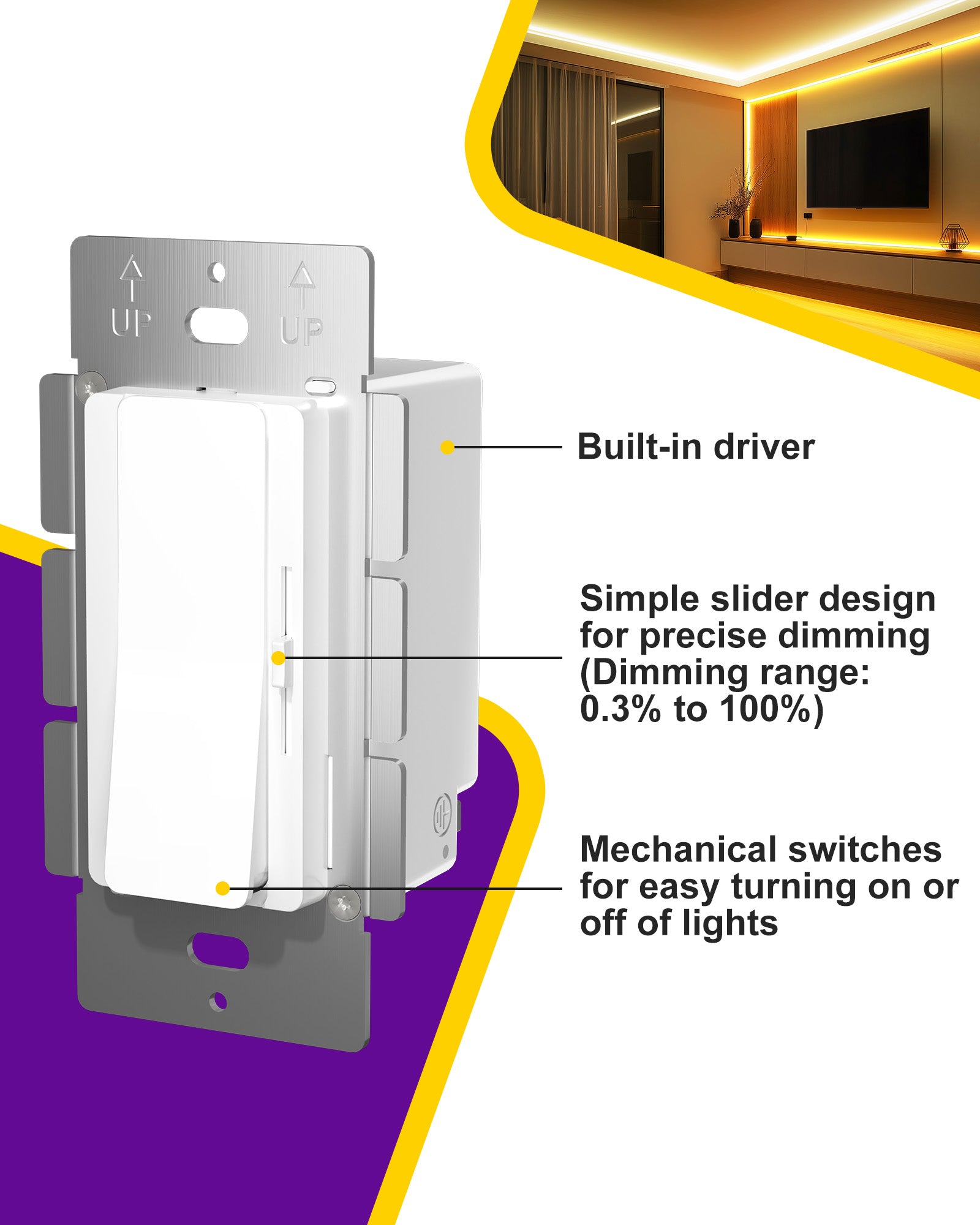

Designed for professional-grade yet compact installations, EZDim Pro integrates a Class 2 LED driver and familiar wall dimmer form factor. It fits a standard single-gang electrical box, supports single-pole and 3-way wiring, and uses a slider for 0.3–100% brightness with a dedicated on/off toggle. This layout feels like a standard wall dimmer while handling up to 60W of 12V DC load, ideal for typical 12V strip runs.
Unlike traditional setups that require a separate power supply in a remote location, this integrated 12V dimmer driver keeps power conversion and control in one code-compliant device. That means shorter runs, fewer components to troubleshoot, and a cleaner finished look for kitchen, cove, accent, and task lighting projects using constant-voltage 12V single-color LED strips.
- 0.3–100% ultra-smooth dimming using PWM optimized for LED loads.
- Up to 60W at 12V DC for common single-zone and shorter 12V strip layouts.
- Code-compliant Class 2, UL Listed design with multi-stage electronic protections.
Electrical performance includes 120VAC input (108–132VAC, 50/60Hz), ≥93.3% efficiency at max load, power factor >0.99, and THD ≤10%, with short-circuit, over-current, over-voltage, and low-voltage protection plus auto-recovery. The unit is rated IP30 for dry indoor locations, operates from -20°C to 45°C, supports 20–95% non-condensing humidity, and features in-rush and surge performance tested to IEC standards. It is hard-wired, includes a compact design with removable fins for multi-gang installs, and carries UL Listed, FCC, Class 2, Class P, RoHS, and REACH certifications with a 6-year warranty.

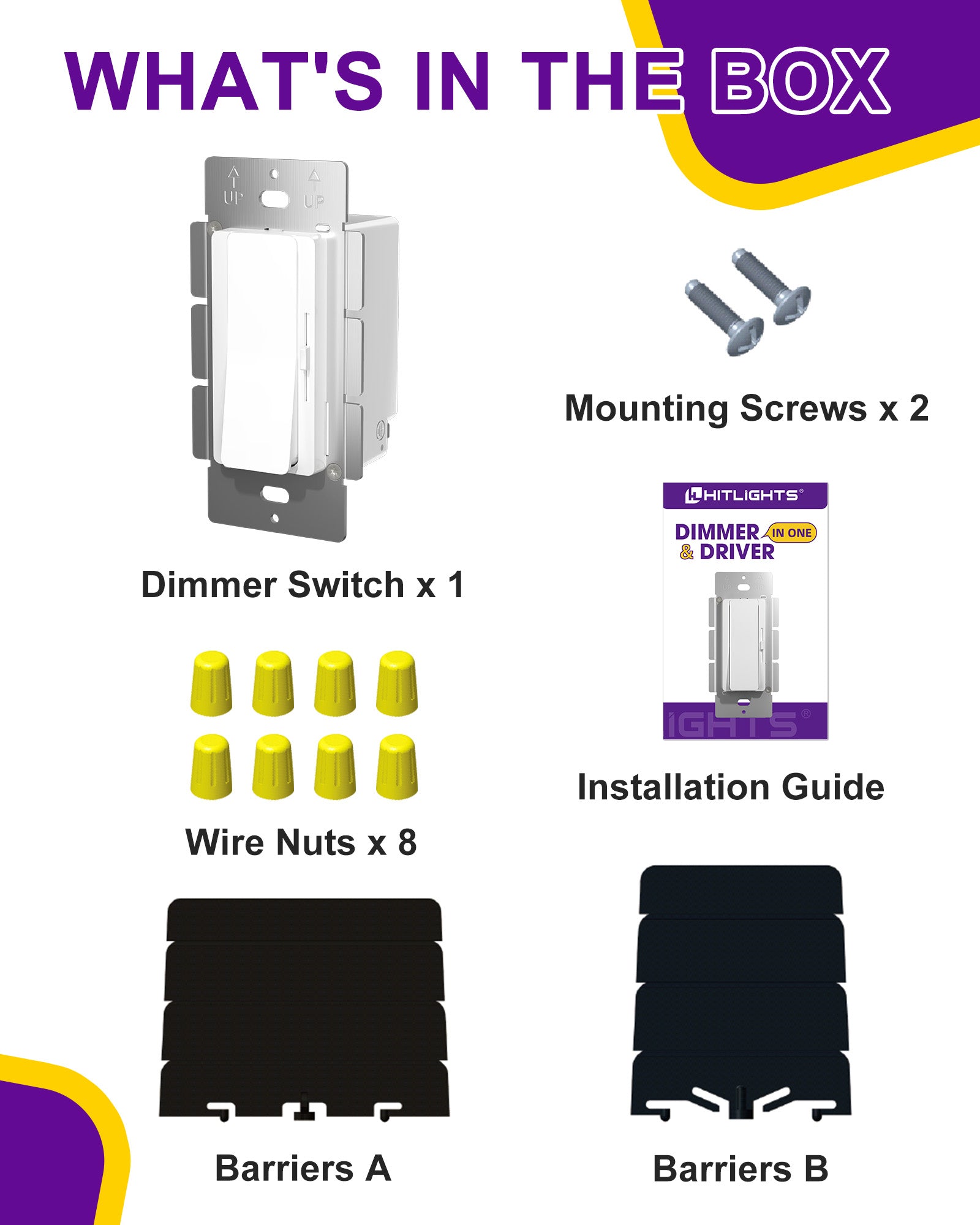

WHAT'S INCLUDED:
FREQUENTLY ASKED QUESTIONS:
Q: What is the HitLights EZDim Pro 12V 60W dimmer driver switch?
A: It is an in-wall 2-in-1 device that combines a Class 2 LED driver and wall dimmer to power and control 12V DC LED lighting. It accepts 120VAC at the wall and outputs regulated 12V DC with smooth dimming for constant-voltage LED strip lights.
Q: Who is the EZDim Pro 12V 60W model designed for?
A: The 60W 12V EZDim Pro is designed for electricians, contractors, and advanced DIY users installing single-color 12V LED strip lighting in residential or light commercial spaces. Its integrated design reduces wiring complexity and component count compared with using a separate driver and wall dimmer.
Q: How does this 2-in-1 dimmer driver work in a lighting system?

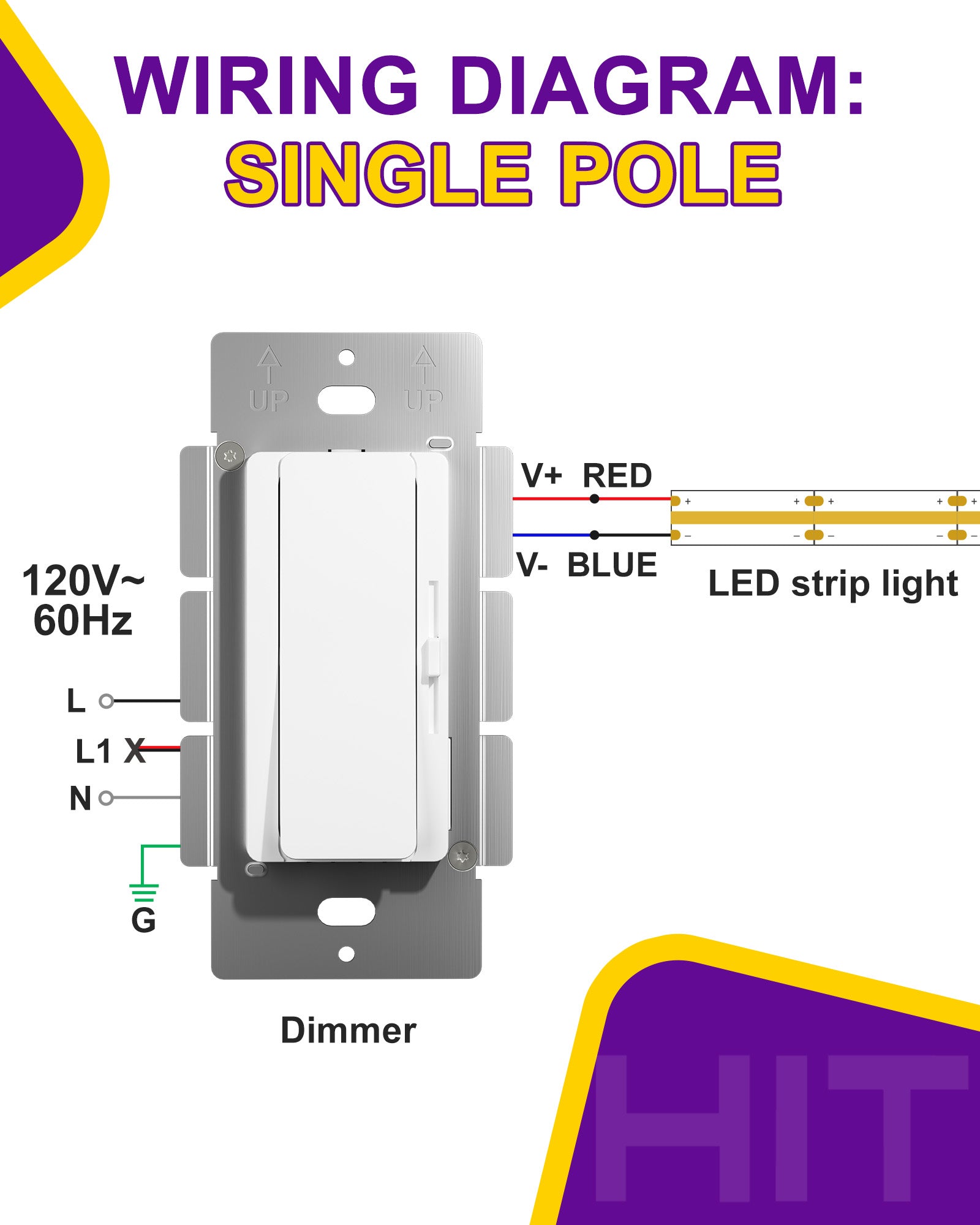

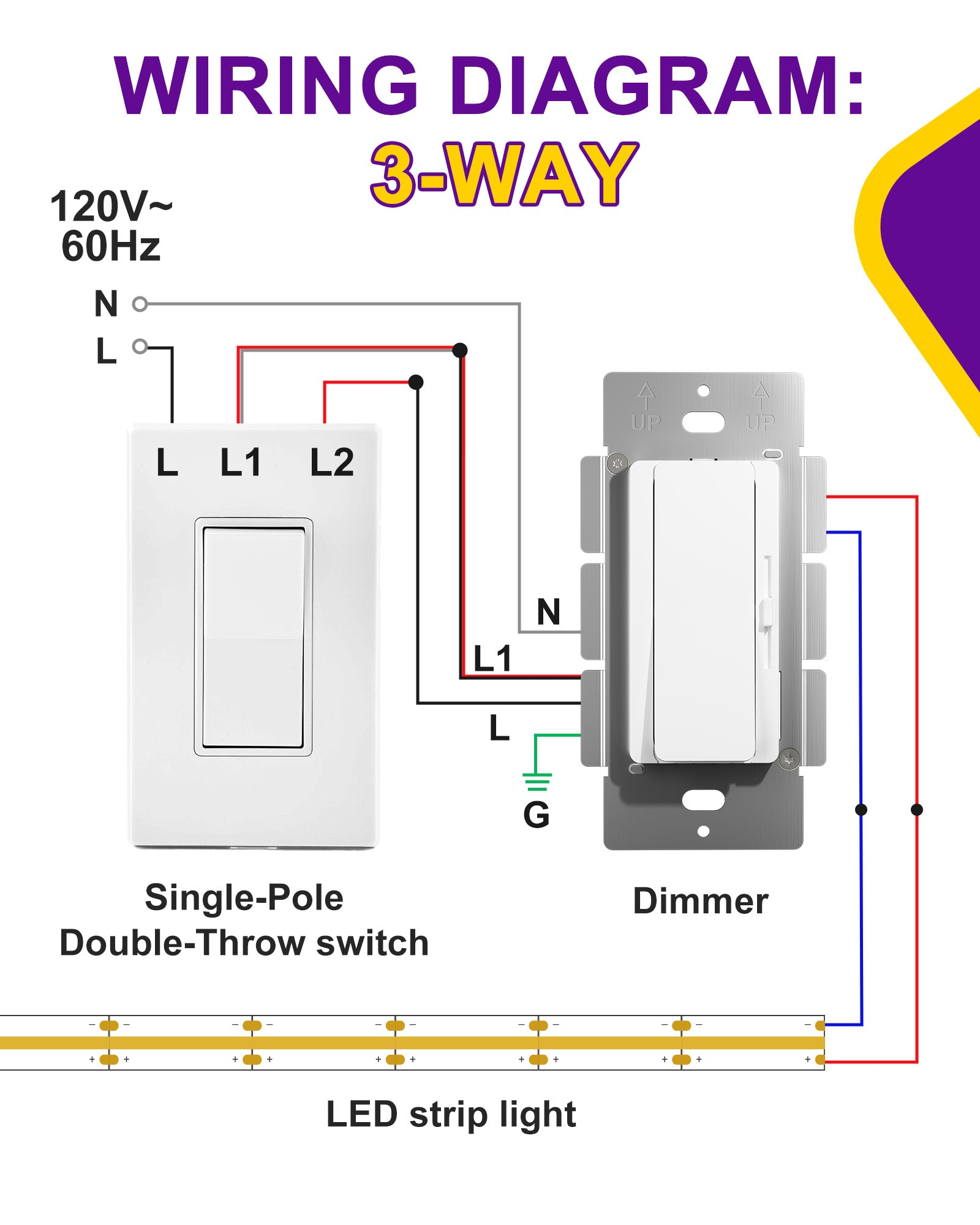

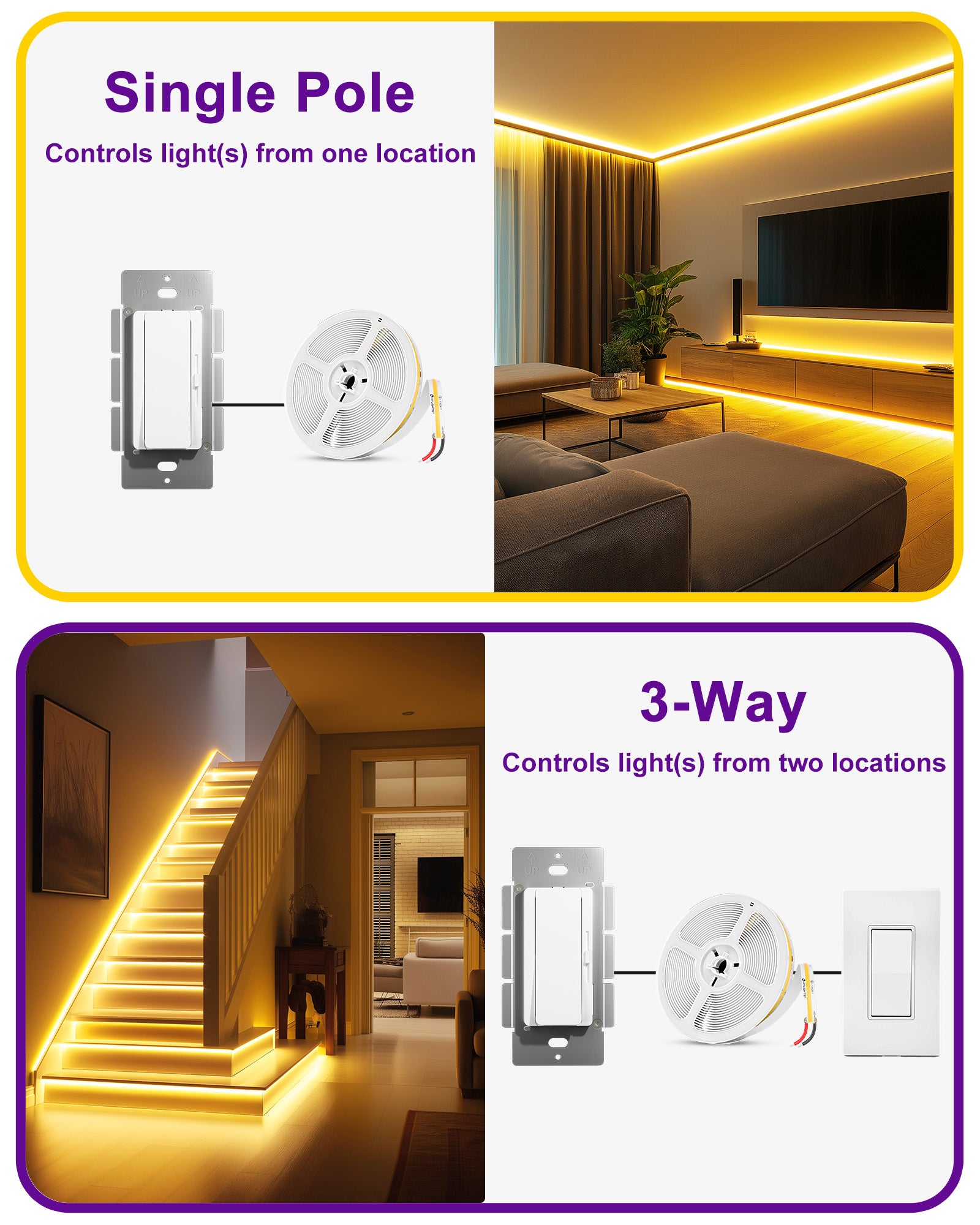

A: The unit installs in a standard single-gang wall box and connects to line, neutral, and load wiring on a 120VAC circuit. It converts line voltage to 12V DC and uses a slider to dim the LED load from 100% to 0.3%, with an on/off toggle for switching. It supports both single-pole and 3-way control and includes power-failure memory.
Q: What are the key electrical specifications of the 12V 60W EZDim Pro?
A: The driver is rated for 120VAC input (108–132VAC, 50/60Hz) and outputs 12V DC at up to 60W. It delivers ≥93.3% efficiency, power factor >0.99, THD ≤10%, in-rush current of 54A (typ.), and includes multiple protections with auto-recovery, operating from -20°C to 45°C in indoor dry locations (IP30).

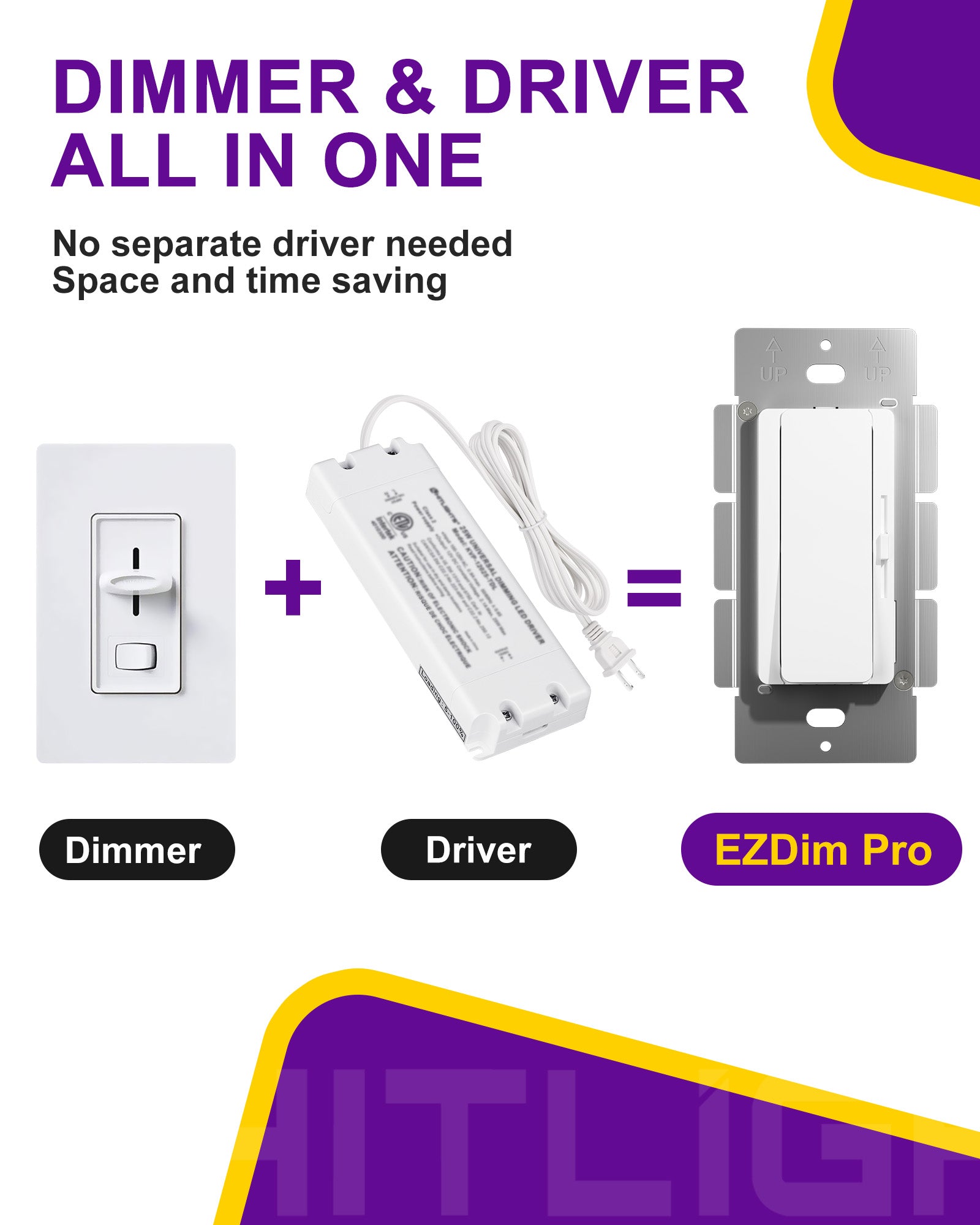

Q: How does EZDim Pro compare to using a separate LED driver and wall dimmer?
A: Traditional systems require a remote 12V driver plus a compatible wall dimmer, which can add wiring complexity and introduce compatibility issues. EZDim Pro integrates both functions into one UL Listed, Class 2 device in the wall box, simplifying installation, reducing failure points, and providing dimming behavior engineered for 12V LED strip loads.
Q: What types of LED strips are compatible with the 12V 60W EZDim Pro?
A: The 12V version is compatible with constant-voltage, single-color 12V LED strip lights. It is not intended for RGB, RGBW, or addressable LED strips, but for most standard single-color 12V strip applications it functions as a plug-and-play power and dimming solution.
Q: Is the EZDim Pro 60W safe and certified for code-compliant installations?
A: Yes. The EZDim Pro 60W unit is a Class 2 device, UL Listed, and carries FCC, Class P, RoHS, and REACH certifications. It includes short-circuit, over-current, over-voltage, and low-voltage protections and is rated IP30 for indoor dry locations, supporting code-compliant low-voltage lighting installations.
