24 Volt EZDim® Pro CCT Dimmer & Driver Switch - 96Watt

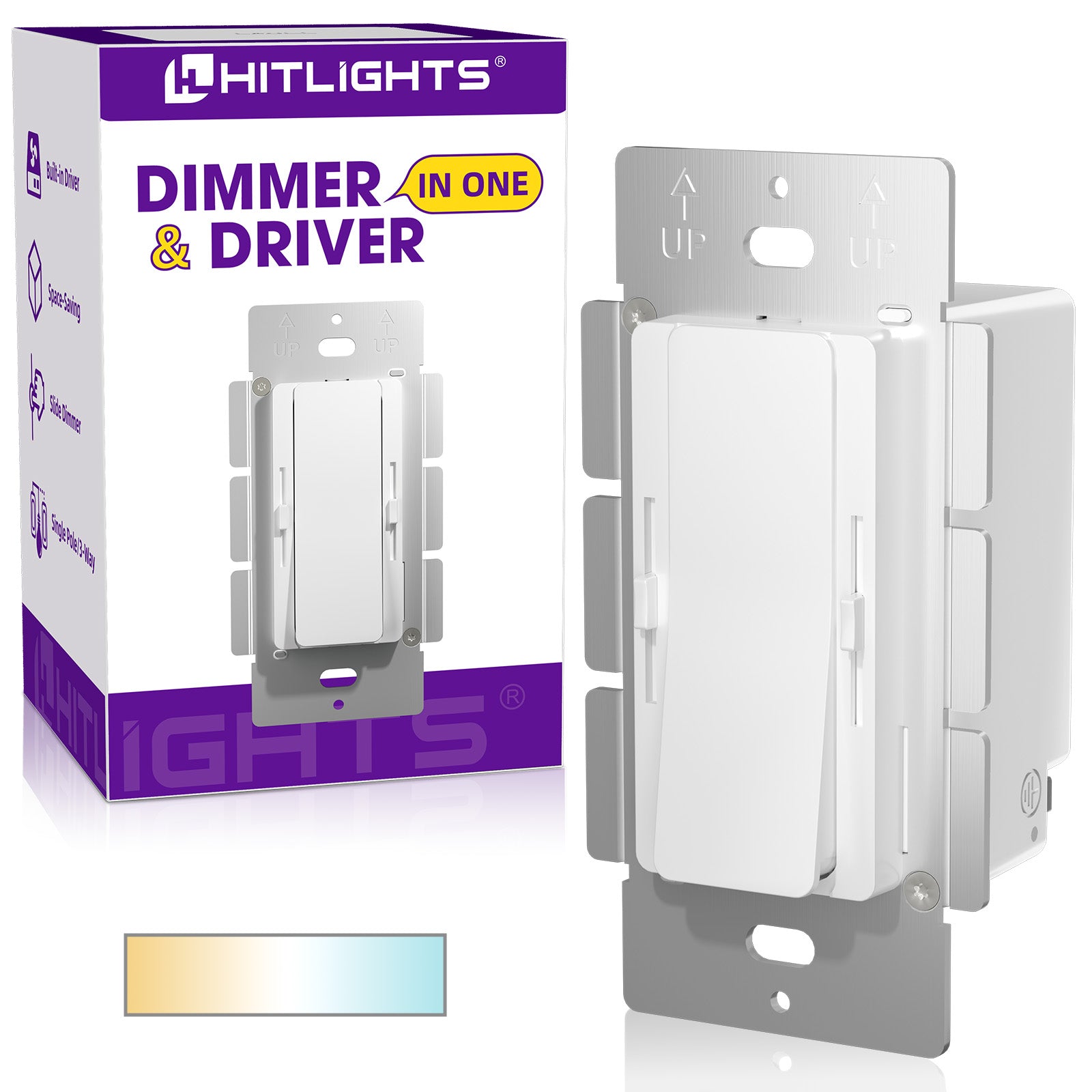

Q: What is the HitLights 24V EZDim® Pro CCT Dimmer & Driver Switch?
A: It is an in-wall 2-in-1 LED driver and dimmer switch for 24V tunable white CCT LED strip lights. It converts 120VAC wall power to 24VDC output while allowing brightness and color temperature control from one wall device.

Q: What type of LED strip lights does this work with?

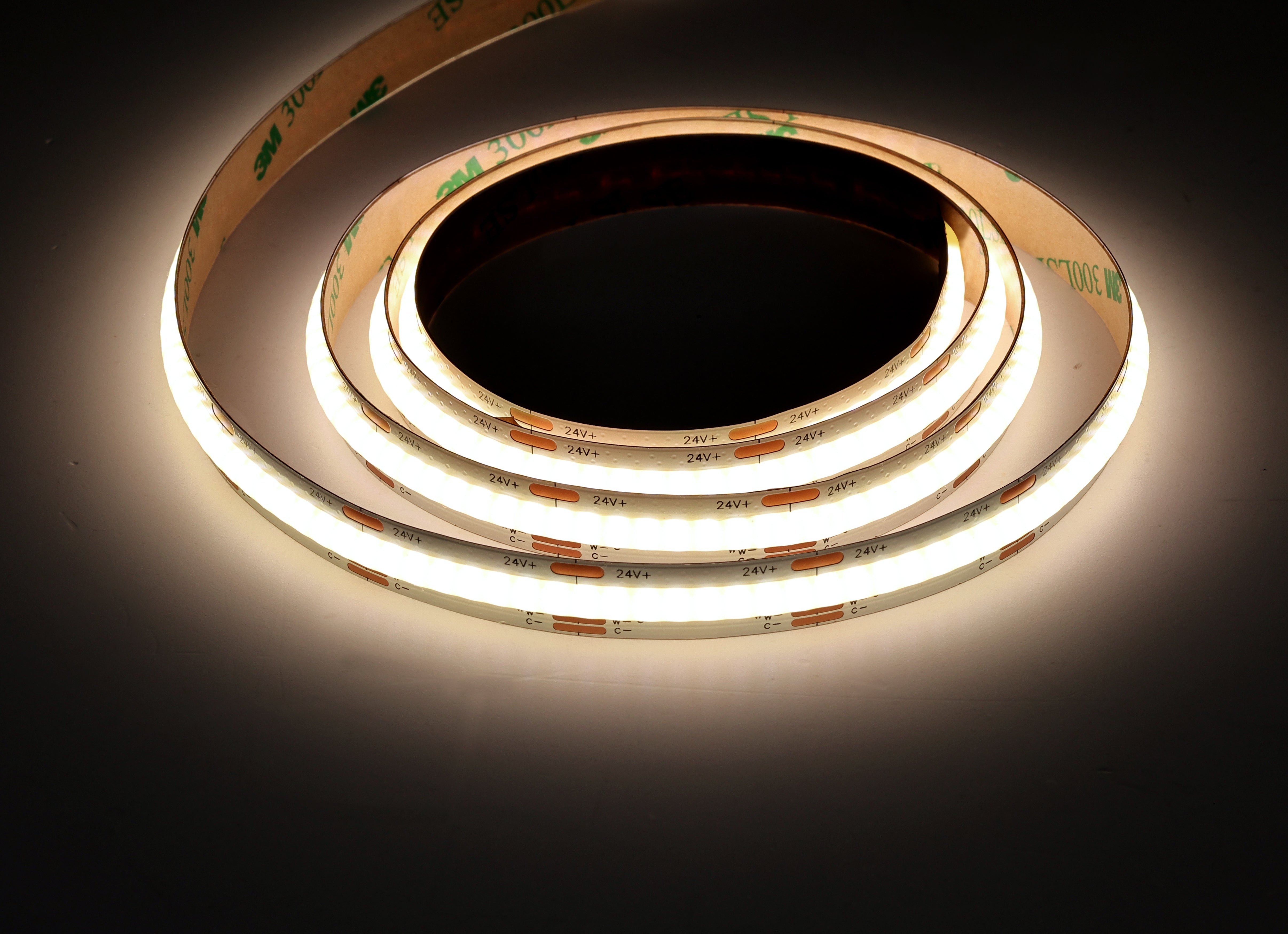

A: This model is designed for 24V constant-voltage tunable white CCT LED strip lights. It is not intended for RGB, RGBW, addressable, or standard single-color LED strips because those lighting types require different control methods.

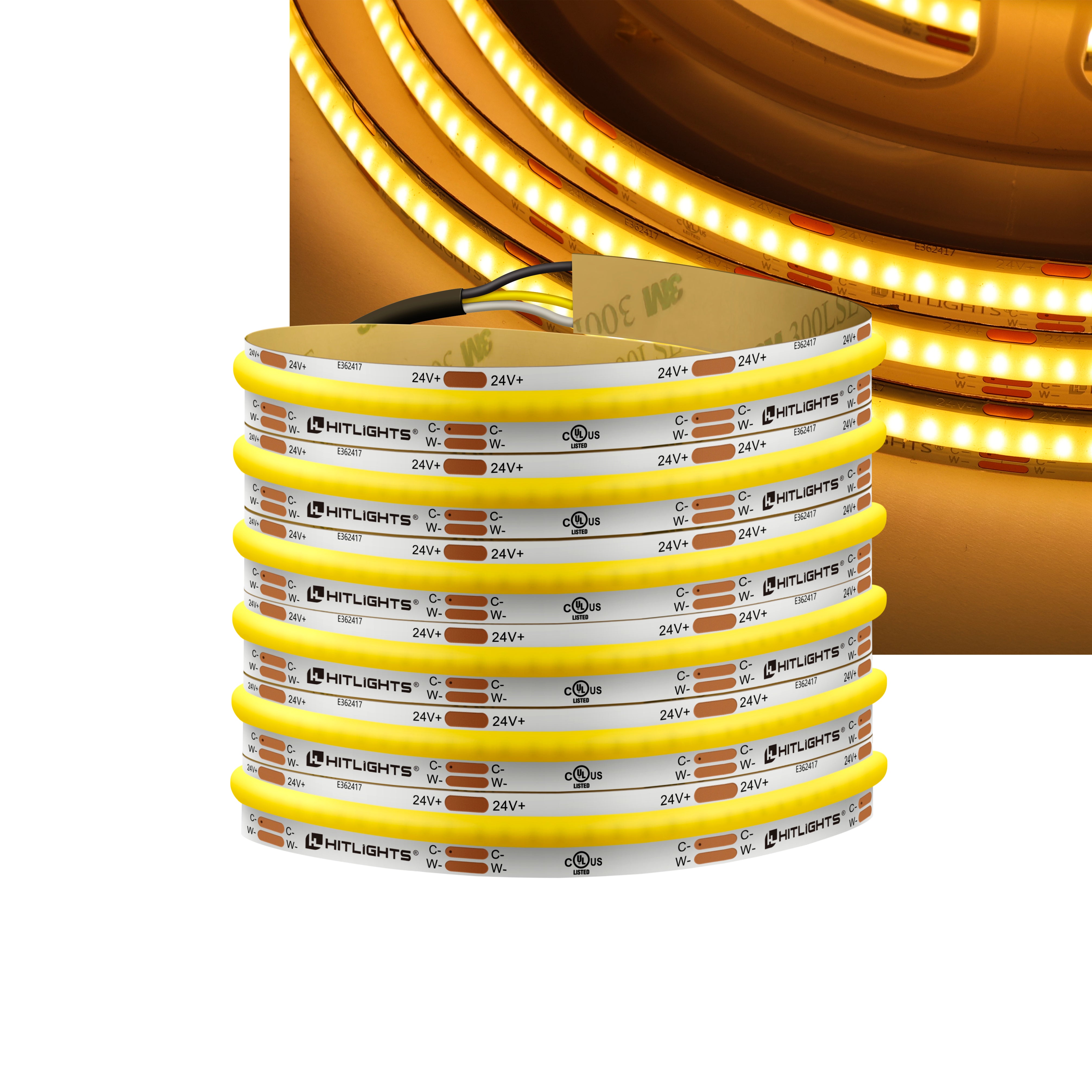

Q: Why does this strip require 3-pins instead of a standard 2-pin setup?
A: Standard strips use 2-pins for simple on/off single colors. The 3-pin configuration is mandatory for CCT: Pin 1 handles the +24V common positive power, Pin 2 controls the warm white channel, and Pin 3 controls the cool white channel. The external controller mixes power across these paths to blend the temperature.

Q: How much power can this dimmer driver support?
A: The unit supports up to 96 watts of 24V DC LED load, equal to 4 amps. For long-term reliability, installers often size LED loads below the maximum capacity and confirm total wattage before installation.

Q: Is the EZDim Pro compatible with multi-color LED strips?
A: Not suitable for RGB, RGBW, or addressable strips.

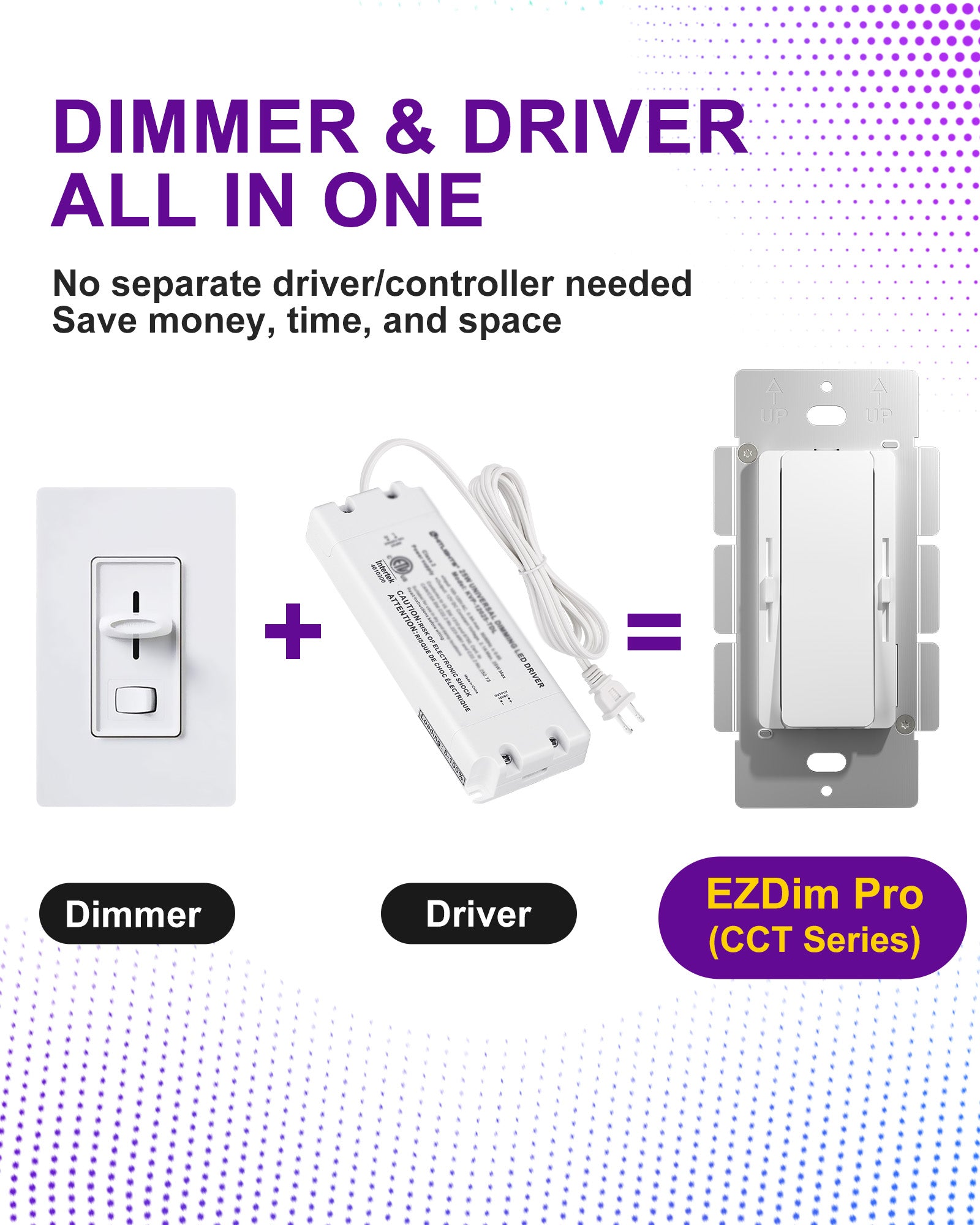

Q: Does this replace a separate LED driver and dimmer?

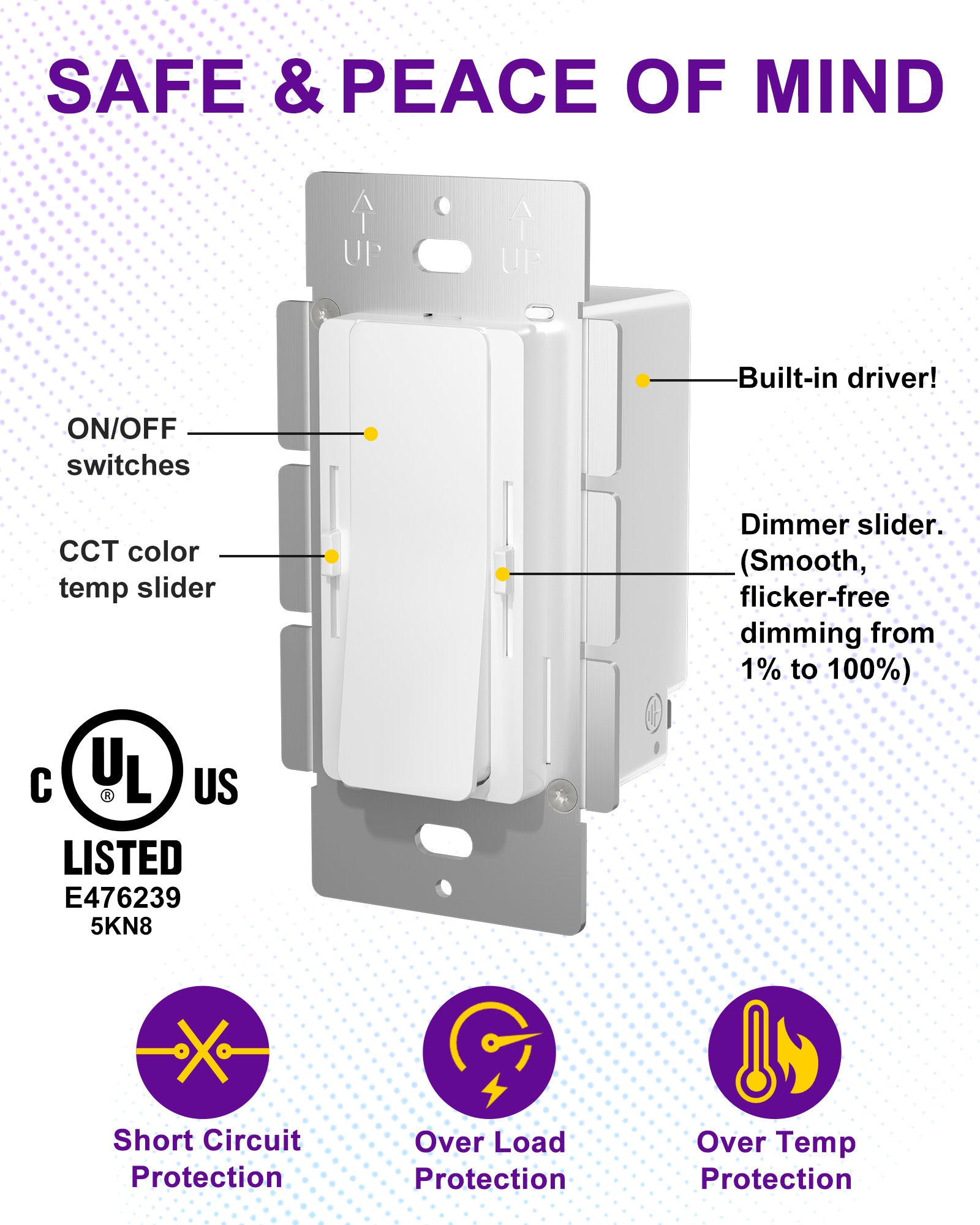

A: Yes. The integrated design combines the LED driver, dimmer, and CCT control functions into a single in-wall device. This reduces the need for separate components and can simplify low-voltage LED strip installations.

Q: Is this switch for indoor or outdoor use?
A: This product is intended for indoor dry-location installations. It should not be installed outdoors, in wet locations, or anywhere exposed to moisture unless it is housed in an approved enclosure rated for that environment.

Q: Is a neutral wire required for installation?
A: Yes, a neutral connection is required for proper functionality.

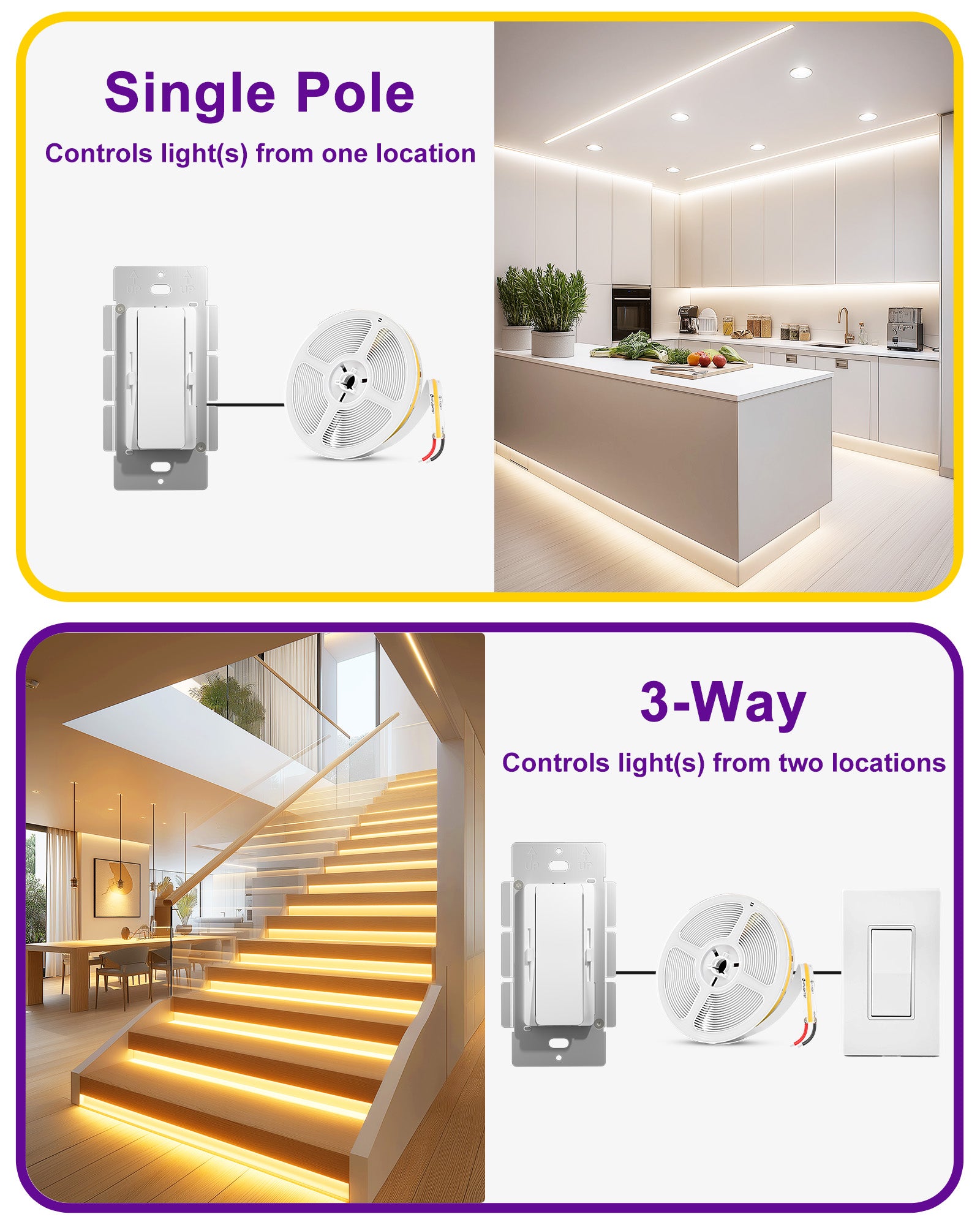

Q: Can the EZDim Pro CCT be wired to control two separate light runs in a 3-way hallway configuration?
A: Yes. The EZDim Pro CCT includes an integrated traveler line terminal (L1 Red/Black wire). This enables it to interface natively with a standard secondary three-way mechanical wall switch located at the opposite end of a space.

Q: What applications is this best for?
A: It is best for tunable white LED strip lighting in kitchens, under cabinets, shelving, closets, coves, vanities, media walls, and display lighting. It is useful where both brightness and white color temperature need wall-switch control.
