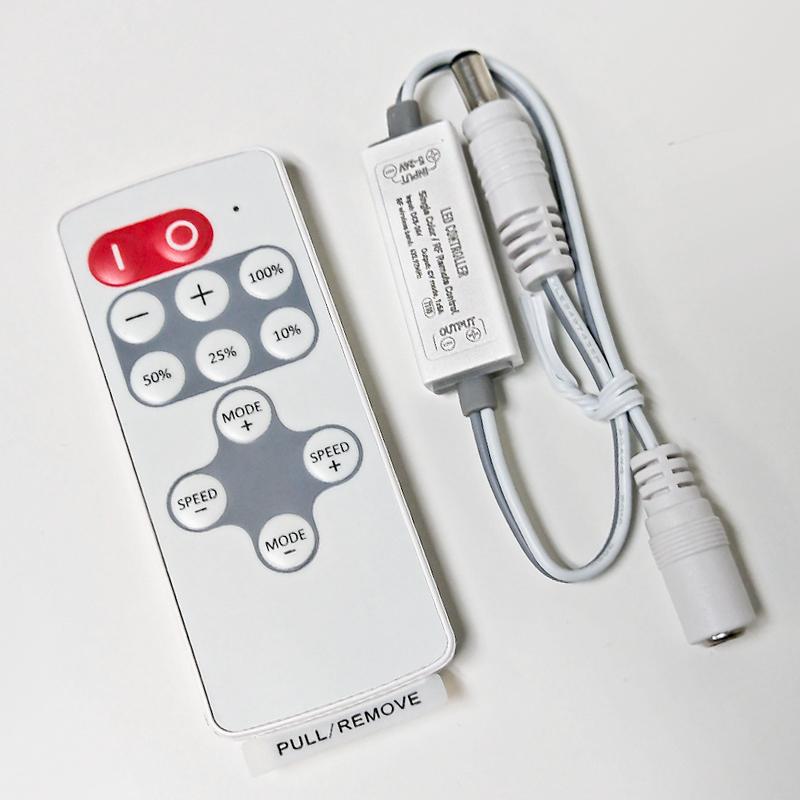

Name: Atenuador remoto de un solo color mini R110: control remoto RF
Brand: HitLights
SKU: CTR-SC-R110Mini
Price: 16.99 USD
Availability: InStock

HitLights LED Light Strip Controllers and Dimmers R110 Mini Single Color Remote Dimmer : RF Remote

Su información de pago se procesa de forma segura. No almacenamos los detalles de la tarjeta de crédito ni tenemos acceso a la información de su tarjeta de crédito.

Características del producto:

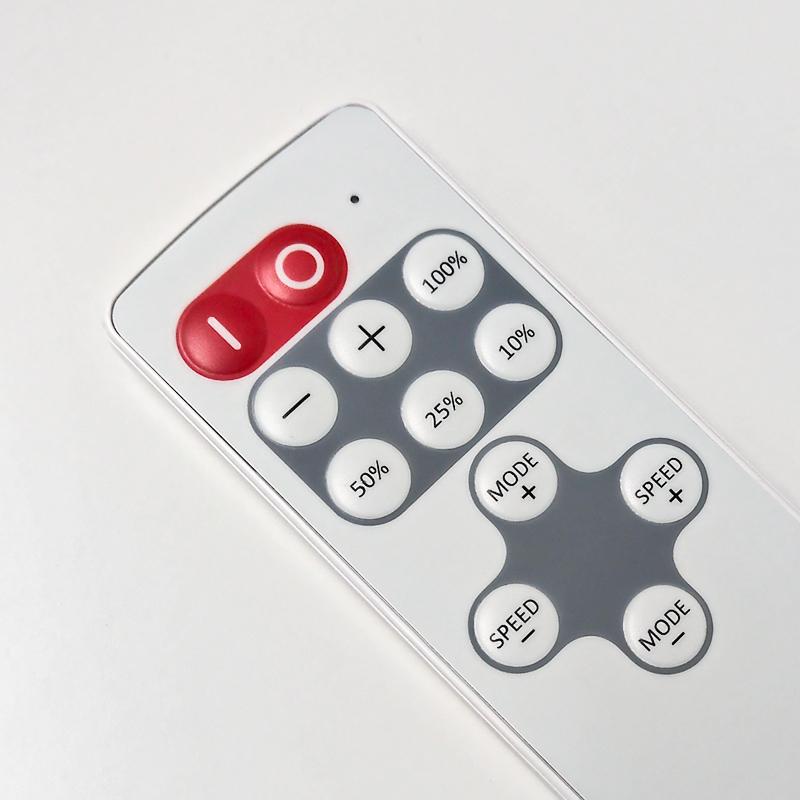

• Control remoto con configuraciones de encendido/apagado, velocidad, brillo y modo.
• Fácil conexión de conector DC
• Garantía HitLights de 1 año

Especificaciones:

Modo de salida: voltaje constante PWM
Voltaje de funcionamiento: CC 5-24 V
Corriente de salida nominal: 5 A
Grado de brillo blanco: 10 niveles
Frecuencia PWM: 1 KHz
Grado físico PWM: 256 pasos
Protección contra sobrecalentamiento: Sí
Frecuencia remota: 433,92 MHz
Distancia del control remoto: >15 m en un área abierta
Memoria de apagado: Sí, se restaura al modo de configuración anterior cuando se enciende
Carcasa: Tubular para versión estándar, ABS+silicona para versión -H
Dimensiones del controlador: 50 x 15 x 7 mm

Specifications:

Function: Single Color (White)
Output Mode: PWM constant voltage
Rated Output Current: 5A
White Brightness Grade: 10 Levels
PWM Frequency: 1KHz
PWM Physical Grade: 256 Steps
Warranty: 2 Year HitLights Warranty
Overheat Protection: Yes
Remote Frequency: 433.92MHz
Remote Control Distance: >15m at an open area
Power Off Memory: Yes, restores to the previous set mode when turned on
Housing: Tubed for standard, ABS+Silicon for -H Version
Controller dimension: 50x15x7mm

SKU	Function	Working Voltage	Dimensions	Smart Control
CTR-SC-R110Mini	Single Color (White)	DC 5-24V	50 x 15 x 7 mm	No
CTR-STCV-ATSA	Tunable White	DC 12/24V	80 x 16.4 x 40 mm	Yes
CTR-RGBW-NT40	RGBW	DC 5-24V	87 x 24 x 15 mm	Yes
CTR-RGBW-M8	RGBW	DC 5-24V	60 x 104 x 9 mm	No

What is the wireless remote range?

The RF remote has a wireless control distance of over 15m in open areas.

Does the remote require line of sight?

No, the RF remote does not require direct line of sight to operate.

How many brightness levels does it have?

There are 10 levels of white brightness control.

What lighting effects does the remote provide?

The remote can control basic on/off, brightness, and has multiple lighting modes with fading/flashing effects.

What is the maximum power rating?

The maximum rated output current is 5A.

What voltage does it support?

The working voltage is DC 5-24V.

Does it have overheat protection?

Yes, the dimmer has built-in overheat protection.

Does it remember previous settings?

Yes, it has power off memory to restore the previous mode when turned back on.

What is the warranty period?

The R110 remote dimmer comes with a 2 year warranty.

DATA SHEET

R110 Mini Single Color Remote Dimmer

Waste remote dimmer.

I have bought 3 over time. 1st one melted.. Ended up using a Lutron remote dimmer before the driver. That worked. Second one last week didn’t do anything. Then light flashed and that was it. The light strip would flash once when power was turned on. Removed the dimmer and light strip wouldn’t light up. Had to use a second New strip for the project with no dimmer. Still have one more but hesitant to use it. When it doesn’t work the fix costs more than the remote dimmer.

Hi Reid,

Thank you for the feedback regarding the difficulties you’ve encountered with your recent purchase of Remote Dimmer from Hitlights. We’re truly sorry to hear that you are experiencing issues, as we aim to provide products that perform seamlessly and enhance your experience.

We would like to personally ensure we address and resolve these issues as quickly as possible. We will have someone from our support team reach out to you to assist with your concern.

We appreciate your patience and cooperation in helping us understand this issue better.

Best Regards,
HitLights Team

Remote dimmer

Small, in-line dimmer that plugs into the outlet side of the 12 volt transformer. The system controls our kitchen under counter lighting and is mounted behind a kitchen drawer. The remote is small and easy to use and the mounting location does not affect it. 100% lights when cooking and less other times. This is my first and it works better than I thought it would. Simple to install and simple to use.
JRK

Happy customer

Thought the remote dimmer solution was easy to install and happy with the results.

Remote Control Dimmer

This product works well. I used it to replace an old dimmer which went bad.

They work great!

and just what was needed, Thanks, ML...
