Beam Angle and LED Strip Lights

Table of Contents

Introduction

When selecting LED strip lights, understanding the concept of beam angle is crucial. The beam angle determines how light is distributed, impacting brightness, uniformity, and application efficiency. Whether using COB LED strips, traditional SMD chips, or housing them in an aluminum channel, choosing the right beam angle ensures optimal illumination and aesthetic appeal.

What is Beam Angle?

Beam angle refers to the spread of light emitted from a source. Measured in degrees, it indicates the width of the light dispersion. LED strip lights typically offer beam angles between 30° and 180°, affecting how light is projected onto surfaces.

A narrow beam angle (e.g., 30°-60°) focuses light more directly, creating a concentrated, intense beam. In contrast, a wide beam angle (e.g., 120°-180°) spreads light over a larger area, making it ideal for ambient lighting.

Understanding beam angles is essential when designing LED lighting setups, as they influence light intensity, coverage, and shadow formation.

How Beam Angle Affects LED Strip Light Performance

1. Brightness and Light Intensity
A narrow beam angle produces a brighter and more intense light because it concentrates light in a smaller area. Conversely, a wider beam angle disperses light over a broader space, reducing intensity but increasing coverage.

For example:
Narrow Beam Angle (30°-60°): Ideal for spot lighting, task lighting, or accent lighting where high intensity is required.
Wide Beam Angle (120°-180°): Perfect for general illumination, under-cabinet lighting, and ambient lighting.

2. Light Uniformity and Distribution
The beam angle directly affects how evenly light spreads across a surface. COB LED strips, which feature continuous lighting with no visible dots, typically benefit from wider beam angles to achieve smooth and uniform illumination.
Alternatively, LED strips with SMD chips often have concentrated light points, requiring careful beam angle selection to minimize shadows and hotspots.

3. Shadow Formation and Glare Reduction
A wider beam angle reduces shadow formation by dispersing light across multiple angles. This is particularly beneficial when installing LED strip lights in aluminum channels, which help diffuse light and prevent harsh glare.
For applications such as cove lighting or display illumination, using an aluminum channel with a wide-beam LED strip ensures soft, diffused lighting.

Choosing the Right Beam Angle for Your LED Strip Light Setup

1. Task Lighting (Narrow Beam 30°-60°)
Task lighting requires focused illumination, making a narrow beam angle ideal.
Applications include:
  • Kitchen countertops
  • Workbenches
  • Reading lights
  • Display case lighting
  • A COB LED strip with a narrow beam angle provides bright, precise illumination for these tasks.

2. Accent Lighting (Medium Beam 60°-90°)
Accent lighting highlights specific features, such as artwork, architectural details, or shelves. A medium beam angle balances brightness and coverage, ensuring enhanced visibility without overpowering the space.
Examples:
  • Backlighting for televisions
  • Under-cabinet lighting
  • Bookshelf illumination

3. General and Ambient Lighting (Wide Beam 120°-180°)
For broader illumination, such as room lighting or ceiling cove lighting, a wide beam angle is the best choice. This ensures smooth and even light distribution, reducing dark spots.
Recommended setups:
  • Indirect ceiling lighting
  • Hallway illumination
  • Wall-washing effects

How Beam Angle Works with Different LED Technologies

COB LED Strip vs. SMD LED Strip Light
  • COB LED Strips offer seamless, uniform illumination with fewer hotspots, making them ideal for wide beam angles (120°-180°) in general lighting.
  • SMD Chips emit light from distinct points, making them more suitable for medium to narrow beam angles when used for task or accent lighting.

Aluminum Channel and Beam Angle Optimization
Using an aluminum channel with an LED strip light enhances performance by:

  • Diffusing light to create a softer glow
  • Protecting LED strips from dust and physical damage
  • Enhancing heat dissipation, prolonging the lifespan of the LEDs

An aluminum channel works best with COB LED strips or wide beam SMD LED chips to achieve consistent, professional lighting effects.

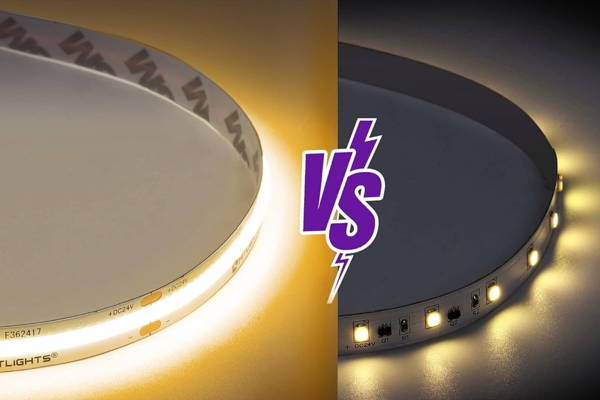

COB vs SMD LED Strip Lights

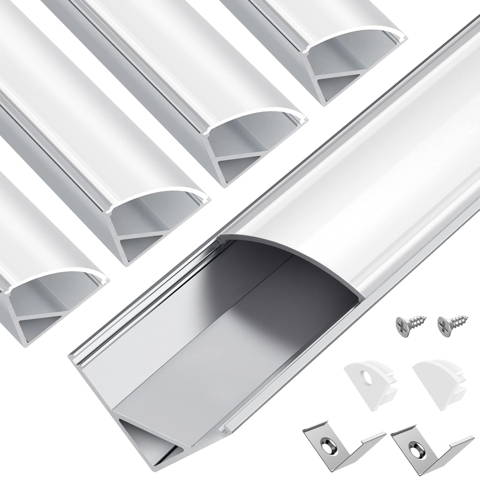

Aluminum Channel for light diffusion

Tips for Maximizing Beam Angle Efficiency

  1. Use Reflectors and Diffusers: Incorporate aluminum channels with frosted covers to modify beam angles and soften light output.
  2. Adjust Placement: Position LED strips strategically to control how light spreads across surfaces.
  3. Choose the Right Mounting Angle: Tilting the LED strip can help direct light where needed while avoiding glare.
  4. Test Before Installation: Experiment with different beam angles in your space to find the perfect lighting balance.

Conclusion

Beam angle plays a pivotal role in LED strip light performance, influencing brightness, coverage, and overall aesthetics. Whether using COB LED strips for seamless illumination or SMD chips for focused lighting, selecting the appropriate beam angle ensures the best lighting effect for any application.
By understanding how beam angles interact with aluminum channels, LED technologies, and installation setups, you can create efficient and visually appealing lighting designs that enhance both functionality and ambiance.
