Premium 12V COB LED Strip Light Bundle

SKU: L0512V-403-1630-U-BLK-K
No reviews

Color: Neutral White
Price:
Sale price$66.99

American Express Apple Pay Diners Club Discover Google Pay Mastercard PayPal Shop Pay Visa

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

12V COB LED STRIP LIGHT BUNDLE: HitLights COB LED strip light bundle offers everything you need for a seamless LED strip lighting installation, from high-quality lighting to convenient remote control and a reliable power supply. It's the perfect solution to enhance your space with warm and inviting illumination. Features a 12V DC output and is compatible with our LED drivers.

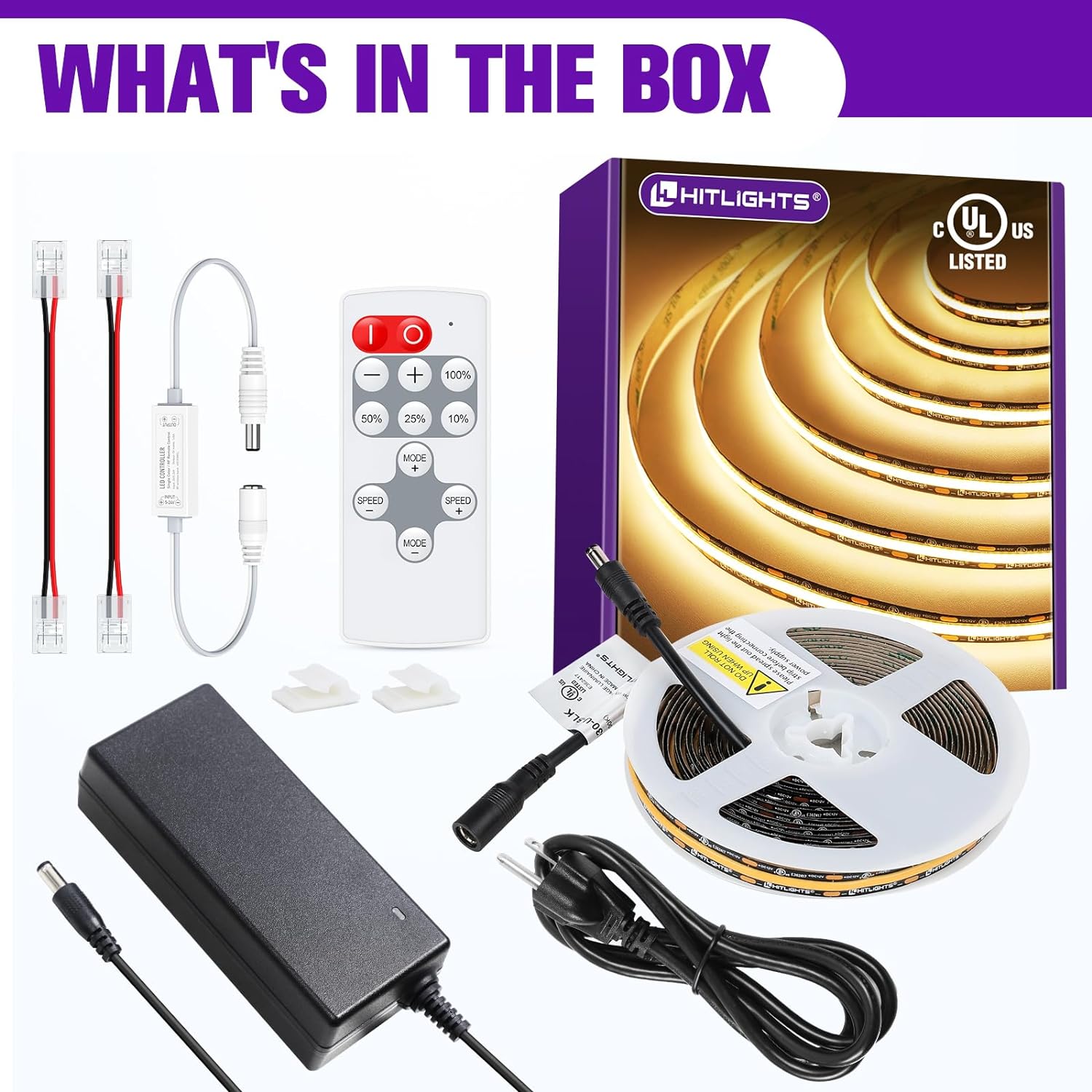

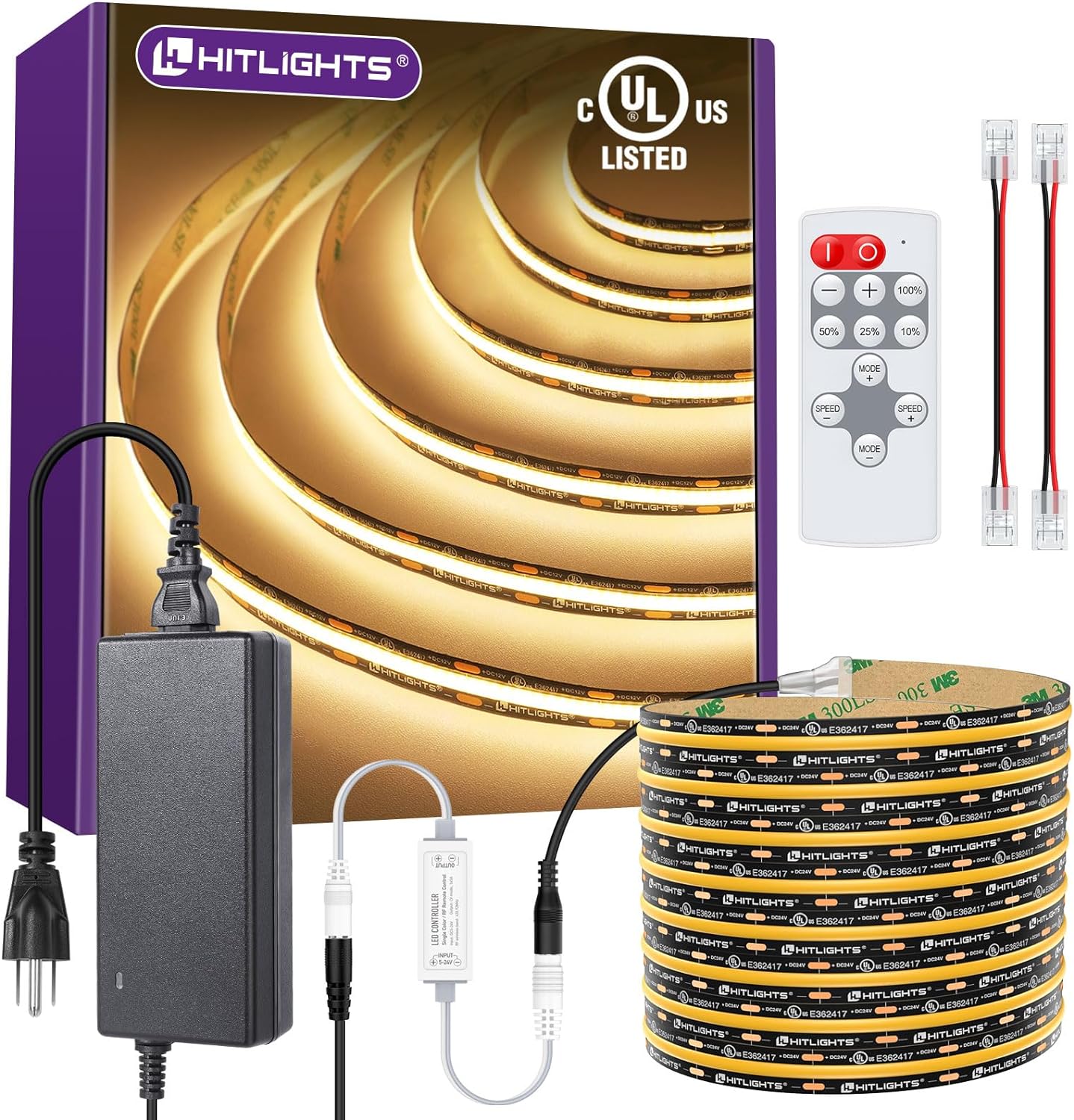

Bundle comes with:
  • 16.4ft LED Tape Light x 1;
  • 12V 60W Power Supply x 1;
  • RF Remote Controller Kit x 1;
  • Wire Lead Connector x 2;
  • Wire Clips x 2;
  • Installation Guide x 1

Please note that packaging may change without prior notice, but rest assured, our commitment to quality remains constant.

  • ALL-IN-1 BUNDLE: Comes with 1 x 12V 16.4f COB LED Strip t; 1 x 12V 60W Power Supply; 1 x RF Remote Controller Kit; 2 x Wire Lead Connector; 2 x Wire Clips ; 1 x Installation Guide

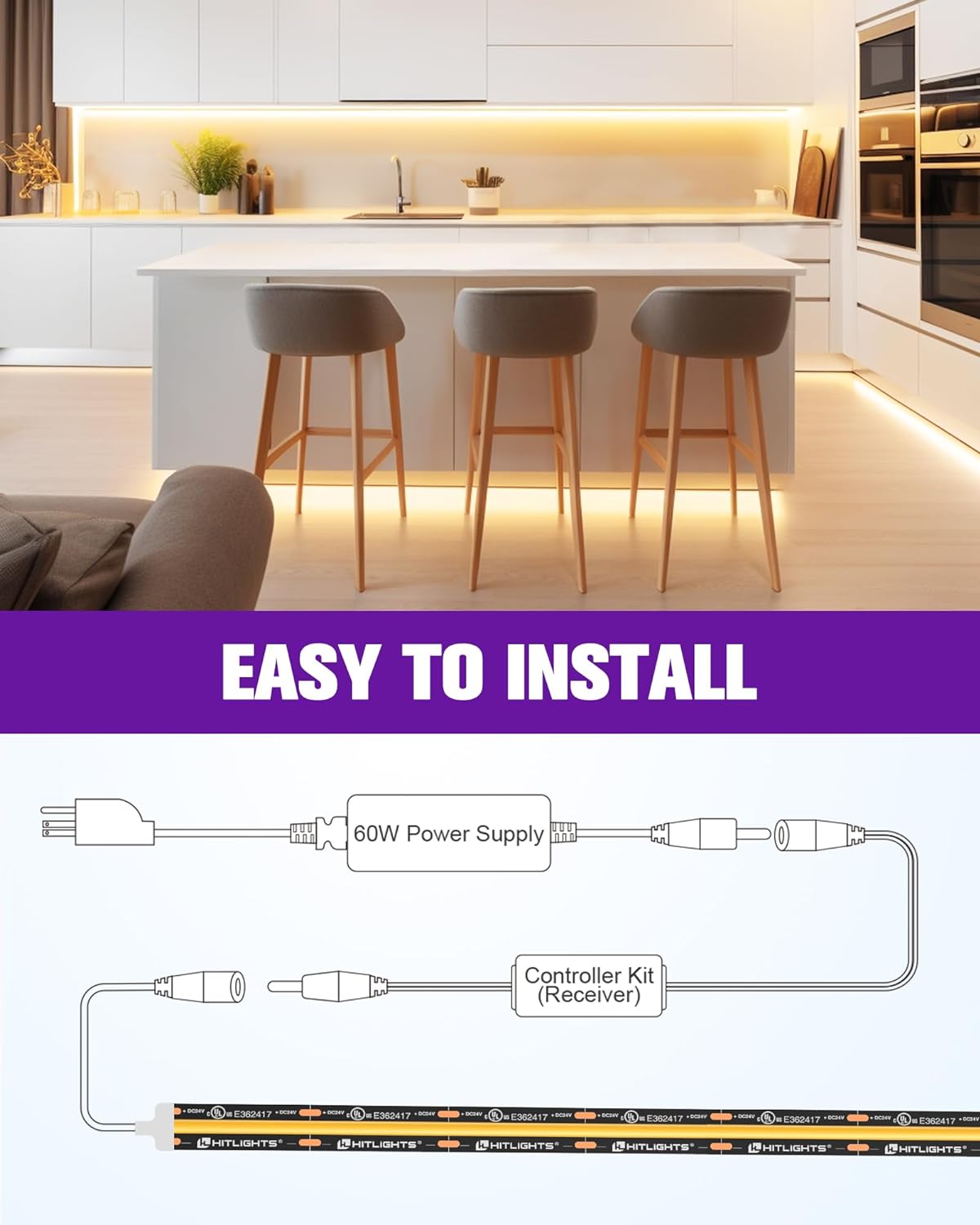

  • EASY INSTALLATION: LED strip comes with a 3M adhesive backing, plug and play power supply and wire clip with no soldering electrical experience or tools required.

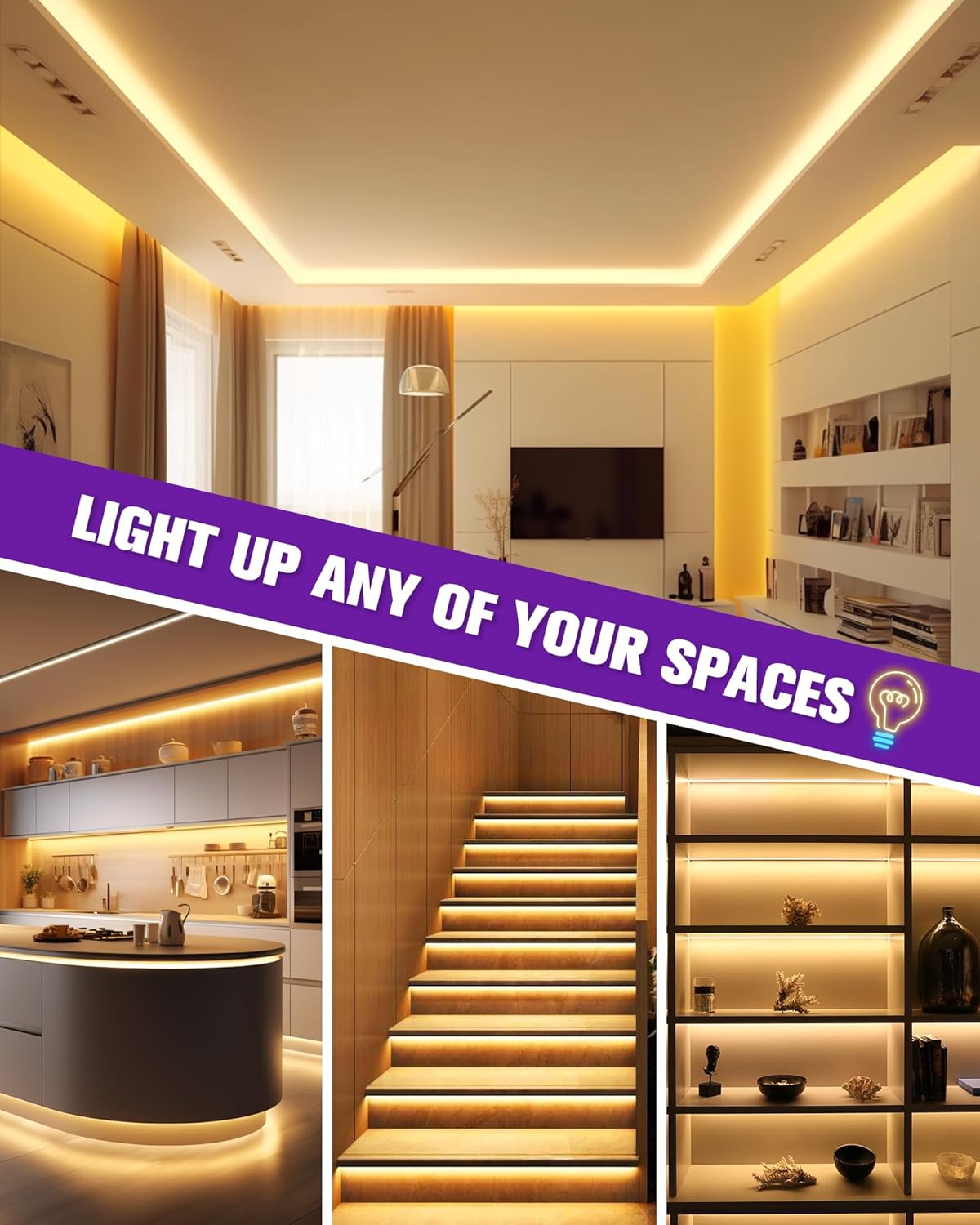

  • VARIETY OF APPLICATIONS: Perfect for indoor applications such as living room, hallway, bedroom, under cabinet lighting, accent lighting, toe kick lighting, shelving lighting, cove lighting, and other commercial and residential lighting projects.
  • SHIPPING DETAILS:
    Standard Shipping (3-5 Days) - Shipping cutoff 3pm (PST).
    FREE ground shipping (UPS or FedEx) on orders of $199 or more.

COB LED Strip Specifications:

  • LED Type: Flip Chip
  • Beam Angle: 180 degrees
  • Light Efficiency: 90-100 Lm/w
  • Waterproof Rating: IP20 indoor use only
  • Length: 16.4ft (5m)
  • Width: 10mm (0.4in)
  • Color Temperature: Available in 3000K and 4000K
  • Warranty: 6 years
  • Certification: UL Listed
  • Input Current/f: 0.254 A/f
  • Input Voltage:  DC 12V
  • Power/feet: 3.048W/ft
  • ESD Protection: 1000V (ESD)
  • Size of cut section: 63.5mm (2.5in)
  • LEDs per section: 12 LEDs
  • LED Chips: 2560 LEDs/reel
  • Lumens Output: 290Lm/ft - 300Lm/ft
  • Lifetime: 50,000 hours lifetime for Tc<150℉

60W 12V Power Supply Specifications:

  • Input Voltage: 110V-240V AC - (Direct wall plug - standard North American NEMA 1)
  • Output Voltage: 12V DC / 60 Watts (5 Amps)
  • Cable Details: 4ft output cable with 5.5 x 2.1 mm DC jack
  • Dimensions:  33 x 120 x 50 mm (1-5/16 x 4-3/4 x 2 inches)
  • Protection: Short Circuit/Over Current

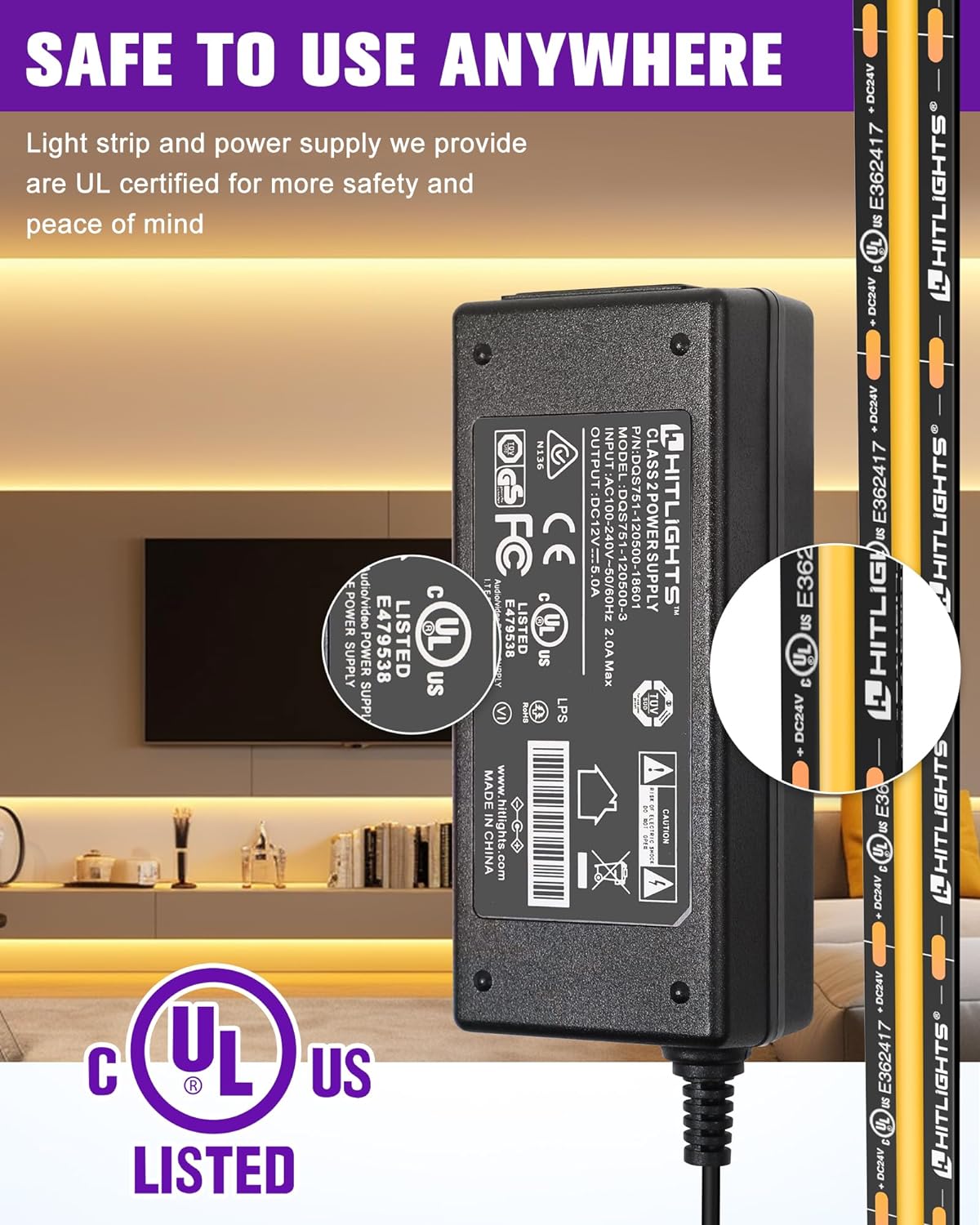

  • Certifications : UL Listed
  • Connection Type: Plug and use DC jack
  • Efficiency: 86 % (12VDC)
  • Frequency Range: 47-63Hz
  • Dimming: Non-dimmable on its own
  • IP Rating: IP30 Indoor use only
  • Warranty: 3 years
  • Part Number: HC65-120500

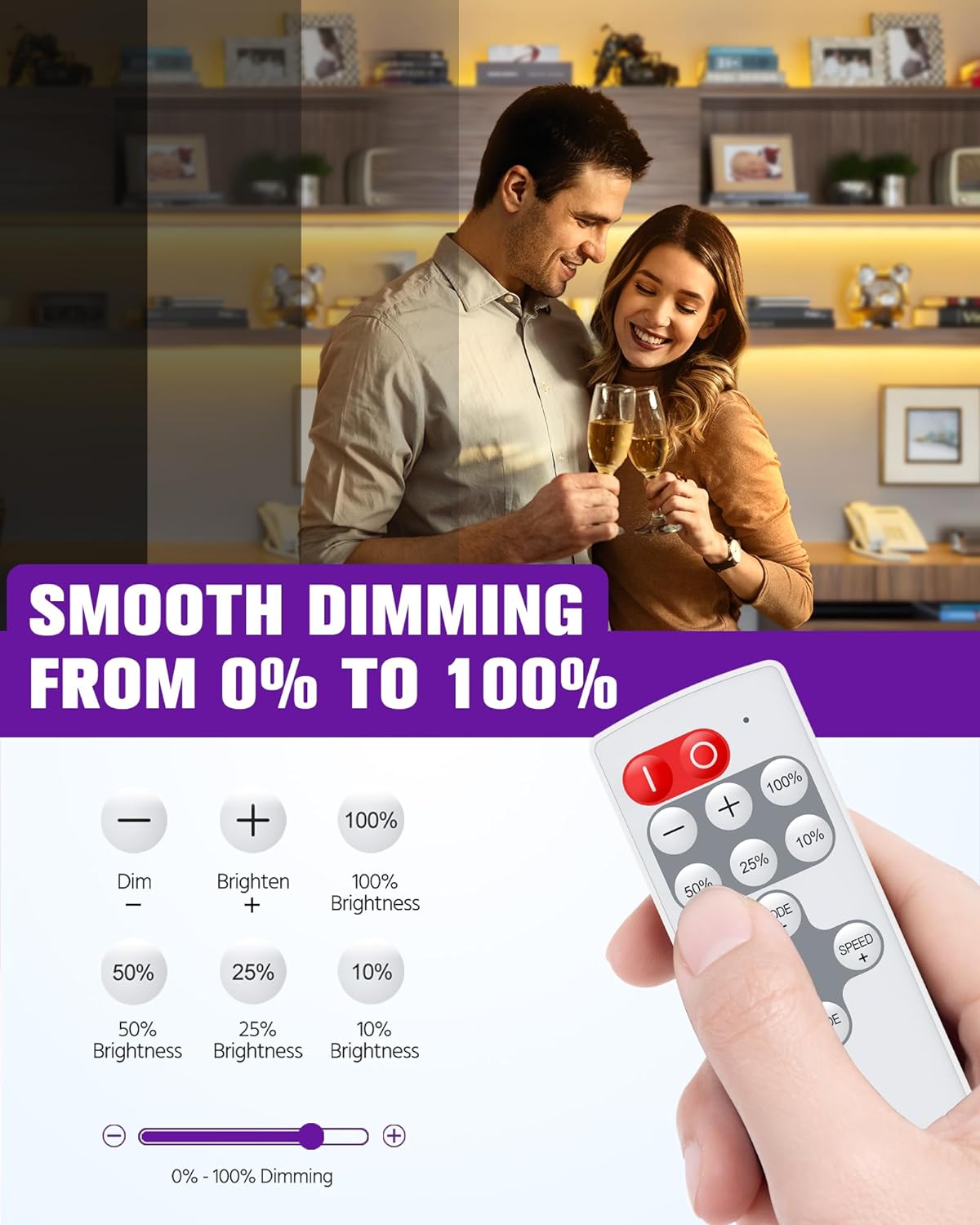

R110 Remote Specifications:

  • Function: Single Color (White)
  • Output Mode: PWM constant voltage
  • Rated Output Current: 5A
  • White Brightness Grade: 10 Levels
  • PWM Frequency: 1KHz
  • PWM Physical Grade: 256 Steps
  • Warranty: 2 Year HitLights Warranty
  • Overheat Protection: Yes
  • Remote Frequency: 433.92MHz
  • Remote Control Distance: >15m at an open area
  • Power Off Memory: Yes, restores to the previous set mode when turned on
  • Housing: Tubed for standard, ABS+Silicon for -H Version
  • Controller dimension: 50x15x7mm
Certifications:

The 12V COB LED strip bundle comes with:

  • 16.4ft LED Tape Light x 1
  • 12V 60W Power Supply x 1
  • RF Remote Controller Kit x 1
  • Wire Lead Connector x 2
  • Wire Clips x 2
  • Installation Guide x 1

No, since this is IP20 rated it is for indoor use only.

The warranty is 6 years for the COB LED strip, 3 years for the power supply, and 2 years for the R110 remote dimmer.

Yes, the lights can be cut every 62.5mm or 2.5 inches for custom lengths where there is a cut mark

Once your order has shipped you will receive an email confirming that your order has shipped. On this email is a tracking number. There will be a link in your email to either UPS or USPS. Click on this link and you will be able to track your order.

Please call us at 1 (855) 768-4135 or email us at customerservice@hitlights.com to be assisted.
