Name: RGB+W Smart Mini Controller
Brand: HitLights
SKU: CTR-RGBW-NT40
Price: 41.97 USD
Availability: InStock

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

WHAT STANDS OUT:

Full RGBW smart control in a compact build: Slim mini controller hides easily while delivering full RGB+white color mixing and smooth dimming.
App, voice, and RF in one: control lights from the Tuya app, Alexa/Google, or the included RF remote
12–24V RGB and RGBW strip compatible: Designed to complement HitLights RGB/RGBW strip lights for reliable performance.

PRODUCT DETAILS:

The RGB+W Smart Mini Controller is a compact, WiFi-enabled RGBW controller that unlocks full-spectrum color control for HitLights RGB and RGBW strip lights. It combines smartphone app control, popular voice assistants, and an RF handheld remote into one small, installer-friendly package, so lighting can be adjusted from almost anywhere in the space.

Using PWM constant-voltage output, the controller drives 12–24V RGB or RGBW LED strips with smooth dimming and precise color mixing across four channels. The Tuya Smart app (iOS/Android) adds scheduling, scenes, and automation, while Alexa, Google Home, and other supported platforms enable hands-free voice control.

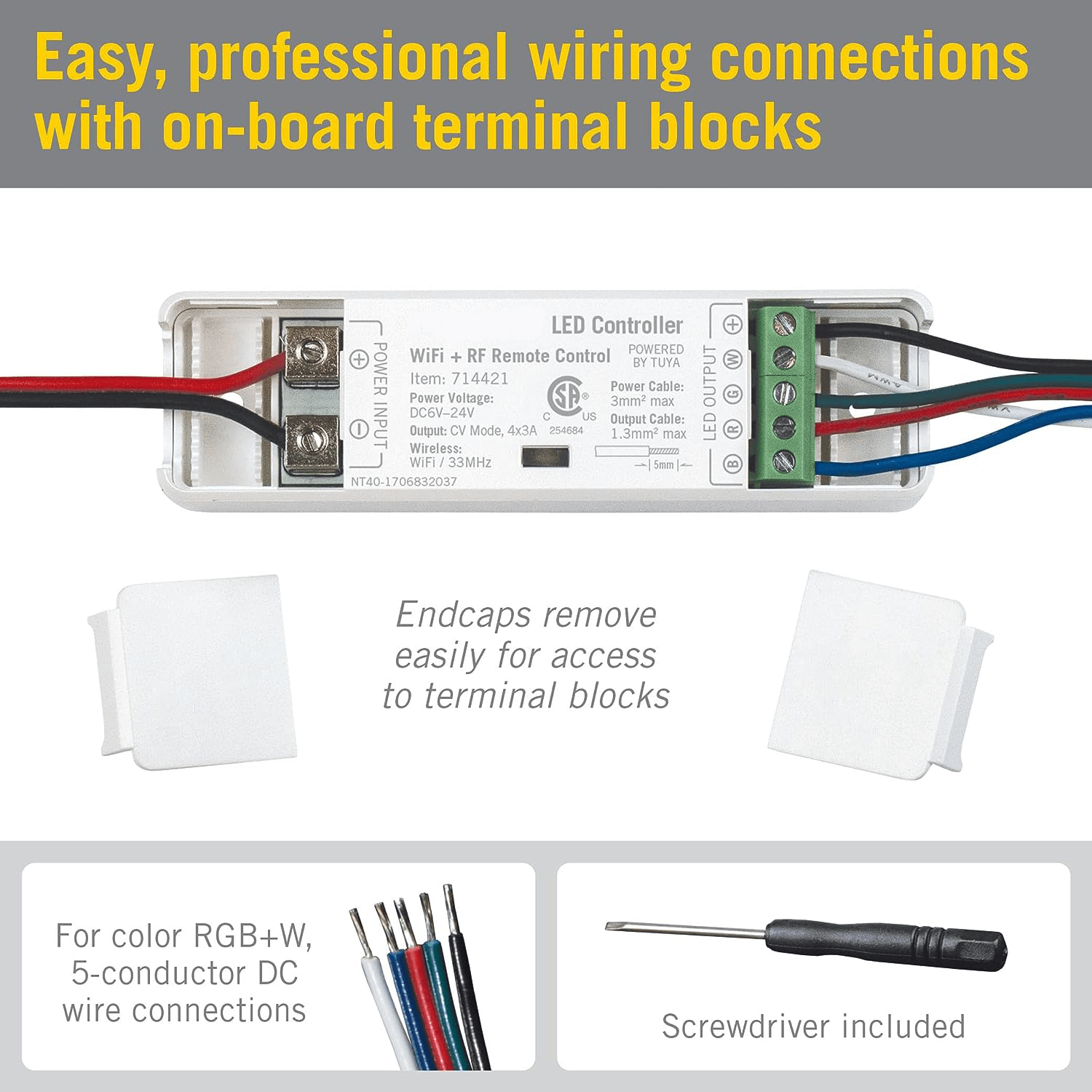

Multi-zone capability lets a single RF remote synchronize multiple areas or create different looks for different rooms. A slim housing and terminal-block wiring make it easy to conceal the controller behind cabinets, in coves, or near transformers while still maintaining simple access for setup. It’s an ideal choice for residential and light commercial RGB/RGBW projects where pro-level control is needed in a small footprint.

Control methods: Tuya Smart app (iOS/Android), voice control (Alexa, Google Home, major platforms), RF remote included
Output mode: PWM constant-voltage controller (not a power supply)
Input voltage: DC 12–24V
Rated output current: 4 × 3A (four channels)

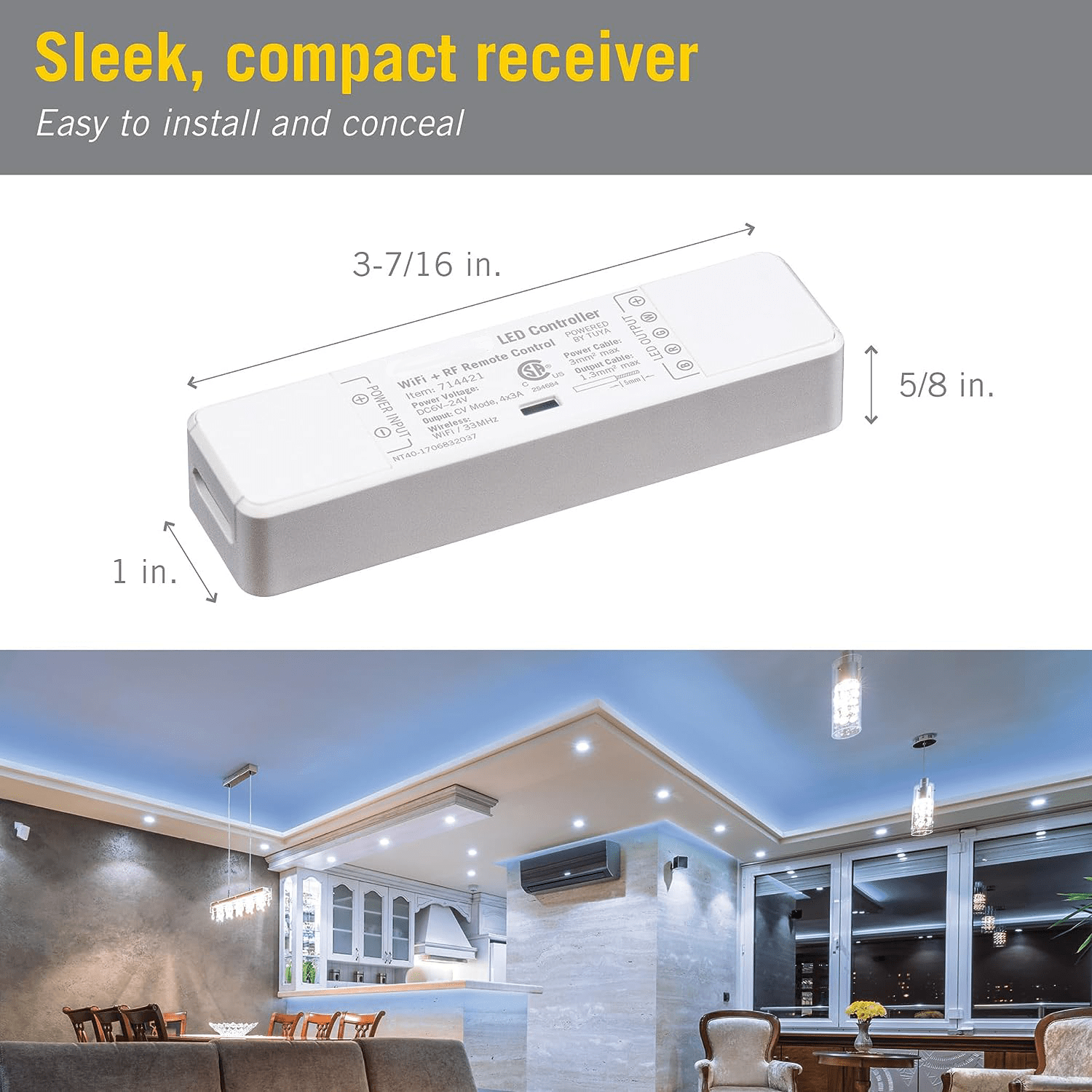

Controller dimensions: 87 × 24 × 15 mm
Remote dimensions: 85.5 × 36.8 mm
Strip compatibility: HitLights RGB and RGBW 12–24V LED strip lights (constant-voltage)

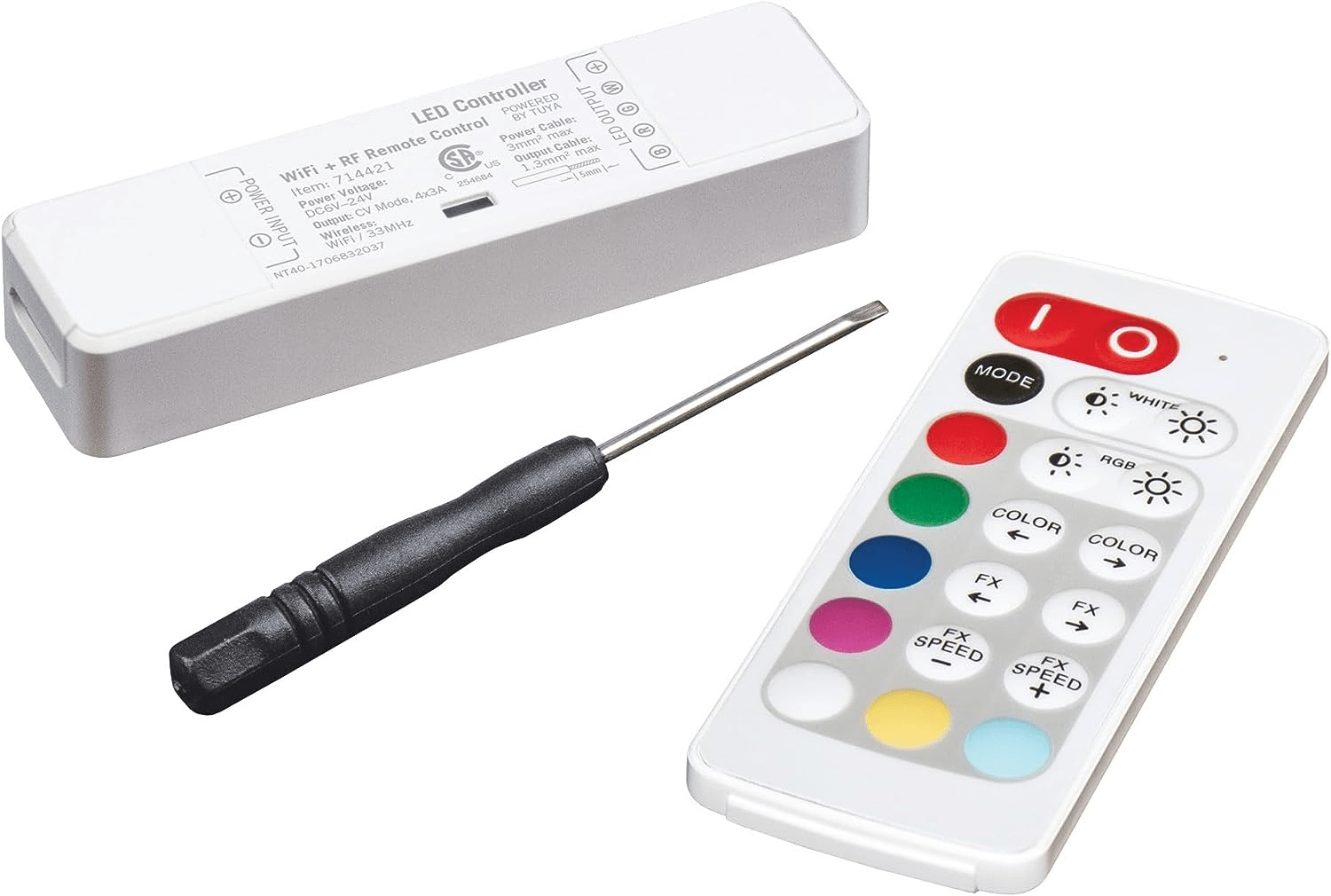

WHAT'S INCLUDED:

1 × RGB+W Smart Mini Controller (CTR-RGBW-NT40)
1 × RF remote control for on-site, handheld control of brightness, color, and scenes
1 × Mini screwdriver for accessing and securing the terminal-block connections

FREQUENTLY ASKED QUESTIONS:

Q: What does the RGB+W Smart Mini Controller do?
A: It is a compact RGBW LED strip controller that delivers full-spectrum color control, smooth dimming, and scene presets for 12–24V HitLights RGB and RGBW strip lights. The controller combines app, voice, and RF remote control so installers can offer flexible control options from a single device.

Q: Which LED strips are compatible with this controller?
A: The controller is designed for 12–24V constant-voltage RGB and RGBW LED strip lights, and is specifically matched to HitLights RGB/RGBW strips for optimal performance. It should be paired with LED tape that uses a common-anode wiring scheme and falls within the rated current output of 4 × 3A.

Q: How is the controller powered, and does it replace the power supply?
A: The Smart Mini Controller works with a separate 12–24V DC power supply; it does not replace it. The power supply connects to the controller’s input terminals, and the controller’s RGBW output channels connect to the LED strips, providing PWM dimming and color mixing on the low-voltage side.

Q: What control options does it support (app, voice, remote)?
A: Lighting can be adjusted through the Tuya Smart app (iOS/Android), via voice assistants like Alexa and Google Home, and with the included RF handheld remote. This allows users to change color, brightness, and scenes by phone, voice command, or direct remote control, depending on the application.

Q: How many zones or areas can I control with one system?
A: The controller supports multi-zone lighting control, meaning a single RF remote can operate multiple controllers grouped into zones. This makes it easy to synchronize color and brightness across large spaces or create separate scenes for different rooms while still using one remote and app ecosystem.

Q: What are the key electrical specs I need to know?
A: The unit uses PWM constant-voltage output, accepts DC 12–24V input, and is rated at 4 × 3A across its RGBW channels. It operates at 433.92 MHz RF, offers a remote range of >15 m in open areas, and uses 4000-step PWM for smooth dimming and color transitions.

Q: Is the RGB+W Smart Mini Controller suitable for outdoor installations?
A: The controller itself is intended for indoor, dry-location use, though it can be paired with outdoor-rated LED strips when installed in a suitable enclosure. For exterior projects, the controller and any power supplies should be protected from direct moisture and installed according to local electrical codes and the product’s low-voltage guidelines.

SHIPPING DETAILS:

Standard Shipping (3-5 Days) - Shipping cutoff 3PM (PST).
FREE ground shipping (UPS or FedEx) on orders of $199 or more
Standard Shipping: Flat Rate $9.99 - Cutoff 3PM (PST)
2-Day Shipping: Rate Based on Weight - Cutoff 2PM (PST)
Overnight Shipping: Rate Based on Weight - Cutoff 2PM (PST)

Output mode: PWM constant voltage
Voltage: DC 12-24V
Rated output current: 4x3a
Remote frequency: 433.92 MHz
Remote distance: >15m at open area
PWM grade: 4000 steps
Controller dimension: 87x24x15mm
Remote dimension: 85.5x36.8mm
Warranty: 1 year

DATA SHEET:

Download RGBW Smart Mini Controller Spec Sheet
