Name: 25 Watt U-Series Dimmable Driver (Universal, ETL-Listed) - 12 Volt
Brand: HitLights
SKU: PWR-12V-024-30-D
Price: 45.95 USD
Availability: InStock

25 Watt U-Series Dimmable Driver (Universal, ETL-Listed) - 12 Volt

HitLights LED Light Strip Power Supplies and Batteries 25 Watt U-Series Dimmable Driver (Universal, ETL-Listed) - 12 Volt

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

U-Series Dimmable Drivers: Our Dimmable Drivers offer an elegant control and dimming solution for any of your LED light strip projects. This 25 Watt Dimmable Driver allows you to control the brightness of your LED light strips with a dimmer switch mounted in your wall - a more elegant and permanent solution than a dial dimmer or remote unit.

Additionally, the wide range of compatible wall dimmers means that you get to choose the wall dimmer that best suits your home, office, or other building. These drivers are manufactured to our exacting technical specifications here in the United States, meaning that we are able to offer an unsurpassed five year warranty on these units.

Our range of Dimmable Drivers are the ultimate solution in any of your LED lighting projects and are compatible with most Lutron and Leviton dimmer switches.

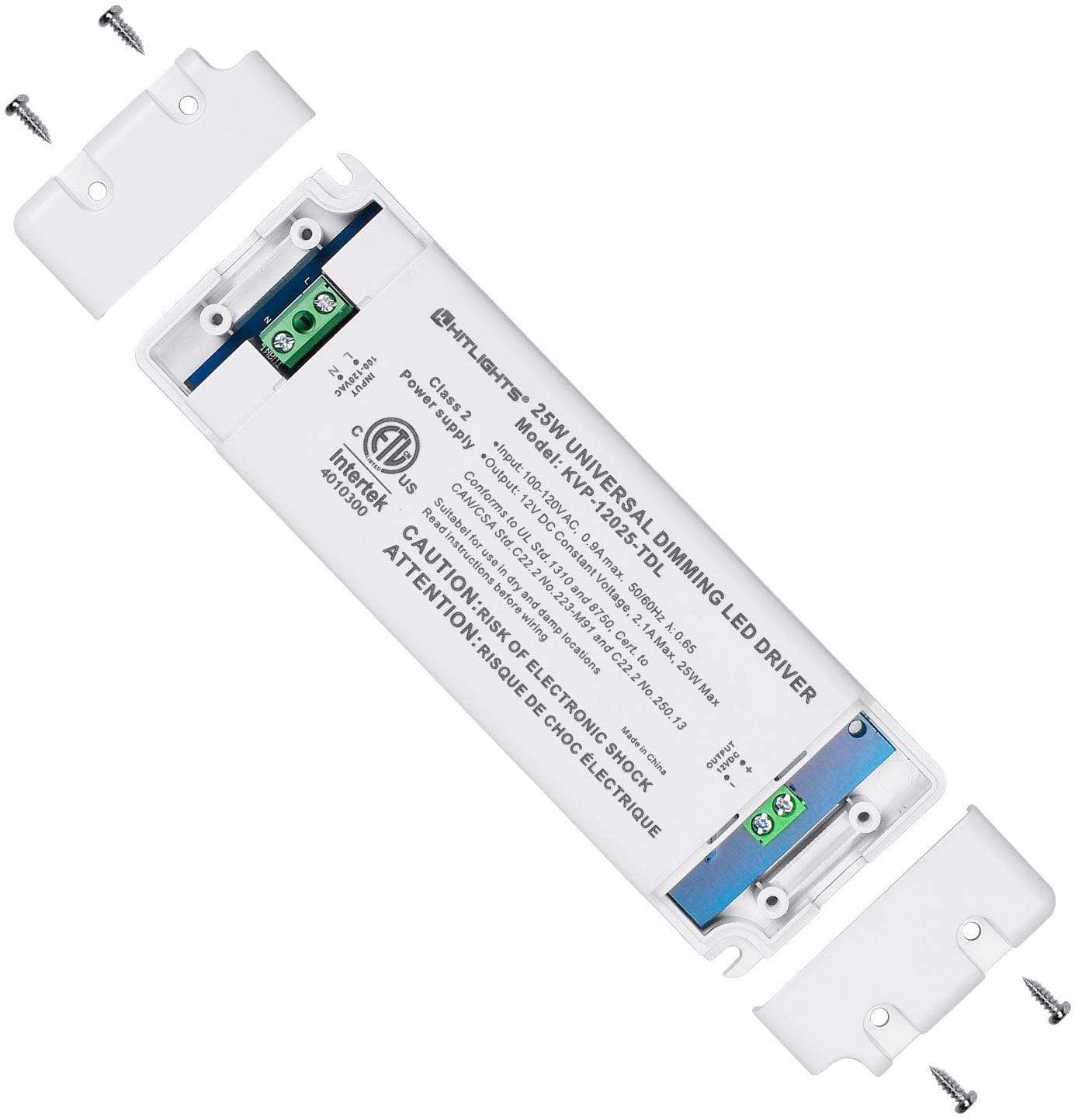

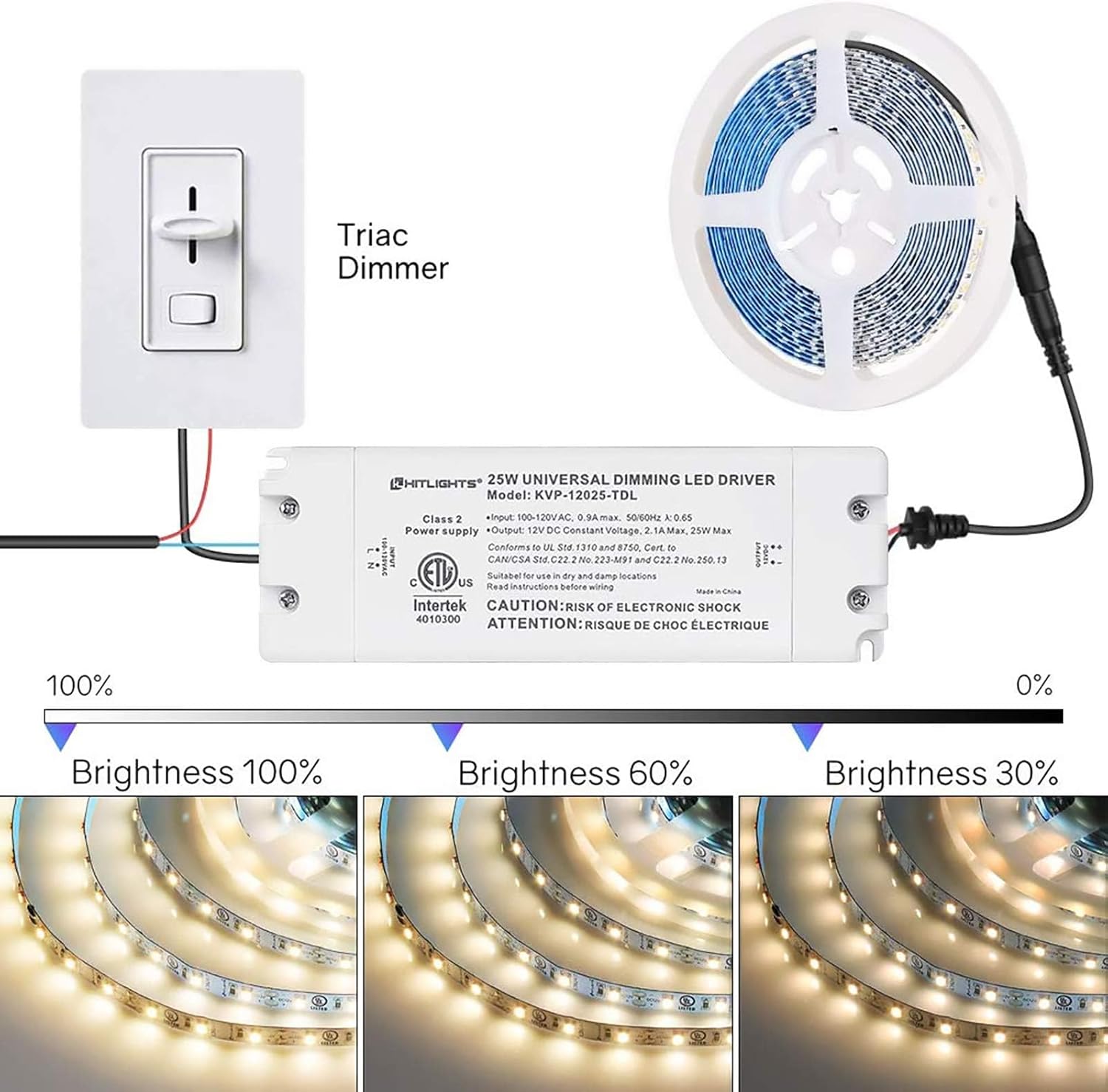

UNIVERSAL COMPATIBILITY - This dimmable driver is compatible with most Forward Phase, Reverse Phase, Triac, MLV, and ELV dimmers. Comes with a removable AC power cord and screw terminals for easy electrical code compliant installation.
SAFETY PROTECTION - This 12V LED driver comes with a short circuit, overload, and over temperature protection to keep your driver and project safe.
ETL LISTED, CLASS 2 - Independently tested and certified for safety.
SHIPPING DETAILS -
Standard Shipping (3-5 Days) - Shipping cutoff 3pm(PST).
FREE ground shipping (UPS or FedEx) on orders of $199 or more.a

Input Voltage: 120VAC (108 ~ 132VAC)
Output Voltage: 12V DC, 25 Watts (2.08 Amps)

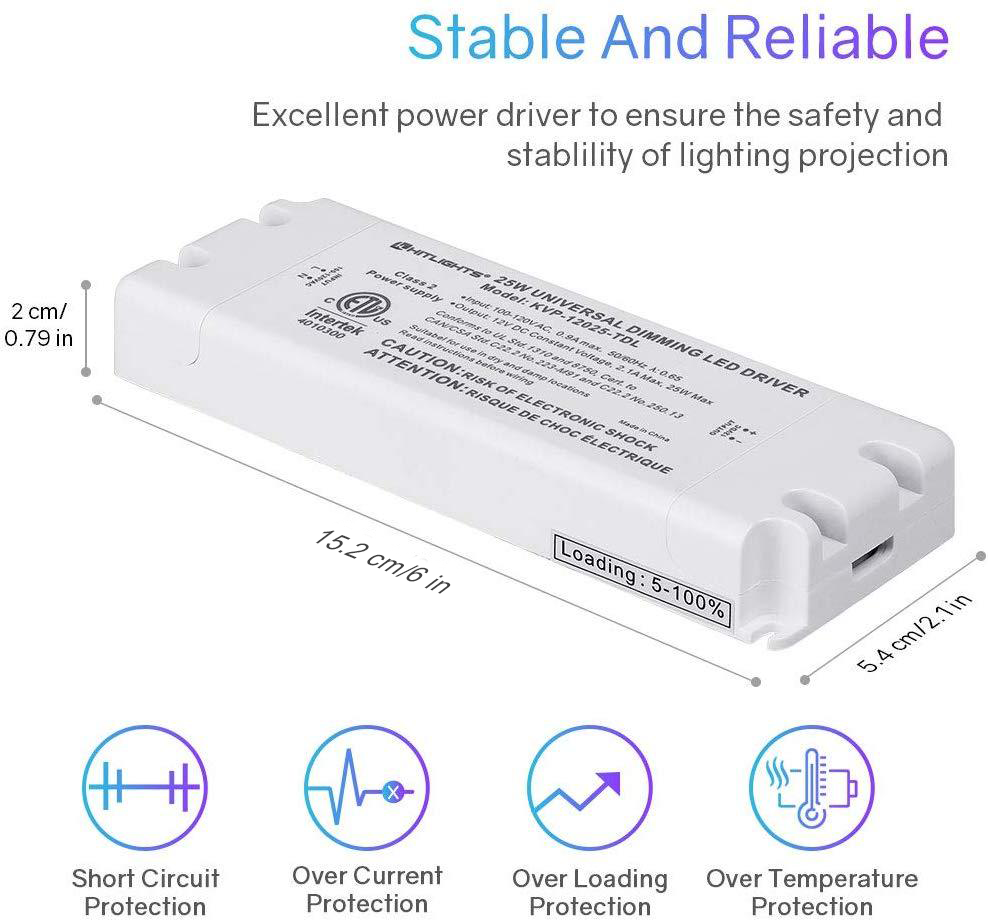

Dimension: 154 x 54 x 19 mm (6-1/16 x 2-1/16 x 13/16 inches)
Protection: Short Circuit, Overloading, Over Temperature
Frequency Range: 47-63 Hz
Connection Type: Bare wire connections

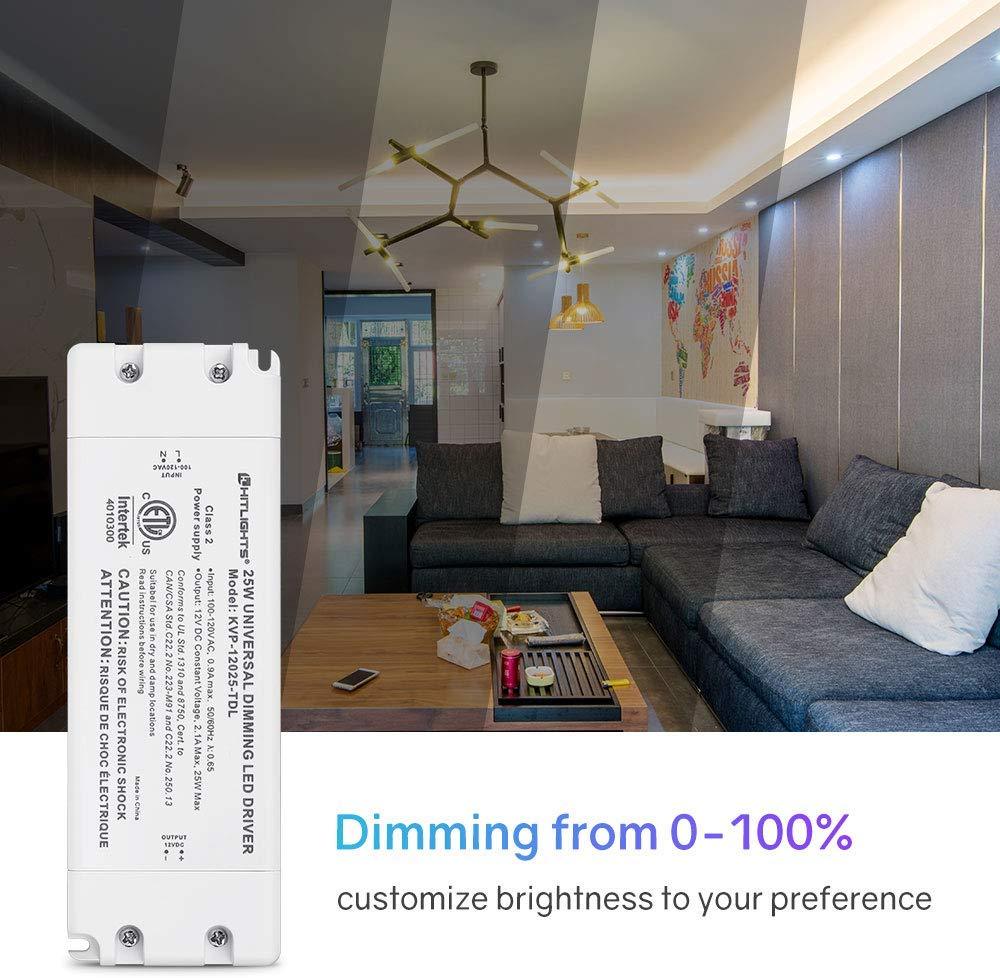

Dimming Range: 0-100%
Warranty: 6 years

Certifications:

What is the input voltage for this dimmable driver?

The input voltage is 120V AC.

What is the output voltage and wattage of this u-series driver?

The output is 12V DC at 25 Watts (2.08 Amps)

What are the dimensions of this u-series driver?

The dimensions are 154 x 54 x 19 mm (6-1/16 x 2-1/16 x 13/16 inches)

What type of dimmers can I use with this u-series driver?

It is compatible with Lutron dimmers like Ariadni, Vareo, Nova, Ceana, Diva, Gyder, Lyneo, Nova T and Skylark . It also works with Leviton dimmers like Leviton dimmers like Mural, SureSlide, ToggleTouch and Vizia.

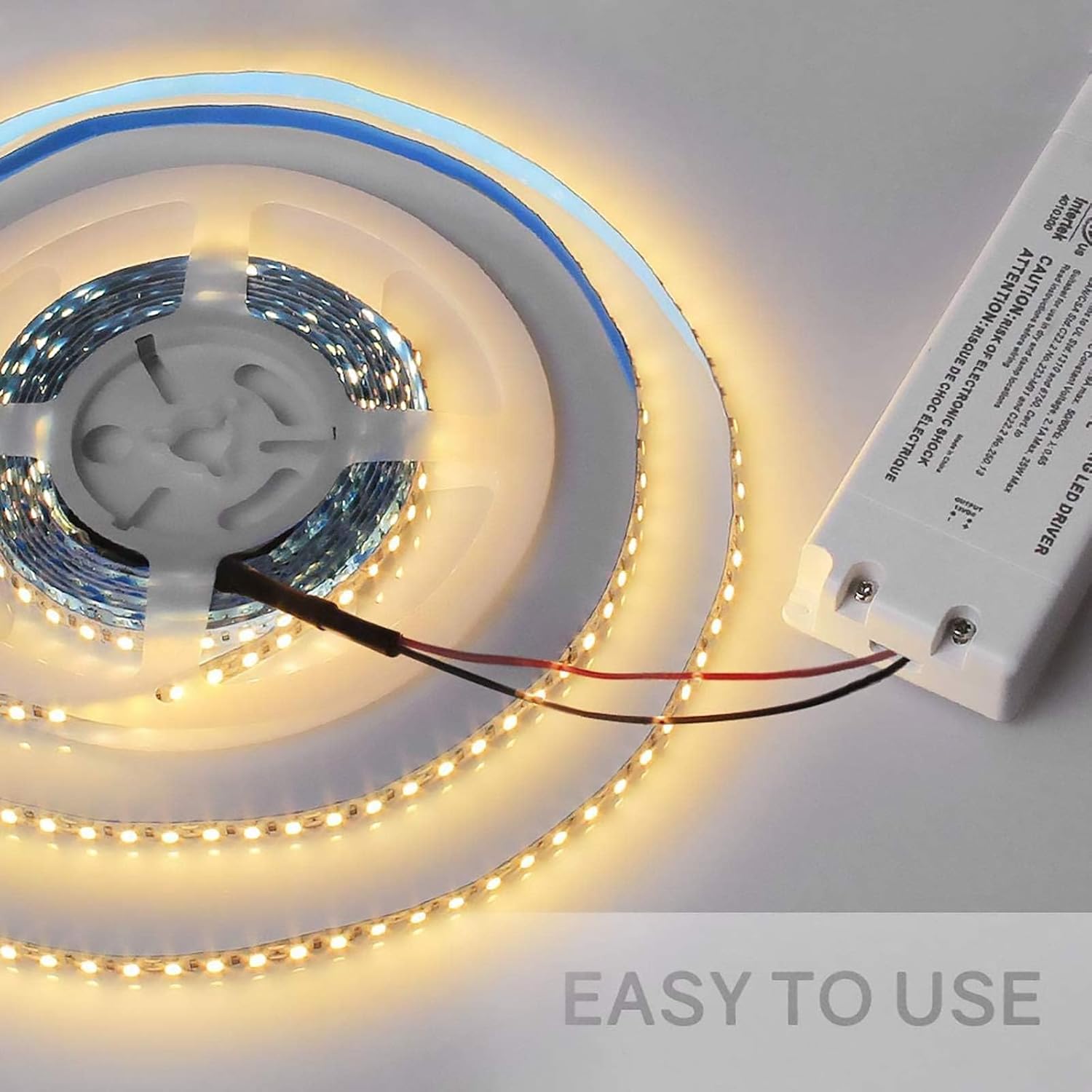

How do I connect this driver to my LED strip lights?

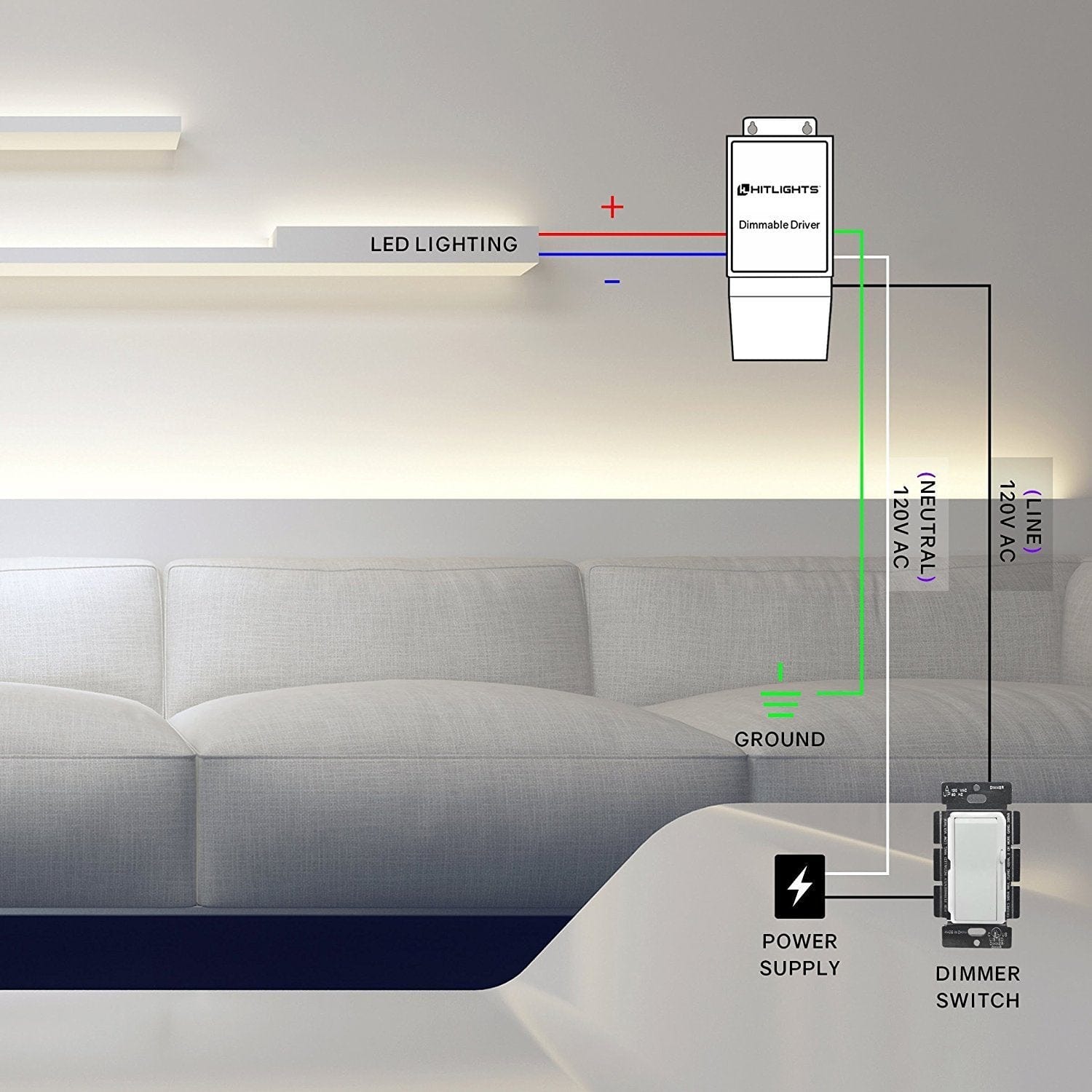

Connect the black wire to live, white to neutral, green to ground. Red output to positive, blue to negative of the LED strip.

Is this u-series dimmable driver safe to use?

Yes, it is ETL certified for safety and reliability.

How long is the warranty?

The warranty of this unit is for 6 years.

Does this u-series driver work with RGB LED strips?

No, it only works with single color 12V LED strips. For RGB, you would need an RGB controller.

Can this driver be used outdoors?

No, this driver is rated for indoor use only

SPEC SHEET

25 Watt U-Series Dimmable Driver - 12 Volt

COMPATIBILITY LIST

Compatibility Sheet

25 Watt U-Series Dimmable Driver (Universal, ETL-Listed) - 12 Volt

Works great with Hitlights LED strip light

I installed one of these to power outdoor Hitlights LED strip lights (3000K high density ~ 70 watt total) installed on the front porch. Works great, and functions well with a Lutron LED dimmer installed inline. Seems more than adequate for the application, no evidence of any excessive heat buildup. Highly recommended.

Very smooth and silent dimming with Insteon dimmer

I had been using Magnitude magnetic dimmers before now, but would always get some flicker or buzzing so I tried this, connected to an Insteon micro dimmer - and wow - beautiful result. Really smooth dimming down to around 7%, no flickering, humming, anything negative. It's also a nice contained package. So top marks for this.
