Name: 8mm Single Color 3528- 6 Inch Any Angle Strip to Strip (12 pack)
Brand: HitLights
SKU: CON-08S-B00A-12PK
Price: 9.97 USD
Availability: InStock

HitLights Tools & Home Improvement 8mm Single Color 3528- 6 Inch Any Angle Strip to Strip (12 pack)

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

WHAT STANDS OUT:

Solderless install: Simple clasp attachment locks onto the strip pads for a secure connection, no tools or soldering required.
Fully bendable jumper cable: Connector flexes up to 90° or more for L-shapes, curves, and routing around obstacles.
Indoor-rated, installer-friendly design: Compact white clasp, 22 AWG leads, IP20 rating, and 12-pack quantity for multi-run projects.

PRODUCT DETAILS:

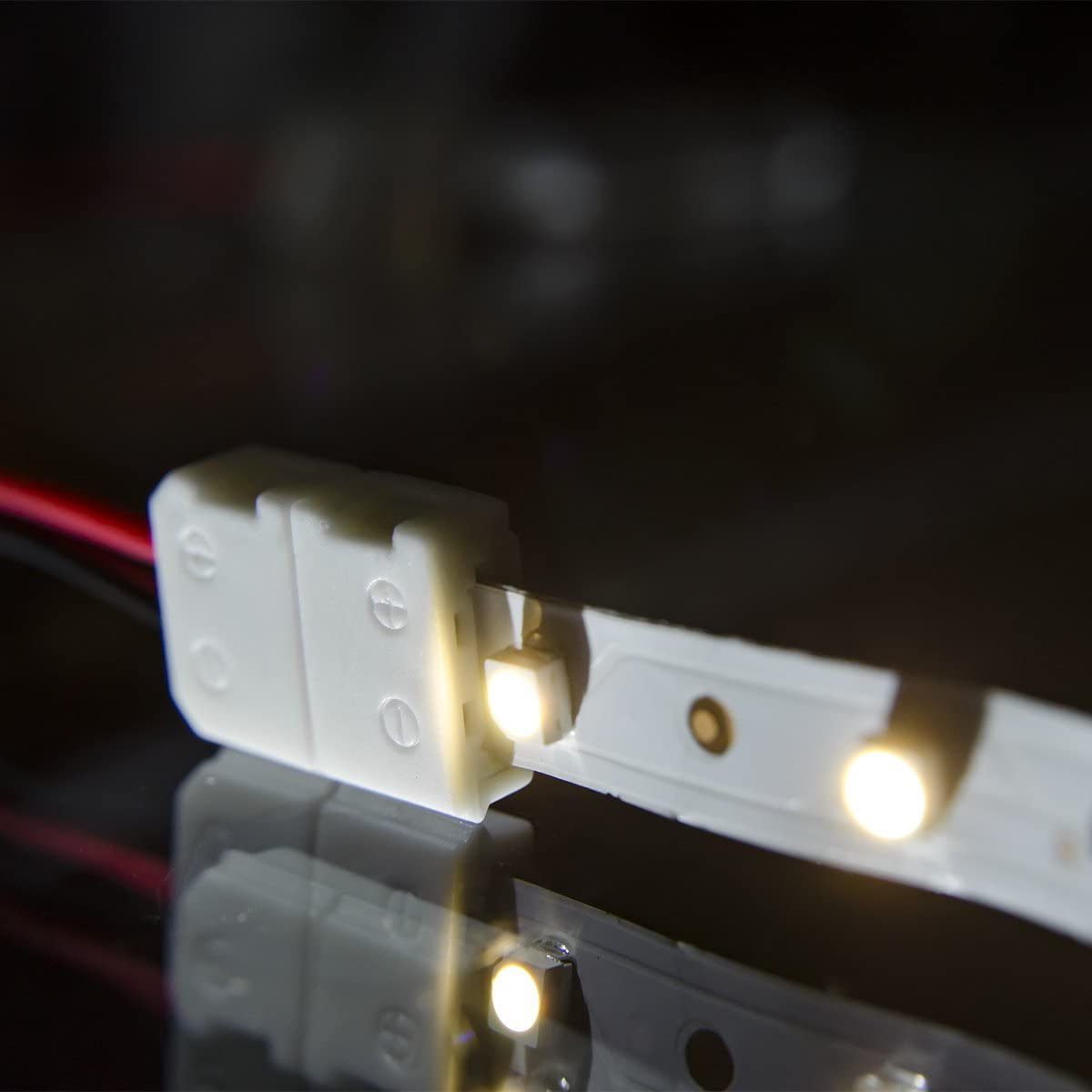

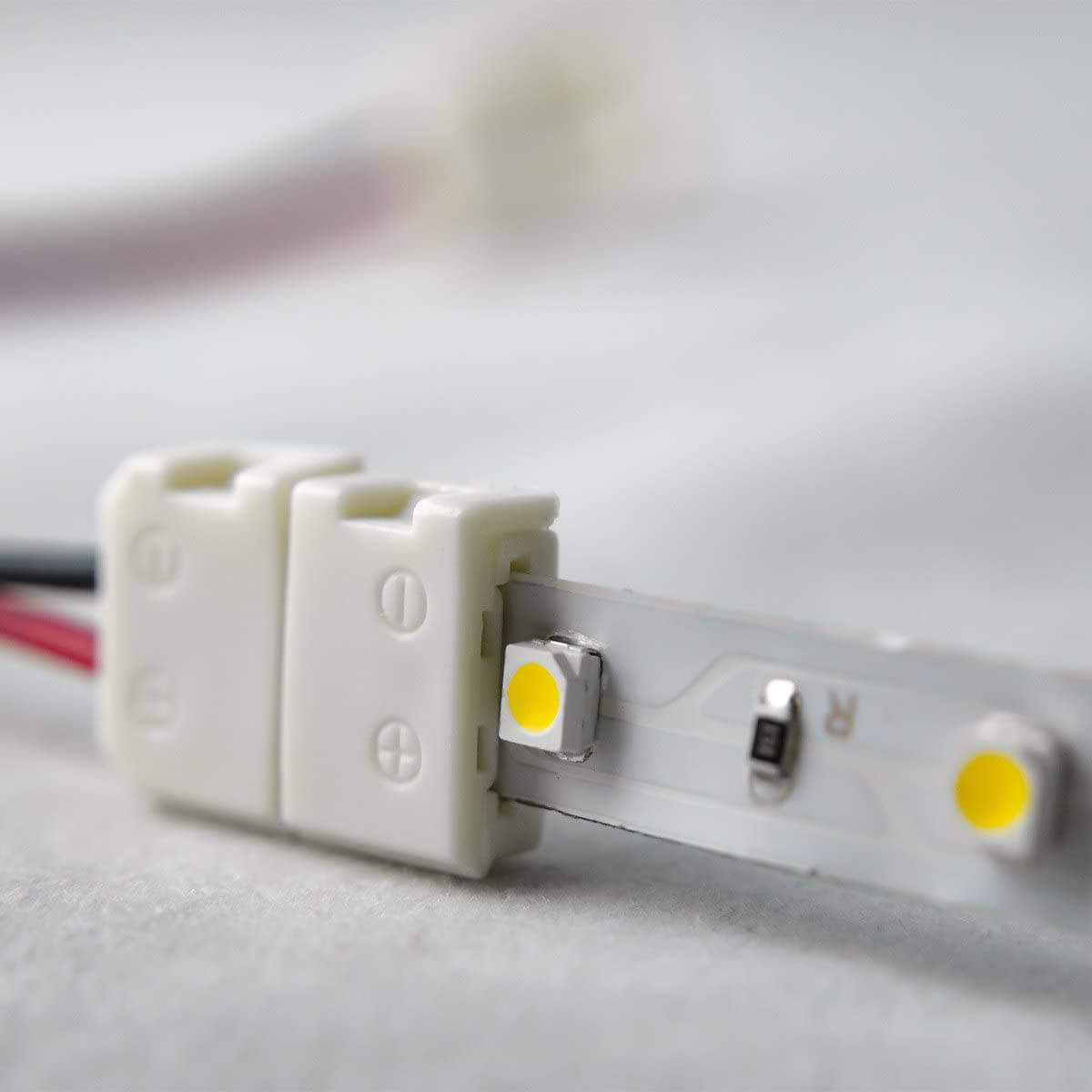

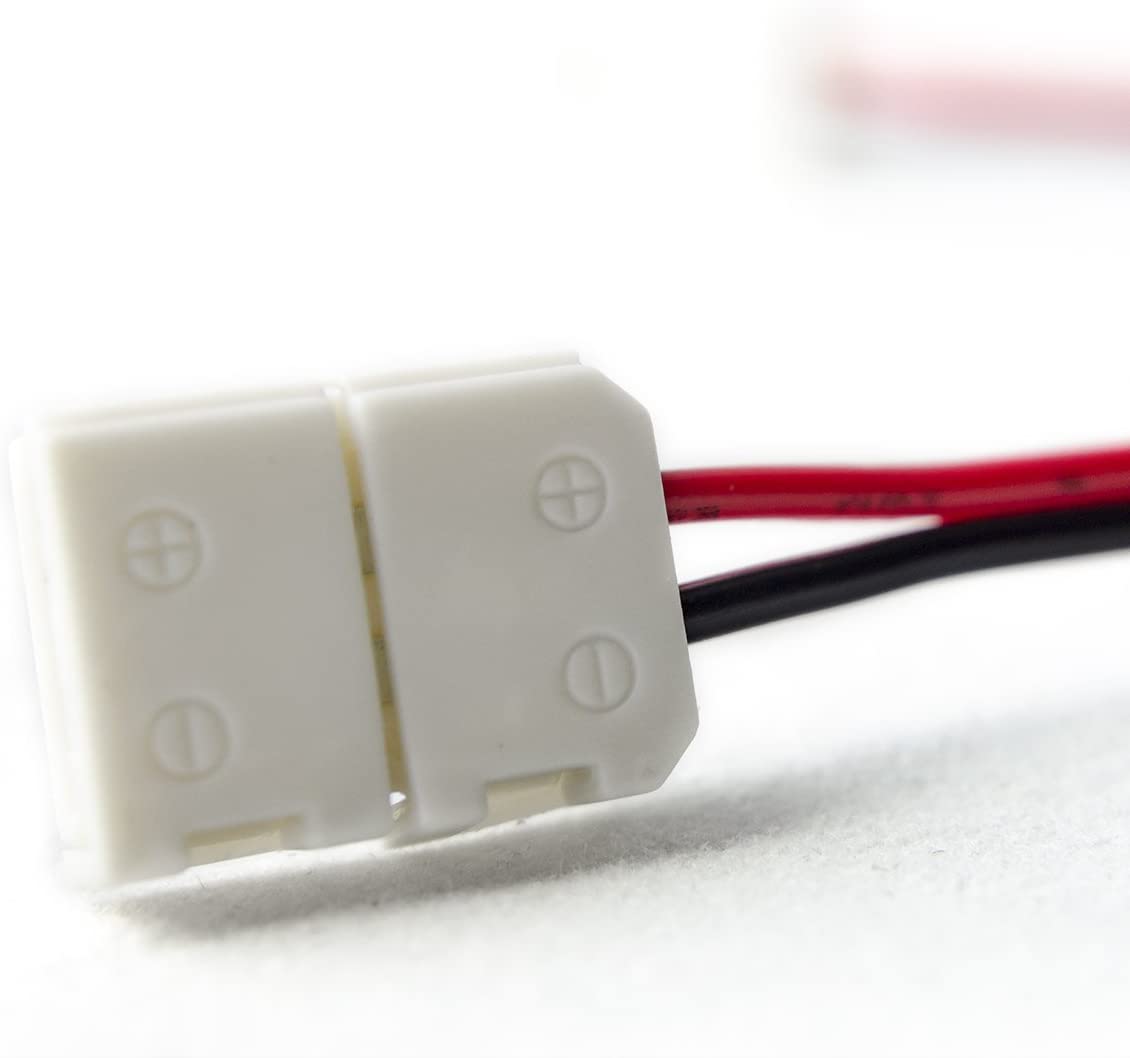

The 8mm Single Color 3528 – 6 Inch Any Angle Strip to Strip (12 pack) provides a frustration-free way to join or extend 8mm single-color LED strip runs. Each connector uses a simple solderless clasp that attaches directly to a cut section of strip, creating a safe, secure electrical connection without crimping or a soldering iron.

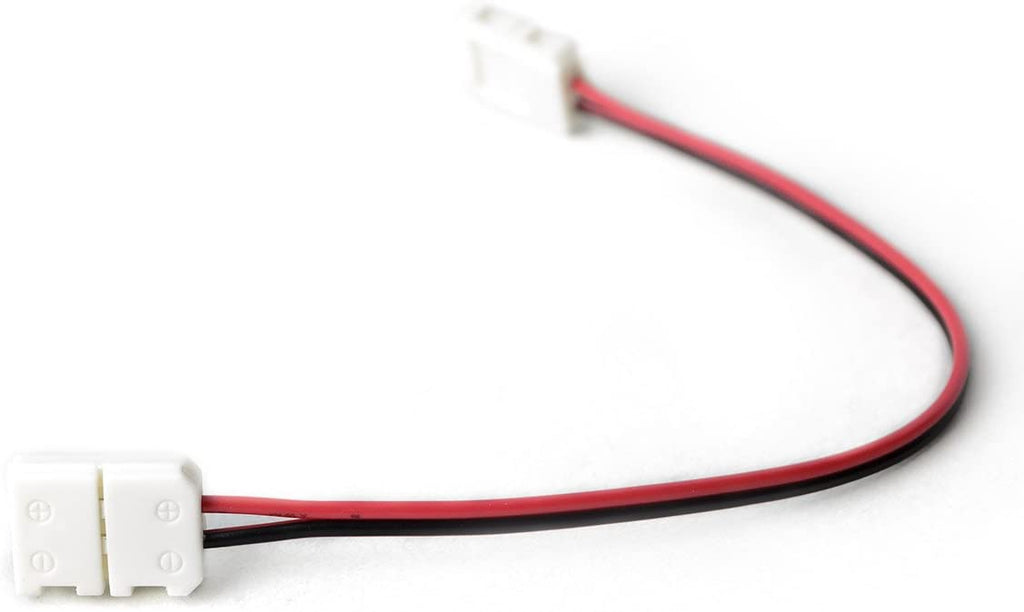

A flexible 6-inch jumper cable links the two strip ends so the run can cross gaps, turn corners, or route around obstacles while maintaining continuous light. The connectors are designed for 12–24V DC single-color SMD3528 and other 8mm-wide strips, including popular warm white and cool white options, and work seamlessly with dimmable systems when paired with compatible drivers.

Compact white plastic housings and 22 AWG leads make these jumpers well-suited for indoor applications like cabinets, shelving, coves, and displays. As a 12-pack, they provide enough connectors to support full-room layouts, multi-run installations, or service stock for repeat projects.

Connection type: Board-to-board (strip-to-strip), 2-pin any-angle jumper
Strip compatibility: 8mm wide, 2-pin single-color LED strips (SMD3528 and other 8mm strips)
Voltage rating: 12–24V DC constant voltage
Max current: 3A per connector
External dimensions (clasp head): 13.5 × 12.5 × 5 mm (5/8 × 1/2 × 3/16 in)
Wire gauge: 22 AWG leads
Material / color: Plastic housing, white clasp
IP rating: IP20 – indoor, dry-location use

WHAT'S INCLUDED:

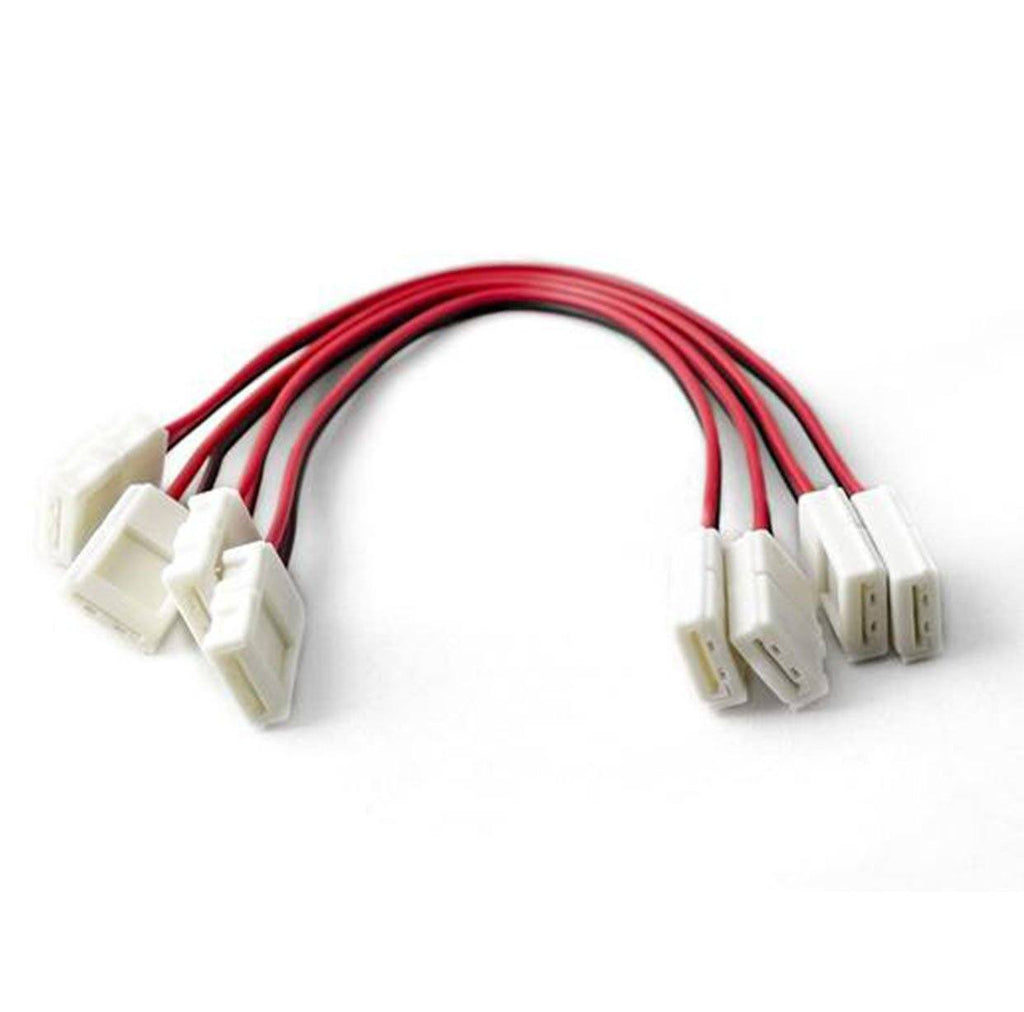

12 × 6 Inch Any Angle 8mm solderless LED light strip connectors

FREQUENTLY ASKED QUESTIONS:

Q: What size and type of LED strip is this connector compatible with?
A: These connectors are designed for 2-pin, 8mm wide single-color LED strips, including SMD3528 tape and other 8mm strips in warm white 3000K and cool white 5000K. They are not compatible with wider 10mm strips or RGB/RGBW multicolor tape.

Q: What voltage and current can each connector handle?
A: Each any-angle connector is rated for 12–24V DC and up to 3A of current. This rating covers most short to medium single-color strip runs when used within the LED strip manufacturer’s power recommendations.

Q: How do I install the connector onto an LED strip?
A: Cut the strip at a marked cut line, open the white plastic clasp, align the +/– copper pads on the strip with the connector contacts, slide the strip fully into the 8mm opening, and close the clasp until it snaps. This creates a secure, solderless strip-to-strip connection.

Q: Can these connectors be bent for corners or odd angles?
A: Yes. The 6-inch jumper cable is fully bendable up to 90° or more, so corners, offsets, and obstacles are handled in the jumper instead of flexing the LED strip itself. This helps protect the strip from stress and cracking.

Q: Are these connectors suitable for outdoor or damp locations?
A: No. With an IP20 rating, these connectors are intended for indoor, dry-location use only. They may be attached to waterproof strips, but the connector area must be kept dry or housed in a suitable enclosure if used near moisture.

Q: Are the connectors reusable if I move or reconfigure my LED strips?
A: Yes, the clasps can be opened and the connectors reused. As long as the new strip section is 8mm wide, 2-pin single-color tape and the copper pads are clean and properly aligned, the connector can be re-attached without damage to the strip.

Q: What is the difference between the 4-pack and the 12-pack versions?
A: Both versions use the same 8mm, 2-pin, 6 inch any-angle strip-to-strip connector; the difference is quantity. The 12-pack (CON-08S-B00A-12PK) provides more connectors for multi-run layouts, larger rooms, or stocking a small project kit.

SHIPPING DETAILS:

Standard Shipping (3-5 Days) - Shipping cutoff 3PM (PST).
FREE ground shipping (UPS or FedEx) on orders of $199 or more
Standard Shipping: Flat Rate $9.99 - Cutoff 3PM (PST)
2-Day Shipping: Rate Based on Weight - Cutoff 2PM (PST)
Overnight Shipping: Rate Based on Weight - Cutoff 2PM (PST)

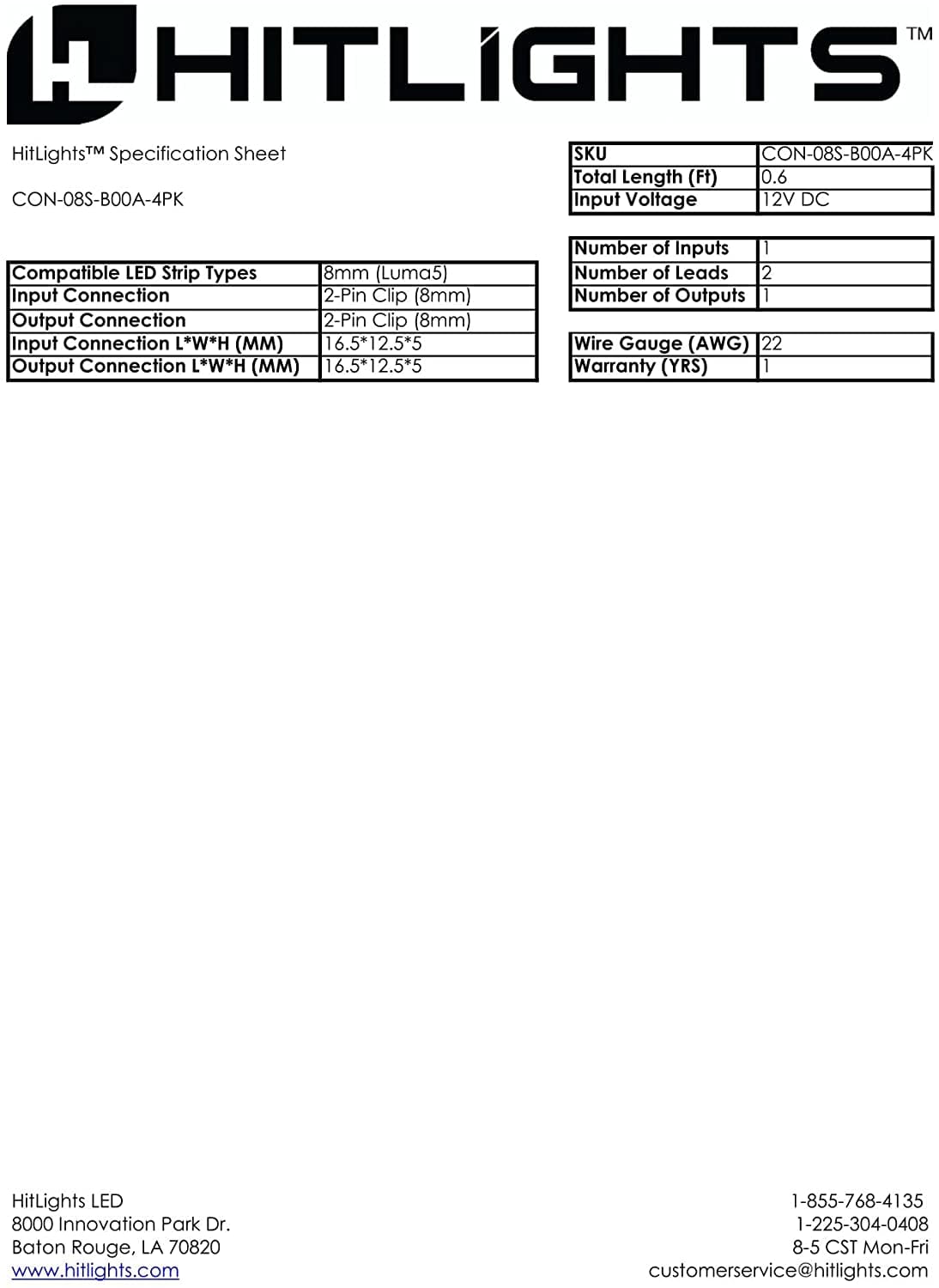

Specifications:

Voltage: 12V-24V DC
Current: 3AColor: White clasp
Material: Plastic
IP Rating: IP20 Indoor use
Warranty: 1 year
Gauge: 22 AWG
Internal Width: 8mm (compatible with any 2-pin strips)
External Dimensions : 13.5 x 12.5 x 5 mm (5/8 x 1/2 x 3/16 inches)
Length: 6 inches
Weight: ‎0.32 ounces
Package Inclusion: 4-pack of 8mm, 6-inch connector

SKU	Connection Type	Width	Pin Quantity	Compatible With
CON-08S-B00A-4PK	Board to Board	8mm	2-pin	Single Color
CON-08S-B00A-12PK	Board to Board	8mm	2-pin	Single Color
CON-10S-B00A-4PK	Board to Board	10mm	2-pin	Single Color
CON-10M-B00A-4PK	Board to Board	10mm	4-pin	RGB Multicolor
CON-10M-B004-4PK	Board to Pin	10mm	4-pin	RGB Multicolor
CON-10M-B00A-12PK-NEW	Board to Board	10mm	4-pin	RGB Multicolor
CON-10S-CS10-10PK	Board to Board	10mm	2-pin	Single Color
CON-10S-COB-PKGH	Board to Board	10mm	2-pin	Single Color

What size LED strip lights are compatible with these connectors?

These connectors are designed for standard 10mm wide LED strip. They will work with common 12V and 24V LED/COB strips.

How many amps can these connectors handle?

Each connector is rated for up to 5 amps of current. This is sufficient for most typical LED strip/COB lighting applications.

Do I need any special tools to install these connectors?

These solderless connectors install with a simple clasp attachment,
meaning that you can achieve a safe and secure connection without any
tools

How do I install this with an LED strip?

Connect according to the positive and negative terminals of the connector. Simply slot the strip light into connector and clamp the cover. No soldering and other tools required

Can I use these connectors for outdoor LED strip lights?

No, these connectors have an IP20 rating which means they are for indoor, dry location use only.

Can I shorten the LED strip and re-use the connector on the cut end?

Yes, you can trim your LED strip to length and reuse the connector with no issues. Just make sure to cut the LED strip on the cut mark.

Is it normal for the connectors to get warm during use?

It is normal for the connectors to get slightly warm to the touch during operation. This is not a cause for concern.

What is the warranty period for these LED connectors?

They are covered by a 1-year warranty for your peace of mind.

FOR HIGH DENSITY LED TAPE CONNECTION

This connector does in fact work with HitLights high density LED tape if you cut the tape at the end of the last light. Cut the tape as far right past the cut line on the edge of the diode leaving all of the copper contact surface. The little door on this connector will close right at the diode while all contacts are touching and secure. Works perfect.

Garage under counter lights

Was my first time installing LED tape lights. I don’t have solder equipment or materials, and I didn’t like the idea of folding the tape and possibly ruining it. Went with the 6 inch connectors because I thought the 6 inch wire would also give me some flexibility. Ended up using 3 of the connectors that came in the pack. The finished product looks and works great. The only reason for not rating a 5 was because while positioning the tape (tucking up into corner) the downstream lights went out (lost connectivity). After repositioning the lights came back on and have been on ever since.

They do what you need them to do

These are most useful when using LED strips for something like a cabinet or under cabinet lighting. You just have to be patient with them and make sure you get a good connection. Once you have it though, they hold up well and do exactly what you need them to do. Provide a easy way to attach a longer wire or make a bend in the otherwise not-so-flexible led strip.

Hitlights LED PCG Strip to strip connector

These are very easy to use even though I have no electrical background.

80%

(972)

17%

(202)

(19)

(2)

(17)

1190

Useless

These will not secure the wire. Even slight pressure will pull the wire loose. Basically useless

Hi David,

Thank you for your recent purchase from Hitlights. We regret to hear that the connector did not meet your expectations, and for this, we extend our sincerest apologies.

To better understand and swiftly resolve the issue, I would like to discuss the specifics of your experience. Could we arrange a time for a phone call that suits your schedule? Or feel free to reply to this email with further details about the issues encountered.

We look forward to resolving this promptly and restoring your confidence in our products.

Best regards,
Team HitLights

Great Connectors!

These connectors are very well made. The screw mechanism also feels solid when you attach the wires or the light strips.

The screw driver is a little on the cheap side, but since that is not part of the connectors I am still rating the connector 5 stars; I just use my own screwdriver.

The thing I cannot figure out is what the little adhesive stickers are for. I THOUGHT they were to attach the connector, but the stickers only have adhesive on one side, that is, they are not double sided adhesive. See photo.
If you peel the sticker that says "3M" off it is sticky on one side. Once you peel the "3M" sticker off one side underneath there is a white slick paper (no adhesive). You flip that over and the other side is brown and say "3M". You peel that off it is also sticky on one side and you are left with the OTHER side of the white slick paper (no adhesive on this side either). So what you have is a total of three pieces once you have finished peeling everything off. Two pieces that say "3M" and are sticky on side, and one piece that is white and slick paper with no sticky on either side.

None of these items are double sided adhesive, so if someone can tell me what they are for I would appreciate it.

Great experience love the product.

Delivery was in time

Small size excelent quality
