PRODUCT DETAILS:
These 10mm 3-Pin CCT LED Crimp Type Connectors provide a simple, solderless way to connect tunable white LED strip lighting. The piercing-style design makes direct contact with the LED strip PCB, helping installers create secure connections quickly and cleanly on site.
Designed for 10mm wide CCT LED strips, the 3-pin configuration supports the common positive, warm white, and cool white channels used for adjustable color temperature lighting. Choose Strip-to-Strip connectors for joining two LED strip sections directly, or Strip-to-Wire connectors when extending a run, navigating gaps, or connecting strip sections with wire.
WHAT’S INCLUDED:
Q: What size LED strip lights are compatible with these connectors?
A: These connectors are designed for 10mm wide, 3-pin CCT or tunable white LED strip lights. Always confirm your strip width and contact layout before installation.

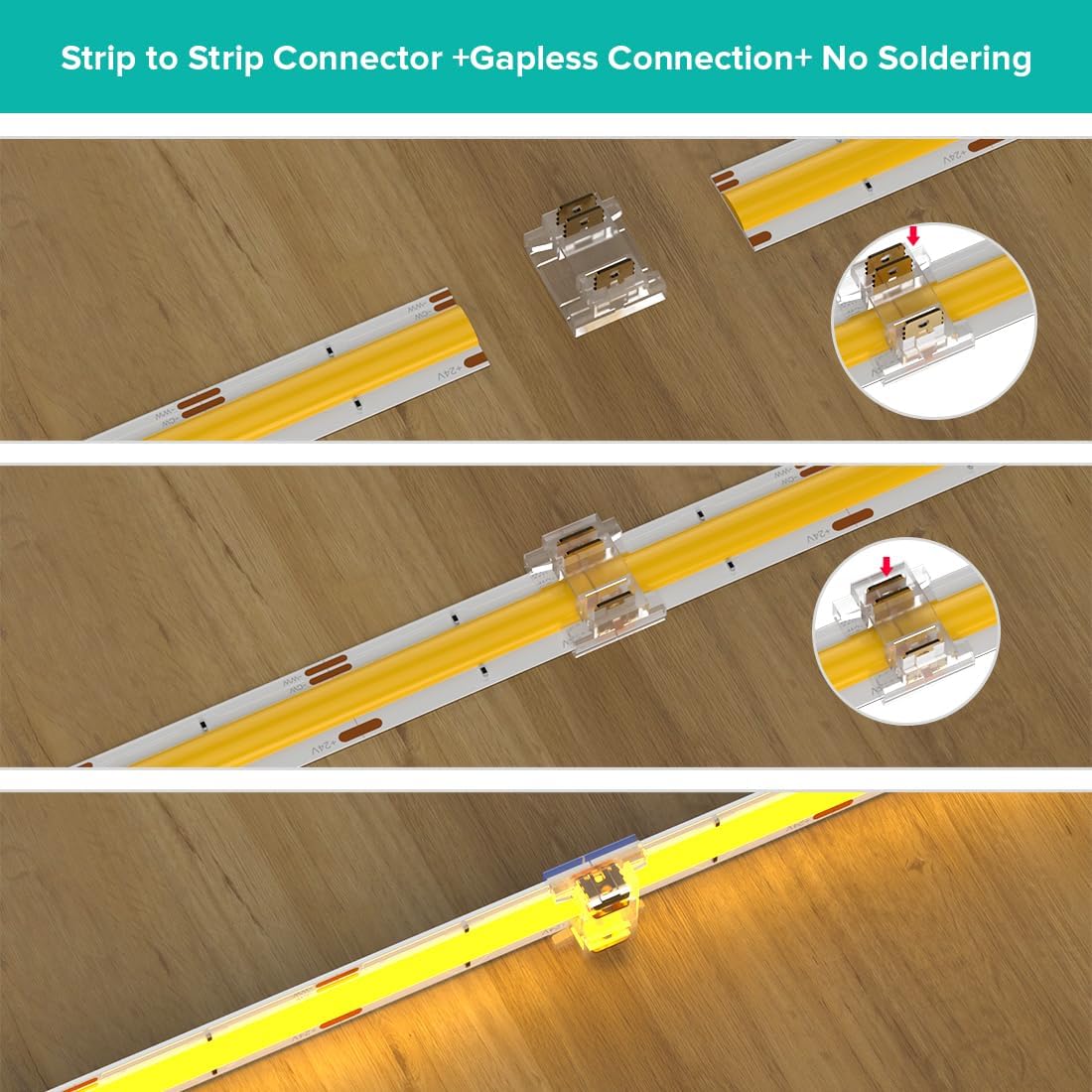

Q: What is the difference between Strip-to-Strip and Strip-to-Wire?
A: Strip-to-Strip connectors join two sections of CCT LED strip directly together. Strip-to-Wire connectors connect an LED strip to wire, making them useful for extensions, gaps, corners, and custom layouts.
Q: Do I need to solder the LED strip to the connector?
A: No. These connectors use a solderless piercing-style connection that makes contact directly with the LED strip PCB.

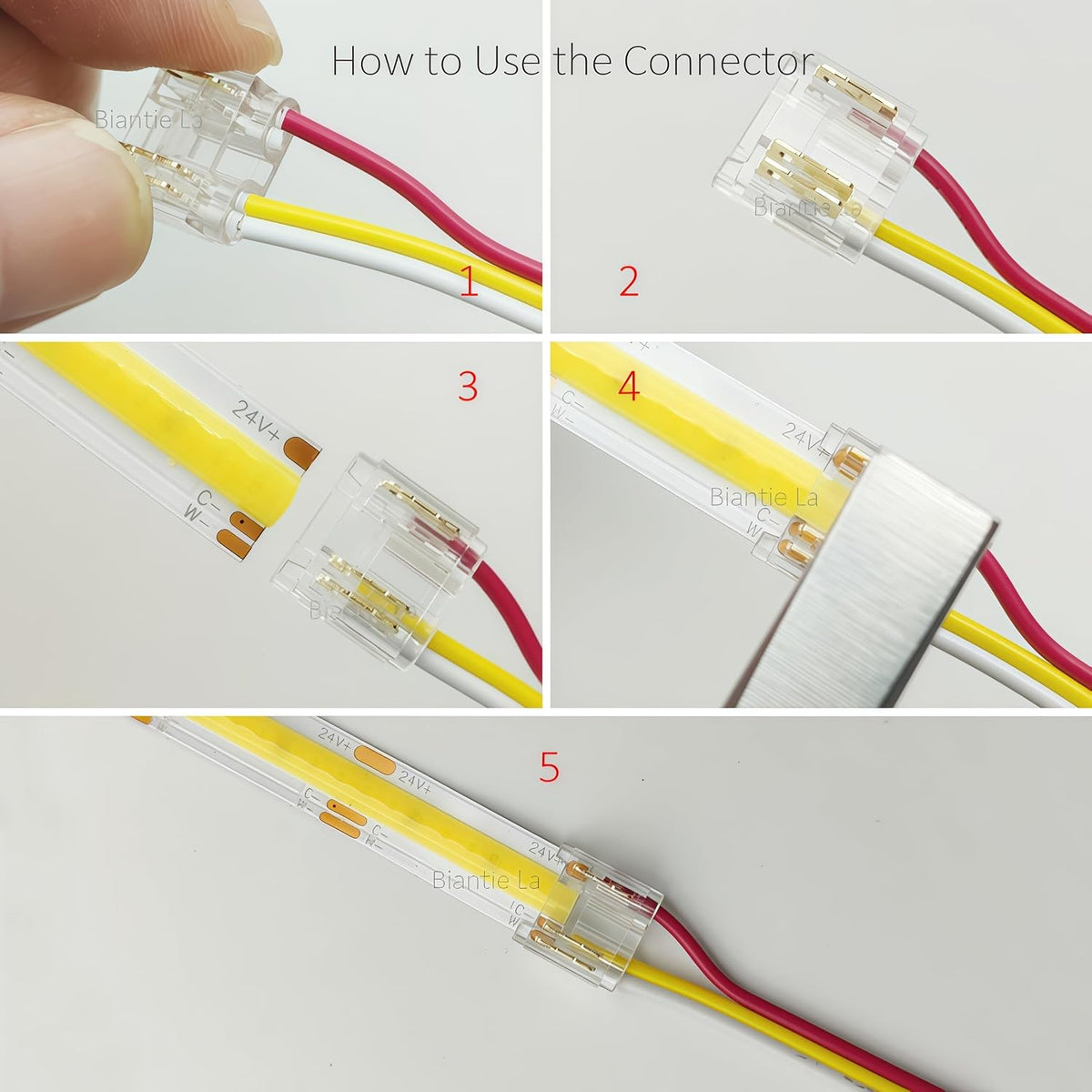

Q: How does the crimp-style connection work?
A: Align the connector contacts with the correct pads on the CCT strip, insert the strip, and firmly press or crimp the connector into place. The metal contacts pierce the PCB to establish the connection.
Q: What do the three pins control?
A: The 3-pin configuration accommodates the common positive, warm white, and cool white channels used by CCT LED strips, allowing the connected lighting system to adjust between warmer and cooler white light.
Q: Why does the Strip-to-Wire pack include positive and negative versions?
A: CON-CCT-N10BX-6P6N includes 6 positive and 6 negative connectors. The two orientations allow connections to be made from either end of the LED strip while maintaining the correct CCT channel alignment.

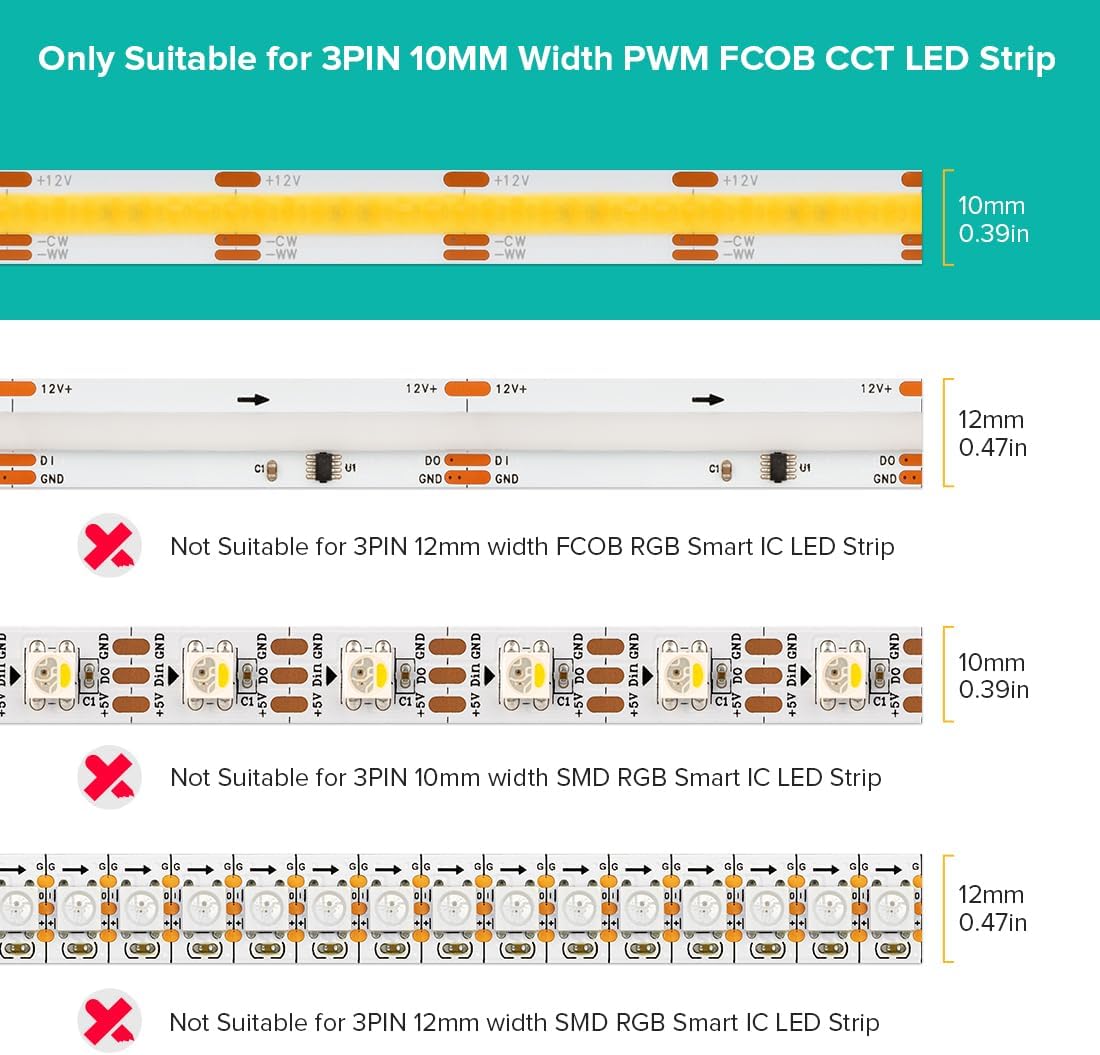

Q: Can these connectors be used for RGB or RGBW LED strips?
A: No. These connectors are designed specifically for 10mm 3-pin CCT LED strips. RGB and RGBW strips use different channel and pin configurations.
SHIPPING DETAILS:
| SKU | Connection Type | Size of Connector Housing (L*W*H) | Pin Quantity | Strip Width |

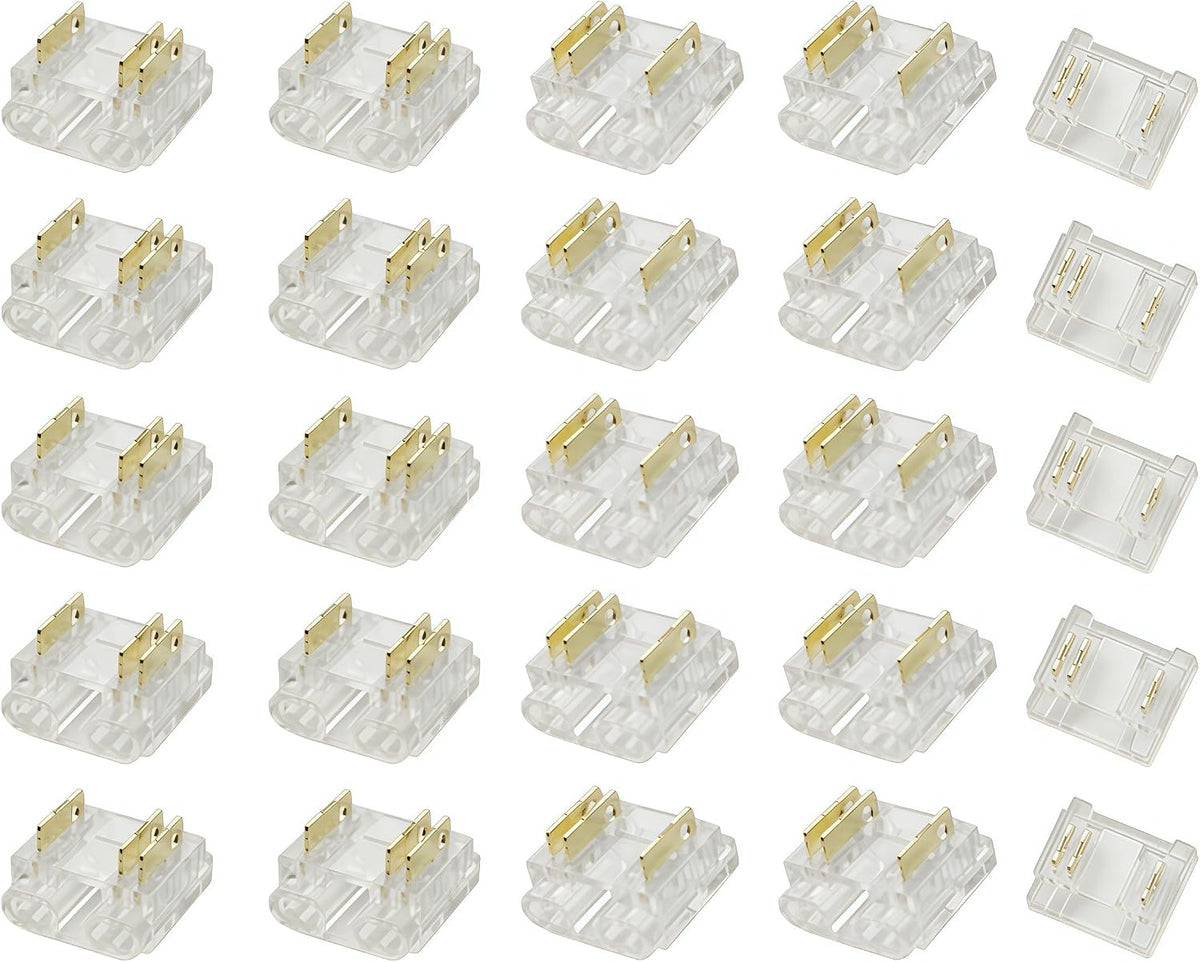

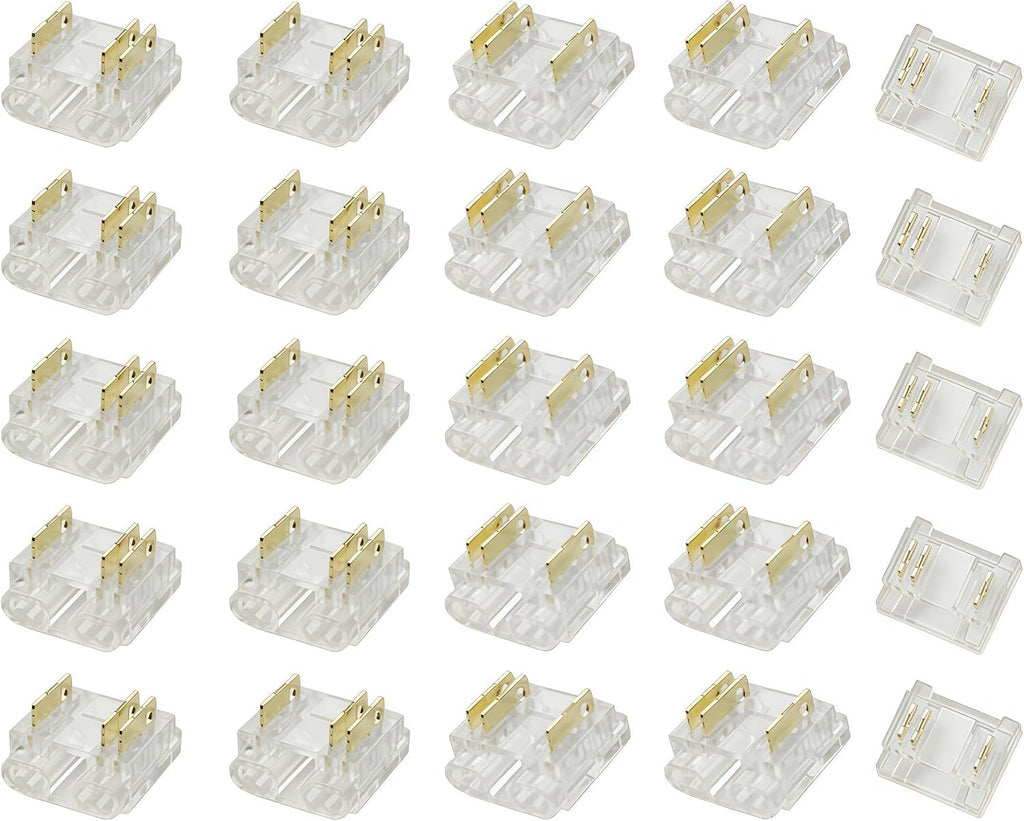

| CON-CCT-N10B-12PK | Strip-to-Strip |
17.0 × 11.5 × 3.3 mm |
3-pin | 10mm |
|
CON-CCT-N10BX-6P6N |
Strip-to-Wire |
16.0 × 8.5 × 3.3 mm |
3-pin | 10mm |
