WHAT STANDS OUT
- High-density CSP RGB strip: 840 LEDs per meter and a wide beam angle help minimize hot spots for nearly “spotless” RGB output.
- UL Listed, IP30 indoor strip: Designed for professional-grade interior installs with a 50,000-hour rated life and 6-year warranty.
- CSP LED technology: Chip Scale Package LEDs improve thermal performance and color consistency in a slim 10 mm form factor.
PRODUCT DETAILS:

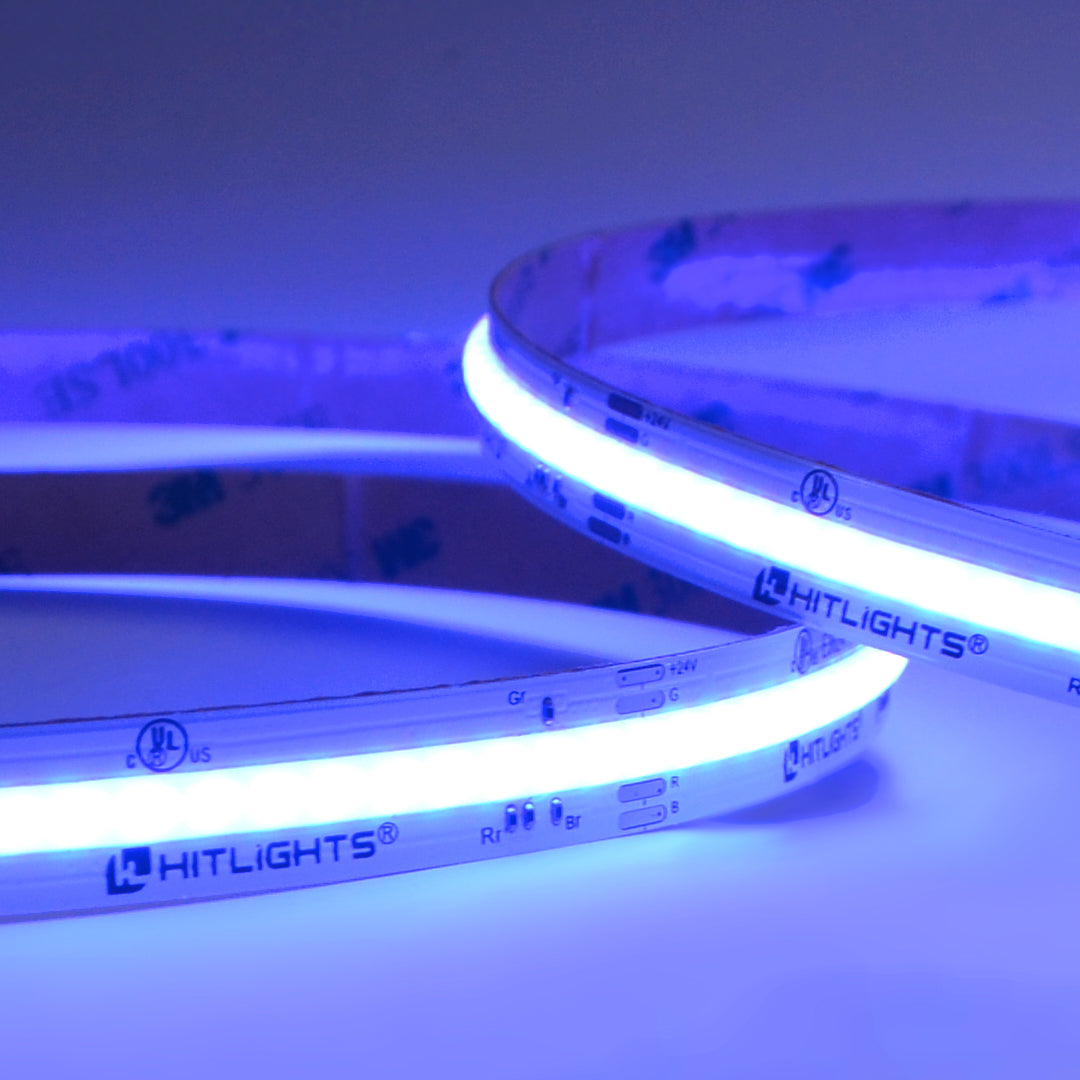

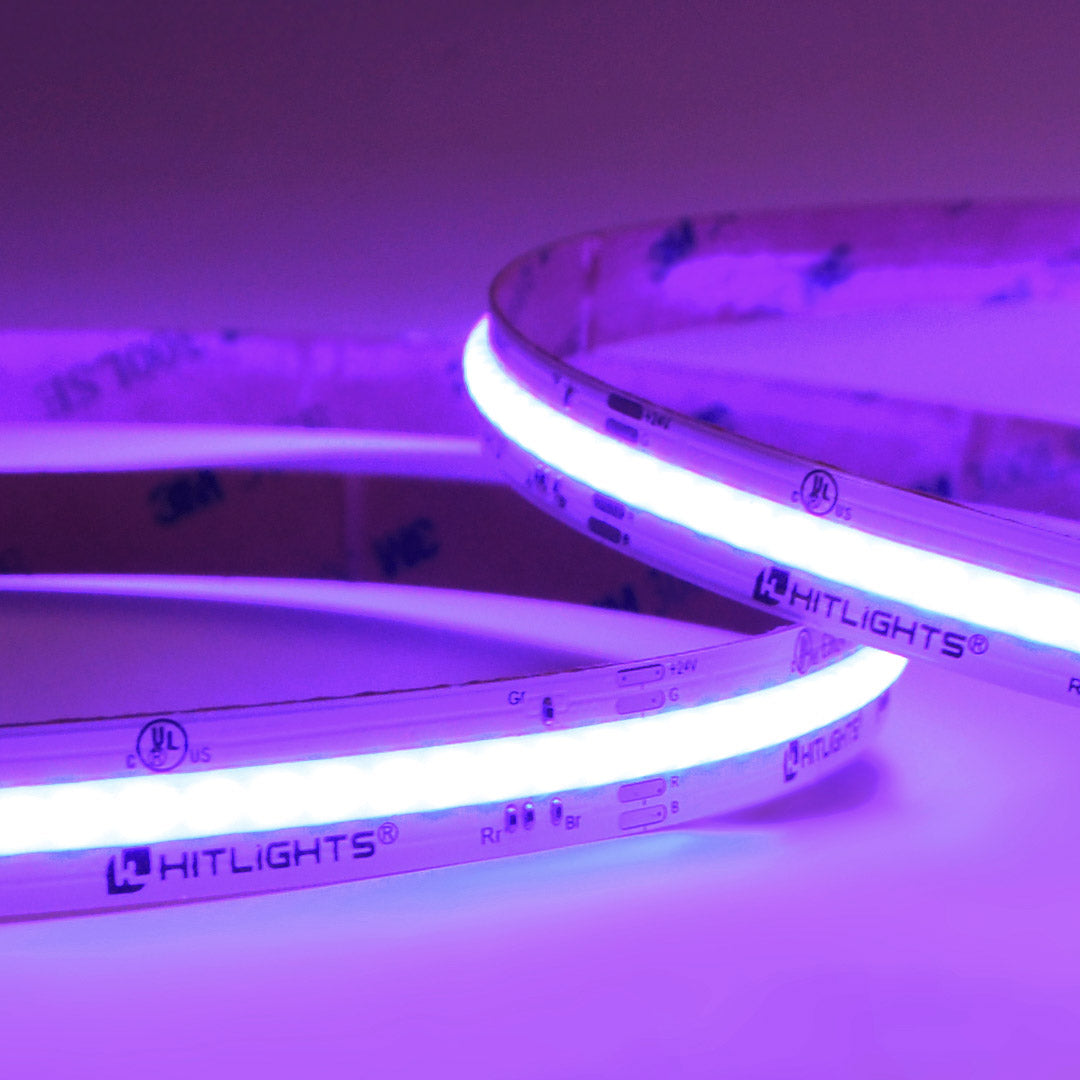

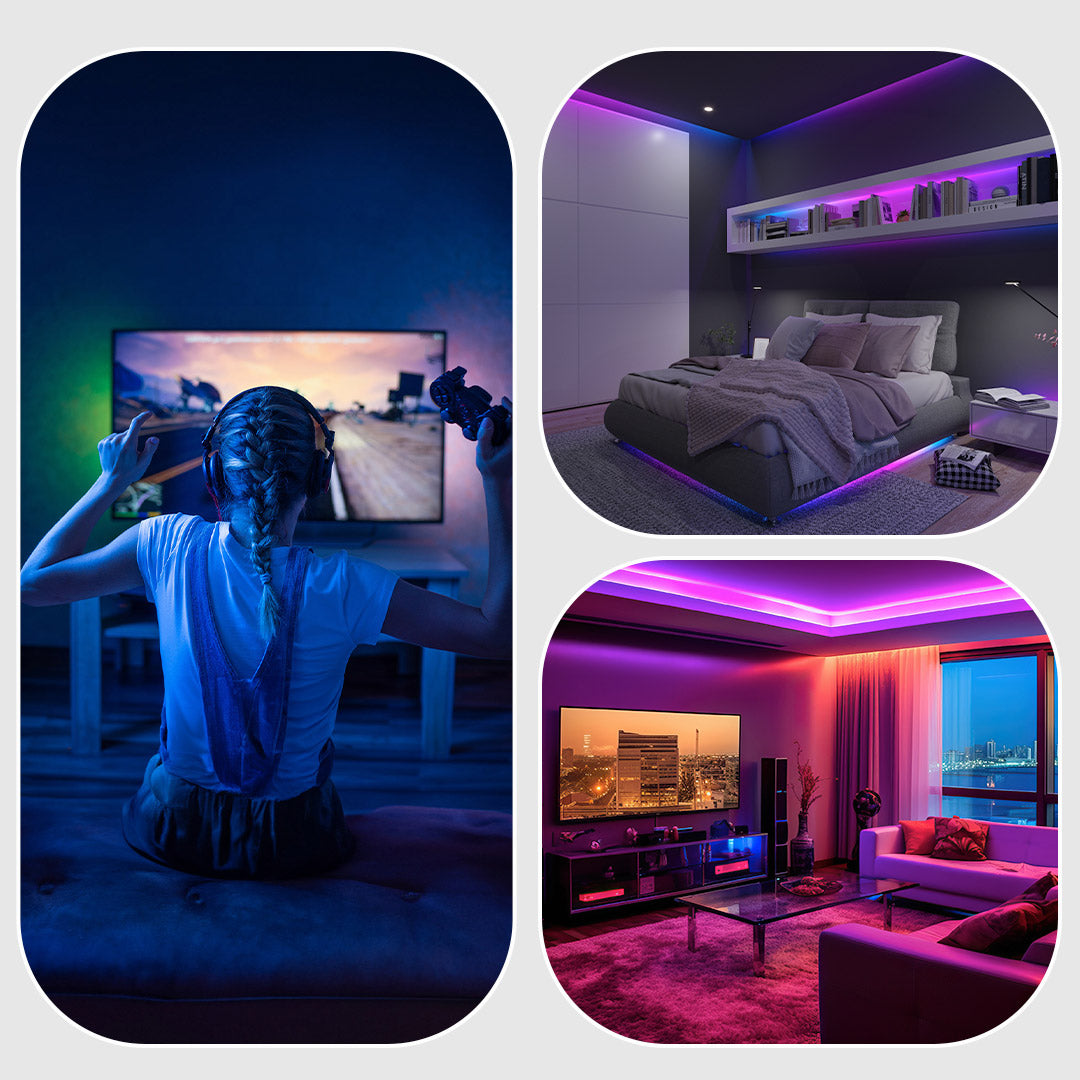

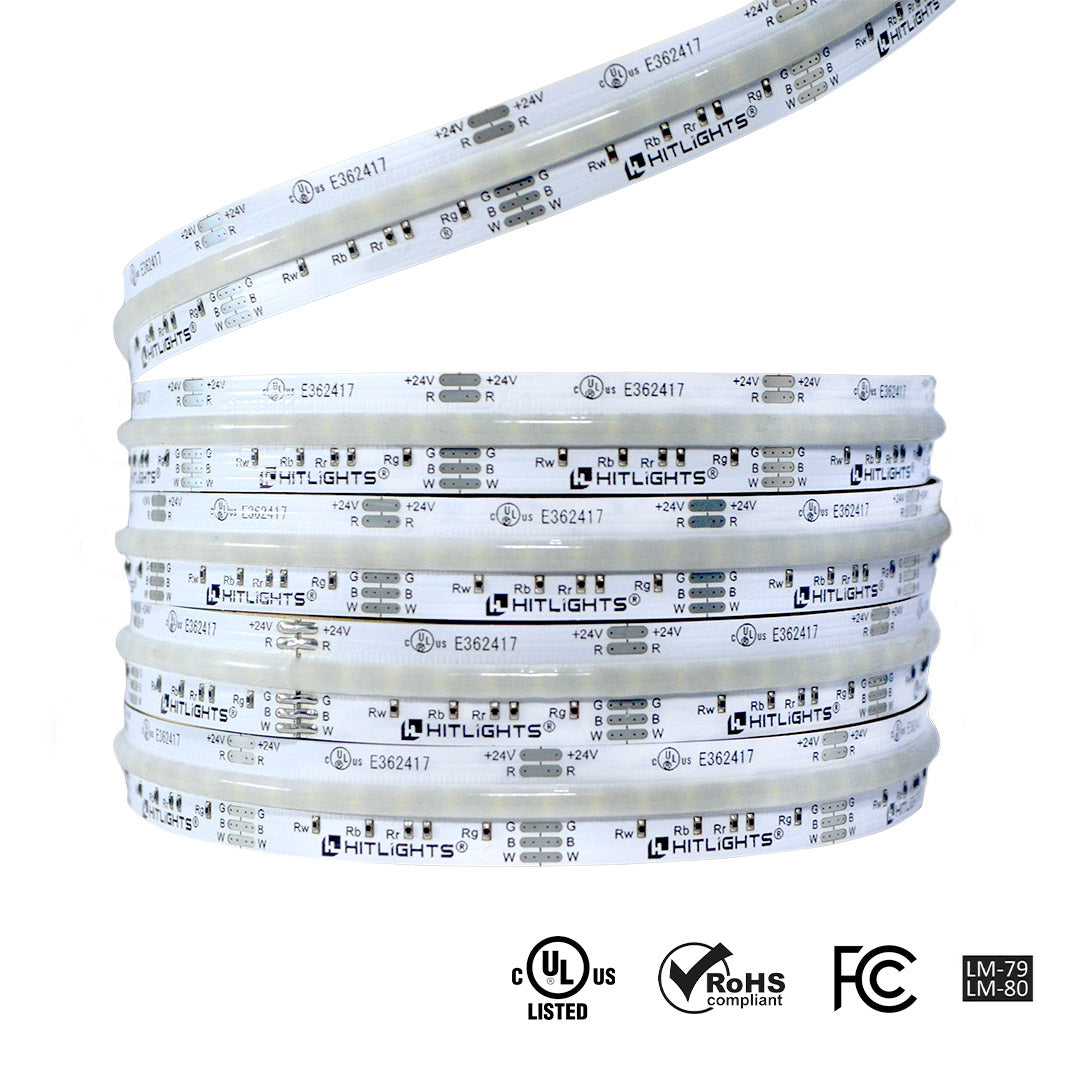

The HitLights RGB CSP strip (UL-Listed) 16.4 ft [IP30] is a 24V indoor RGB LED tape built on Chip Scale Package (CSP) technology for projects that demand smooth, uniform color and long service life. It ships on a 16.4 ft (5 m) reel with a 10 mm-wide PCB and dense CSP LED layout, making it well suited for coves, feature walls, under-cabinet lighting, shelving, retail displays, and trade show builds.
Running on 24V DC, the strip draws about 3.3 W per foot at roughly 0.5 A per meter, allowing longer runs from a central power supply with less voltage drop than comparable 12V RGB strips. A high LED density of 840 LEDs per meter and a 180° beam angle help deliver a nearly continuous wash of color instead of obvious LED “dots,” especially when used with aluminum channels and diffusers.
The tape is UL Listed, rated IP30 for indoor use, and specified for 50,000 hours (Tc < 140°F) with a 6-year warranty, aligning it with professional-grade installations. It can be cut at marked points approximately every 50 mm (about 2 in), with 42 LEDs per section, making it flexible for custom-length runs around architectural details or signage when paired with compatible RGB controllers and 24V power supplies.
- Input voltage: 24V DC, constant-voltage
- Strip length / width: 16.4 ft (5 m) reel; 10 mm wide
- LED type: CSP RGB (Chip Scale Package)
- Color: Real red, green, blue (RGB)
- Cut section length: 50 mm (≈2 in), marked cut points
- Waterproof rating: IP30 – indoor use only
WHAT'S IN THE BOX
- 1 × 16.4 ft (5 m) HitLights 24V RGB CSP LED IP30 strip
FREQUENTLY ASKED QUESTIONS:
Q: What is the HitLights 24V RGB CSP LED strip?
A: It is a 16.4 ft, 24V RGB LED strip that uses Chip Scale Package (CSP) LEDs on a 10 mm tape with 840 LEDs per meter, rated IP30 and UL Listed. The strip delivers full RGB color mixing for indoor accent, architectural, and decorative lighting projects.
Q: Is this strip for indoor or outdoor use?
A: This model is IP30 rated for indoor use only. It should be installed in dry locations such as coves, cabinets, feature walls, and displays. For any area exposed to moisture or weather, a higher-IP-rated outdoor strip should be used instead.
Q: How much power does the strip use and what driver do I need?
A: The strip operates on 24V DC and draws about 3.3 watts per foot (≈0.5 A per meter). A compatible 24V constant-voltage power supply sized for the total connected length plus headroom is required. For example, a full 16.4 ft reel needs roughly 54 W of available capacity.
Q: Can the strip be cut and reconnected?
A: Yes. The tape can be cut at marked points every 50 mm (about 2 in), with 42 LEDs per cut section. After cutting, sections are typically reconnected using compatible RGB 4-pin connectors or soldered joints; for best results, connections should be made in junction boxes or channels appropriate to the installation.
Q: How does this CSP RGB strip differ from standard RGB LED strips?
A: Compared with many standard RGB strips, this model uses CSP LEDs, a higher LED density (840/m), and a wide 180° beam angle, which improves thermal performance and produces smoother, more continuous color with fewer visible hot spots. It’s designed as a professional-grade indoor strip with UL Listing and a long rated lifetime.
Q: What is the expected lifetime and warranty?
A: The strip is rated for 50,000 hours of operation when the temperature at the critical point stays below 140°F and includes a 6-year warranty when used within its published electrical and environmental limits.
Q: How do I track an order or handle a damaged item?
A: Once an order ships, HitLights sends an email with a tracking number and a link to UPS or USPS so shipment progress can be monitored. If an item arrives damaged, customers are asked to call 1-855-768-4135 or email customerservice@hitlights.com for assistance.
