150 Watt S-Series Dimmable Driver (Electronic, UL) - 24 Volt

HitLights 150 Watt S-Series Dimmable Driver (Electronic, UL) - 24 Volt

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

S-Series Dimmable Drivers: This series offer an elegant control and dimming solution for any LED light strip project. These 36 to 100 Watt dimmable drivers allow you to control the brightness of your LED light strips with a wall dimmer switch - a more elegant solution than a dial dimmer or remote unit. The wide dimmer compatibility means you get to choose the wall dimmer that suits your space.

The S-Series drivers have a slim design to fit in small spaces. They are the ultimate solution for any LED lighting project and work with most Lutron and Leviton dimmers. This product has wide dimmer compatibility - Forward phase, Reverse phase, Triac, MLV, ELV, Triac Dimmers and no derating required when ganging units.

FLICKER-FREE LED DIMMING: This driver is a sure HIT when it comes to managing flickering lights due to its electronic components for precise control and regulation.

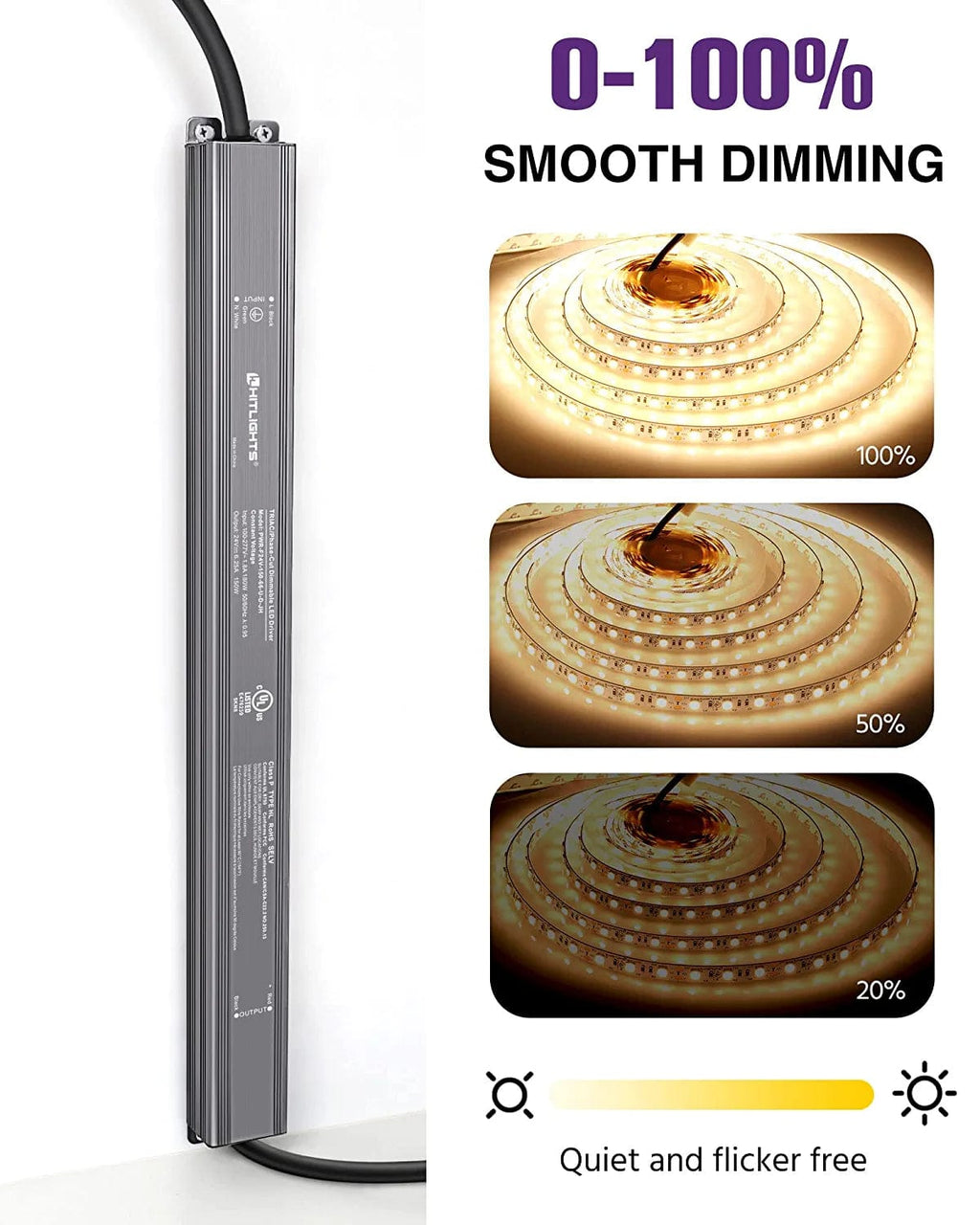

SUPERIOR LED DIMMING PERFORMANCE: This slim unit allows you to control your light full-range from 100% – 0% dimming.
UL LISTED: Certified for safety and reliability.
SHIPPING DETAILS:

Standard Shipping (3-5 Days) - Shipping cutoff 3pm(PST).
FREE ground shipping (UPS or FedEx) on orders of $199 or more

Input Voltage: 120VAC, 1.8A Max. 50/60Hz
Output Voltage: 24V DC, 150Watts (6.25 Amps)

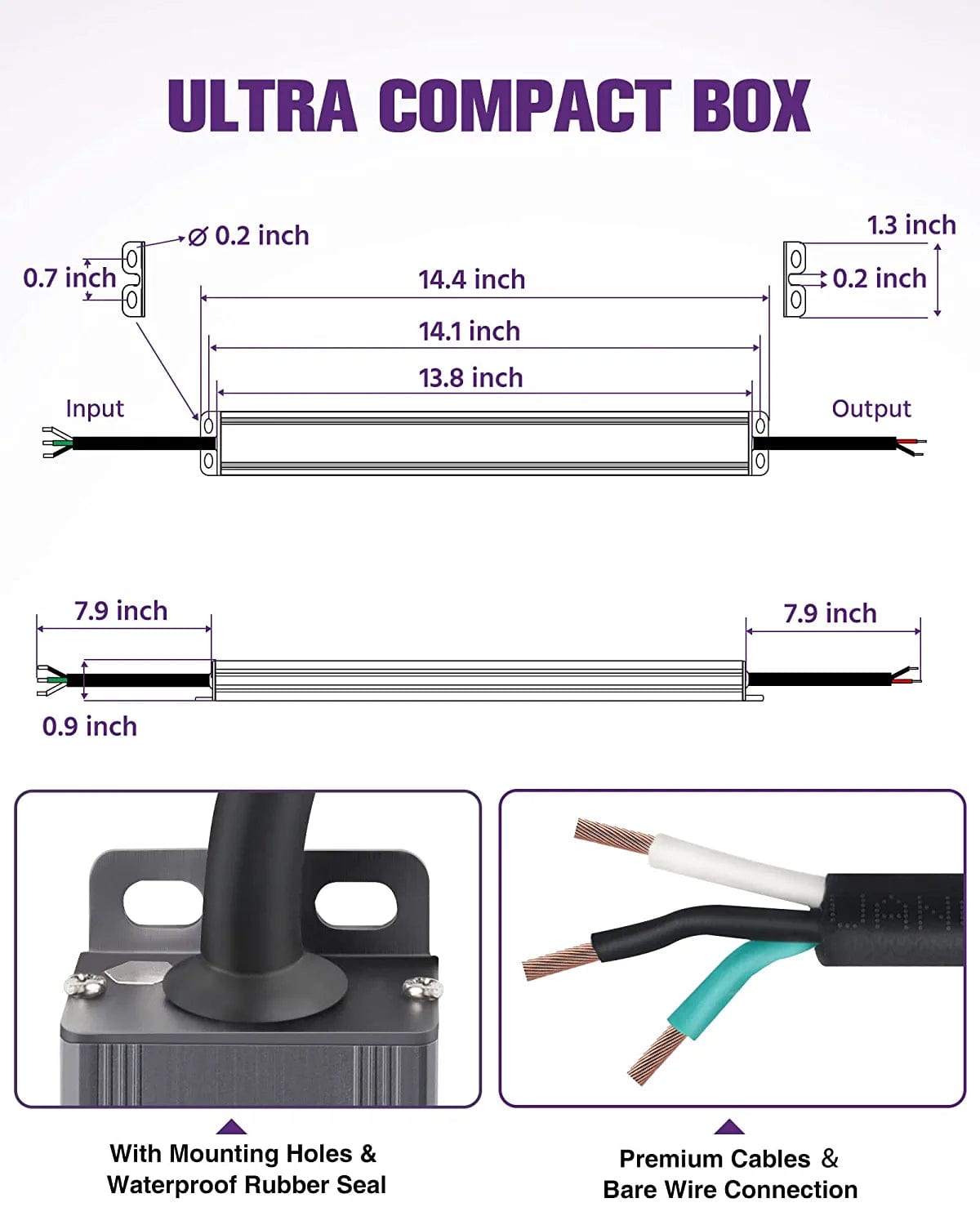

Dimension: 14.4 x 1.3 x 0.9 inches
Power Factor: 0.99 @ 120VAC
THD: ≤ 20% @ 120VAC max load

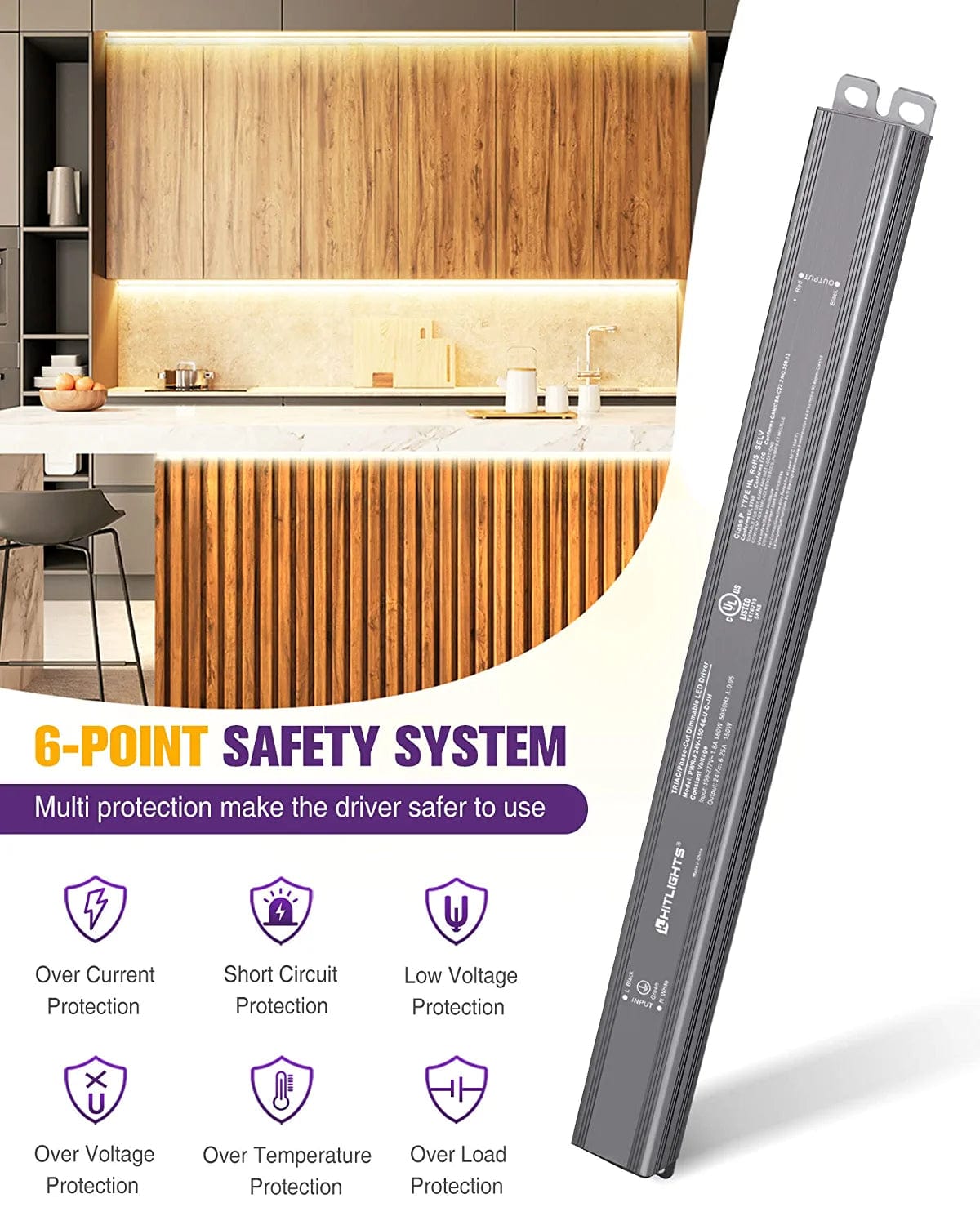

Protections: Short circuit, thermal runway, and over voltage
IP Rating: IP66
Certifications : FCC, UL Listed, Class P
Connection Type: Hard-Wired
Efficiency: ≥85% @ 120VAC max load
In-Rush Current: 120V--11A, 50%, 1ms
Leakage Current: <0.50mA @ 120VAC
Dimming Range: 0-100
Working Humidity: 20～90%RH, non-condensing
Working Temp: -40°C to +60°C
Warranty: 6 years

SKU	LEDS/ft	CCT (K):	CRI (Ra)	Lumens Output
L0524V-303-3230-U-1	36 LEDs	3000K	90+	351L - 327Lm/ft
L0524V-403-3230-U-1	36 LEDs	4000K	90+	351L - 327Lm/ft

Certifications:

What is the input voltage for this dimmable driver?

The input voltage is 120V AC.

What is the output voltage and wattage of this s-series driver?

The output is 24V DC at 150 watts (6.25 Amps).

What are the dimensions of this 24V s-series driver?

The dimensions are 14.4 x 1.3 x 0.9 inches (368 x 32 x 23mm)

What type of dimmers can I use with this driver?

It is compatible with Lutron dimmers like Ariadni, Vareo, Nova, Ceana, Diva, Gyder, Lyneo, Nova T and Skylark . It also works with Leviton dimmers like Leviton dimmers like Mural, SureSlide, ToggleTouch and Vizia.

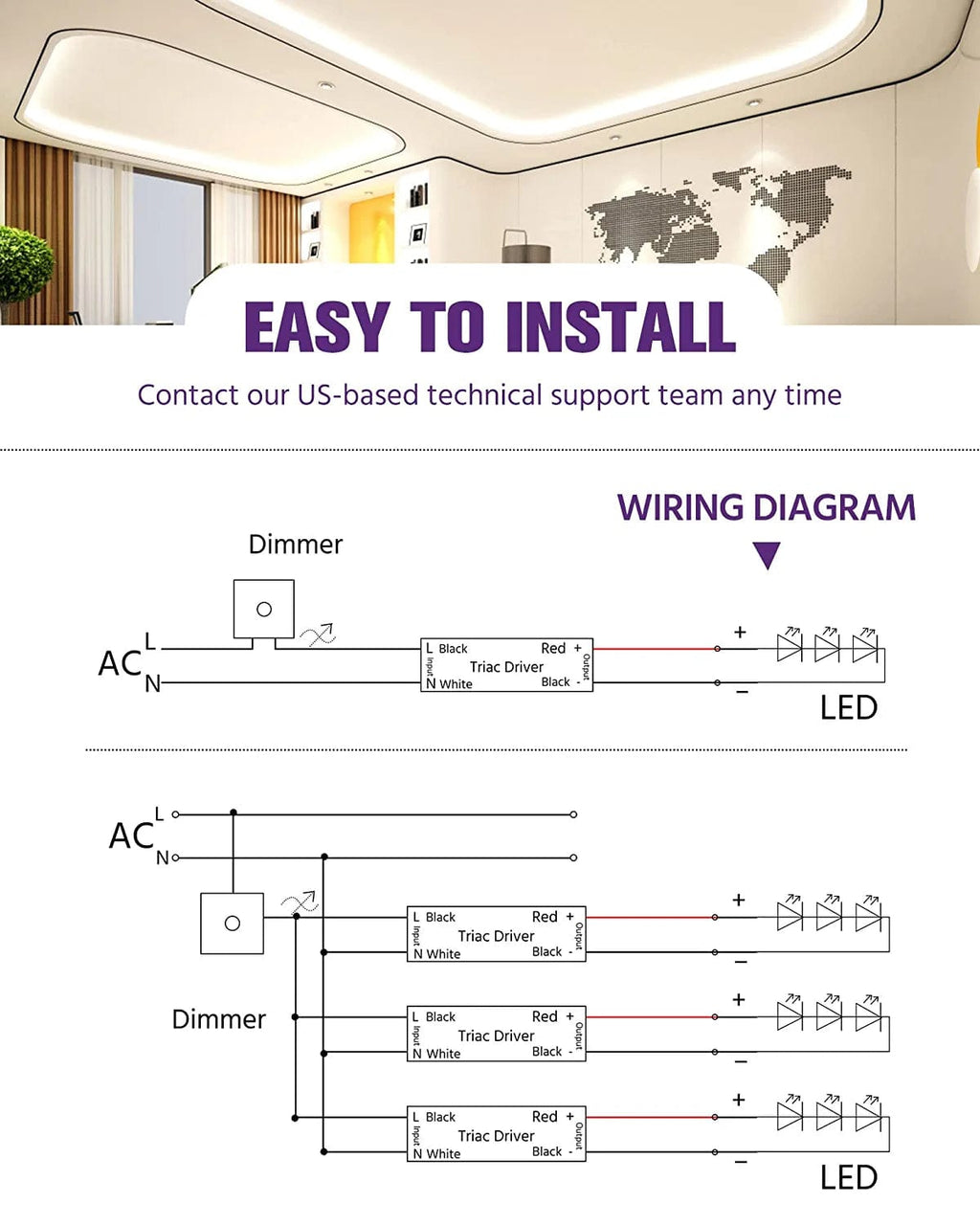

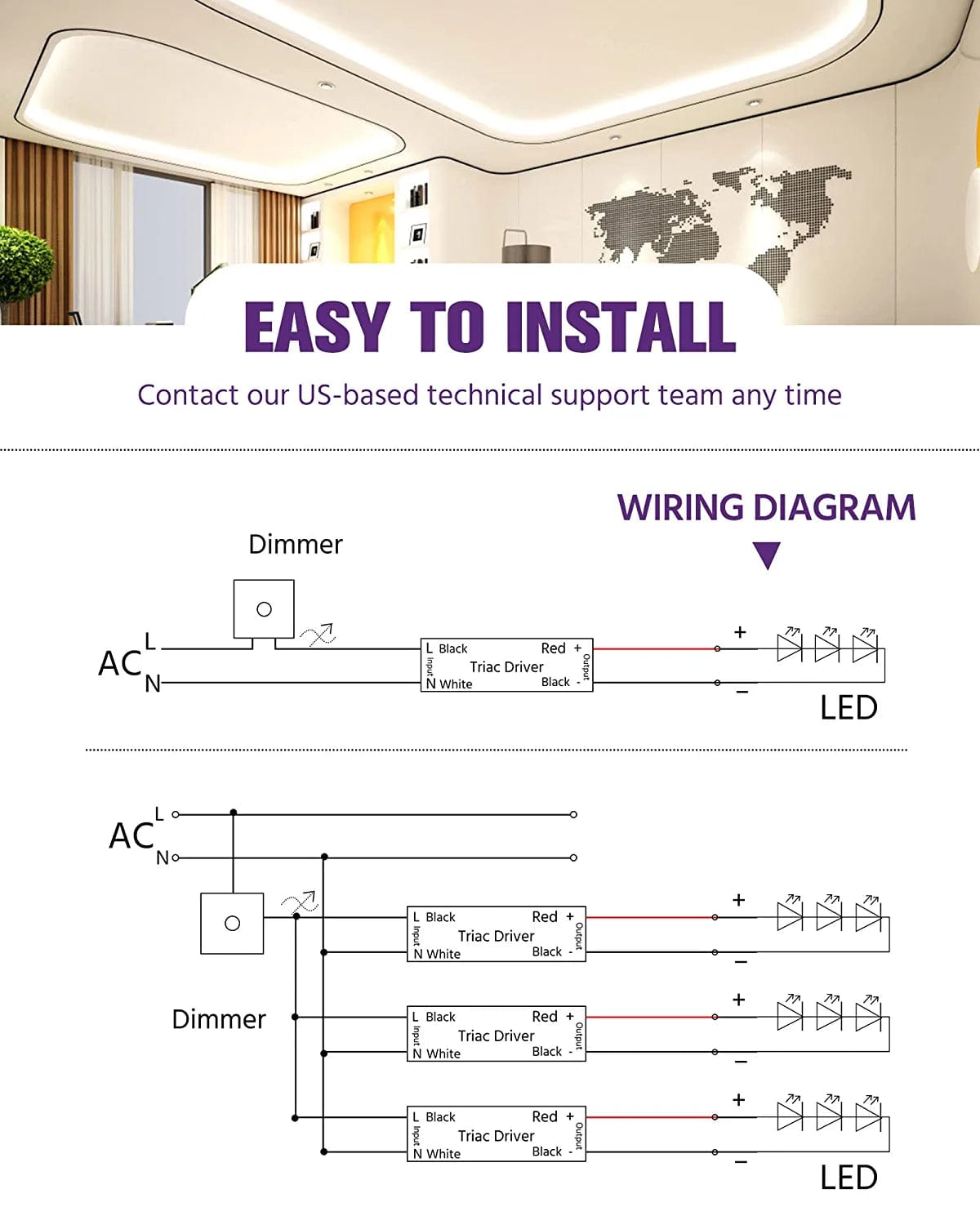

How do I connect this driver to my LED strip lights?

Connect the black wire to live, white to neutral, green to ground. Red output to positive, blue to negative of the LED strip.

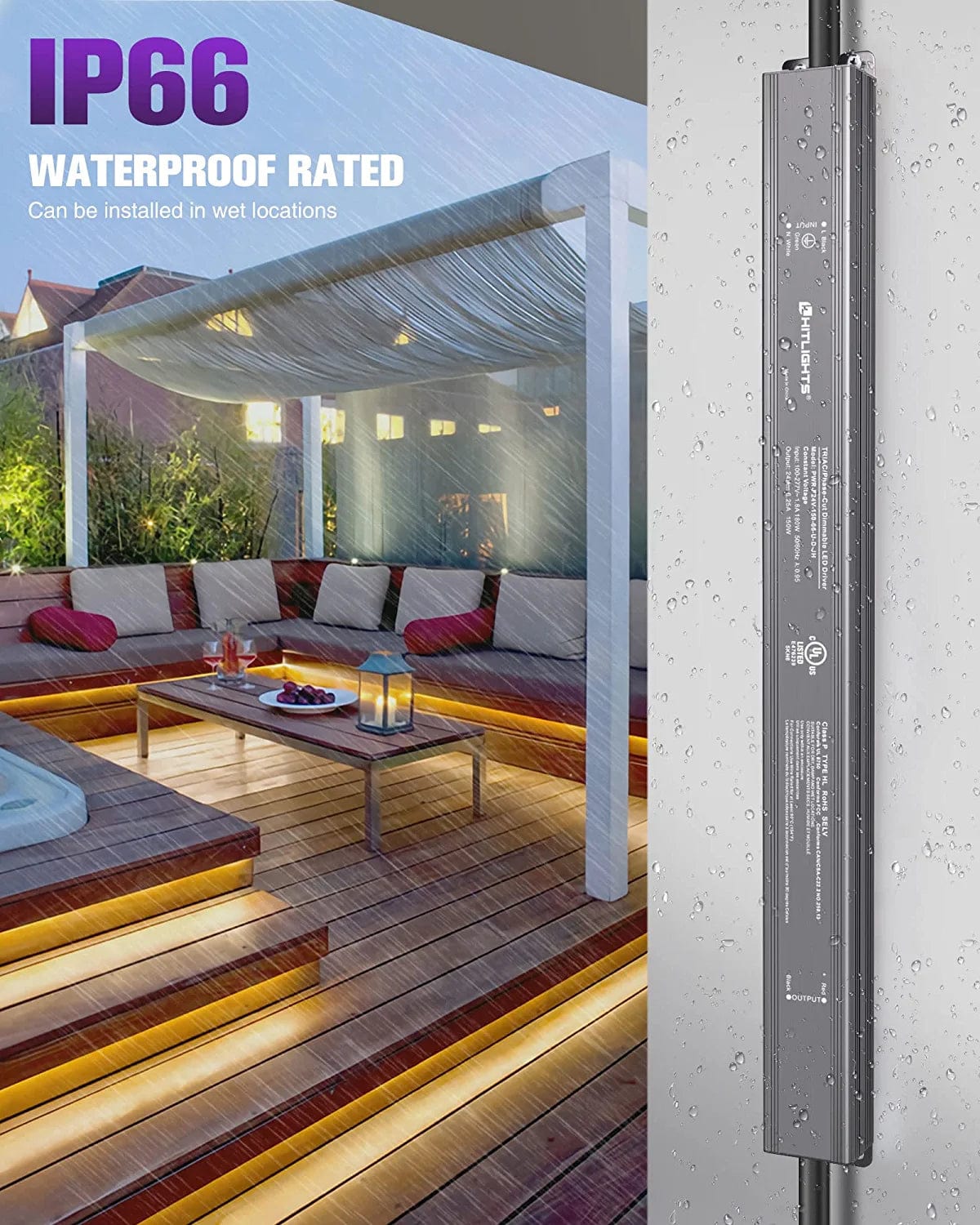

Can this s-series driver be used outdoors?

Yes, this dimmable driver is rated IP66 and is suitable for dry, damp and wet locations.

How long is the warranty?

This driver comes with a 6 year warranty from the manufacturer.

Does this driver work with RGB LED strips?

No, it only works with single color 12V LED strips. For RGB, you would need an RGB controller.

How do I install this driver inside a wall?

Make sure to leave sufficient ventilation space around the driver and secure it properly before closing off the wall space.

SPEC SHEET

150 Watt S-Series Dimmable Driver (Electronic, UL) - 24 Volt

CERTIFICATION

UL Listing FKSZ.E476239

COMPATIBILITY LIST

Compatibility Sheet

Premium 24V LED Light Strip, Single Color (UL-Listed) 26.2ft [IP-20]

$60.97

10 reviews

Installation: Cuttable and easy install with DC jack
Recommend For: 24V dimmable/non-dimmable power supplies
Max Run: 16.4ft (24V). Use parallel for longer installs.

HitLights LED Light Strip Mounting Supplies Surface Mounted Aluminum Mounting Channels (5pack)

Slim Type Surface Mounted Aluminum Mounting Channels (5pack)

$24.75

1 review

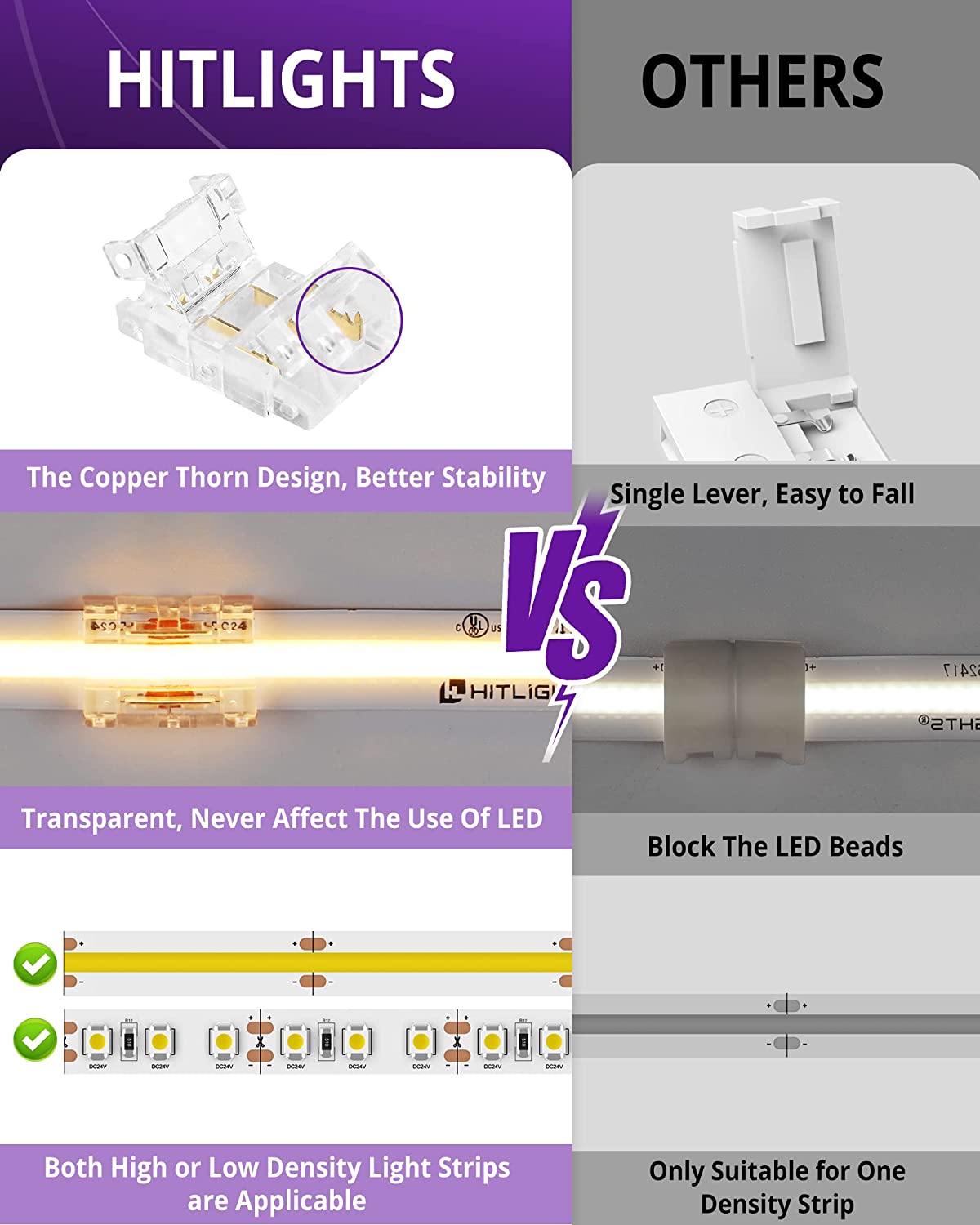

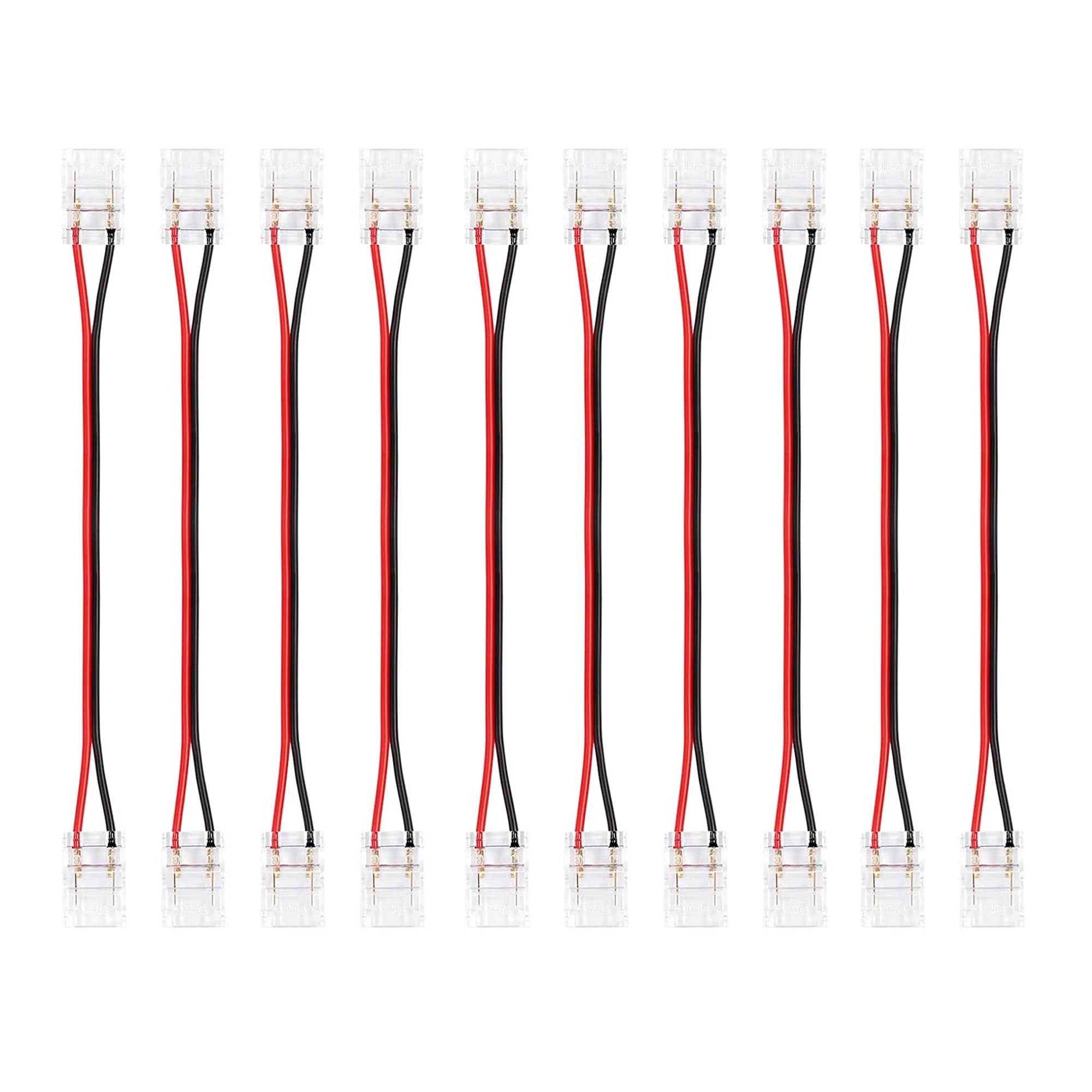

HitLights 6 Inch Any Angle (10 Pack) 2Pin 10mm Solderless LED Light Strip Connector : Single Color
