Eclipse LED Kits Common Concerns

In this section, we will discuss common concerns that can be encountered when using Eclipse LED kits. These kits, popular among DIY enthusiasts, come with three or four one-foot strips, a 21-key remote, and a power adapter.

Troubleshooting Tips Include:
1. Make sure to have clean and smooth installation area
2. Check what came with the package - LED strips, power adapter, and connectors

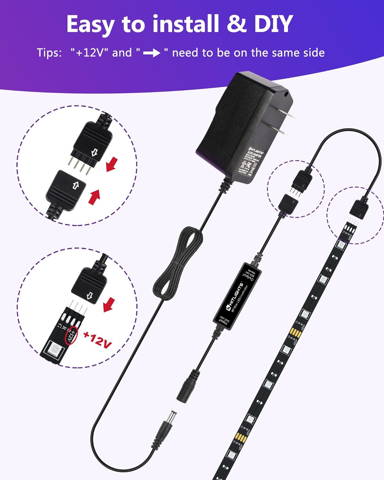

3. Follow the arrow alignment to avoid incorrect color output
4. Make sure to insert the connectors properly and securely to avoid flickering lights

Troubleshooting LED Strip Lights: Incorrect Lighting or Dim Output

LED strip lights enhance spaces visually, but issues like incorrect lighting or dim output may occur. This section guides users through identifying and resolving these common problems.

Steps for Troubleshooting:
1. Checking the power source for defects or no power issues.
2. Check if connectors are not twisted and are properly connected. Verifying correct installation and connection using arrow
3. markings. (+) sign on the LED strip to the (+) on the connectors and the next line of LED strips.
4. Test if this fixes the dimming or the incorrect color output. If not, try the next step.
5. Try to disconnect and reconnect the connectors to the LED strip to refresh the connection and to secure it.

Properly Aligning Connectors for Correct LED Display

Achieving a correct LED display requires proper connector alignment. This section provides insights into the installation process for LED lights behind a TV, monitor, cabinet, etc, emphasizing the importance of clean connections and correct channels.

Key Points:
1. Measuring TV or installation edges for appropriate LED strip kit purchase.
2.Securing connections for a seamless LED display. Using the right connectors is the key.
3. Plugging connectors in the correct channels for optimal functionality.

Tips for Installing Eclipse Kits: Arrow Markings and Channel Alignment

This section highlights the importance of proper installation for Eclipse Kits or LED Kits in general, focusing on arrow markings and channel alignment. Following these tips ensures optimal performance and functionality.

Installation Tips:
1. Cleaning contact pads and ensuring debris-free surfaces.
2. Aligning LED strips with channels securely.
3. Firmly inserting connector prongs.
4. Double-checking arrow markings for correct power flow.
5. Aligning the (+) positive with the (+) section of the LED strip and connector from end to end to ensure proper color output.
6. Testing LED lights for proper functionality before installing permanently.

Avoiding Common Mistakes: Inverse Connections and Flipped Cables

Understanding potential risks associated with inverse connections and flipped cables is crucial for electrical safety. This section provides awareness and precautions to prevent accidents, and ensure proper functioning of lights.

Safety Measures:
1. Ensuring arrow keys or connectors face the same way.
2. Following proper installation guidelines for correct wiring.

In a Nutshell

1. Check the power source

2. Check the connectors
3. Make sure that the LED strips and cables follow the markings and are aligned
4. Firm connection of the connectors and no loose ends
5. Test the lights, test the remote functions, enjoy your lights!

Note: This is applicable to most RGB and RGB/W Kits installation and first step in troubleshooting common problems like power, color output, and dimming. Here is a short video as a reference.
