Save $3.53
SKU: PWR-12V-060-67-D-KO
4 reviews
Price:
$95.47 $99.00

American Express Apple Pay Diners Club Discover Google Pay Mastercard PayPal Shop Pay Visa

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

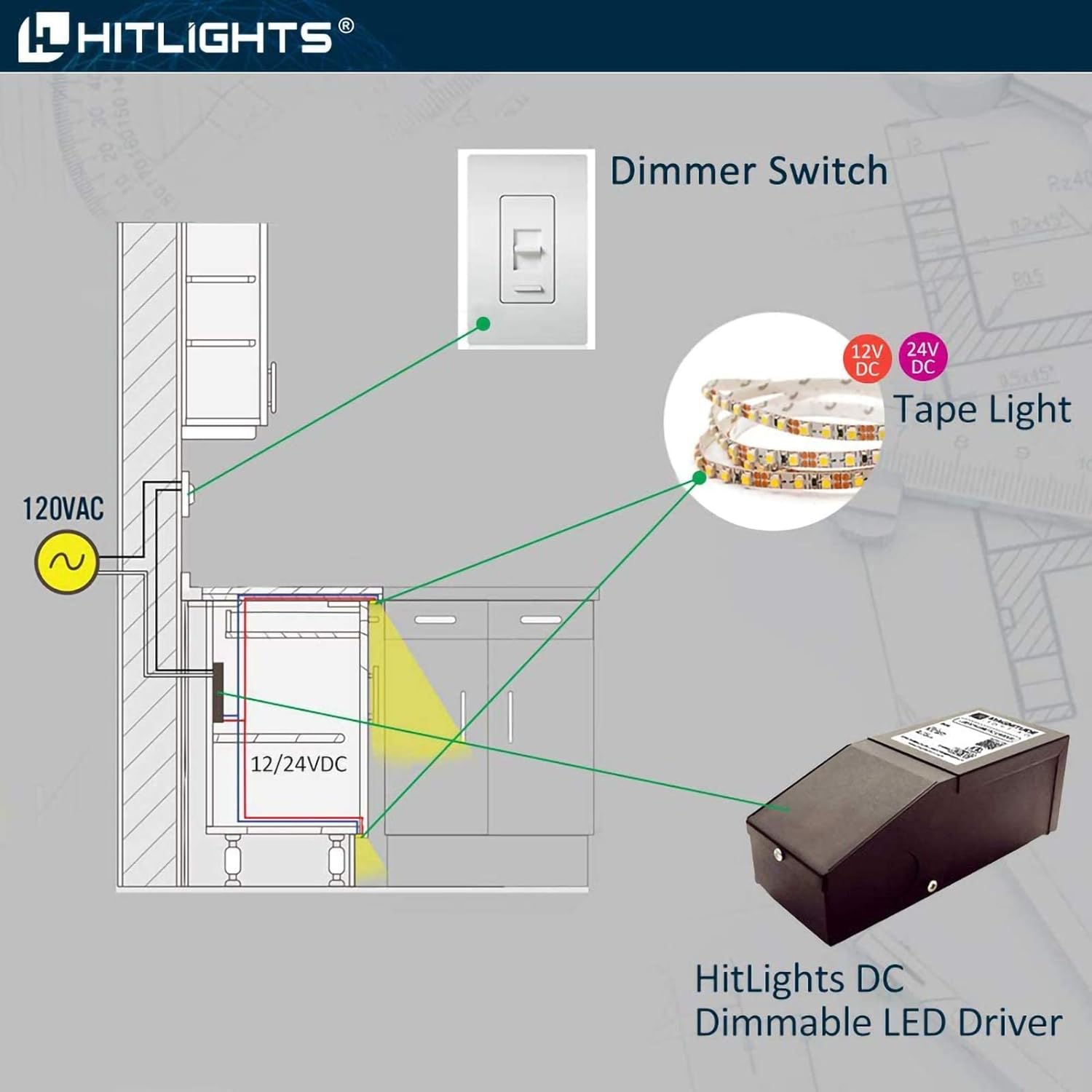

EK-Series Dimmable Drivers: Our Dimmable Drivers offer an elegant control and dimming solution for any of your LED light strip projects. These 40 and 60 Watt Dimmable Drivers allow you to control the brightness of your LED light strips with a dimmer switch mounted in your wall - a more elegant and permanent solution than a dial dimmer or remote unit.

Additionally, the wide range of compatible wall dimmers means that you get to choose the wall dimmer that best suits your home, office, or other building. These drivers are manufactured to our exacting technical specifications here in the United States, meaning that we are able to offer an unsurpassed five year warranty on these units.

Our range of Dimmable Drivers are the ultimate solution in any of your LED lighting projects and are compatible with most Lutron and Leviton dimmer switches.  Compatible with Lutron and Leviton dimmer switches all dimmable, single color 12V LED light strips and with 12V output and 40 and 60 Watt capacity options.

  • ASSEMBLED IN USA - These drivers are manufactured to our exacting technical specifications here in the United States.
  • SAFE CONNECTION - This drivers include knockouts in the enclosure so you can make all your connections internal to the driver for a safe installation
  • MLV TRIAC DIMMABILITY - Phase or Forward MLV TRIAC dimming that allows for smooth and flicker-free dimming control.
  • UL Listed, Class 2 - Independently tested and certified for safety.
  • SHIPPING DETAILS:
    Standard Shipping (3-5 Days) - Shipping cutoff 3pm(PST).
    FREE ground shipping (UPS or FedEx) on orders of $199 or more.
  • Input Voltage: 120VAC (108 ~ 132VAC), 50/60Hz
  • Output Voltage: 12V DC, 60 Watts (5Amps)
  • Dimension: 32 x 172 x 68mm (1.26 x 6.77 x 2.67 inches)
  • Power Factor: 0.95 (12VDC)
  • Protection: Over Voltage, Short Circuit Auto Reset features
  • Environmental: NEMA 3R (dry and damp)
  • Waterproof Rating: IP-67 (Outdoor)
  • Connection Type: Bare wire connections and knockouts
  • Efficiency: 90 % (12VDC)
  • Dimming Range: 0-100%
  • Working Temp: -22°F to 122°F (-30°C to 55°C)
  • Warranty: 6 years
  • Certifications : UL Listed, Class 2
SKU Input
Output
Wattage Weight
 PWR-12V-040-67-D-KO 120V AC 12V DC 40W 1.98 lbs
 PWR-12V-060-67-D-KO 120V AC 12V DC 60W 1.23 lbs
 PWR-24V-096-67-D-KO 120V AC 24V DC 96W 1.30 lbs



Certifications:

The input voltage is 120V AC.

The output is 12V DC at 60 Watts (5 Amps)

The dimensions are 32 x 172 x 68mm (1.26 x 6.77 x 2.67 inches)

It is compatible with Lutron dimmers like Ariadni, Vareo, Nova, Ceana, Diva, Gyder, Lyneo, Nova T and Skylark . It also works with Leviton dimmers like Leviton dimmers like Mural, SureSlide, ToggleTouch and Vizia.

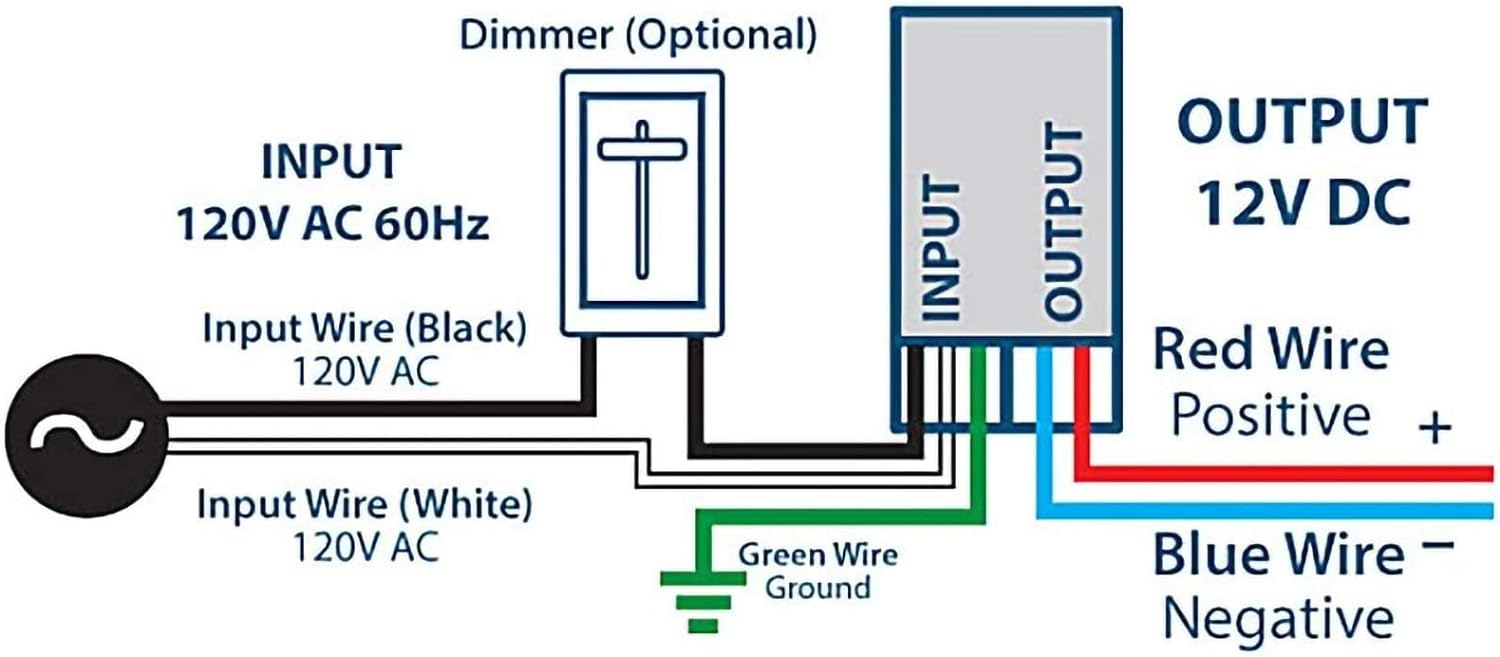

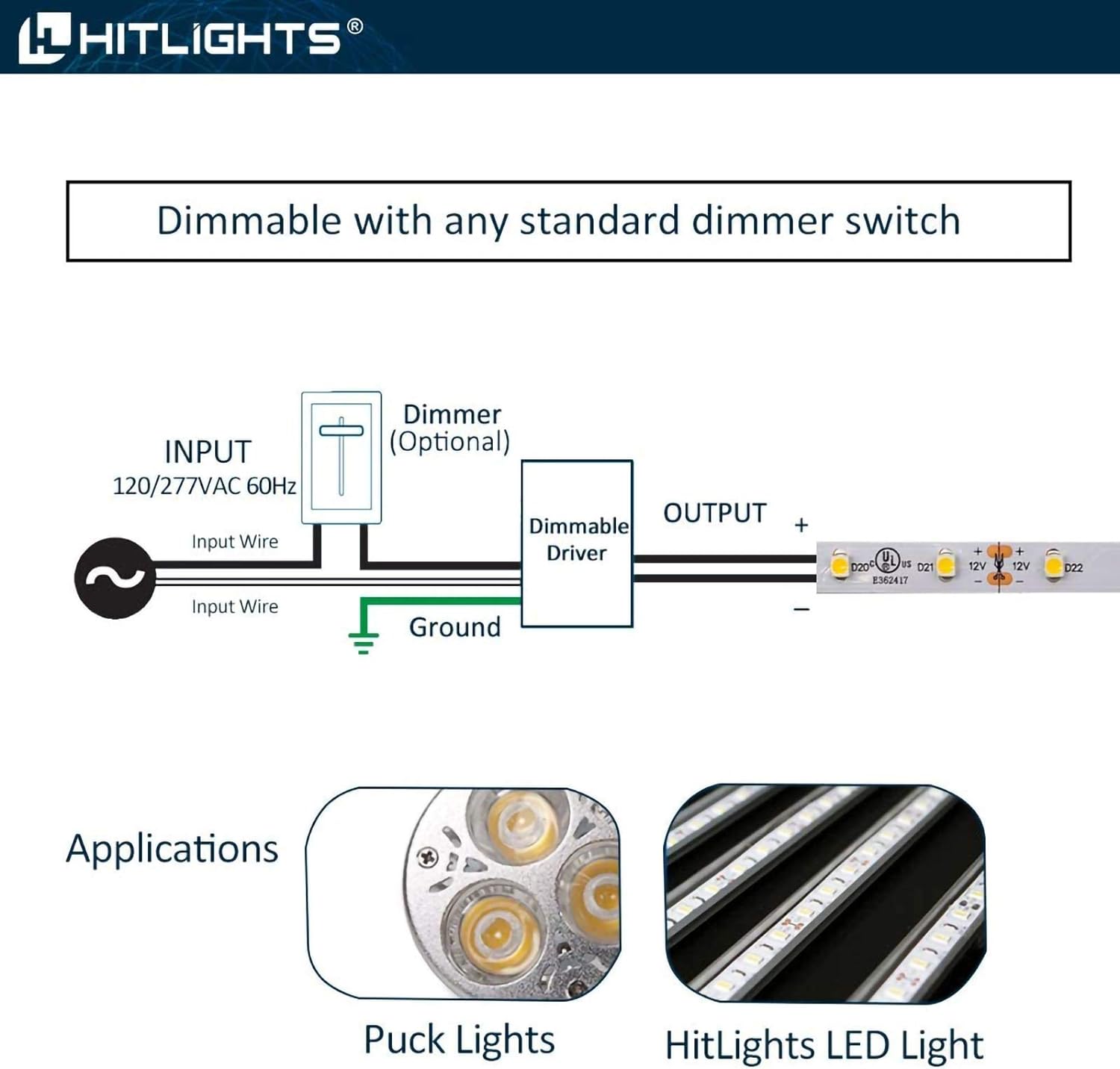

Connect the black wire to live, white to neutral, green to ground. Red output to positive, blue to negative of the LED strip.

Yes, this driver is rated IP-67 and can be used outdoors

This driver comes with a 6 year warranty from the manufacturer.

No, it only works with single color 12V LED strips. For RGB, you would need an RGB controller.

SPEC SHEET

CERTIFICATION

COMPATIBILITY LIST

Customer Reviews

Based on 4 reviews
100%
(4)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
J
John Maiuro

Works great

Z
Zach Young
Low Voltage Lighting

This driver is excellent and works fantastic with Lutron dimmers.

J
Josiah
Bought 2 of these & they work great.

I used these for my under cabinet lighting. I wired a 3-prong cord to plug it into a switch receptacle. Then ran my low volt wires from this to the LED strips. No complaints. Will buy again.

N
Nicholas Komandis
These are Great!

I have bought multiple versions of this from the 40 watt powering LED strips under shelves to 150 watt powering low voltage landscape lighting. They have been working great. They are super sturdy, silent, because they don't have a fan, and act as their own junction box. I haven't noticed considerable heat in-lieu of the fan either. The junction box space inside is small, on all versions, but if you cut the wires the right length, and are mindful in how you arrange and bend them, you will get them all in. I bought them for their dimming capabilities. I use them all with GE Enbrighten Z-Wave dimmer switches. They go through the brightness range of the led's smoothly and do not flicker.
