The HitLights 24V RGBW CSP LED Strip is a 16.4ft IP67-rated, UL Listed light designed for outdoor and professional multi-color installations. This waterproof RGBW LED strip combines a full RGB color spectrum with a dedicated white channel for clean, tunable accent and task lighting.

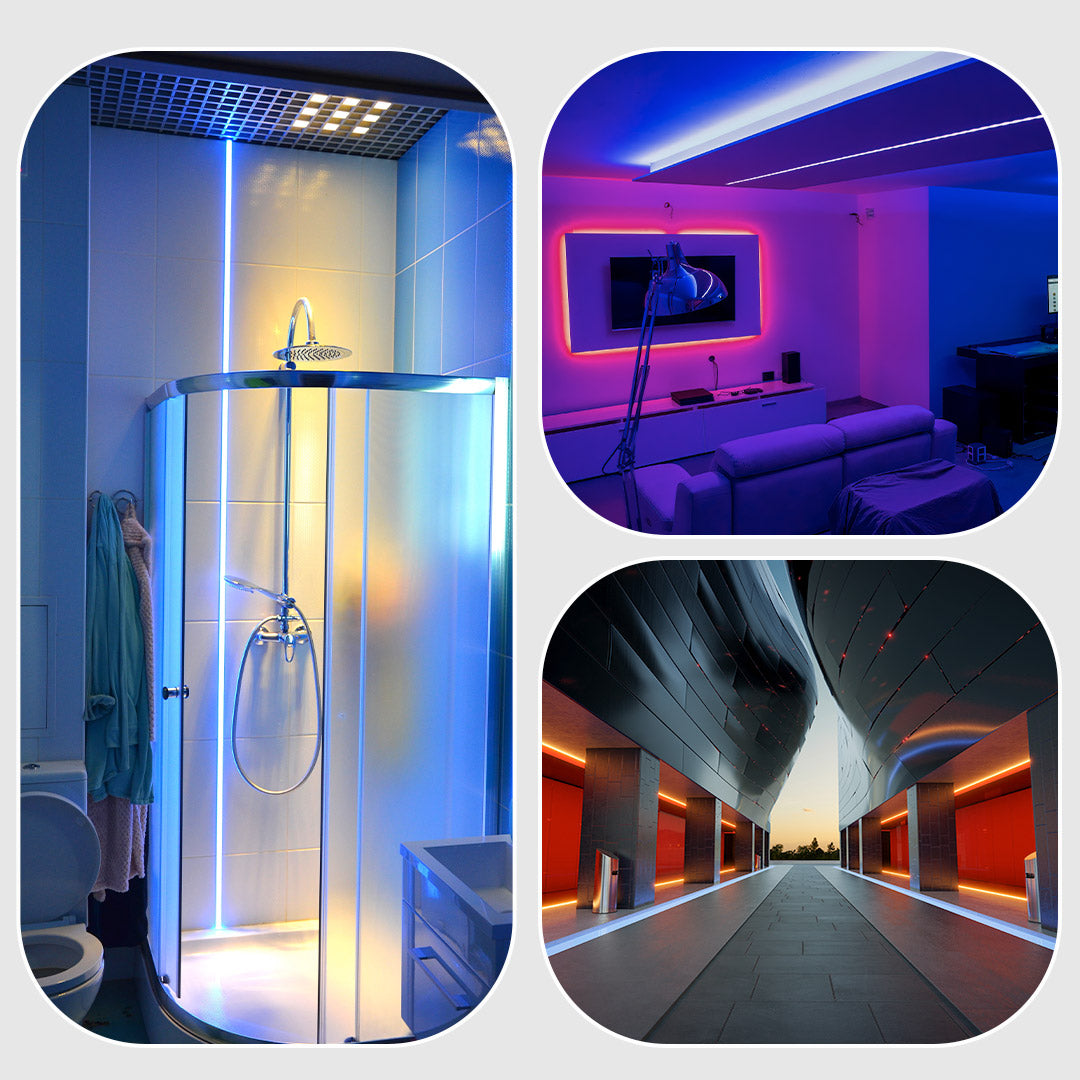

Powered by advanced CSP (Chip Scale Package) LEDs, the strip delivers brighter, more consistent light in a compact, thermally efficient package. Its high LED density helps create spotless lighting with minimal visible hot spots, making it suitable for coves, signage, architectural details, tradeshow displays, and retail environments.
- 24V RGBW LED strip with CSP technology for efficient, uniform output
- IP67 encapsulation for outdoor, damp, or dusty locations
- 6.10 W/ft, 0.83 A/m, 840 LEDs per meter for smooth, bright color mixing
- Cuttable every 33 mm (about 2 in) for custom lengths with 6-year warranty
This 24V RGBW LED strip operates from -20°C to 45°C with 40–70% relative humidity, supporting demanding commercial and residential environments. With a lumen output range of 22–262 lumens per foot and a 140° beam angle, it can function as both accent and functional lighting depending on configuration and diffuser choice.
Unlike traditional RGB strips that rely on mixed colors to approximate white, this RGBW design adds a dedicated white channel, giving more accurate whites and easier color temperature control for everyday lighting scenes. The strip is UL Listed and rated for 50,000 hours (Tc < 140°F), backed by a 6-year warranty for long-term reliability.
Ideal buyers include lighting designers, contractors, integrators, and serious DIY users who need outdoor RGBW strip lights that pair with professional 24V drivers and RGBW controllers. It integrates naturally into existing low-voltage systems and offers a long-life, low-maintenance solution for permanent architectural and landscape lighting.
WHAT'S INCLUDED:
FREQUENTLY ASKED QUESTIONS:
Q: What is the HitLights 24V RGBW CSP LED strip?
A: It is a 16.4ft, 24V RGBW LED strip using CSP technology, rated IP67 and UL Listed for demanding indoor and outdoor applications. The strip provides RGB color control plus a dedicated white channel for more accurate everyday lighting scenes.
Q: Who is this 24V RGBW LED strip best suited for?
A: This strip is intended for lighting designers, contractors, integrators, and advanced DIY users needing professional-grade outdoor RGBW strip lights. Its high LED density, long 50,000-hour rating, and 6-year warranty support permanent architectural, retail, and landscape installations.
Q: Can this RGBW LED strip be used outdoors?
A: Yes. The strip has an IP67 waterproof rating, making it suitable for outdoor locations and areas exposed to moisture or dust. Proper sealing of cut points and connectors is recommended to maintain the ingress protection level in long-term installations.
Q: Can I cut this strip to custom lengths and reconnect it?
A: Yes. The strip can be cut at marked points spaced about 33 mm (2 in) apart. After cutting, use compatible 5-pin RGBW connectors or soldering to reconnect sections, ensuring polarity and waterproofing are maintained for outdoor use.
Q: What are the key technical specs of this RGBW strip?
A: The strip runs at 24V DC, draws 6.10 W/ft (0.83 A/m), and uses CSP LEDs. It offers 22–262 lumens per foot, a 140° beam angle, 840 LEDs per meter, IP67 waterproofing, a 50,000-hour lifetime, and a 6-year warranty.
Q: Does this strip include power supplies or controllers?
A: The product listing refers specifically to the RGBW CSP strip itself. Compatible 24V power supplies and RGBW controllers are selected separately so installers can match capacity, control style, and load requirements for each project.
Q: How does this RGBW strip compare to standard RGB strips?
A: Standard RGB strips mix colors to approximate white, while this RGBW design adds a dedicated white channel. That dedicated channel improves white light quality, simplifies scene programming, and allows the strip to function more effectively as both accent and general-purpose lighting.
