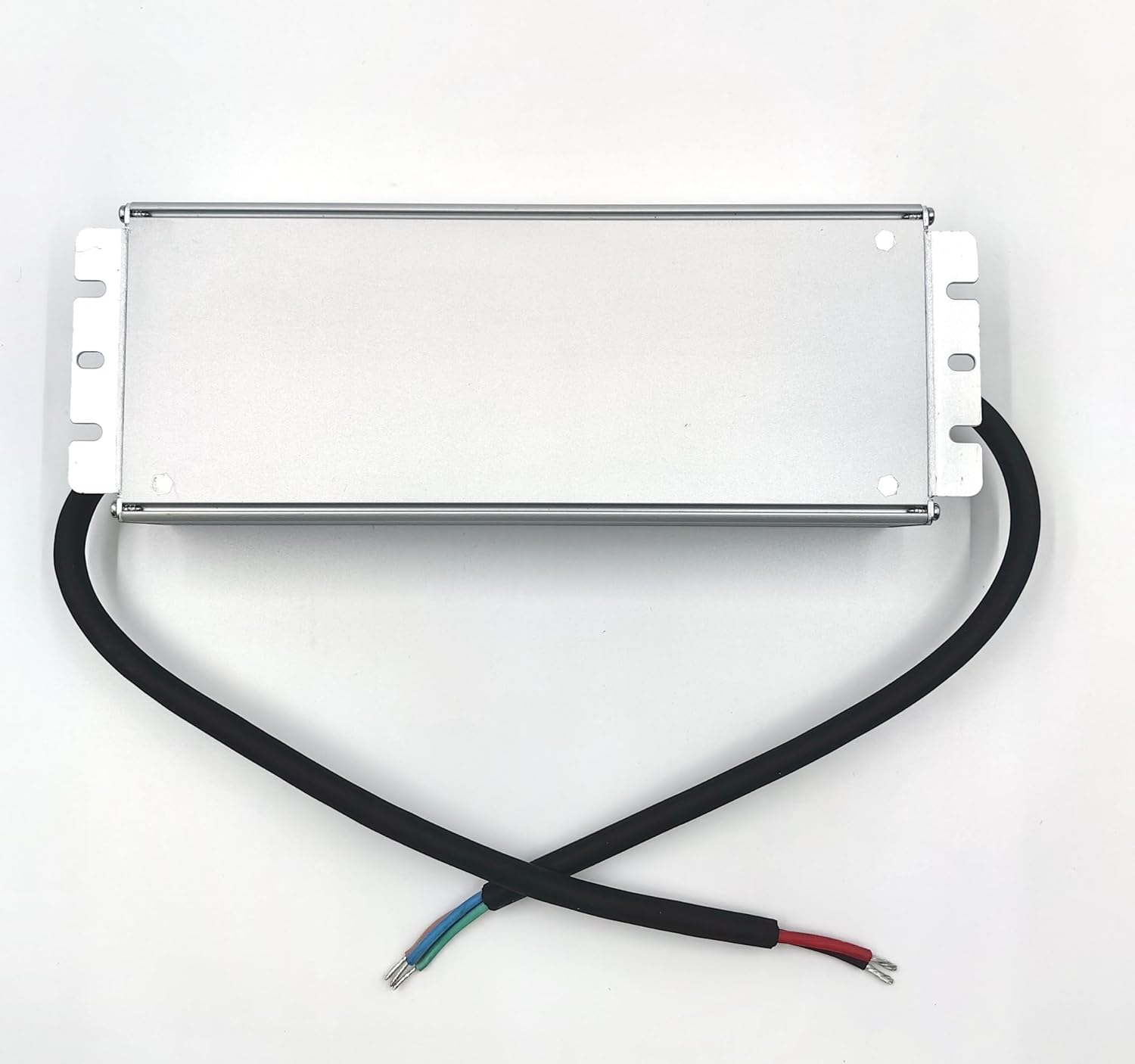

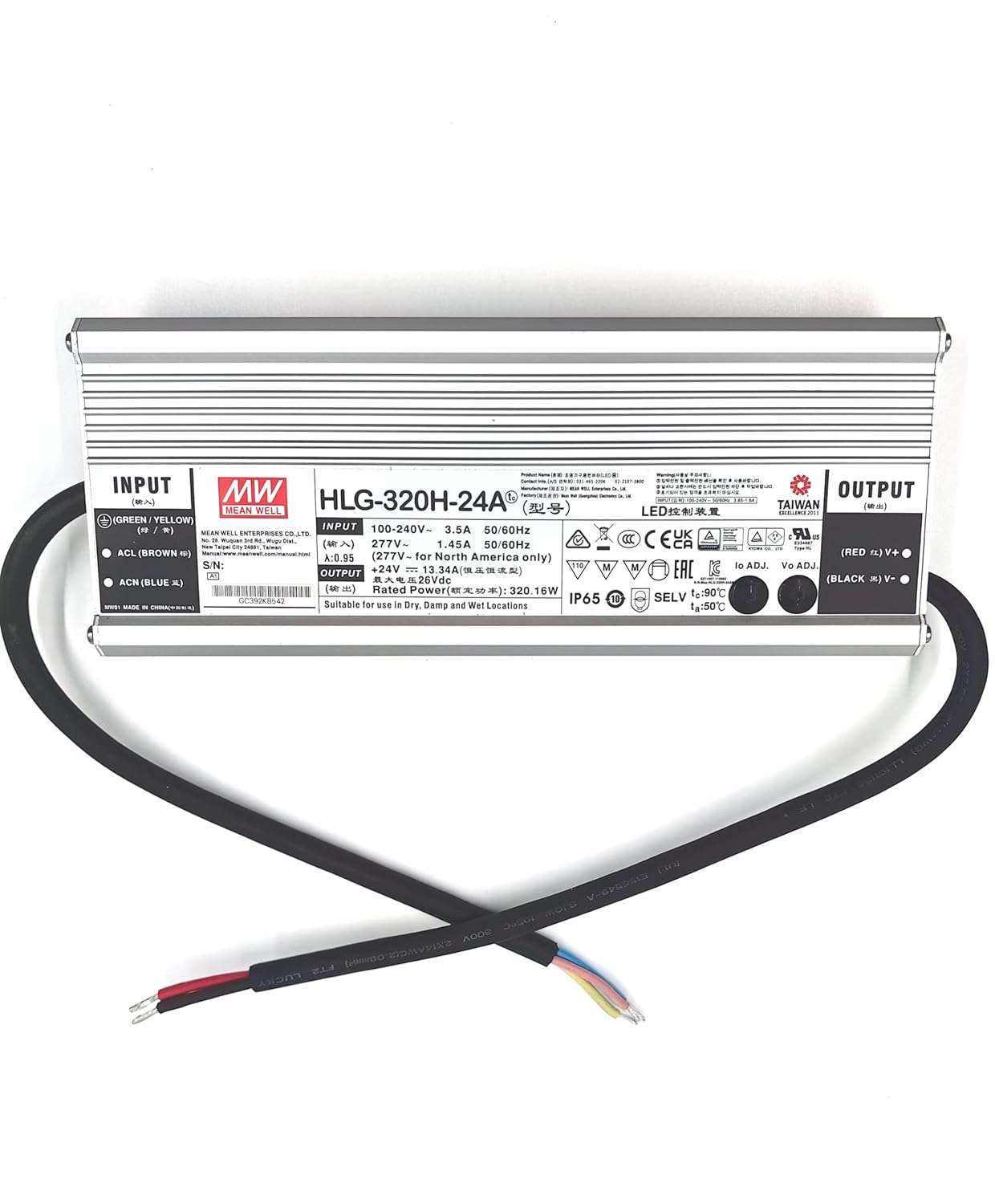

320W HLG-Series Mean Well Outdoor Power Supply - 24 Volt

This 320W 24V LED power supply is a high-capacity outdoor driver based on the Mean Well HLG-320H-24A platform and offered by HitLights for demanding 24V lighting systems. It converts 90–305V AC mains into a regulated 24V DC output up to 13.33A (about 320W), giving enough headroom for long 24V LED strip runs or multiple low-voltage devices from a single power source.

The HLG-series design combines constant-voltage and constant-current modes, making it suitable for a wide range of LED loads while maintaining stable operation. A fanless, high-efficiency architecture reduces noise and moving parts, helping to extend service life in continuous-use applications.

A fully sealed IP67 metal housing protects internal components from dust, rain, and humidity so the driver can be mounted in outdoor, damp, or dusty locations without a separate enclosure. This makes it well-suited for landscape lighting, illuminated signage, architectural accents, and other 24V installations exposed to the elements.

Key Specifications

• Output: 24V DC, up to 13.33A (≈320W)
• Input: 90–305V AC, 47–63Hz, power factor up to ~0.94 at 277V AC
• Ingress Protection: IP67 sealed aluminum housing for indoor/outdoor use
• Dimensions: 9.9 × 3.5 × 1.7 in (252 × 90 × 43.8 mm)

WHAT'S INCLUDED:

• 1 × 320W 24V HLG-Series Mean Well Outdoor LED Power Supply

Q: What is the HitLights Mean Well 24V 320W IP67 LED power supply used for?
A: It is a 320W constant-voltage LED power supply that provides 24V DC for LED strip lights, LED controllers, and other 24V low-voltage devices. Typical applications include landscape lighting, architectural accents, and illuminated signage that require a reliable 24V backbone.

Q: Who is this 24V 320W power supply designed for?
A: This driver targets electricians, lighting contractors, sign fabricators, and advanced DIY users who need documented, UL-listed 24V power in demanding environments. Its wide input range and IP67 rating suit both residential and commercial projects where outdoor reliability is a priority.

Q: How does this power supply work in a 24V LED system?
A: The unit converts 90–305V AC down to a regulated 24V DC output up to 13.33A, or about 320W. It typically feeds 24V LED strips directly or powers a low-voltage LED controller, which then handles dimming and color changes for the connected lights.

Q: What are the main electrical and mechanical specifications?
A: This HLG-320H-24A supply delivers 24V DC at up to 13.33A with a 90–305V AC, 47–63Hz input and power factor around 0.94 at 277V AC. The IP67 metal housing measures about 9.9 × 3.5 × 1.7 inches and operates from -40°C to +90°C case temperature.

Q: Is this 320W 24V power supply dimmable?
A: It is not dimmed directly by standard wall dimmers, but it works very well with low-voltage 24V LED controllers for dimming and effects. In a typical setup, the power supply provides constant 24V DC and the controller adjusts brightness or color for the LED strips.

Q: Can this power supply be used outdoors or in damp locations?
A: Yes. The driver’s IP67 rating means the enclosure is dust-tight and protected against temporary immersion, so it can be installed outdoors or in damp environments. Its working humidity range of 20–95% non-condensing and wide temperature range support use in varied climates.

Q: What protections and certifications does it include?
A: The HLG-320H-24A includes protections for short circuit, over-current, over-voltage, and over-temperature conditions and is UL listed for safety. These safeguards help protect both the driver and connected loads in professional lighting systems.
