Name: M-Series RGB/RGBW Multicolor LED Light Strip Control System
Brand: HitLights
SKU: CTR-RGBW-M8
Price: 50.95 USD
Availability: InStock

HitLights LED Light Strip Controllers and Dimmers M-Series RGB/RGBW Multicolor LED Light Strip Control System

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

WHAT STANDS OUT:

Simple, elegant control system: Receiver, handheld remote, and mounting bracket included in one kit.
Long-range RF remote: 433.92 MHz with up to 30 m control distance and no line of sight needed.
Installer-friendly safety features: Power-off memory and overheat protection, backed by a 2-year warranty.

PRODUCT DETAILS:

The M-Series RGB/RGBW Multicolor LED Light Strip Control System is a dedicated RF controller for multicolor LED strip projects that need reliable, professional-grade control. Designed for RGB and RGBW 5–24V DC LED strips, it provides smooth dimming, color selection, and dynamic modes from a compact receiver and low-profile handheld remote.

The RF remote communicates on 433.92 MHz, so it works through cabinets, walls, and furniture with a wireless range up to 30 m in open areas, making it easy to hide the receiver near power supplies or inside coves. Speed, brightness, color, and lighting modes are all controlled from the remote, while built-in power-off memory restores the previous setting and overheat protection helps safeguard the system during heavy use.

With a maximum output of 5A × 4 channels (20A total) and support for both RGB and RGBW, the M-Series is engineered for larger multicolor installations that need consistent, synchronized control across multiple runs or zones. It functions as a constant-voltage controller (not a power supply) and integrates cleanly into standard 12V and 24V tape-light layouts.

Function: RGB / RGBW multicolor LED strip controller
Control method: Radio Frequency (RF) remote
Remote frequency: 433.92 MHz; control distance ~30 m in an open area
Supported voltage: DC 5–24V constant-voltage input
Max output load: 5A × 4 channels, max 20A total (240 W at 12V; 480 W at 24V)

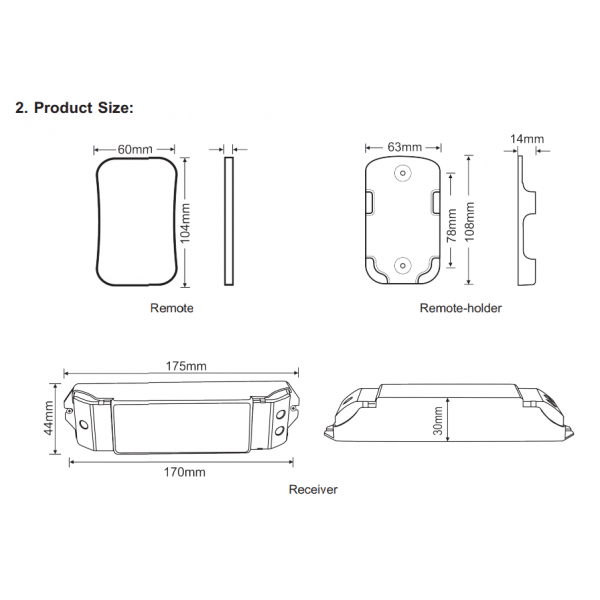

Receiver dimensions: 175 × 44 × 30 mm
Remote/controller dimensions: 60 × 104 × 9 mm

WHAT'S INCLUDED:

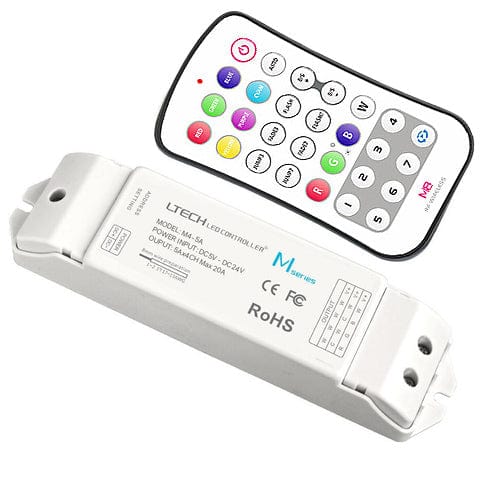

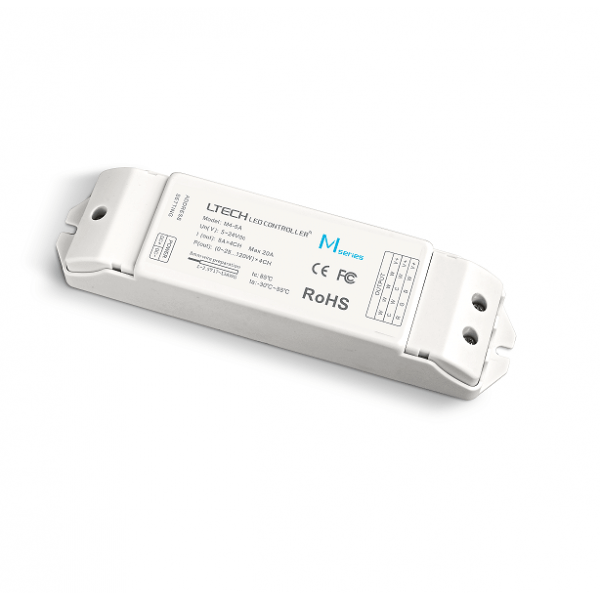

1 × M-Series RGB/RGBW RF receiver (CTR-RGBW-M8) – 4-channel constant-voltage controller with screw-terminal outputs.

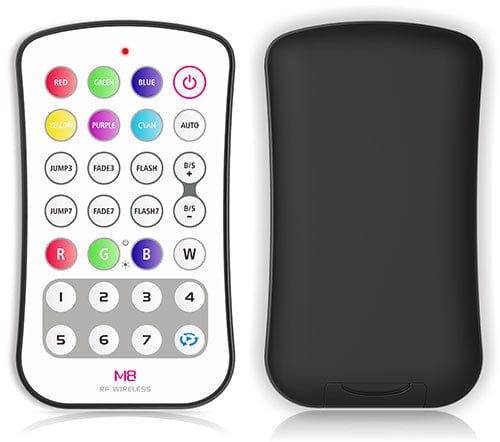

1 × RF remote control – multi-function remote for brightness, speed, color, and mode selection.

FREQUENTLY ASKED QUESTIONS:

Q: What does the M-Series RGB/RGBW control system do?
A: The M-Series is an RF controller for RGB and RGBW multicolor LED strip lights. It provides wireless control of brightness, speed, color, and lighting modes using a dedicated RF remote and receiver, making it easy to create dynamic, multicolor scenes in residential or commercial spaces.

Q: Which LED strips are compatible with this controller?
A: This controller is designed for RGB and RGBW LED light strips that run on 5–24V DC and use constant-voltage, common-anode wiring. It is not intended for single-color strips or addressable (pixel) LEDs.

Q: How much power can the M-Series controller handle?
A: The maximum rated load is 5A per channel, up to 20A total. That equates to 240 W at 12V (12V × 5A × 4 channels) or 480 W at 24V (24V × 5A × 4 channels) when all channels are fully loaded. Designers should keep the total connected strip wattage under these limits.

Q: Does the RF remote require line of sight, and what is the range?
A: No line of sight is required. The system uses 433.92 MHz RF, with a wireless control distance of up to 30 m in open areas, so the receiver can be hidden in cabinets, closets, or ceilings while still responding to commands.

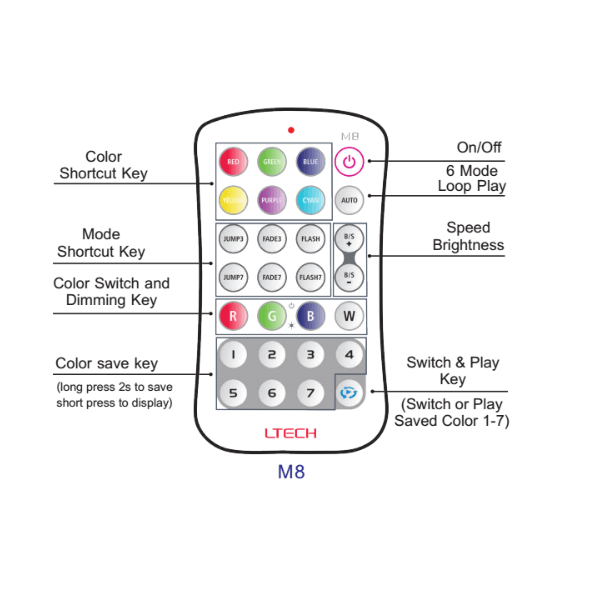

Q: What functions can be controlled from the remote?
A: The RF remote supports brightness and speed adjustment, color selection, and lighting mode changes such as static colors and dynamic effects. This allows quick tuning of the overall look without accessing the controller or a separate app.

Q: Does the controller remember my last settings after the power is turned off?
A: Yes. The M-Series includes power-off memory, so when power is restored, it returns to the previously set mode and brightness, avoiding the need to reconfigure after each power cycle.

Q: Can this controller be used for single-color strips?
A: No. The M-Series is only compatible with RGB and RGBW LED light strips. For single-color (white) strips, HitLights recommends a dedicated single-color dimmer such as the R110 mini RF dimmer instead.

SHIPPING DETAILS:

Standard Shipping (3-5 Days) - Shipping cutoff 3PM (PST).
FREE ground shipping (UPS or FedEx) on orders of $199 or more
Standard Shipping: Flat Rate $9.99 - Cutoff 3PM (PST)
2-Day Shipping: Rate Based on Weight - Cutoff 2PM (PST)
Overnight Shipping: Rate Based on Weight - Cutoff 2PM (PST)

Specifications:

Function: RGB / RGBW
Control Method: Radio Frequency
Remote Frequency: 433.92MHz
Receiver Output: 240 Watts, 5 x Screw Terminal; 180 Watts, 4 x Screw TerminalKeys: 28
Working Temp: 433.92MHz
Remote Control Distance: 30m at an open area
Power Off Memory: Yes, restores to the previous set mode when turned onOverheat Protection: Yes
Input Voltage: 5~24V DC
Max Current Load: 5A×4CH Max 20A
Receiver Dimension: 175 x 44 x 30 mm
Controller dimension: 60 x 104 x 9 mm
Warranty: 2 Year HitLights Warranty
Package Inclusion: Remote control, receiver, and a mounting bracket

SKU	Function	Working Voltage	Dimensions	Smart Control
CTR-SC-R110Mini	Single Color (White)	DC 5-24V	50 x 15 x 7 mm	No
CTR-STCV-ATSA	Tunable White	DC 12/24V	80 x 16.4 x 40 mm	Yes
CTR-RGBW-NT40	RGBW	DC 5-24V	87 x 24 x 15 mm	Yes
CTR-RGBW-M8	RGBW	DC 5-24V	60 x 104 x 9 mm	No

What is the warranty period?

The M-series comes with a 2 year warranty.

Does the remote require line of sight?

No, the RF remote does not require direct line of sight to operate.

What is the wireless remote range?

The RF remote has a wireless control distance of 30m

What functions does the remote provide?

With the RF remote, speed/brightness adjustment, color and lighting changing modes selection could all be achieved

Does it function on single color LED strips?

The remote is compatible only with any RGB or RGBW LED light strips

What is the maximum power rating?

The maximum rated output current is 5A.

What voltage does it support?

The working voltage is DC 5-24V.

How many RGB strips can I connect with this controller?

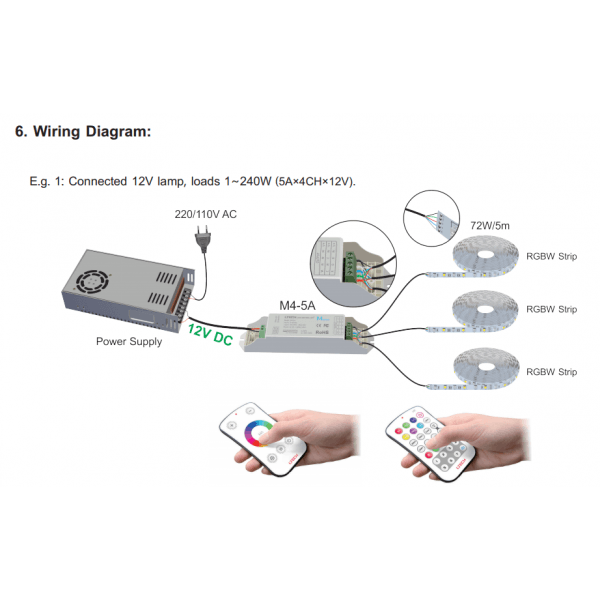

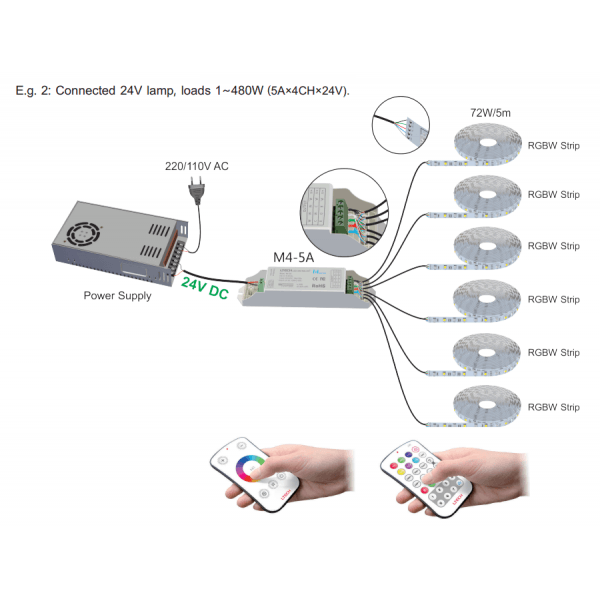

The total load should not exceed 240W (12Vx5Ax4CH) when connected to 12V strip; the total load should not exceed 480W (24Vx5Ax4CH) when connected to 24V strip.

DATA SHEET

M8 RGB Controller M8 RGB Controller Spec Sheet
