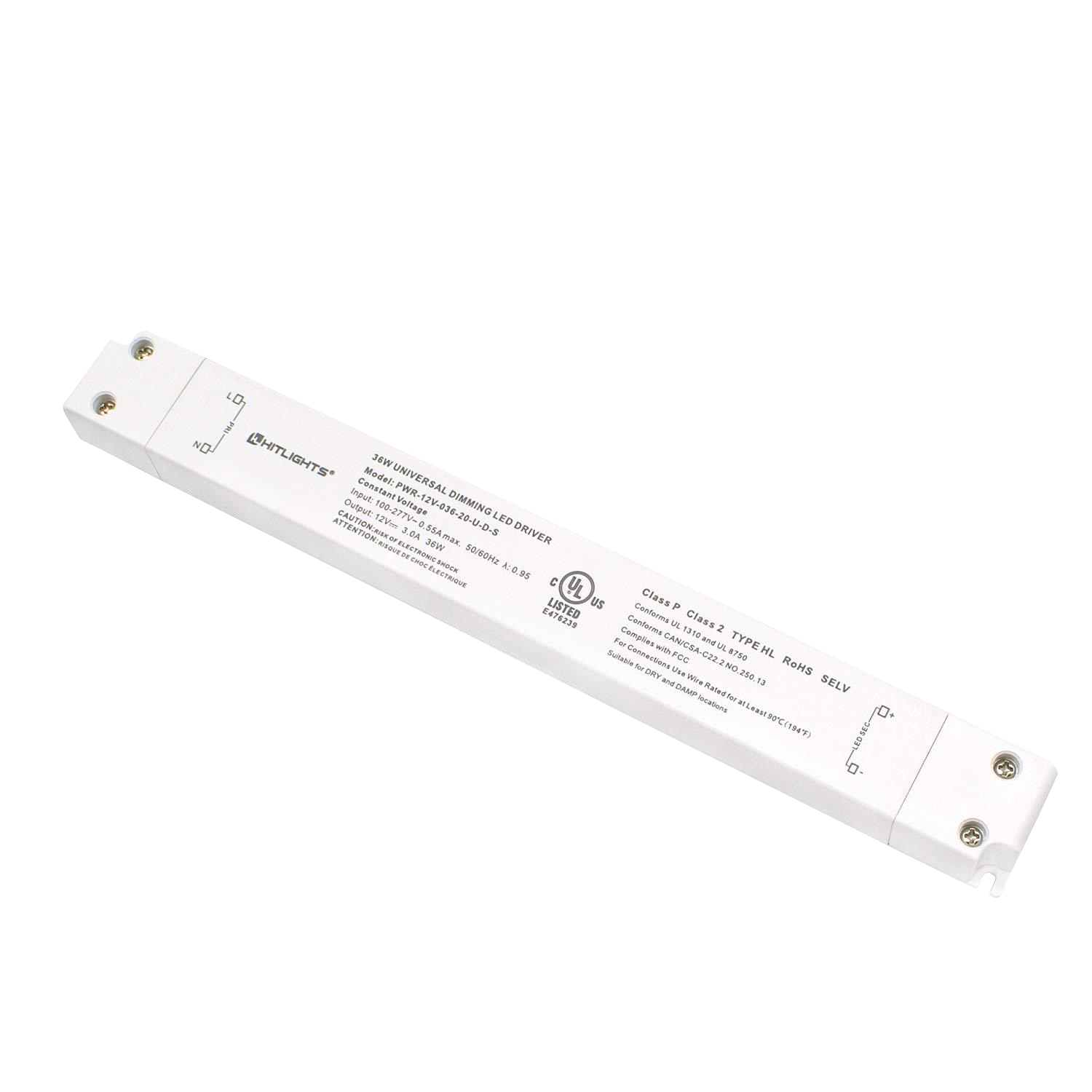

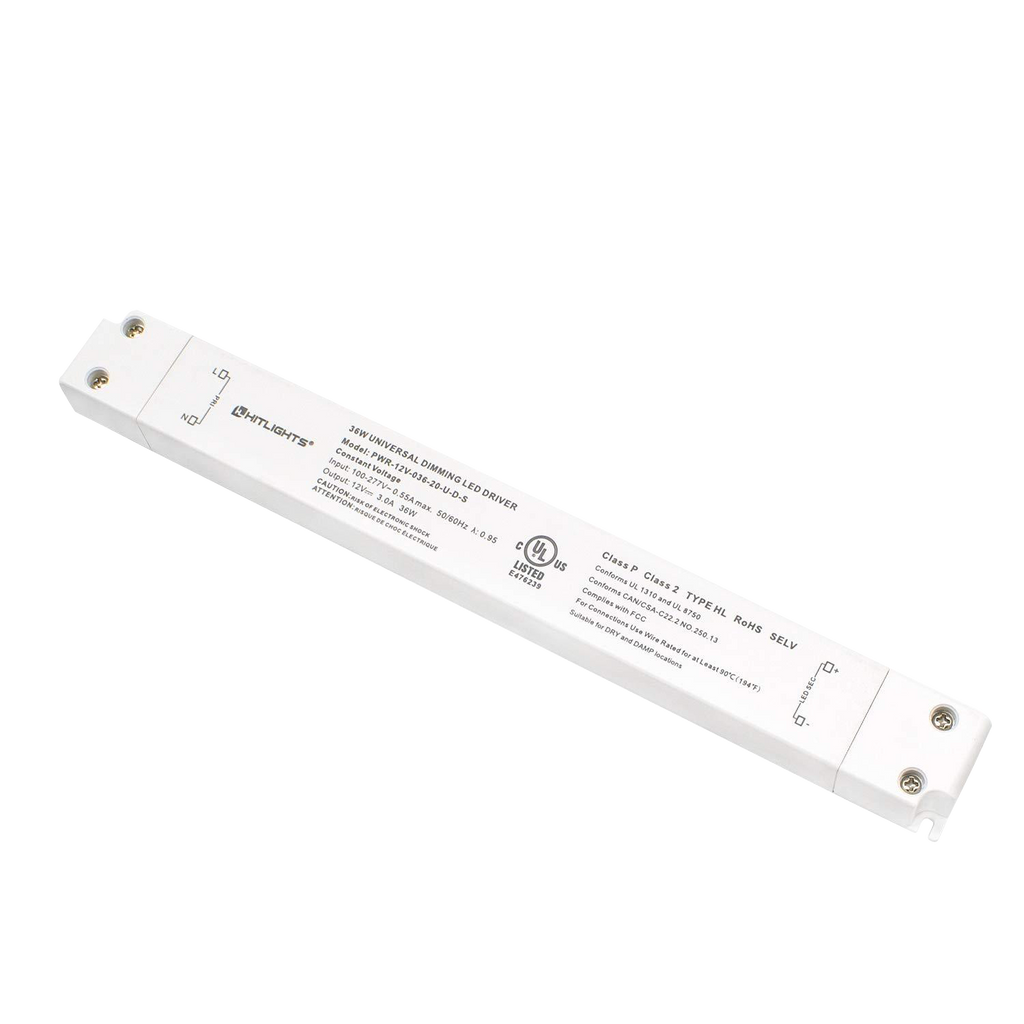

Name: 36 Watt S-Series Dimmable Driver (Electronic, UL) - 12 Volt
Brand: HitLights
SKU: PWR-12V-036-20-U-D-S
Price: 49.97 USD
Availability: InStock

36 Watt S-Series Dimmable Driver (Electronic, UL) - 12 Volt

HitLights LED Light Strip Power Supplies and Batteries 36 Watt S-Series Dimmable Driver (Electronic, UL) - 12 Volt

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

S-Series Dimmable Drivers: This series offer an elegant control and dimming solution for any LED light strip project. These 36 to 100 Watt dimmable drivers allow you to control the brightness of your LED light strips with a wall dimmer switch - a more elegant solution than a dial dimmer or remote unit. The wide dimmer compatibility means you get to choose the wall dimmer that suits your space.

The S-Series drivers have a slim design to fit in small spaces. They are the ultimate solution for any LED lighting project and work with most Lutron and Leviton dimmers. This product has wide dimmer compatibility - Forward phase, Reverse phase, Triac, MLV, ELV, Triac Dimmers and no derating required when ganging units.

FLICKER-FREE LED DIMMING: This driver is a sure HIT when it comes to managing flickering lights due to its electronic components for precise control and regulation.

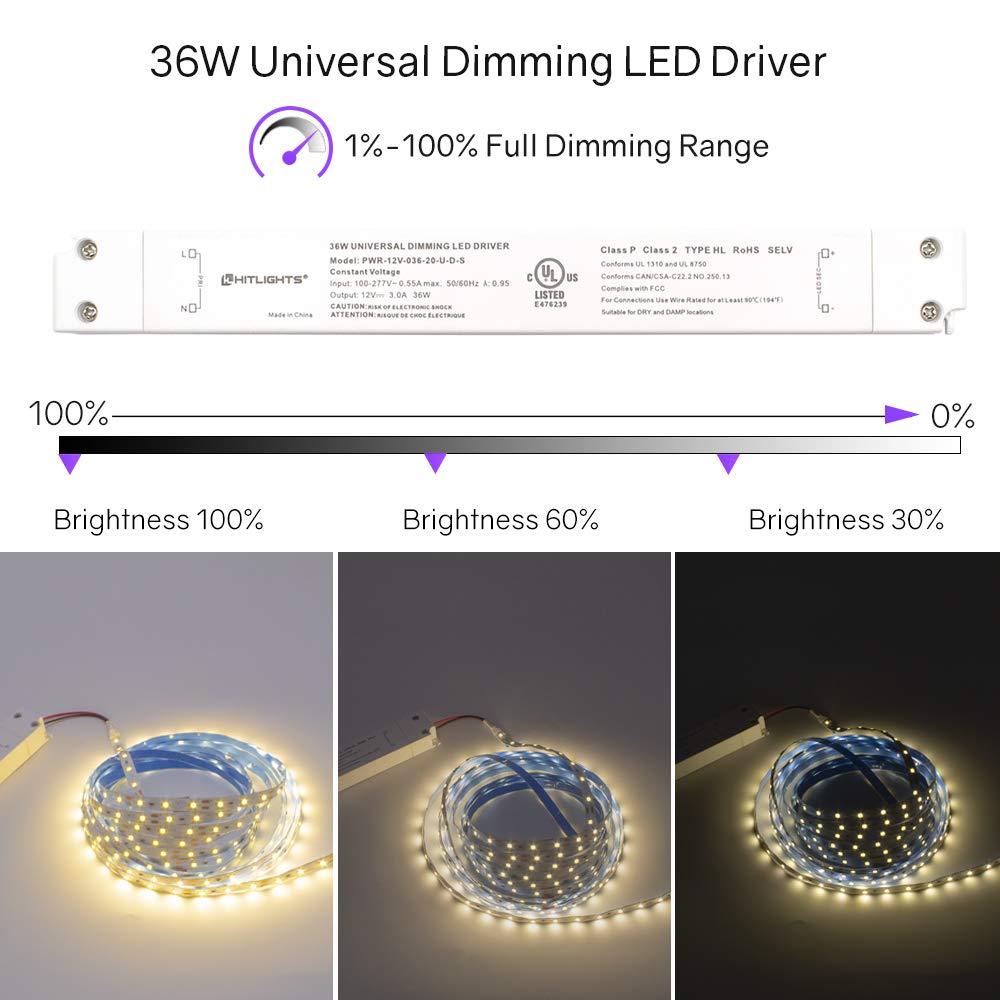

SUPERIOR LED DIMMING PERFORMANCE: This slim unit allows you to control your light full-range from 100% – 0% dimming.
UL LISTED: Certified for safety and reliability.
SHIPPING DETAILS:

Standard Shipping (3-5 Days) - Shipping cutoff 3pm(PST).
FREE ground shipping (UPS or FedEx) on orders of $199 or more

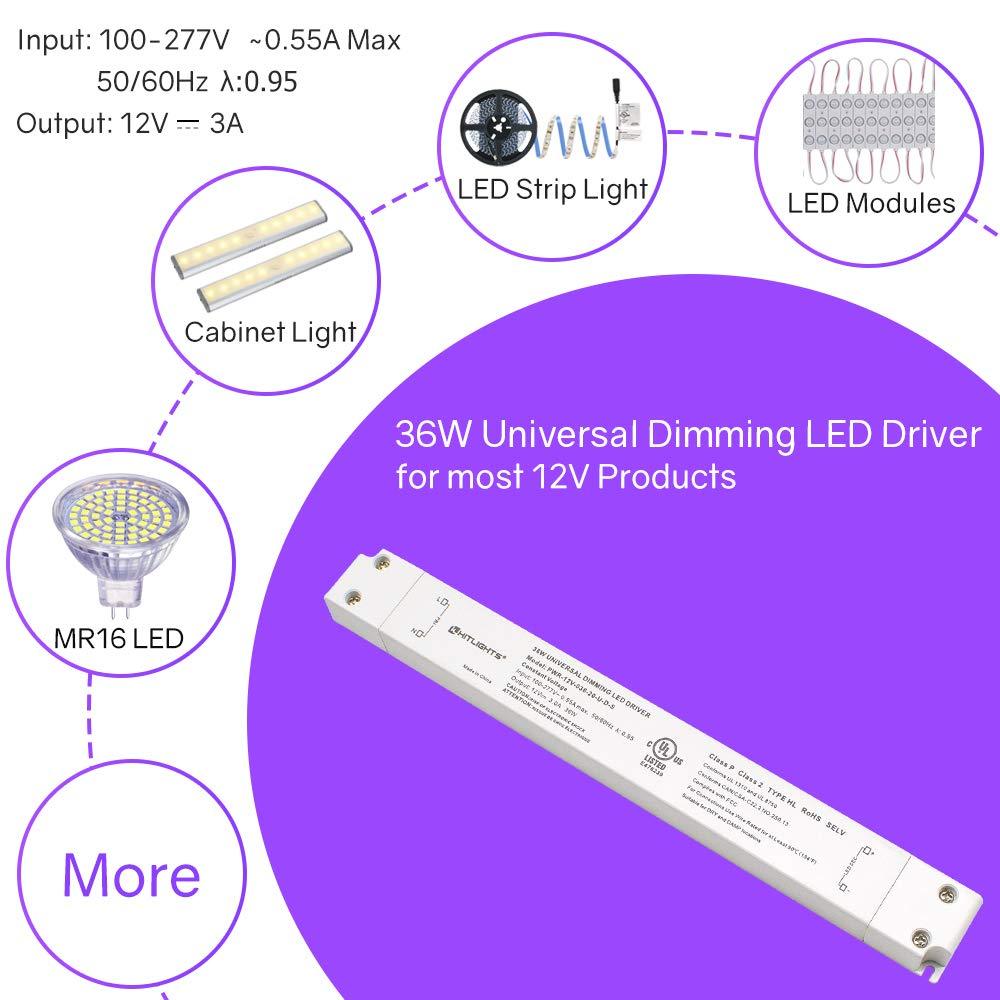

Input Voltage: 120VAC (108 ~ 132VAC), 50/60Hz (47 ~ 63Hz)
Output Voltage: 12V DC, 36Watts (3 Amps)
Dimension: 10.35 x 1.26 x 0.87 inches; 8.15 ounces
Power Factor: 0.96 @ 120VAC
Protections: Short circuit, thermal runway, and over voltage
IP Rating: IP20 Dry Location
Certifications : FCC, UL Listed, Class 2
Connection Type: Hard-Wired
Efficiency: ≥80% @ 120VAC max load
Leakage Current: <0.50mA @ 120VAC
Dimming Range: 0-100%
Working Humidity: 20～90%RH, non-condensing
Working Temp: -40°C to +60°C
THD: ≤ 20% @ 120VAC max load
Warranty: 6 years

SKU	LEDS/ft	CCT (K):	CRI (Ra)	Lumens Output
L0524V-303-3230-U-1	36 LEDs	3000K	90+	351L - 327Lm/ft
L0524V-403-3230-U-1	36 LEDs	4000K	90+	351L - 327Lm/ft

Certifications:

What is the input voltage for this dimmable driver?

The input voltage is 120V AC.

What is the output voltage and wattage of this s-series driver?

The output is 12V DC at 36 watts (3 Amps).

What type of dimmers can I use with this driver?

It is compatible with Lutron dimmers like Ariadni, Vareo, Nova, Ceana, Diva, Gyder, Lyneo, Nova T and Skylark . It also works with Leviton dimmers like Leviton dimmers like Mural, SureSlide, ToggleTouch and Vizia.

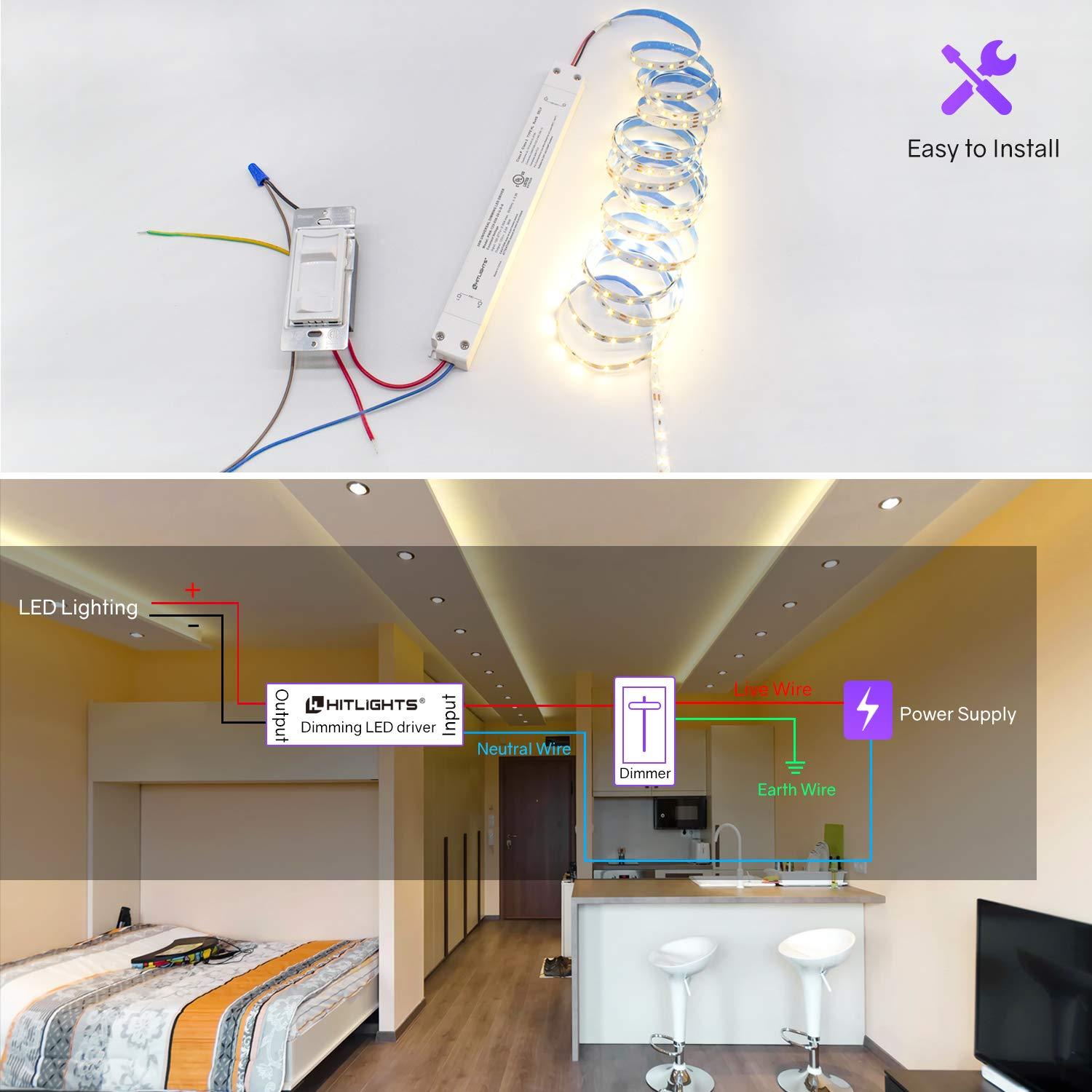

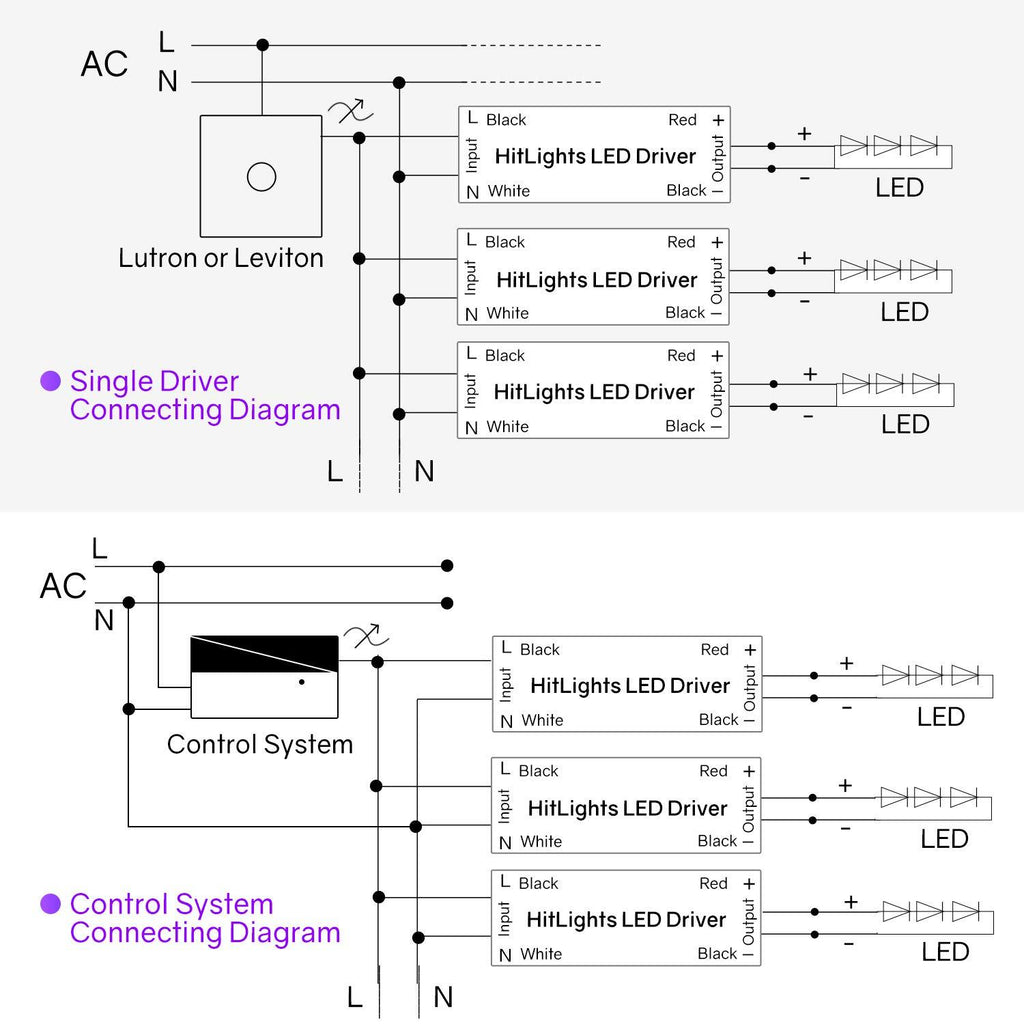

How do I connect this driver to my LED strip lights?

Connect the black wire to live, white to neutral, green to ground. Red output to positive, blue to negative of the LED strip.

Can this s-series driver be used outdoors?

No, since this is IP20 rated, it is for indoor use only. For outdoor use, you would need a waterproof LED driver.

Does this driver work with RGB LED strips?

No, it only works with single color 12V LED strips. For RGB, you would need an RGB controller.

How do I install this driver inside a wall?

Make sure to leave sufficient ventilation space around the driver and secure it properly before closing off the wall space.

What are the dimensions of this s-series driver?

The dimensions are 11.8 x 1.2 x 0.7 inches.

SPEC SHEET

36 Watt S-Series Dimmable Driver (Electronic, UL) - 12 Volt

CERTIFICATION

UL Listing FKSZ.E476239

COMPATIBILITY LIST

36 Watt S-Series Dimmable Driver (Electronic, UL) - 12 Volt

CERTIFICATION

UL Listing FKSZ.E476239

COMPATIBILITY LIST

Compatibility Sheet

Excellent customer support

We purchased four of these back in '20 for our kitchen remodel. They worked flawlessly with our Lutron dimmers and a month or so ago one started to fail with intermittent dimming not caused by the dimmer. Hitlights support was easy to access and they sent us a replacement under warranty.

36 Watt S-Series Dimmable Driver (Electronic, UL) - 12 Volt

36 watt

I like that series because it's shape makes it easy to tuck into places.

Pretty good

Easy to wire- no hum, however runs a bit warm to touch

Works great

Well designed and robust built with high quality components throughout. Work well as intended with clear instruction manual for easy installation.
