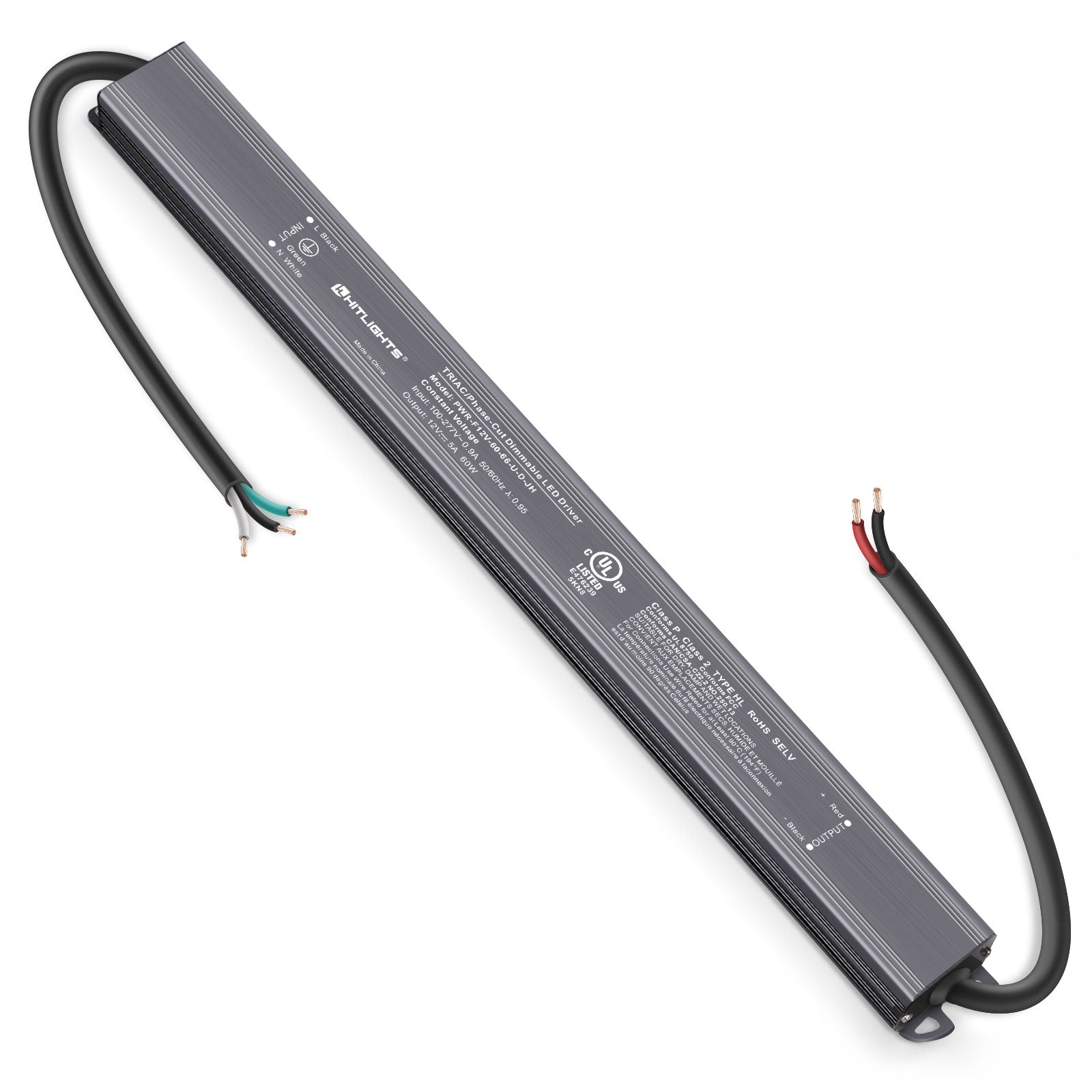

60 Watt S-Series Dimmable Driver (Electronic, UL Listed) Waterproof - 12V
60 Watt S-Series Dimmable Driver (Electronic, UL Listed) Waterproof - 12V
60 Watt S-Series Dimmable Driver (Electronic, UL Listed) Waterproof - 12V
60 Watt S-Series Dimmable Driver (Electronic, UL Listed) Waterproof - 12V
60 Watt S-Series Dimmable Driver (Electronic, UL Listed) Waterproof - 12V
60 Watt S-Series Dimmable Driver (Electronic, UL Listed) Waterproof - 12V
60 Watt S-Series Dimmable Driver (Electronic, UL Listed) Waterproof - 12V
60 Watt S-Series Dimmable Driver (Electronic, UL Listed) Waterproof - 12V
$63.99


PWR-F12V-60-66-U-D-JH


Not yet a Professional Partner?


  • FLICKER-FREE LED DIMMING: This driver is a sure HIT when it comes to managing flickering lights due to its electronic components for precise control and regulation.

  • SUPERIOR LED DIMMING PERFORMANCE: This slim unit allows you to control your light full-range from 100% – 0% dimming.

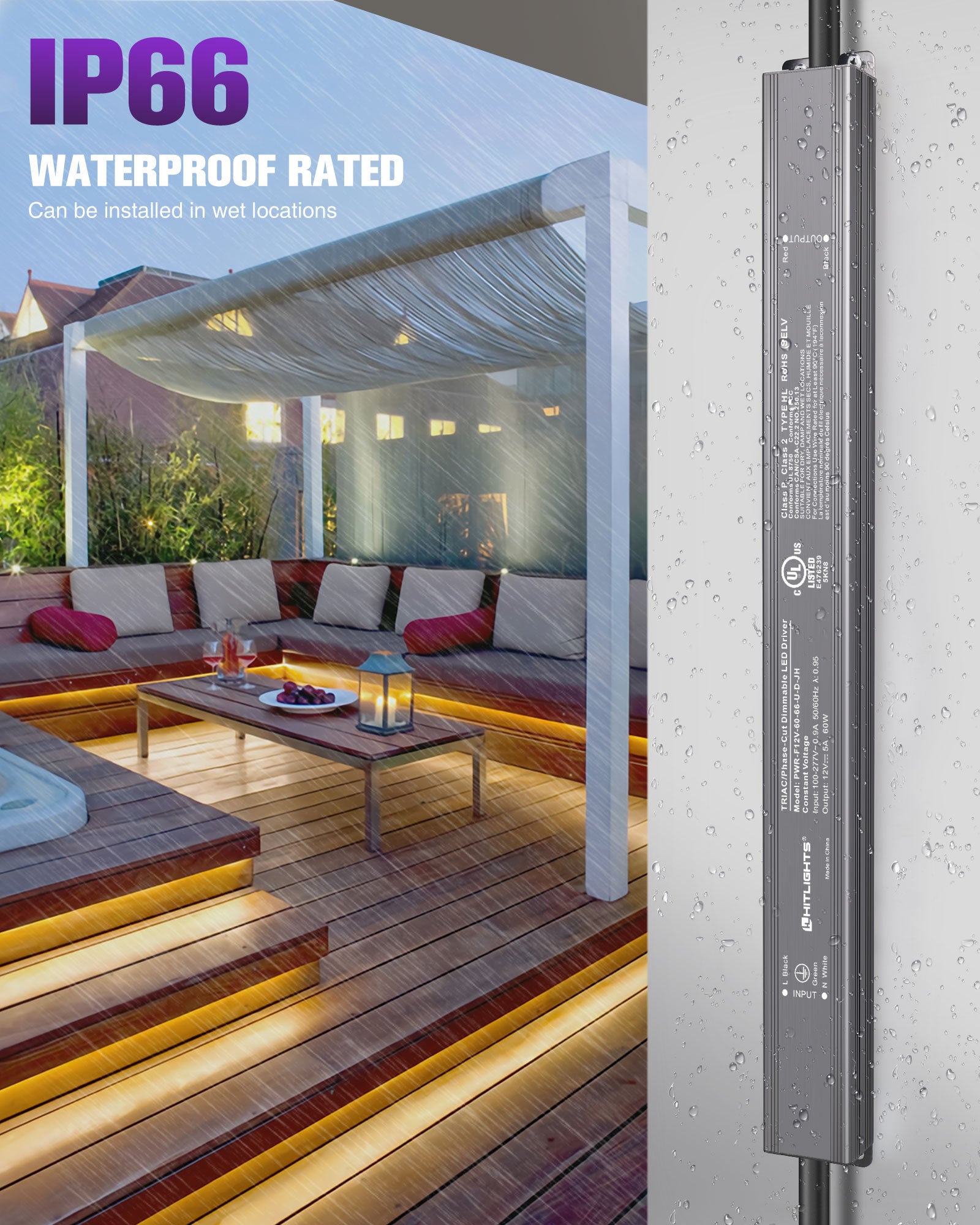

  • WATERPROOF: Rated IP66 suitable for variety of applications including outdoor.

  • UL LISTED: Certified for safety and reliability.

  • SHIPPING DETAILS

    Standard Shipping (3-5 Days) - Shipping cutoff 3pm(PST).

    FREE ground shipping (UPS or FedEx) on orders of $199 or more.

273

  • Description
  • Specification

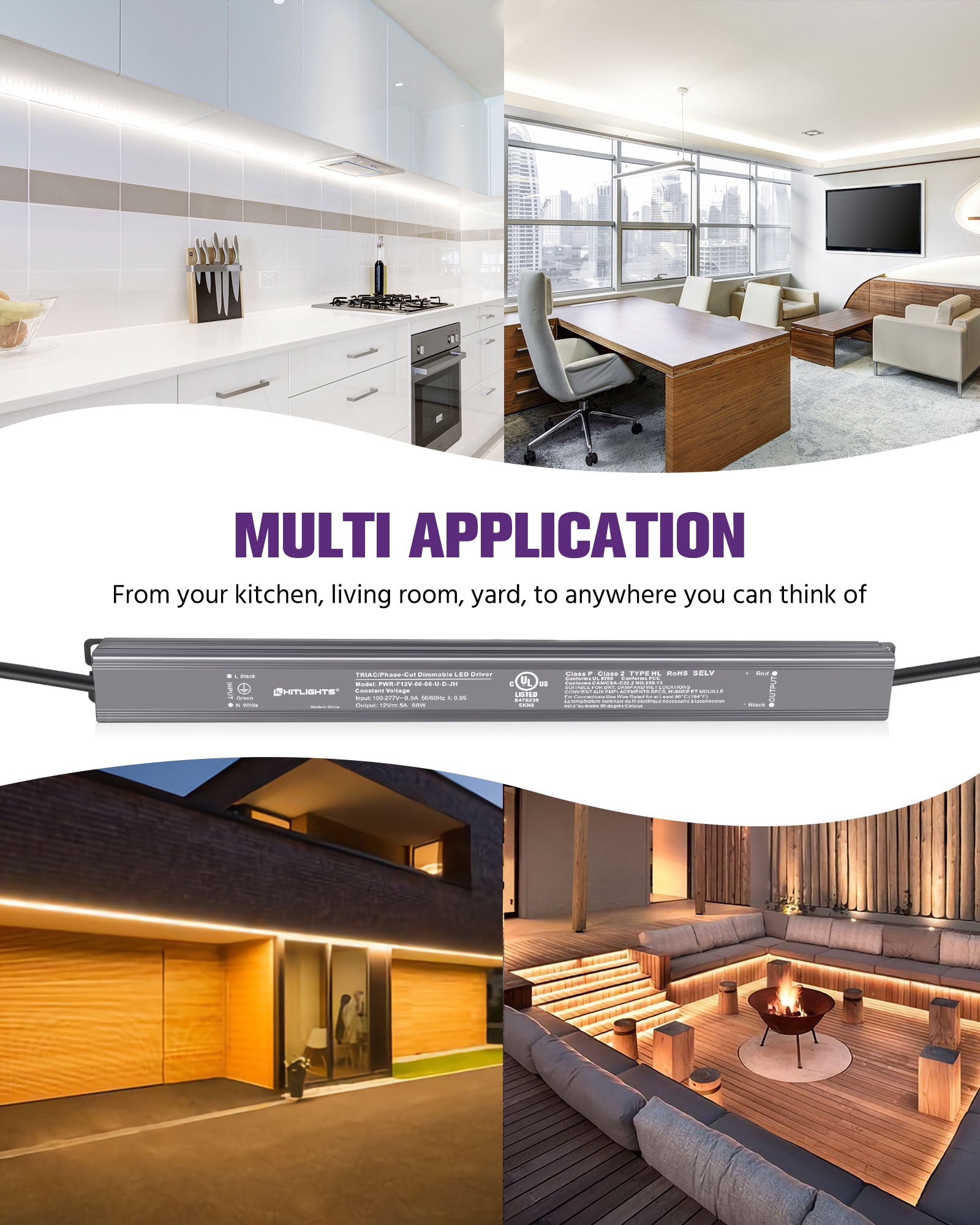

  • Applications
  • Compatible Products
  • FAQs
  • Downloads

S-Series Dimmable Drivers: This series offer an elegant control and dimming solution for any LED light strip project. These 36 to 100 Watt dimmable drivers allow you to control the brightness of your LED light strips with a wall dimmer switch - a more elegant solution than a dial dimmer or remote unit. The wide dimmer compatibility means you get to choose the wall dimmer that suits your space.


The S-Series drivers have a slim design to fit in small spaces. They are the ultimate solution for any LED lighting project and work with most Lutron and Leviton dimmers.


Product Features:

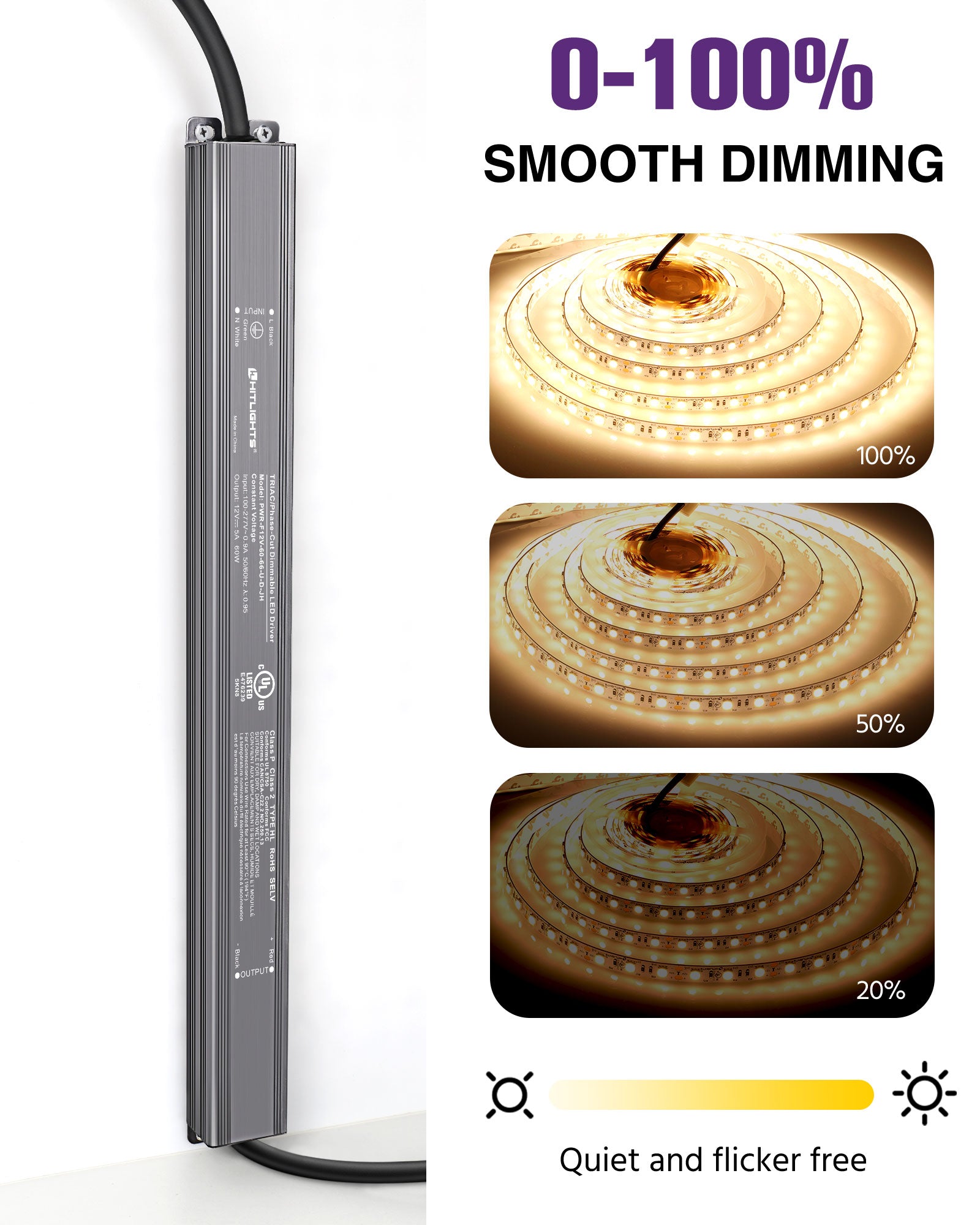

  • Smooth dimming performance from 100% to 0

  • Super slim, compact design for your custom solutions

  • Wide dimmer compatibility - Forward phase, Reverse phase, Triac, MLV, ELV, Triac Dimmers

  • No derating required when ganging units

  • Suitable for dry, damp and wet locations

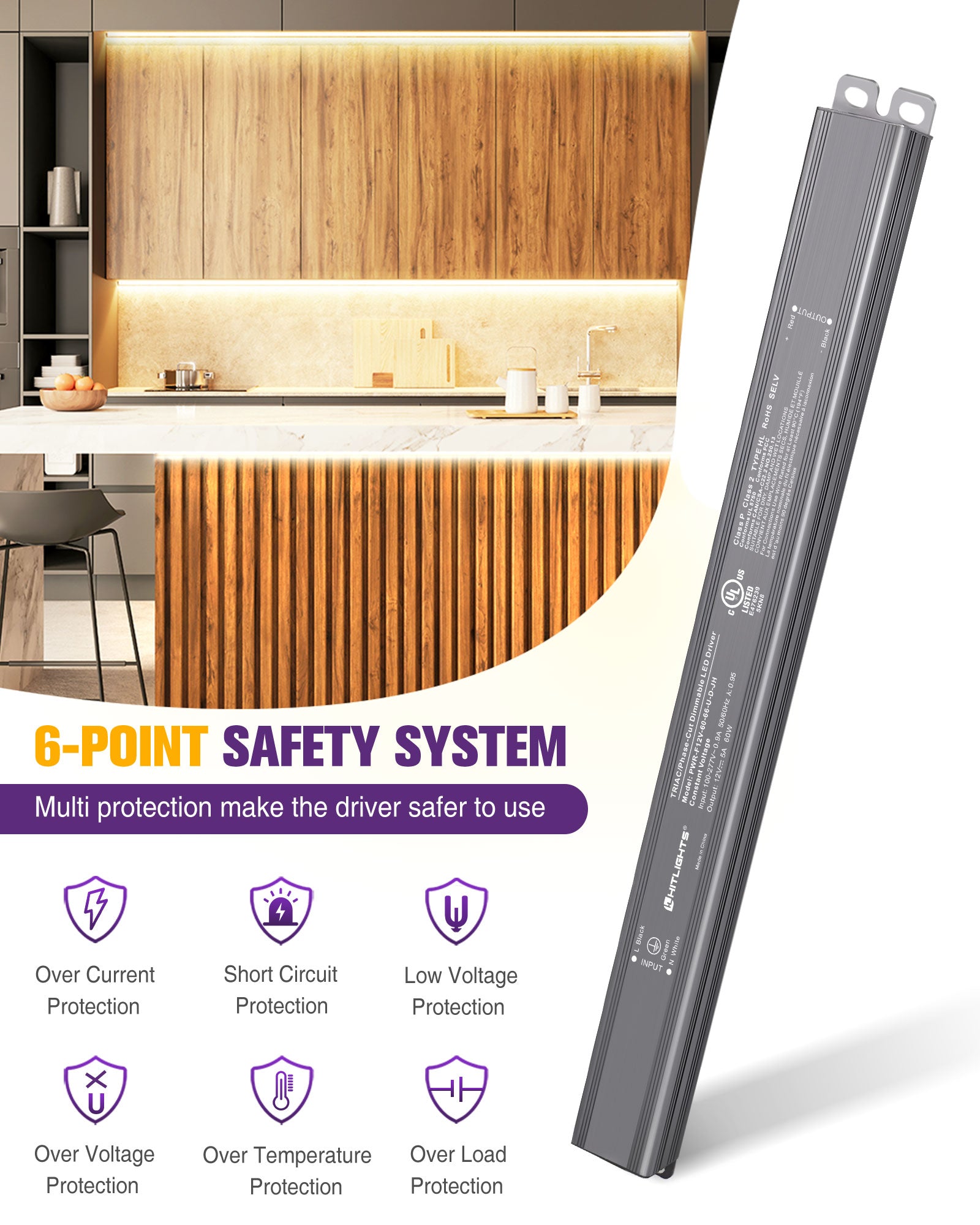

  • Safety Protection from short circuit, overload, and over temperature

  • Warranty: 6 years

  • UL listed, FCC, RoHS and class 2 for safety and reliability

Specifications:

  • Input Voltage: 120VAC (108 ~ 132VAC), 50/60Hz (47 ~ 63Hz)

  • Output Voltage: 12V DC, 60 Watts (5 Amps)

  • Dimension: 11.8 x 1.2 x 0.7 inches (300.6 x 32 x 20mm)

  • Power Factor: 0.99 @ 120VAC

  • THD: ≤ 10% @ 120VAC max load

  • Protections: Short circuit, Overload, and Over Temperature

  • IP Rating: IP66

  • Connection Type: Hard-Wired

  • Efficiency: ≥86% @ 120VAC max load

  • Leakage Current: <0.50mA @ 120VAC

  • Dimming Range: 0-100%

  • Working Humidity: 20~95%RH, non-condensing

  • Working Temp: -40°C to +60°C

  • Warranty: 6 years

  • Certifications : FCC, UL Listed, Class 2, RoHS

PWR-12V-036-20-U-D-S

Input: 120V AC

Output: 12V DC

Wattage: 36W

Class: Class 2

PWR-12V-060-20-U-D-S

Input: 120V AC

Output: 12V DC

Wattage: 60W

Class: Class 2

PWR-12V-100-20-U-D-S

Input: 120V AC

Output: 12V DC

Wattage: 96W

Class: Class 2

PWR-F24V-100-66-U-D-JH

Input: 120V AC

Output: 24V DC

Wattage: 100W

Class: Class P

PWR-F24V-150-66-U-D-JH

Input: 120V AC

Output: 24V DC

Wattage: 150W

Class: Class P

SKU

Input

Output

Wattage

IP Rating

PWR-12V-036-20-U-D-S

120V AC

12V DC

36W

IP20

PWR-12V-060-20-U-D-S

120V AC

12V DC

60W

IP20

PWR-F12V-60-66-U-D-JH

120V AC

12V DC

60W

IP66

PWR-12V-100-20-U-D-S

120V AC

12V DC

96W

IP20

PWR-F24V-100-66-U-D-JH

120V AC

24V DC

100W

IP20

PWR-F24V-150-66-U-D-JH

120V AC

24V DC

150W

IP20

Save Time And Money

Living Room LED Driver

Become A Makeup Artist

Indoor Task LED Driver Control

Learn With Experts

Under Cabinet LED Driver

Save Time And Money

Indoor Stairs LED Driver

Become A Makeup Artist
Office Space LED Driver
Learn With Experts
Store LED Driver

Power & Control Your Luma5 SD

  • Can power 1 spool of this LED (42.64W)

  • Simplified Installation

  • No compatibility issues

  • Superior LED Dimming (0-100%)

Professionally Finished Lighting

  • Class 6063A Quality + Slim Profile

  • Perfect LED Protection

  • Simple Installation - Add the LED strip, diffuser, driver and mount in place

  • Can be cut and retrofitted to required “length”

  • Other mounting channel options:

    Corner Mounted; Recessed Mounted;

    Medium Diffusion

Connect Your Luma5 With Ease

  • Your solderless option in wiring & installation

  • Can be used as Strip-strip and Strip-wire

  • Compatible with 8mm Single Color LED strips

  • Works with SMD3528/SMD2835 2 PIN LED

Power & Control Your Luma5 SD

  • Can power 1 spool of this LED (42.64W)

  • Simplified Installation

  • No compatibility issues

  • Superior LED Dimming (0-100%)

Professionally Finished Lighting

  • Class 6063A Quality + Slim Profile

  • Perfect LED Protection

  • Simple Installation - Add the LED strip, diffuser, driver and mount in place

  • Can be cut and retrofitted to required “length”

  • Other mounting channel options:

    Corner Mounted; Recessed Mounted;

    Medium Diffusion

Connect Your Luma5 With Ease

  • Your solderless option in wiring & installation

  • Can be used as Strip-strip and Strip-wire

  • Compatible with 8mm Single Color LED strips

  • Works with SMD3528/SMD2835 2 PIN LED

What is the input voltage for this dimmable driver?

The input voltage is 120V AC.

What is the output voltage and wattage?

The output is 12V DC at 60 watts (5 Amps).

What are the dimensions of this driver?

The dimensions are 11.8 x 1.2 x 0.7 inches.

What type of dimmers can I use with this driver?

It is compatible with Lutron dimmers like Ariadni, Vareo, Nova, Ceana, Diva, etc. It also works with Leviton dimmers like Mural, SureSlide, ToggleTouch, Vizia. You can also check out the Downloads Tab for the compatibility sheet

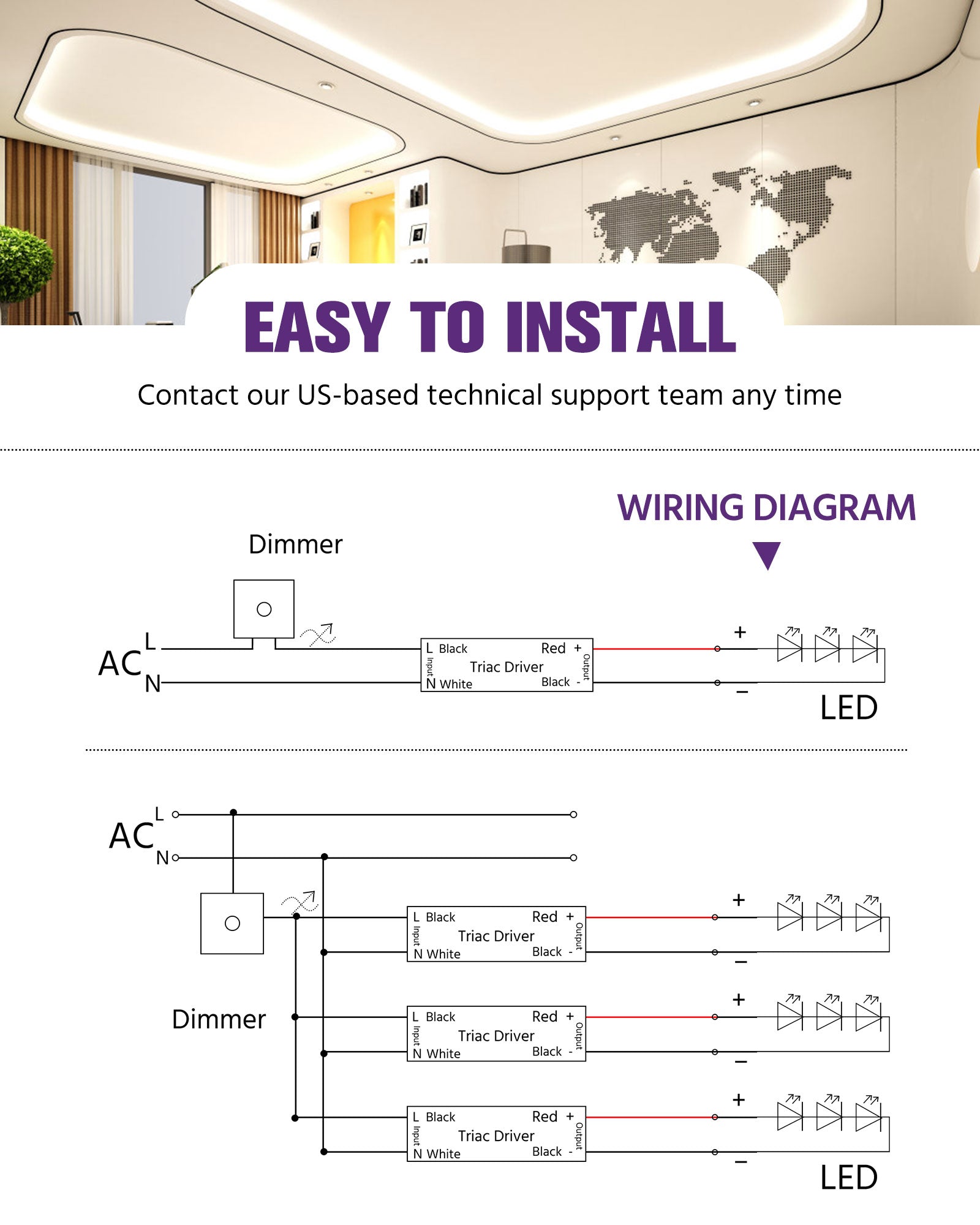

How do I connect this driver to my LED strip lights?

Insert the black/negative wire into the screw terminal labeled '-' and the red/positive wire into the '+' terminal. Tighten the screws to secure the wires.

Is this dimmable driver safe to use?

 Yes, it is UL certified for safety.

Can I put this be used outdoors?

Yes, this dimmable driver is rated IP66 and is suitable for dry, damp and wet locations.

How long is the warranty?

The warranty of this unit is for 6 years.

Does this driver work with RGB LED strips?

No, it only works with single color 12V LED strips. For RGB, you would need an RGB controller.

How do I install this inside a wall?

Make sure to leave sufficient ventilation space around the driver and secure it properly before closing off the wall space.
