24V LED Dimmable Driver 100W Slim Waterproof UL Listed

SKU: PWR-F24V-100-66-U-D-JH
1 review
Price:
$94.47

American Express Apple Pay Diners Club Discover Google Pay Mastercard PayPal Shop Pay Visa

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
WHAT STANDS OUT:
  • Slim waterproof profile: Long, low-profile IP66 housing mounts cleanly in soffits, cabinets, and outdoor boxes while protecting internal electronics from dust and water.
  • Smooth dimming performance: Electronic slim series design delivers full-range, flicker-free dimming with many common wall dimmers, ideal for architectural and accent lighting.
  • Built for long runs: 24V, 100-watt output (4.17A) supports longer or higher-load strip runs with less voltage drop than 12V systems, reducing the need for multiple drivers.
PRODUCT DETAILS:

Engineered by HitLights for residential, commercial, and outdoor projects, this slim S-Series electronic driver provides 24V DC, 100W of regulated power in an IP66 waterproof enclosure. It delivers smooth, flicker-free dimming when paired with compatible in-wall dimmers and is suitable for dry, damp, and wet locations.

  • 24V DC, 100W (4.17A) output for single-color 24V LED strip lights

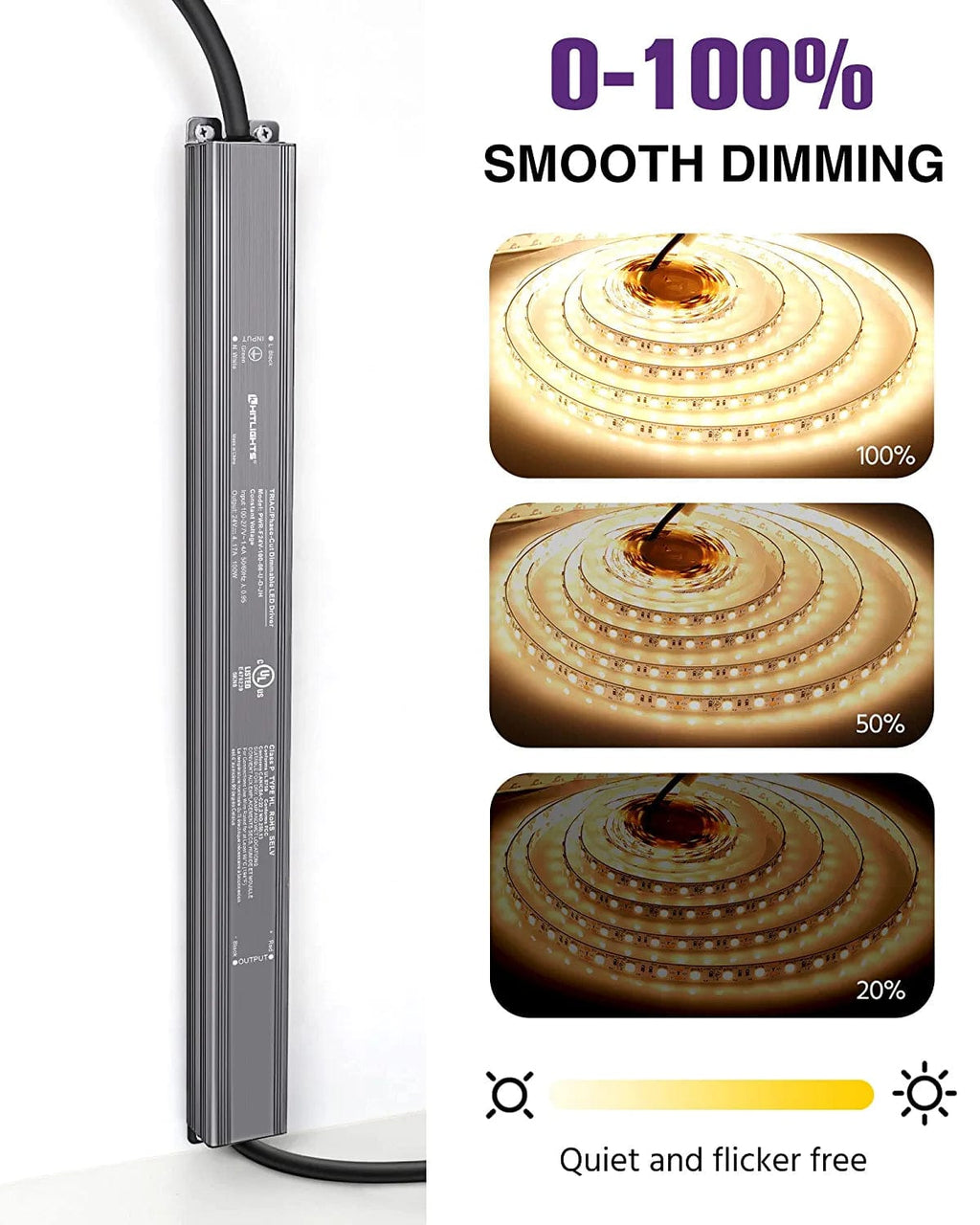

  • Full-range 0–100% dimming with compatible wall dimmers
  • Slim linear housing to fit in tight spaces and enclosures
  • UL Listed, Class P, FCC compliant, IP66 waterproof rating



The driver accepts a universal 100–277V AC input (up to 1.8A, 50/60 Hz) and converts it to a stable 24V DC output up to 100 watts, supporting medium to large 24V strip runs. It reaches ≥85% efficiency at 120V max load, with a power factor of 0.99 and THD ≤20%, helping minimize wasted power and electrical noise on the line.

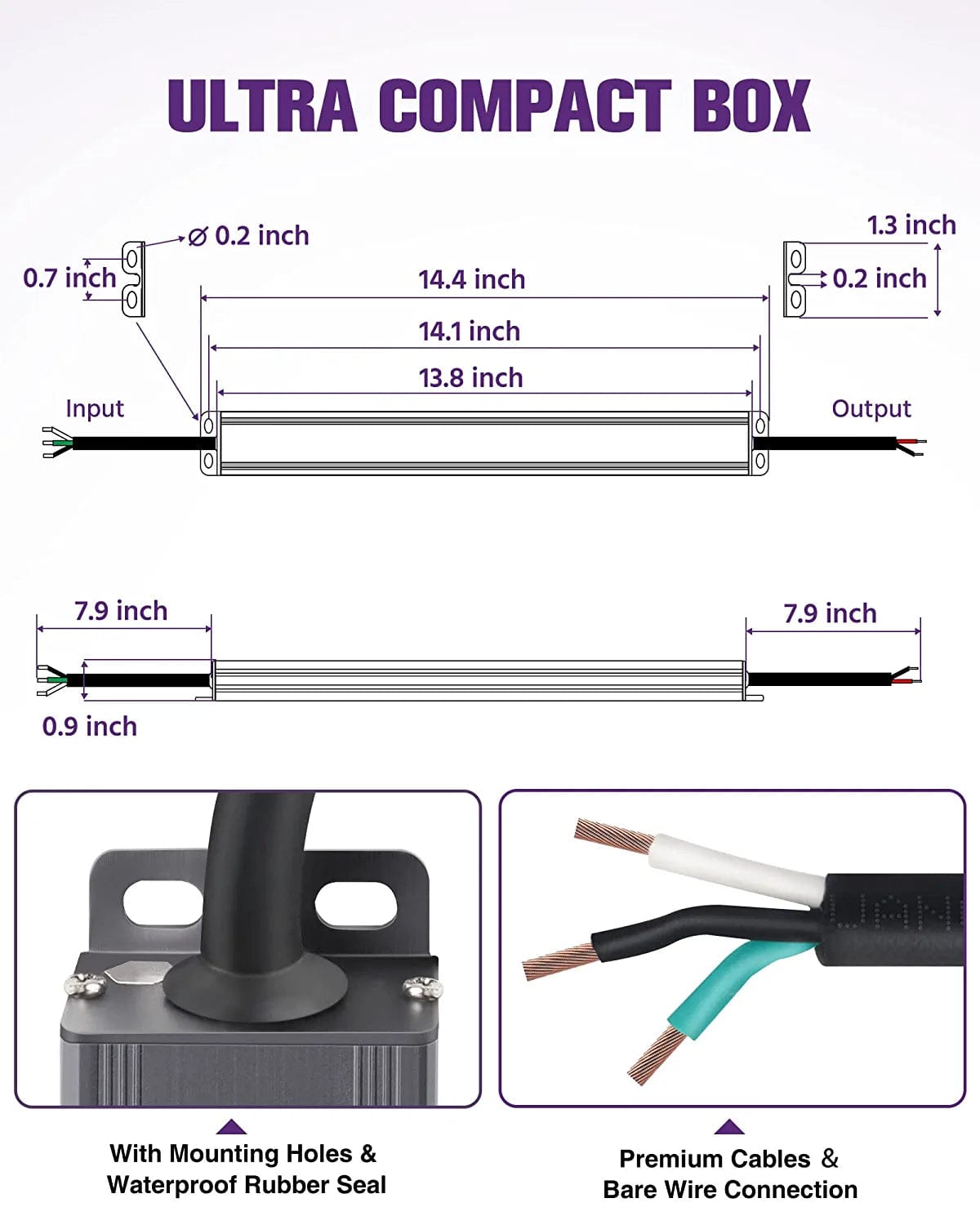

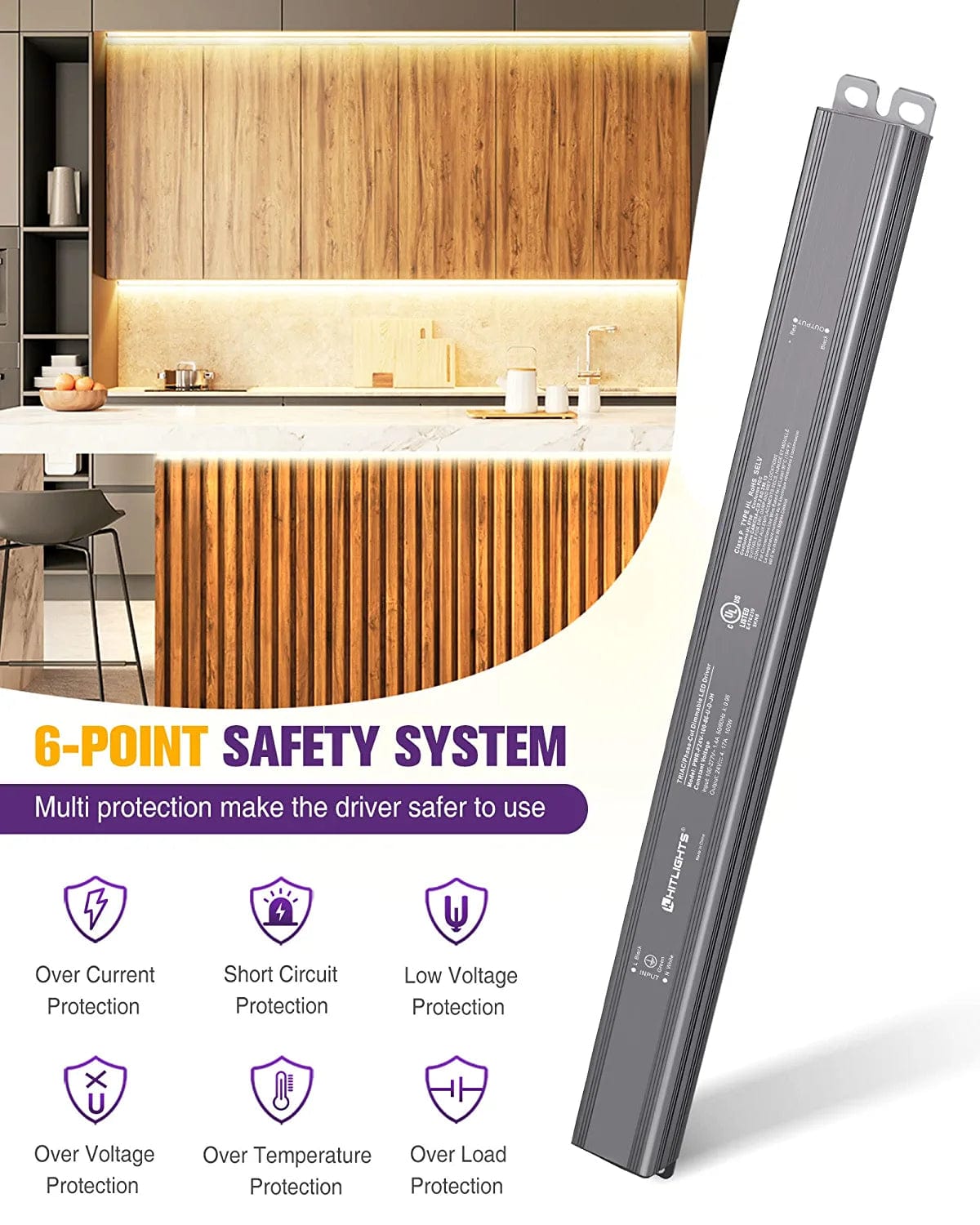

Protection against short circuit, over-voltage, and thermal runaway, supporting long-term reliability in demanding indoor or outdoor environments. The slim 14.4 x 1.3 x 0.9 inch housing (368 x 32 x 23 mm) mounts easily in soffits, sign boxes, coves, or junction spaces while meeting IP66 requirements.

This slim series driver is hard-wired and compatible with many forward-phase and reverse-phase dimmers, including Triac, MLV, and ELV models from brands like Lutron and Leviton, so installers can match commonly specified dimmer families. The working range of -40°C to +60°C and 20–90% non-condensing humidity makes it suitable for a wide variety of indoor and outdoor applications.

A 6-year warranty provides added confidence for integrators, contractors, and property owners planning long-life 24V LED strip installations. This driver is intended for single-color 24V LED strips where a compact, dimmable, waterproof, UL-listed 100W solution is required.

WHAT'S INCLUDED:

  • 1 × 24V 100W S-Series Slim Dimmable LED Driver, Waterproof, UL Listed, Class P
FREQUENTLY ASKED QUESTIONS:

Q: What is this 24V 100W slim waterproof dimmable LED driver used for?

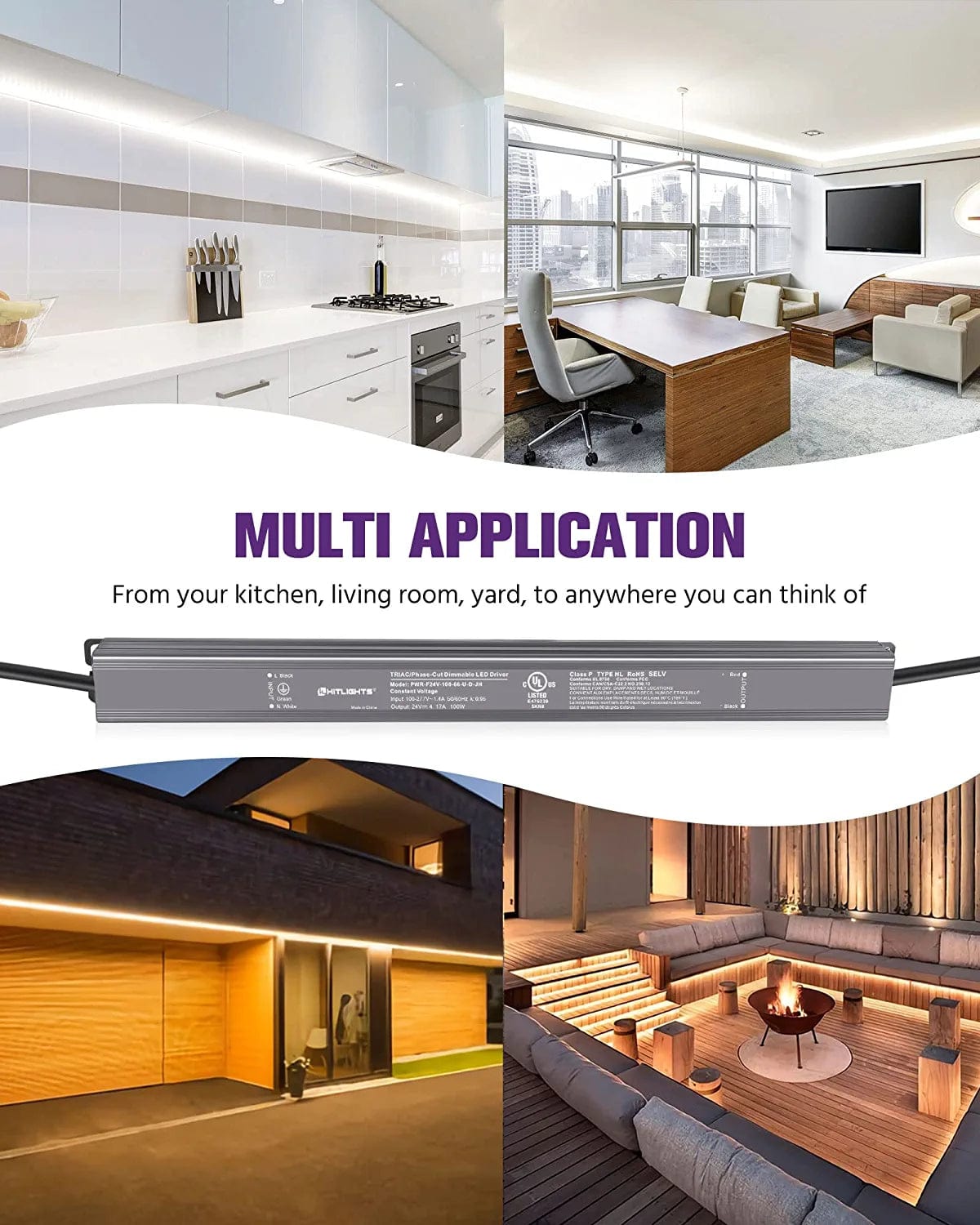

 A: It is a 24V DC, 100W electronic dimmable driver designed to power and dim single-color 24V LED strip lights. Typical uses include outdoor coves, soffits, signage, architectural accents, and other applications where wall-dimmer control and weather resistance are required.

Q: What are the input and output electrical specifications?
 A: The driver accepts 100–277V AC input at up to 1.8A, 50/60 Hz and provides a regulated 24V DC output up to 100 watts (4.17A). It operates at ≥85% efficiency with a power factor of 0.99 and THD ≤20% at 120V max load.

Q: Which dimmer switches are compatible with this driver?
 A: It supports 0–100% dimming and is compatible with forward-phase and reverse-phase dimmers, including Triac, MLV, and ELV types. It is listed as working with many Lutron models (Ariadni, Diva, Nova, Lyneo, Nova T, Skylark) and Leviton models (Mural, SureSlide, ToggleTouch, Vizia).

Q: How do I wire this driver to power and LED strip lights?

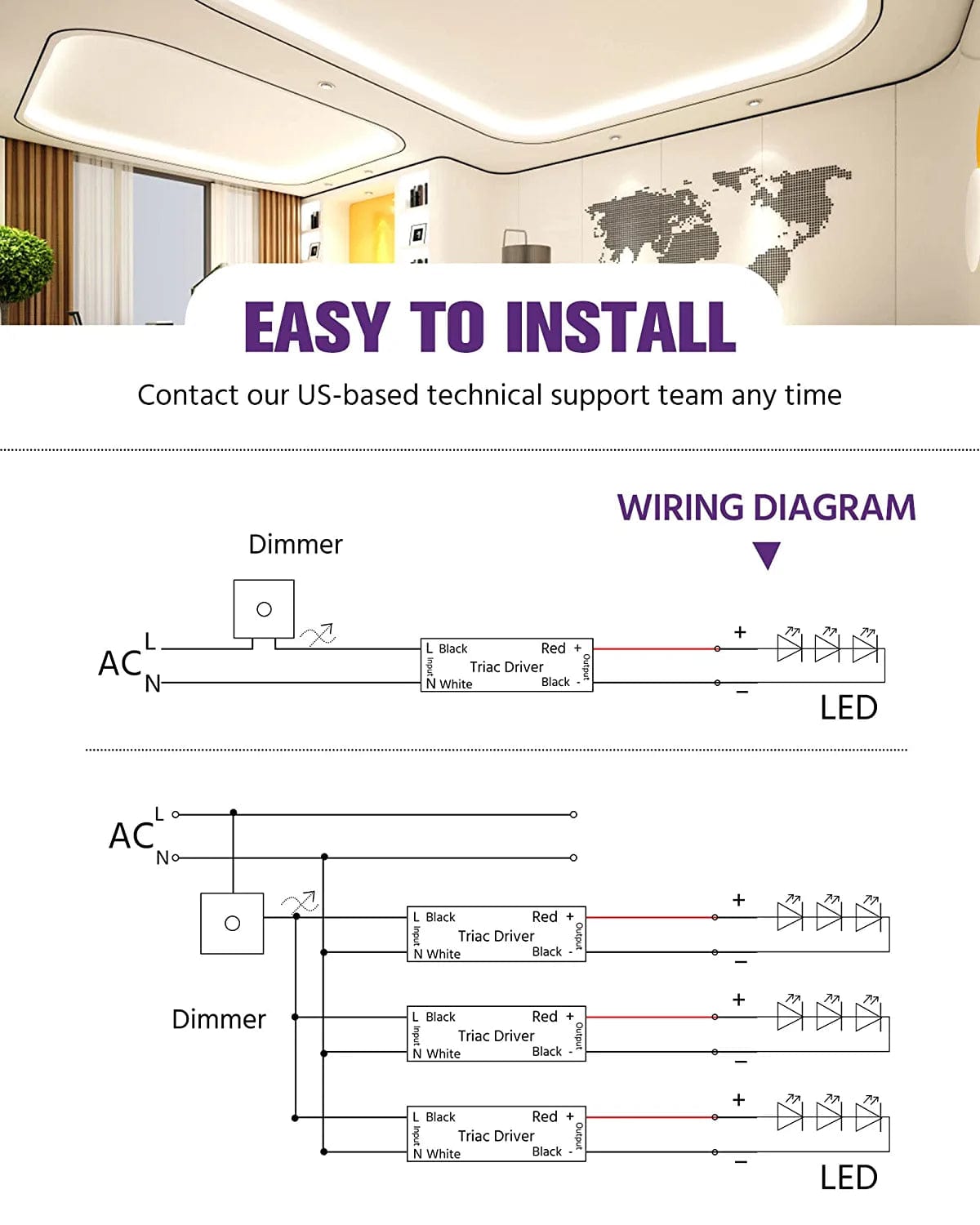

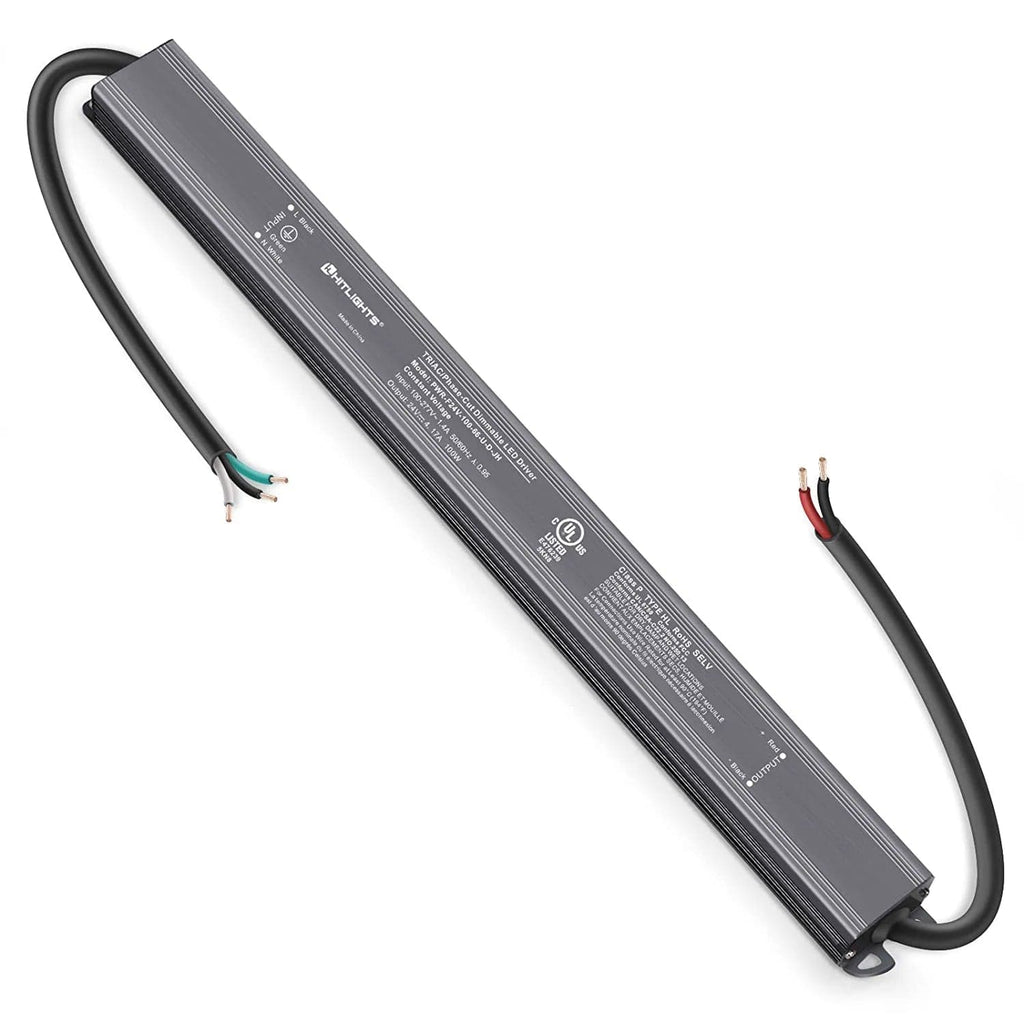

 A: On the AC side, connect black to live (hot), white to neutral, and green to ground. On the low-voltage side, connect the red output lead to the positive (+) terminal of the LED strip and the blue lead to the negative (–) terminal, following local electrical codes and low-voltage best practices.

Q: Can this driver be used outdoors or in wet locations?

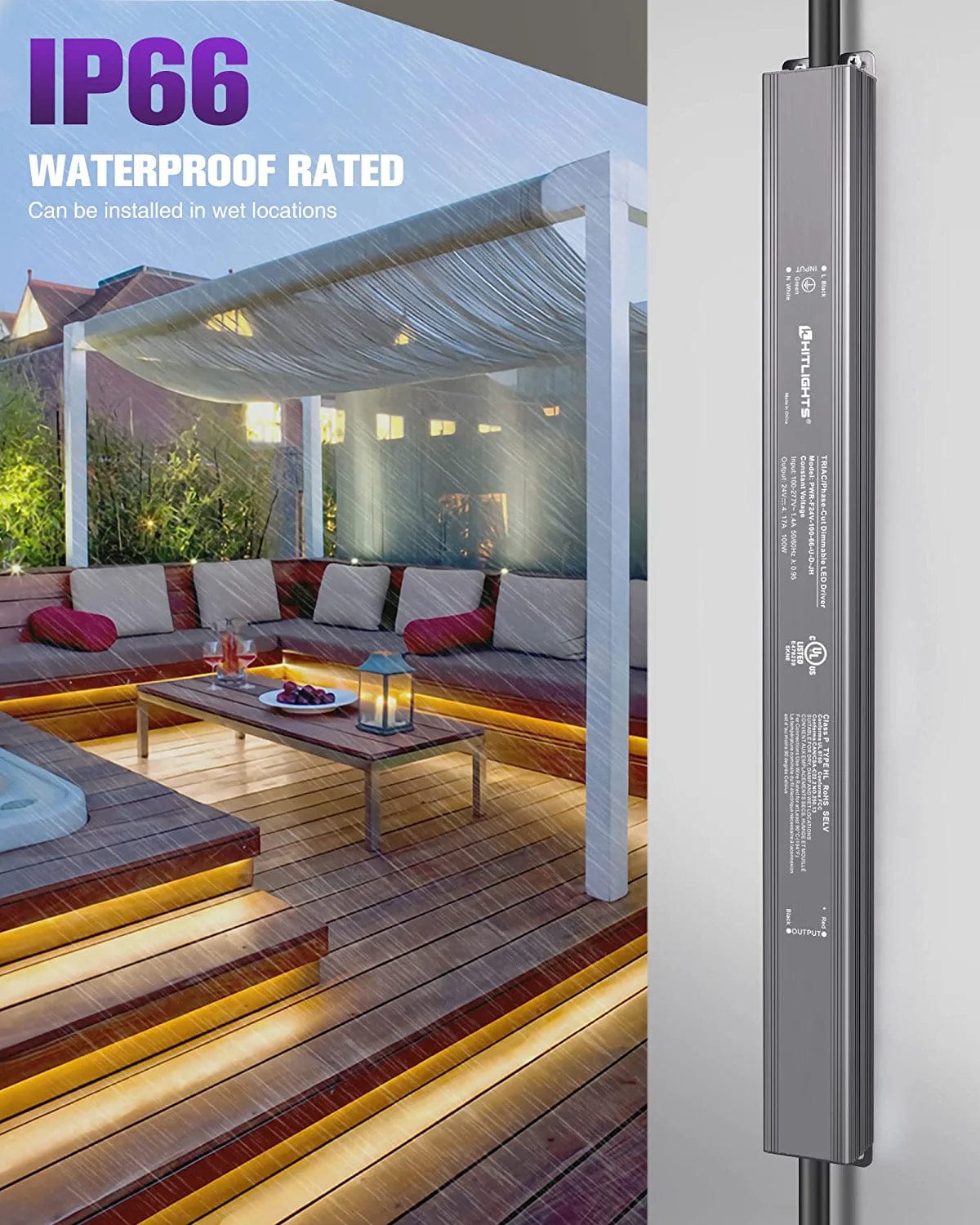

 A: Yes. The driver is rated IP66, which makes it suitable for dry, damp, and wet locations when properly installed. It must still be mounted in a way that allows ventilation and protects wiring connections from direct water intrusion.

Q: Does this driver work with RGB or multi-color LED strips?
 A: No. This model is intended for single-color 24V LED strips only. RGB or multi-channel strips require a compatible RGB controller between the driver and the LED load to manage color channels.

Q: What are the dimensions and operating environment limits?
 A: The enclosure measures approximately 14.4 x 1.3 x 0.9 inches (368 x 32 x 23 mm). It is rated for operation from -40°C to +60°C with 20–90% non-condensing humidity, making it suitable for many indoor and outdoor installations.

Q: How long is the warranty on this 24V 100W waterproof driver?
A: The driver includes a 6-year manufacturer warranty, reflecting its intended use in long-life LED lighting systems and offering assurance for both professional and residential projects.



SHIPPING DETAILS:

  • Standard Shipping (3-5 Days) - Shipping cutoff 3pm (PST).
  • FREE ground shipping (UPS or FedEx) on orders of $199 or more
  • Standard Shipping: Flat Rate $9.99 - Cutoff 3PM (PST)
  • 2-Day Shipping: Rate Based on Weight - Cutoff 2PM (PST)
  • Overnight Shipping: Rate Based on Weight - Cutoff 2PM (PST)
  • Input Voltage: 100-277V AC, 1.8A Max. 50/60Hz
  • Output Voltage: 24V DC, 100 Watts (4.17 Amps)
  • Dimension: 14.4 x 1.3 x 0.9 inches
  • Power Factor: 0.99 @ 120VAC
  • THD: ≤ 20% @ 120VAC max load
  • Stand-by Power: ≤0.5W
  • Protections: Short circuit, thermal runway, and over voltage
  • IP Rating: IP66
  • Certifications : FCC, UL Listed, Class P
  • Connection Type: Hard-Wired
  • Efficiency: ≥85% @ 120VAC max load
  • In-Rush Current: 120V--11A, 50%, 1ms
  • Leakage Current: <0.50mA @ 120VAC
  • Dimming Range: 0-100%
  • Working Humidity: 20～90%RH, non-condensing
  • Working Temp: -40°C to +60°C
  • Warranty: 6 years
SKU

LEDS/ft
CCT (K):

CRI (Ra)

Lumens Output

L0524V-303-3230-U-1

36 LEDs

3000K

 90+

330-356 Lm/ft

L0524V-403-3230-U-1

36 LEDs

4000K

 90+

357-365 Lm/ft



Certifications:

The input voltage is 120V AC.

The output is 24V DC at 150 watts (4.17 Amps).

The dimensions are 14.4 x 1.3 x 0.9 inches (368 x 32 x 23mm)

It is compatible with Lutron dimmers like Ariadni, Vareo, Nova, Ceana, Diva, Gyder, Lyneo, Nova T and Skylark . It also works with Leviton dimmers like Leviton dimmers like Mural, SureSlide, ToggleTouch and Vizia.

Connect the black wire to live, white to neutral, green to ground. Red output to positive, blue to negative of the LED strip.

Yes, this dimmable driver is rated IP66 and is suitable for dry, damp and wet locations.

This driver comes with a 6 year warranty from the manufacturer.

No, it only works with single color 12V LED strips. For RGB, you would need an RGB controller.

Make sure to leave sufficient ventilation space around the driver and secure it properly before closing off the wall space.

SPEC SHEET

CERTIFICATION

COMPATIBILITY LIST
