The input voltage is 120V AC.
- Description
- Specification
- Applications
- Compatible Products
- FAQs
- Downloads

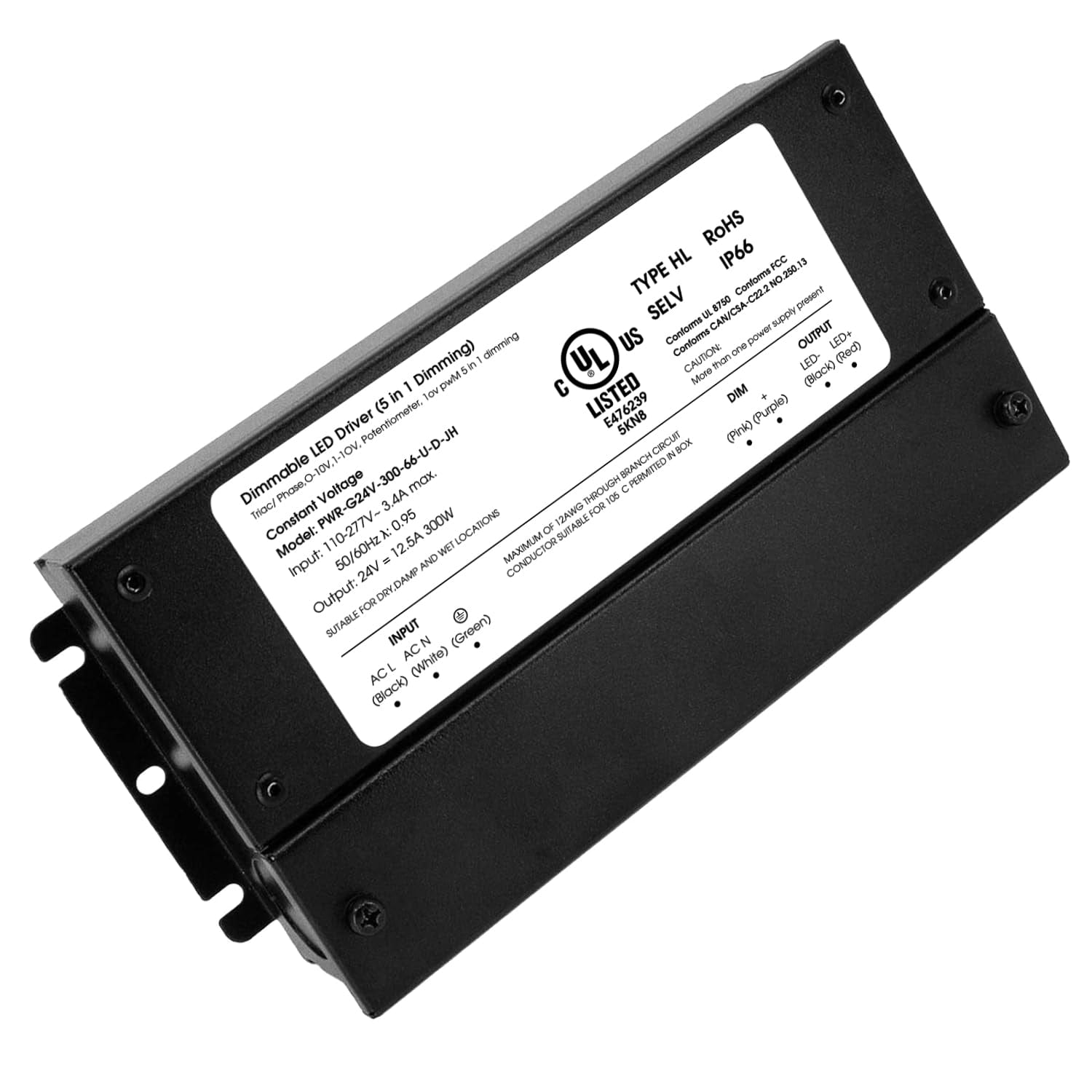

5-in-1 LED Dimmable Drivers: One of the safest 24V dimmable LED drivers out there - This dimmable driver comes with short circuit protection, over current protection, over-voltage protection, low-voltage protection, and auto-recovery mode. No buzzing noise, No overheating. This product is UL listed, meaning that it will automatically shut off if overloaded, preventing overheating and fire hazards caused by components exceeding their power ratings.
Product Features:
Includes knockouts for safe connection - UL-Listed
Smooth dimming performance from 100% to 0
Phase Dimmable with Leading (Forward) Edge MLV TRIAC Dimmers
Compatible with all dimmable single color 24V LED light strips
Compatible with Lutron and Leviton dimmer switches
Super slim, compact design for your custom solutions
Safety Protection from short circuit, over loading, over temperature
Minimum Load: ~10%
Warranty: 6 years
UL listed for safety and reliability
Specifications:
Input Voltage: 100-277V AC (108 ~ 132VAC), 47-63Hz
Output Voltage: 24V DC, 300 Watts (12.5 Amps)

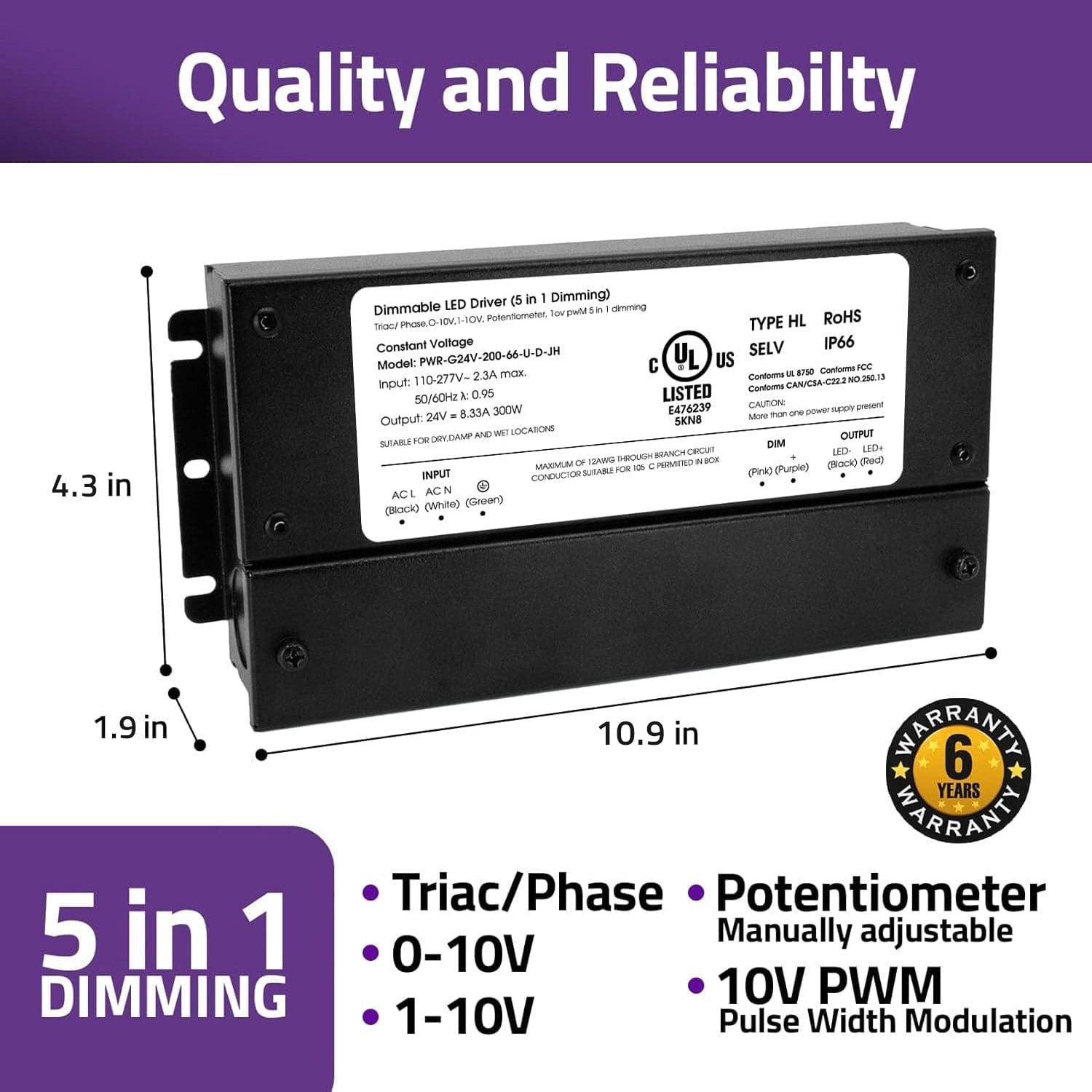

Dimension: 10.9 x 4.3 x 1.9 inches (278 x 110 x 48.8mm)
Power Factor: 0.99 @ 120VAC
THD: ≤ 88% @ 120VAC
Minimum Load: ~10%
Protections: Short circuit, overload, over temperature
IP Rating: IP-66
Certifications : UL Listed
Connection Type: Bare wire connection and knockouts
Efficiency: ≥88% @ 120VAC
In-Rush Current: 120V-20A, 50%, 1.9ms
Leakage Current: <0.50mA @ 120VAC
Dimming Range: 0-100
Working Humidity: 20～95%RH, non-condensing
Working Temp: -40°C to +60°C
Warranty: 6 years
SKU
Input
Output
Wattage
Weight
PWR-G12V-200-66-U-D-JH
120V AC
12V DC
200W
3.7 lbs
PWR-G12V-300-66-U-D-JH
120V AC
12V DC
300W
4.8 lbs
PWR-G24V-200-66-U-D-JH
120V AC
24V DC
200W
3.7 lbs
PWR-G24V-300-66-U-D-JH
120V AC
24V DC
300W
4.8 lbs
PWR-12V-036-20-U-D-S
Input: 120V AC
Output: 12V DC
Wattage: 36W
Class: Class 2
PWR-12V-060-20-U-D-S
Input: 120V AC
Output: 12V DC
Wattage: 60W
Class: Class 2
PWR-12V-100-20-U-D-S
Input: 120V AC
Output: 12V DC
Wattage: 96W
Class: Class 2
PWR-F24V-100-66-U-D-JH
Input: 120V AC
Output: 24V DC
Wattage: 100W
Class: Class P
PWR-F24V-150-66-U-D-JH
Input: 120V AC
Output: 24V DC
Wattage: 150W
Class: Class P
Living Room LED Driver
Indoor Task LED Driver Control
Under Cabinet LED Driver
Indoor Stairs LED Driver
Office Space LED Driver
Store LED Driver
Power your 24V LED strip
Can power 1 spool of this LED strip (115.28W)
Dimmable with HitLights LED Dimmable Driver
Compatible with ELV, TRIAC, DMX, Dali, 0-10V, RF.
Available in warm white (3000K) and cool white (5000k) neutral white (4000k) soft white (2700k)
Can be cut and retrofitted to required “length”
Extra Protection and Professional Finish
Class 6063A Quality + Slim Profile
Perfect LED Protection
Simple Installation - Add the LED strip, diffuser, driver and mount in place
Can be cut and retrofitted to required “length”
Extend and Connect your LED Strip
Your solderless option in wiring & installation
Works with COB Strips, CSP Strips, 2835 LED Strips, 10mm LED/COB/CSP 2 Pin
Can be used as Strip-strip and Strip-wire
Transparent plastic clasps
Includes: 10 pack x 6 Inch Any Angle 2Pin 10mm Solderless LED Light Strip Connector
Power & Control Your 24V LED Strip
Can power 2 spool of this LED strip, in parallel connection (233.2W)
Easy Installation with bare wire and knockouts to electrical codes
For indoor installation only with this COB LED
Available in warm white (3000K) neutral white (4000k) soft white (2700k)
Can be cut and retrofitted to required “length”
Superior LED Dimming (0-100%)
Connect your LED Strip Lights
Choose between strip to wire or strip to strip when adding to cart
Strip to strip - CON-10S-TB-SS-12PK
Strip to wire - CON-10S-TB-SW-12PK
Solderless design with screw terminal
2-pin connector suits 12V or 24V LED tape lights
Mount your LED Strip and Accessories
Holds up to 3lbs per square inch
Waterproof to withstand high temperature and water, perfect for indoor and outdoor use
Size : 32Ft x 0.4"
Q1: What is the input voltage for this dimmable driver?
What is the output voltage and wattage?
The output is 24V DC at 300 watts (12.5 Amps).
What are the dimensions of this driver?
The dimensions are 10.9 x 4.3 x 1.9 inches (278 x 110 x 48.8mm)
What type of dimmers can I use with this driver?
This driver works with Triac/Phase/MLV/ELV/0-10V/Potentiometer/10V PWM dimmers and is compatible with most AC wall dimmers, including popular brands like Lutron and Leviton, as well as many other household dimmers. It can be used for a variety of applications, including 24V LED Strip Lights, 24V Power Supply, LED modules, LED bulbs, and more.
How do I connect this driver to my LED strip lights?
Connect the black wire to live, white to neutral, green to ground. Red output to positive, blue to negative of the LED strip.
Is this dimmable driver safe to use?
Yes, it is UL certified for safety.
Can I put this be used outdoors?
Yes, this dimmable driver is rated IP 66 which is suitable for dry, damp and wet locations.
How long is the warranty?
The warranty of this unit is for 6 years.
Does this driver work with RGB LED strips?
No, it only works with single color 24V LED strips.
How do I install this inside a wall?
Make sure to leave sufficient ventilation space around the driver and secure it properly before closing off the wall space.
