Name: 24V LED Dimmable Driver 120W 5-in-1 Waterproof UL Listed
Brand: HitLights
SKU: PWR-G24V-120-66-U-D-JH
Price: 116.84 USD
Availability: InStock

24V LED Dimmable Driver 120W 5-in-1 Waterproof UL Listed

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

WHAT STANDS OUT:

Installer-friendly enclosure: Durable metal housing with a built-in junction box and wiring knockouts helps electricians organize connections for secure, clean installations.
Indoor and outdoor versatility: IP66 waterproof construction supports dry, damp, and wet-location installations, making it suitable for a wide range of residential and commercial lighting projects.
Flexible 120W power capacity: Delivers 120 watts of constant 24V DC power at 5 amps, supporting multiple LED strip lighting sections while providing flexible 5-in-1 dimming control.

PRODUCT DETAILS:

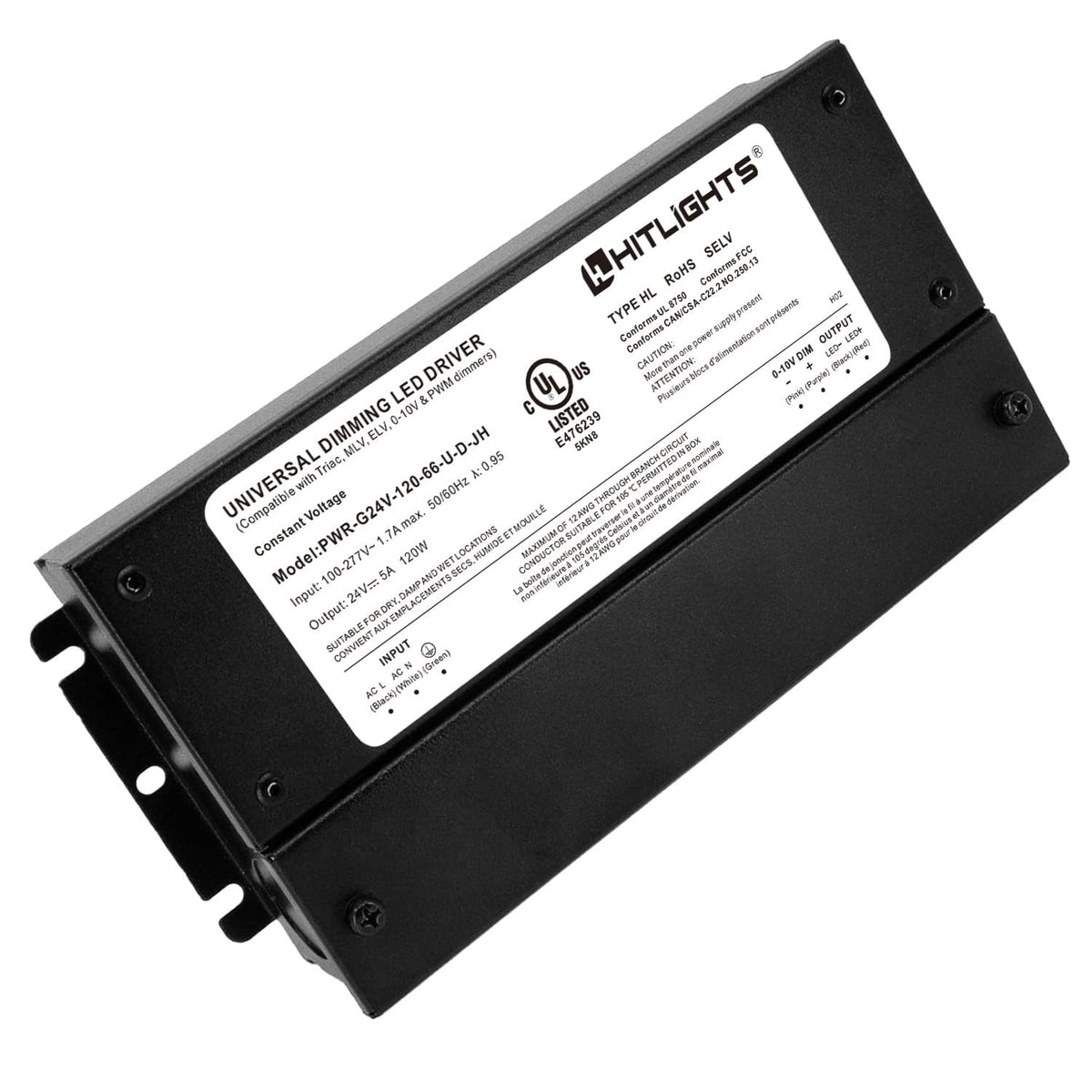

The HitLights 24V Dimmable LED Driver 120W is a constant-voltage power supply designed to operate 24V LED strip lights and other compatible 24V DC lighting loads in residential and commercial installations. It combines 5-in-1 dimming flexibility with an IP66 waterproof enclosure and UL Listing for dependable lighting control in dry, damp, and wet locations.

Engineered for a wide input voltage range of 100–277V AC, this driver delivers 24V DC at up to 120 watts (5 amps). It features built-in active power factor correction, a power factor greater than 0.9, and typical efficiency of at least 84% at 120V AC. The metal enclosure with integrated junction box and knockouts supports secure wiring connections, helping electricians organize installations while allowing heat dissipation through natural air convection.

5-in-1 dimming compatibility with TRIAC, MLV, ELV, 0–10V/1–10V, potentiometer, and 10V PWM dimming controls.

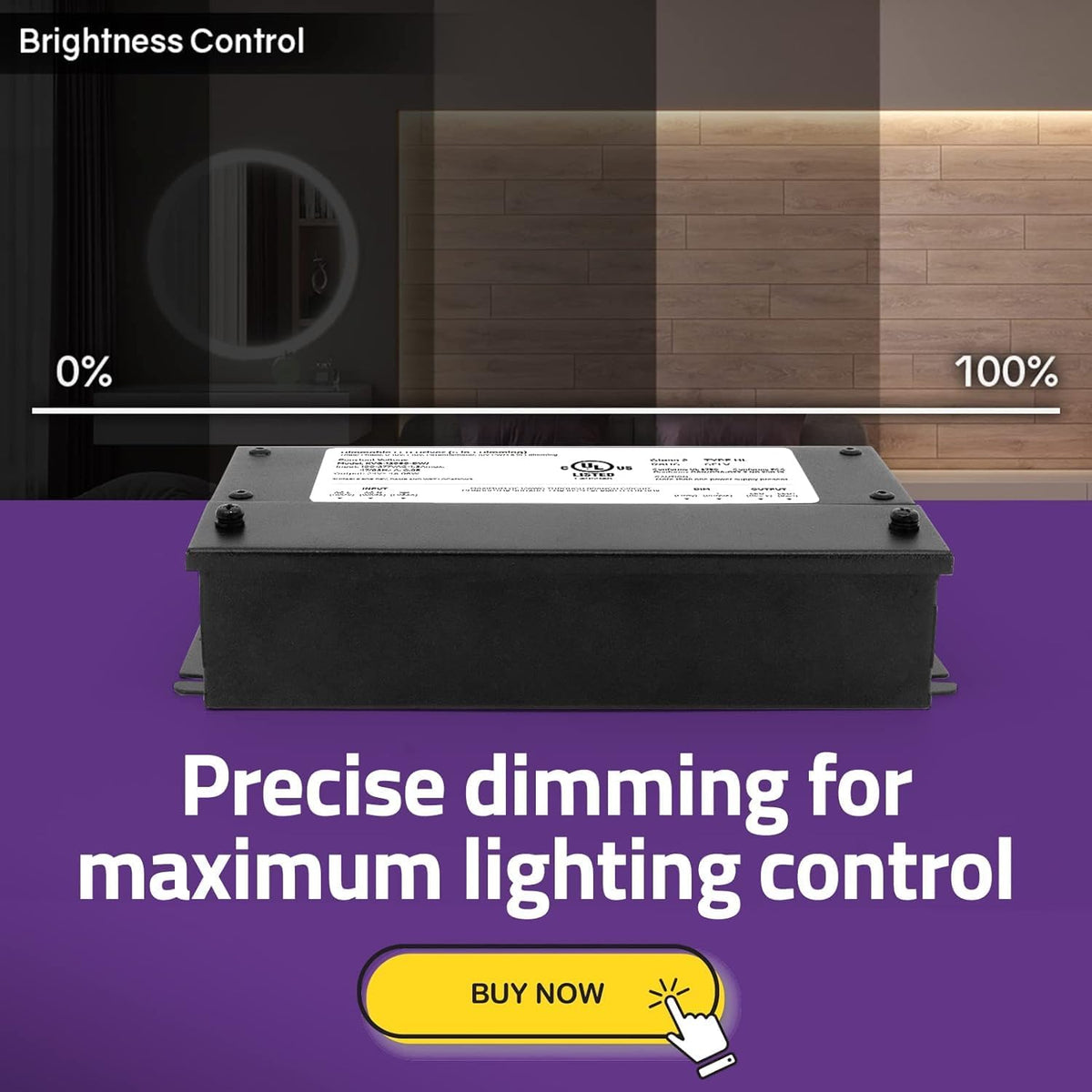

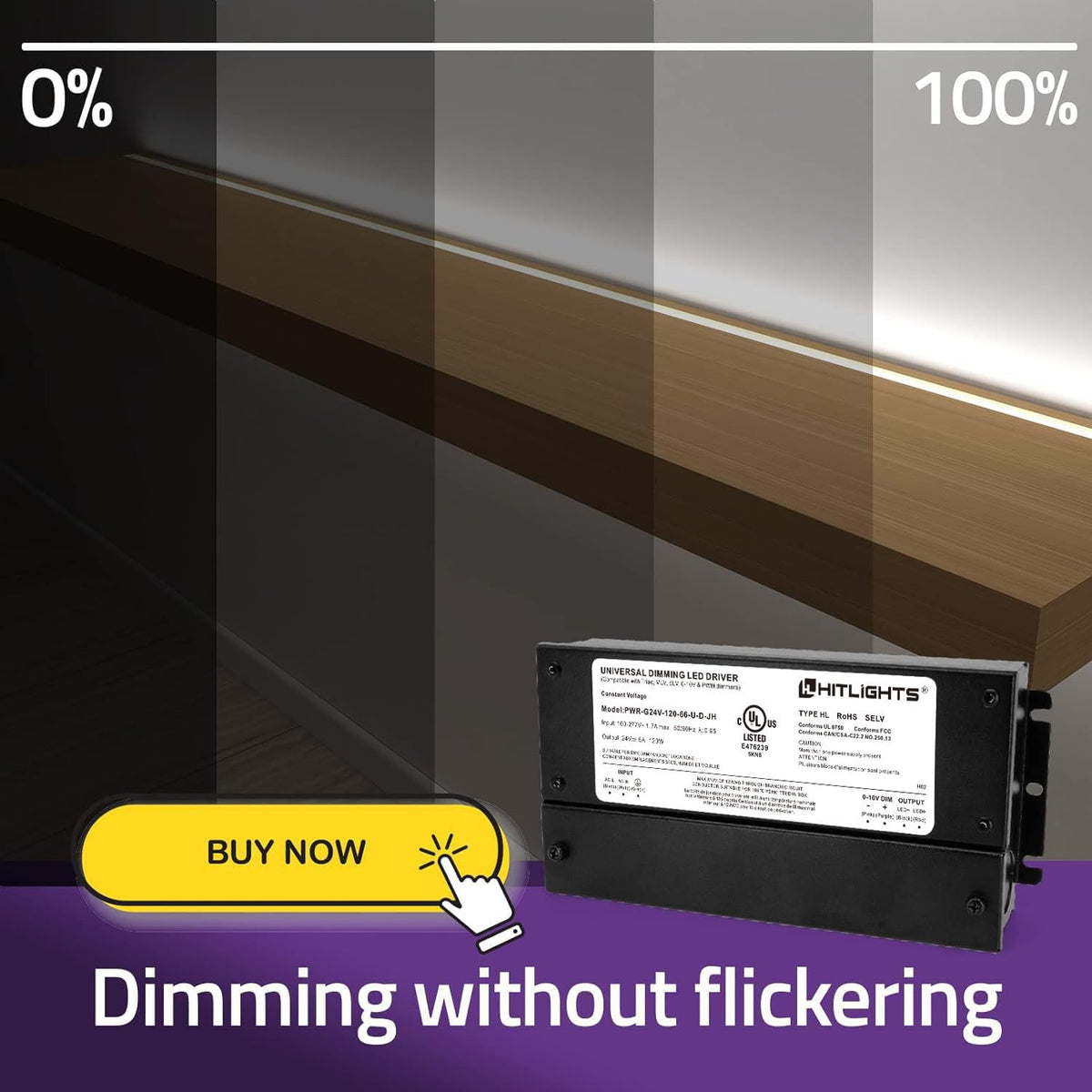

Full 0–100% dimming range with 0.1% dimming depth for precise brightness adjustments across compatible lighting systems.
IP66 waterproof construction for dry, damp, and wet-location installations when properly mounted and wired.

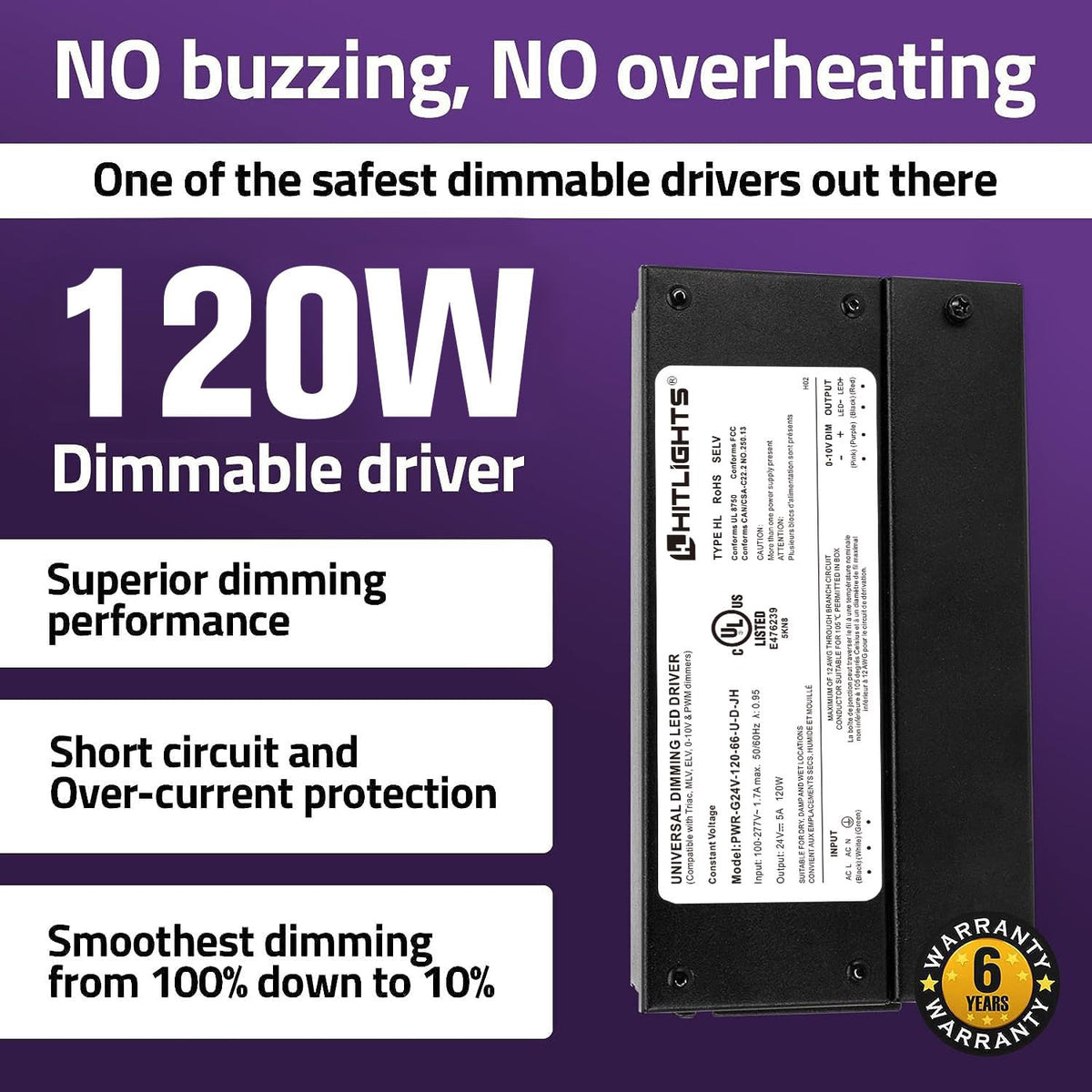

Integrated electrical protection against short circuits, overloads, and overheating, with recovery behavior depending on the fault condition.

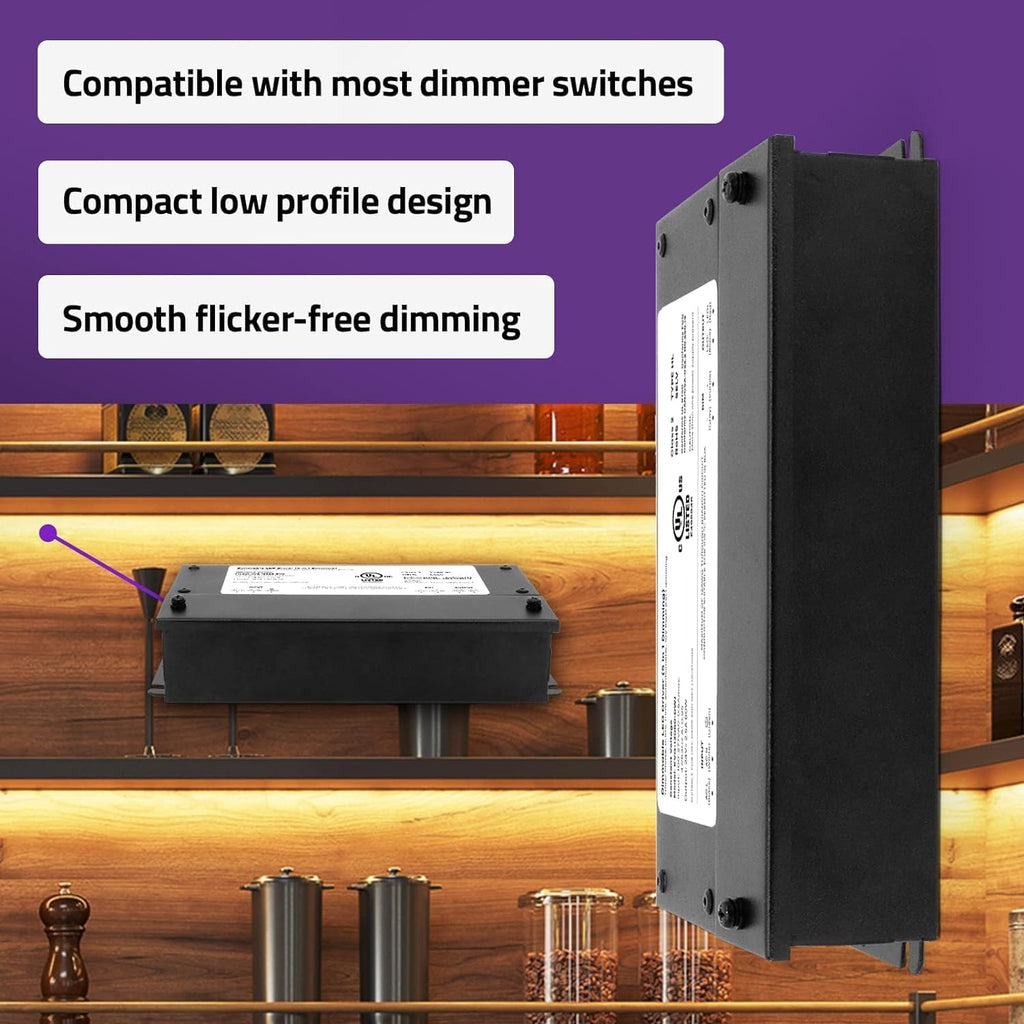

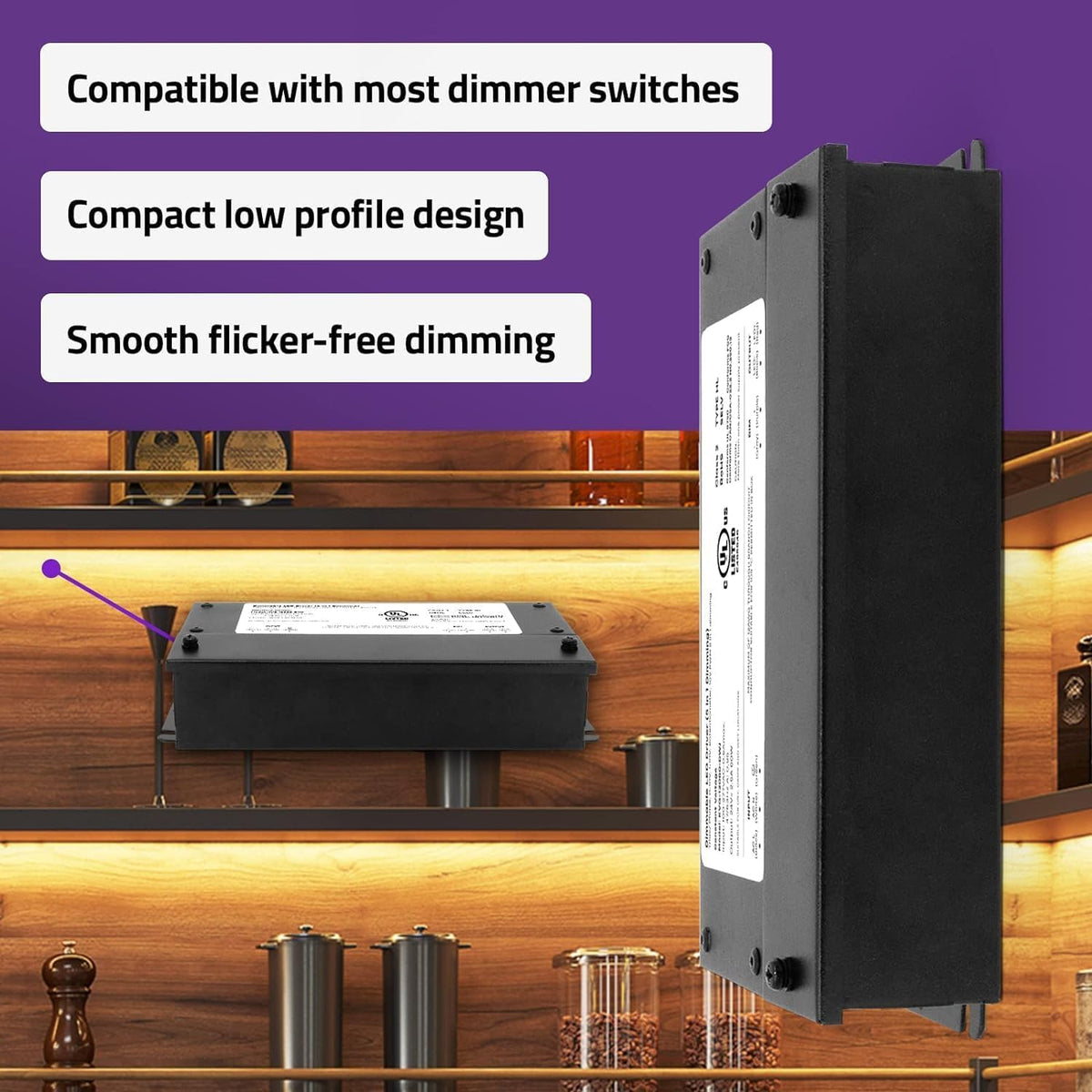

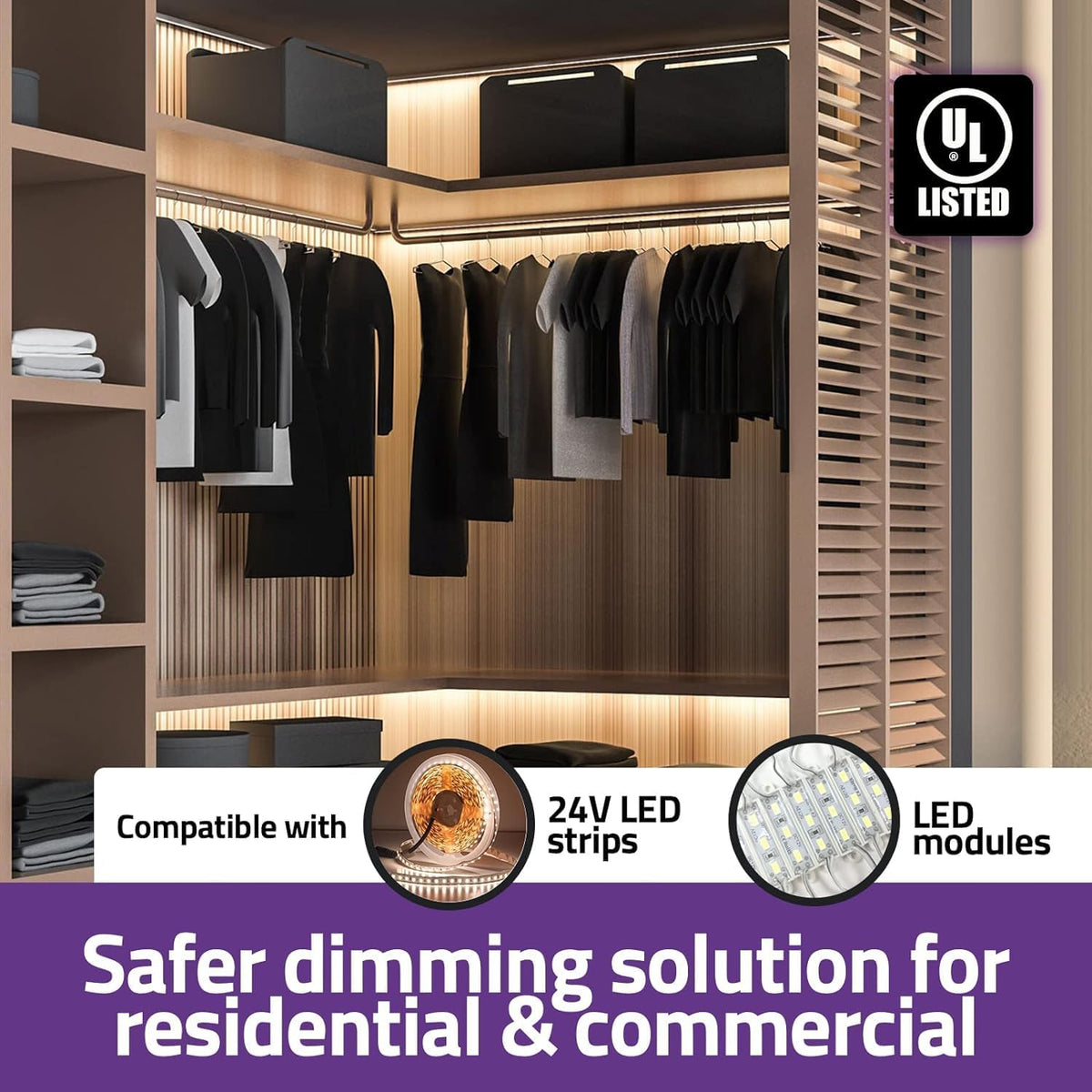

Typical applications include under-cabinet lighting, cove and tray ceilings, stair and toe-kick lighting, retail displays, signage, and architectural LED strip installations. The compact enclosure measures approximately 8.66 x 3.76 x 1.72 inches (220 x 95.4 x 43.8 mm), allowing discreet installation in suitable mounting locations.

Unlike conventional non-dimmable LED power supplies, this driver supports multiple lighting control methods, including compatible phase-cut and low-voltage dimmers. It can integrate with supported wall dimmers from brands such as Lutron and Leviton, giving installers flexibility when designing lighting systems. HitLights also provides a six-year warranty for added long-term assurance.

This 24V 120W dimmable LED driver is a practical solution for electricians, lighting contractors, builders, and experienced DIY installers who need reliable constant-voltage power, flexible dimming, and waterproof protection for 24V LED lighting systems.

WHAT'S INCLUDED:

1 × HitLights 24V 120W 5-in-1 Dimmable LED Driver (IP66, UL Listed)

FREQUENTLY ASKED QUESTIONS:
Q1: What is the HitLights 24V 120W 5-in-1 dimmable LED driver used for?
A: The HitLights 24V 120W dimmable LED driver is a constant-voltage power supply designed to operate 24V LED strip lights and compatible 24V DC lighting fixtures with a total rated load of up to 120 watts. It converts 100–277V AC input power into 24V DC output and supports multiple dimming methods for residential, commercial, and architectural lighting applications.

Q2: Who is this 24V dimmable driver best suited for?
A: This driver is designed for electricians, lighting contractors, builders, and experienced DIY installers working with 24V LED strip lighting systems. It is suitable for kitchens, living areas, offices, retail displays, architectural lighting, and appropriately installed outdoor lighting projects where flexible dimming, electrical protection, and a weather-resistant enclosure are important.

Q3: How does the 5-in-1 dimming work with wall dimmers and controls?
A: The driver supports phase-cut dimming through TRIAC, MLV, and ELV controls, along with 0–10V, 1–10V, potentiometer, and 10V PWM dimming methods. It offers a 0–100% dimming range with 0.1% dimming depth. Compatible dimmers from brands such as Lutron and Leviton may be used, but the specific dimmer model should be verified before installation.

Q4: What are the key electrical and physical specifications?
A: The driver accepts 100–277V AC at 50/60Hz and delivers 24V DC at up to 120W (5A). It features a power factor greater than 0.9 at full load, typical efficiency of at least 84% at 120V AC, and THD below 20% at full load. The enclosure measures approximately 8.66 x 3.76 x 1.72 inches, weighs 1.364 kg, and has UL/cUL and FCC certifications.

Q5: How does this driver compare to non-dimmable or indoor-only LED power supplies?
A: Unlike standard non-dimmable power supplies, this driver provides multiple dimming options for adjusting LED brightness through compatible wall switches and control systems. Its IP66 waterproof enclosure also supports installations in dry, damp, and wet locations when installed according to manufacturer requirements. Integrated short-circuit, overload, and temperature protection further support reliable operation.

Q6: What environments can this 24V 120W driver be installed in?
A: The driver features an IP66-rated enclosure suitable for dry, damp, and wet-location applications when installed and sealed correctly. Its specified operating ambient temperature range is -40°C to +45°C, with 20–95% non-condensing relative humidity. Adequate ventilation and appropriate load derating are necessary in higher-temperature environments to maintain reliable operation.

Q7: What maintenance or care does this 120W dimmable LED driver require?
A: The driver requires minimal routine maintenance when installed correctly with adequate ventilation and a compatible load within its rated capacity. Periodic inspections should check for loose wiring, blocked ventilation, moisture intrusion, or signs of overheating. Installation, repairs, and electrical troubleshooting should be performed by a qualified professional following the manufacturer's instructions and applicable electrical codes.

SHIPPING DETAILS:

Standard Shipping (3-5 Days) - Shipping cutoff 3pm (PST).
FREE ground shipping (UPS or FedEx) on orders of $199 or more
Standard Shipping: Flat Rate $9.99 - Cutoff 3PM (PST)
2-Day Shipping: Rate Based on Weight - Cutoff 2PM (PST)
Overnight Shipping: Rate Based on Weight - Cutoff 2PM (PST)

Input Voltage: 100-277V AC (108 ~ 132VAC), 47-63Hz
Output Voltage: 24V DC, 120 Watts (8.33 Amps)
Dimension: 8.66 × 3.76 × 1.72 inches (220 × 95.4 × 43.8 mm )
Power Factor: 0.98 @ 120VAC
THD: ≤ 20% @ 120VAC
Frequency: 50/60Hz
Protections: Short circuit, overload, over temperature
IP Rating: IP-66
Certifications : UL Listed
Connection Type: Bare wire connection and knockouts
Efficiency: ≥84% at 120V AC, ≥85% at 277V AC
In-Rush Current: 131.6A, 530us @50% 120VAC
Leakage Current: <0.50mA @ 120VAC
Dimming Range: 0-100
Working Temp: -40°C to +45°C
Warranty: 6 years

SKU	Input	Output	Wattage	Weight
PWR-G12V-200-66-U-D-JH	120V AC	12V DC	200W	3.7 lbs
PWR-G12V-300-66-U-D-JH	120V AC	12V DC	300W	4.8 lbs
PWR-G24V-060-66-U-D-JH	120V AC	24V DC	60W	2.48 lbs
PWR-G24V-096-66-U-D-JH	120V AC	24V DC	96W	3 lbs
PWR-G24V-120-66-U-D-JH	120V AC	24V DC	120W	3.01 lbs
PWR-G24V-150-66-U-D-JH	120V AC	24V DC	150W	4.8 lbs
PWR-G24V-200-66-U-D-JH	120V AC	24V DC	200W	3.7 lbs

Certifications:

What is the input voltage for this dimmable driver?

The input voltage is 120V AC.

What is the output voltage and wattage of this waterproof 5-in-1 driver?

The output is 24V DC, 120 Watts (8.33 Amps)

What are the dimensions of this 5-in-1 waterproof driver?

The dimensions are 8.66 × 3.76 × 1.72 inches / 220 × 95.4 × 43.8 mm

What type of dimmers can I use with this 5-in-1 driver?

This driver works with Triac/Phase/MLV/ELV/0-10V/Potentiometer/10V PWM dimmers and is compatible with most AC wall dimmers, including popular brands like Lutron and Leviton, as well as many other household dimmers. It can be used for a variety of applications, including 12V LED Strip Lights, 12V Power Supply, LED modules, LED bulbs, and more.

Can this driver be used outdoors?

Yes, this dimmable driver is rated IP 66 which is suitable for dry, damp and wet locations.

Does this waterproof 5-in-1 driver work with RGB LED strips?

No, it only works with single color 24V LED strips.

How long is the warranty?

The warranty of this unit is for 6 years.

How do I install this driver inside a wall?

Make sure to leave sufficient ventilation space around the driver and secure it properly before closing off the wall space.

SPEC SHEET
