Name: 24V LED Dimmable Driver 150W 5-in-1 Waterproof UL Listed
Brand: HitLights
SKU: PWR-G24V-150-66-U-D-JH
Price: 131.76 USD
Availability: InStock

24V LED Dimmable Driver 150W 5-in-1 Waterproof UL Listed

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

WHAT STANDS OUT:

Installer-friendly enclosure: Durable metal housing with a built-in junction box and wiring knockouts provides organized space for secure electrical connections and straightforward installation.
Indoor and outdoor versatility: IP66 waterproof construction supports dry, damp, and wet-location installations, making it suitable for residential, commercial, and architectural lighting applications.
Supports larger 24V lighting runs: 150 watts of constant 24V DC power at 6.25 amps allows installers to power higher-load LED strip lighting systems while reducing the need for multiple smaller drivers.

PRODUCT DETAILS:

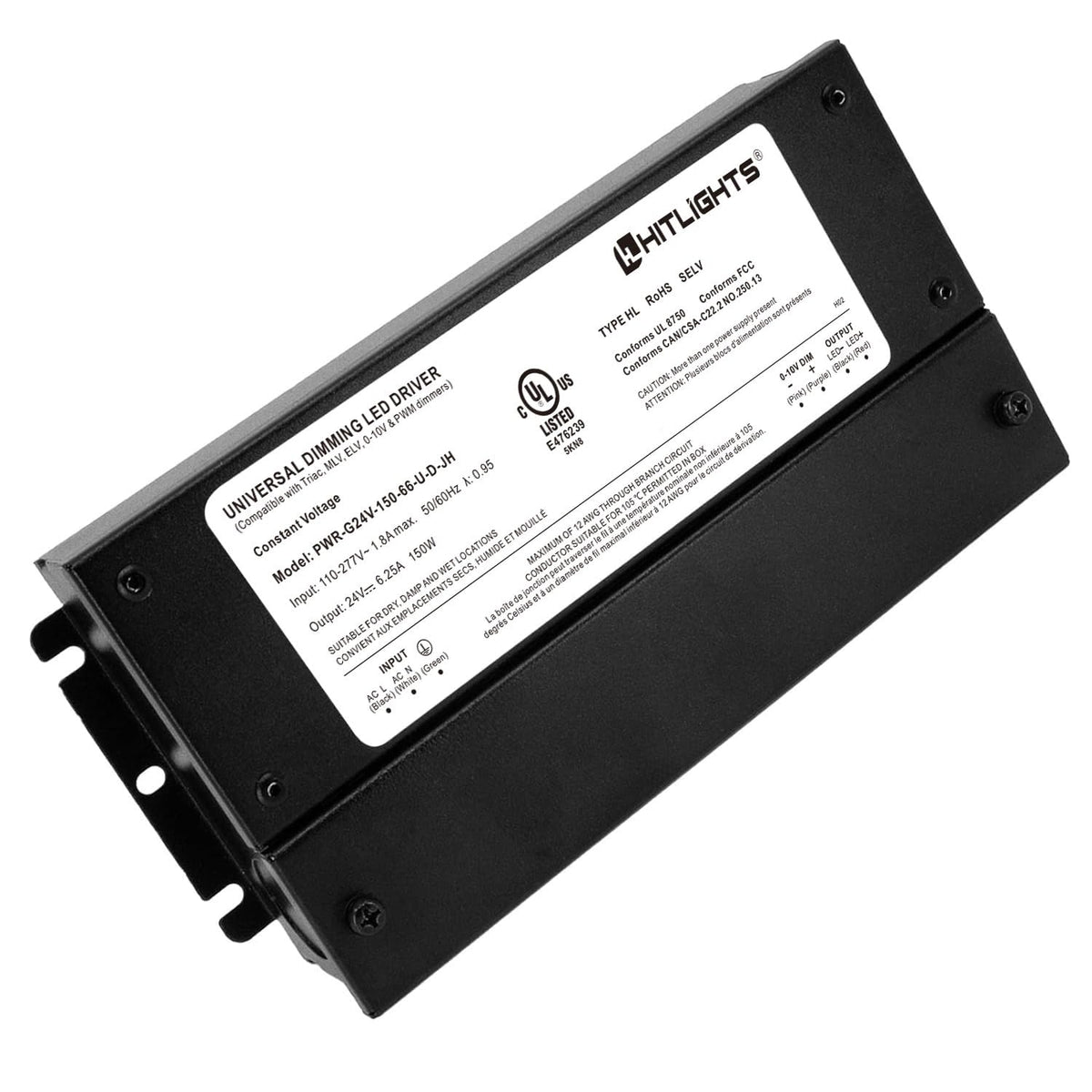

The HitLights 24V Dimmable LED Driver 150W is a constant-voltage power supply designed to operate 24V LED strip lights and other compatible 24V DC lighting loads in residential and commercial installations. It combines 5-in-1 dimming flexibility with an IP66 waterproof enclosure and UL Listing for dependable lighting control in dry, damp, and wet locations.

Engineered for a wide input voltage range of 110–277V AC, this driver delivers 24V DC at up to 150 watts (6.25 amps). It features built-in active power factor correction, a power factor greater than 0.9, and efficiency of at least 86% at 120V AC and 87% at 277V AC under full load. The metal enclosure with an integrated junction box and wiring knockouts supports secure electrical connections while allowing heat dissipation through natural air convection.

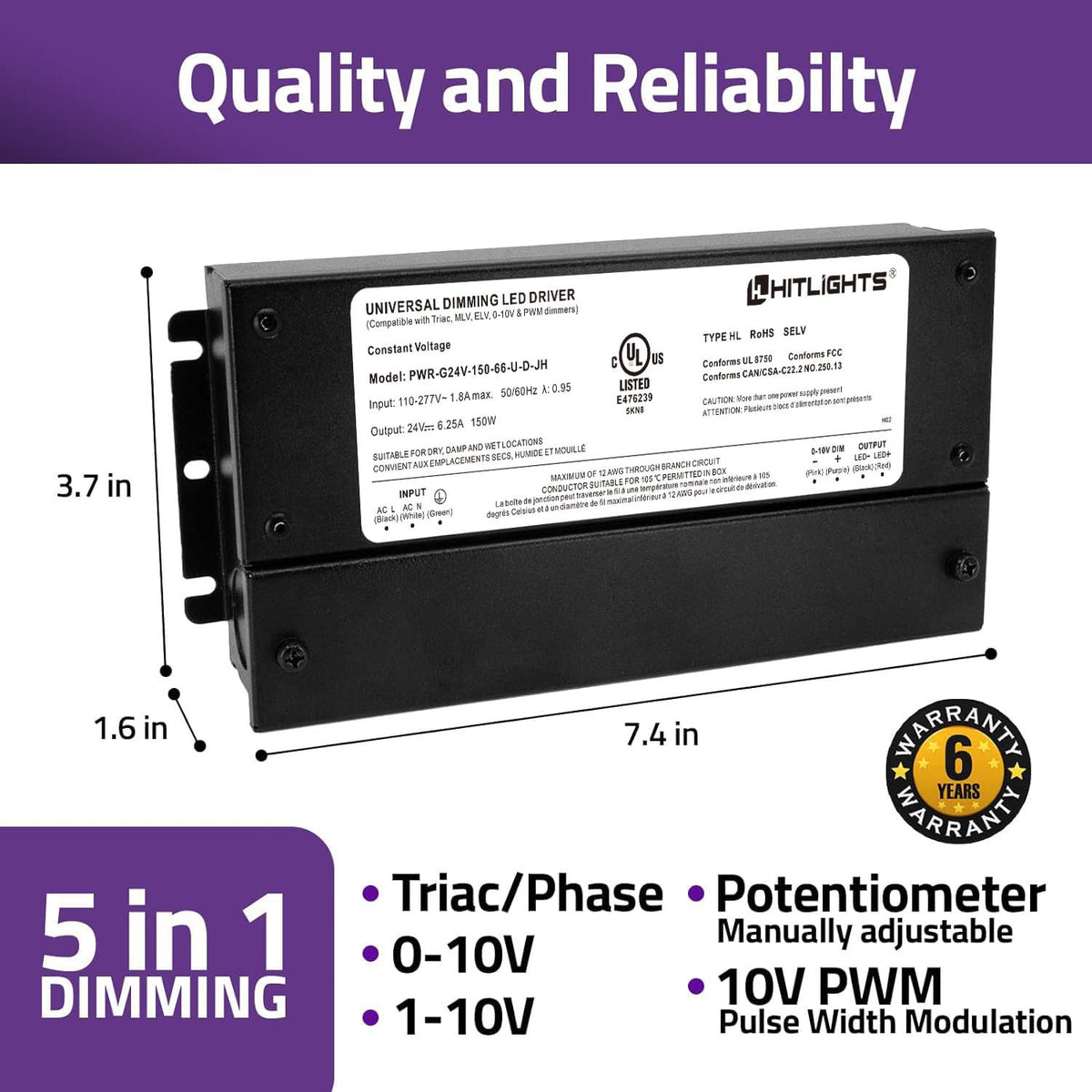

5-in-1 dimming compatibility with TRIAC/MLV/ELV, 0–10V/1–10V, potentiometer, and 10V PWM controls for flexible lighting integration.
Full 0–100% dimming range with 0.1% dimming depth for precise brightness adjustment with compatible controls.
IP66 waterproof construction for dry, damp, and wet-location installations when properly mounted and wired.

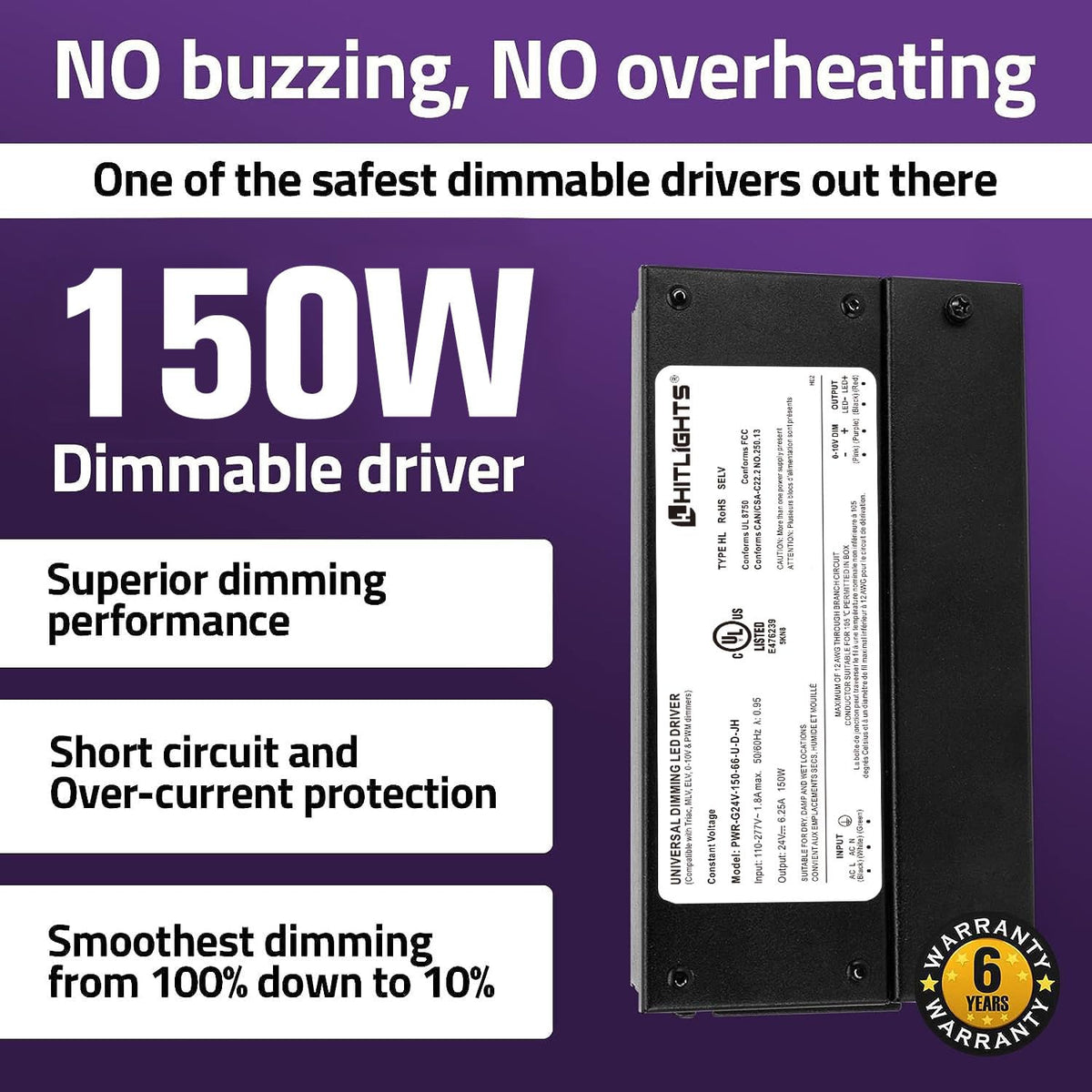

Integrated electrical protection against short circuits, overloads, and overheating, with recovery behavior depending on the fault condition.

Typical applications include under-cabinet lighting, cove and tray ceilings, stair and toe-kick lighting, retail displays, signage, and architectural LED strip installations. The enclosure measures approximately 10.26 x 4.17 x 1.93 inches (260.6 x 106 x 49 mm), providing space for organized wiring while supporting effective heat dissipation.

Unlike conventional non-dimmable LED power supplies, this driver supports multiple dimming methods, including compatible phase-cut wall dimmers and low-voltage lighting controls. It can integrate with supported dimmers from brands such as Lutron and Leviton, giving installers additional flexibility when designing lighting systems. The manufacturer specifies a five-year warranty for long-term assurance.

This 24V 150W dimmable LED driver is a practical solution for electricians, lighting contractors, builders, and experienced DIY installers who need reliable constant-voltage power, flexible dimming, and waterproof protection for higher-capacity 24V LED lighting systems.

WHAT'S INCLUDED:

1 × HitLights 24V 150W 5-in-1 Dimmable LED Driver (IP66, UL Listed)

FREQUENTLY ASKED QUESTIONS:
Q1: What is the HitLights 24V 150W 5-in-1 dimmable LED driver used for?
A: The HitLights 24V 150W dimmable LED driver is a constant-voltage power supply designed to operate 24V LED strip lights and compatible 24V DC lighting fixtures with a total rated load of up to 150 watts. It converts 110–277V AC input power into 24V DC output and supports multiple dimming methods for residential, commercial, and architectural lighting applications.

Q2: Who is this 24V dimmable driver best suited for?
A: This driver is designed for electricians, lighting contractors, builders, and experienced DIY installers working with 24V LED strip lighting systems. It is suitable for kitchens, living areas, retail displays, offices, architectural coves, and properly installed outdoor lighting projects where higher power capacity, flexible dimming, safety certifications, and waterproof protection are important.

Q3: How does the 5-in-1 dimming work with wall dimmers and controls?
A: The driver supports phase-cut dimming through TRIAC, MLV, and ELV controls, along with 0–10V, 1–10V, potentiometer, and 10V PWM dimming methods. It offers a 0–100% dimming range with 0.1% dimming depth for precise brightness adjustments

Q4: What are the key electrical and physical specifications?
A: The driver accepts 110–277V AC at 50/60Hz and delivers 24V DC at up to 150W (6.25A). It features a power factor greater than 0.9 at full load, efficiency of at least 86% at 120V AC, and THD below 20%. The enclosure measures approximately 10.26 x 4.17 x 1.93 inches, weighs 3.97 lbs (1.8 kg), and carries UL/cUL and FCC certifications.

Q5: How does this driver compare to non-dimmable or indoor-only LED power supplies?
A: Unlike conventional non-dimmable power supplies, this driver provides multiple dimming methods for adjusting LED brightness through compatible wall switches and lighting control systems. Its IP66 waterproof enclosure also supports dry, damp, and wet-location installations when installed according to manufacturer guidelines. Integrated short-circuit, overload, and over-temperature protection further supports dependable operation.

Q6: What environments can this 24V 150W driver be installed in?
A: The driver features an IP66 waterproof enclosure suitable for dry, damp, and wet locations when correctly installed and sealed. Its specified operating ambient temperature range is -40°C to +40°C, with 20–95% non-condensing relative humidity. Adequate ventilation and appropriate load derating are necessary when installing the driver in warmer environments or enclosed spaces.

Q7: What maintenance or care does this 150W dimmable LED driver require?
A: The driver requires minimal routine maintenance when installed correctly with adequate ventilation and a compatible electrical load within its rated capacity. Periodic inspections should check for loose connections, moisture intrusion, blocked airflow, or signs of overheating. Electrical repairs, installation adjustments, and troubleshooting should be handled by a qualified professional following the manufacturer's instructions and applicable electrical codes.

SHIPPING DETAILS:

Standard Shipping (3-5 Days) - Shipping cutoff 3pm (PST).
FREE ground shipping (UPS or FedEx) on orders of $199 or more
Standard Shipping: Flat Rate $9.99 - Cutoff 3PM (PST)
2-Day Shipping: Rate Based on Weight - Cutoff 2PM (PST)
Overnight Shipping: Rate Based on Weight - Cutoff 2PM (PST)

Input Voltage: 110–277V AC, 50/60Hz
Output Voltage: 24V DC, 150 Watts (6.25 Amps)
Dimension: 10.26 x 4.17 x 1.93 inches (260.6 x 106 x 49mm)
Power Factor: >0.9 at full load
THD: <20% @ 120VAC and 277VAC at full load
Minimum Load: ~10%
Protections: Short circuit, overload, over temperature
IP Rating: IP66
Certifications: UL Listed, cUL, FCC
Connection Type: Bare wire connection and knockouts
Efficiency: ≥86% @ 120VAC, ≥87% @ 277VAC
In-Rush Current: 40A, 570µs @ 120VAC; 65.6A, 560µs @ 277VAC
Leakage Current: <0.5mA
Dimming Range: 0–100%
Working Humidity: 20–95% RH, non-condensing
Working Temp: -40°C to +40°C
Warranty: 6 years

SKU	Input	Output	Wattage	Weight
PWR-G12V-200-66-U-D-JH	120V AC	12V DC	200W	3.7 lbs
PWR-G12V-300-66-U-D-JH	120V AC	12V DC	300W	4.8 lbs
PWR-G24V-060-66-U-D-JH	120V AC	24V DC	60W	2.48 lbs
PWR-G24V-096-66-U-D-JH	120V AC	24V DC	96W	3 lbs
PWR-G24V-120-66-U-D-JH	120V AC	24V DC	120W	3.01 lbs
PWR-G24V-150-66-U-D-JH	120V AC	24V DC	150W	4.8 lbs
PWR-G24V-200-66-U-D-JH	120V AC	24V DC	200W	3.7 lbs
