Name: 350 Watt LRS-Series Mean Well Indoor Power Supply - 24 Volt
Brand: HitLights
SKU: LRS-350-24
Price: 57.95 USD
Availability: InStock

350 Watt LRS-Series Mean Well Indoor Power Supply - 24 Volt

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

LRS-Series Mean Well Power Supplies: A high-performance AC-DC switching power supply designed to deliver stable 24V output for LED strip lights, control systems, industrial equipment, and other DC-powered applications. Compact, efficient, and reliable, this 350-watt unit ensures consistent voltage delivery and superior performance for residential and commercial lighting setups.

The LRS-Series Power Supply features a slim, low-profile metal case ideal for space-restricted installations. With its universal AC input (90–264V) and built-in EMI filter, this power supply guarantees quiet, stable operation across various environments.

STABLE 24V OUTPUT: Provides up to 14.6A continuous output for powering long runs of LED strip lights or multiple low-voltage devices.
HIGH EFFICIENCY DESIGN: Up to 87% efficiency with minimal heat generation for reliable, long-term operation.
BUILT-IN SAFETY PROTECTION: Features short circuit, overload, and over-voltage protection for maximum equipment safety.
COMPACT & DURABLE: Vented metal housing ensures excellent heat dissipation and easy mounting in tight spaces.
UL LISTED & CERTIFIED RELIABILITY: Complies with UL and CE safety standards for dependable performance in professional applications.
SHIPPING DETAILS:
- Standard Shipping (3-5 Days) - Shipping cutoff 3pm(PST).
- FREE ground shipping (UPS or FedEx) on orders of $199 or more

Input Voltage: 85-132V AC, 47-63Hz
Output Voltage: 24V DC, 350 Watts (14.6 Amps)

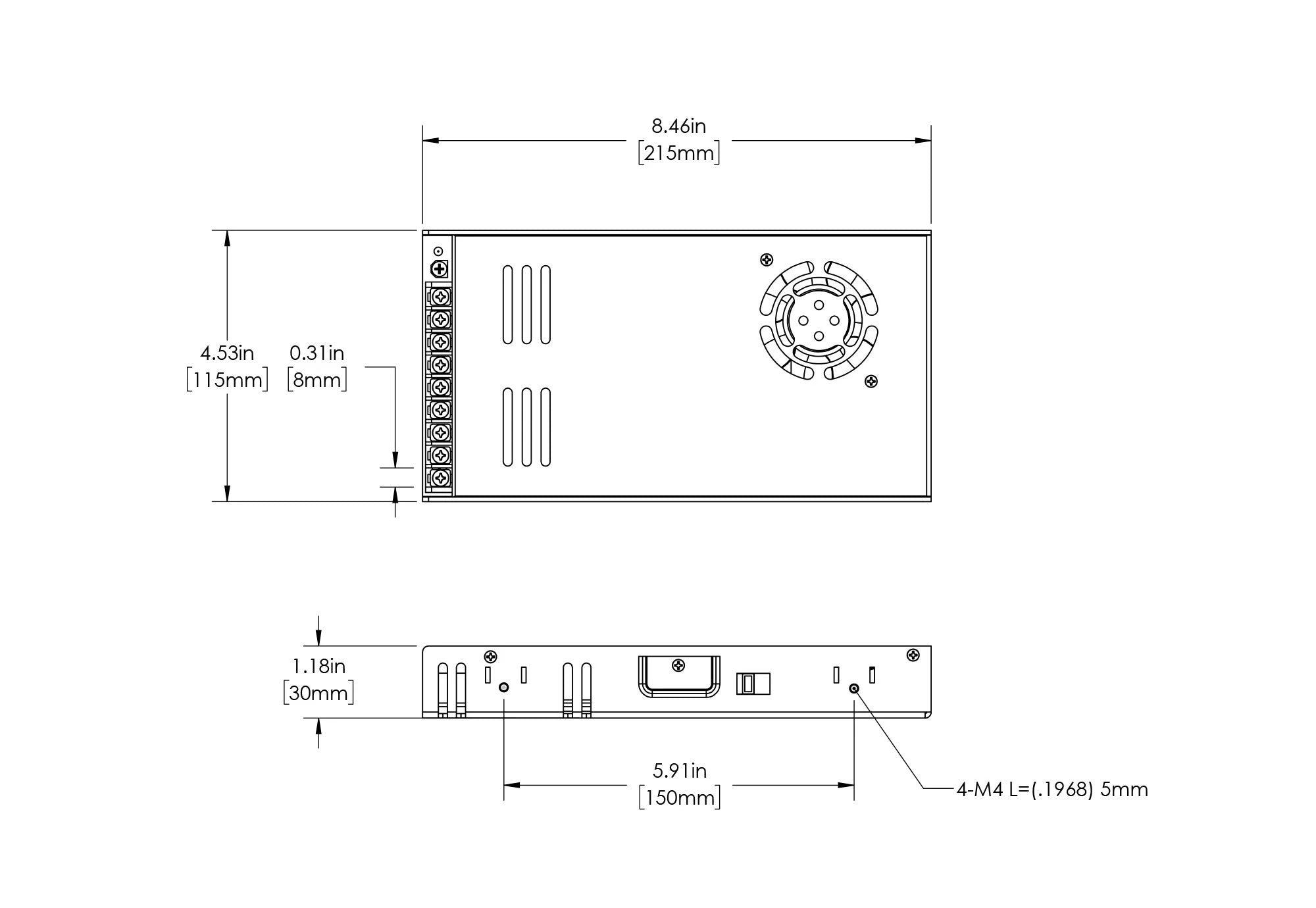

Dimension: 8.5 × 4.5 × 1.2 inches (215 × 115 × 30 mm)
Protections: Short circuit, Overload, overvoltage, overtemperature
IP Rating: IP-20
Certifications: UL Listed
In-Rush Current: 60A @ 230VAC
Leakage Current: <2mA / 240VAC
Working Humidity: 20～90%RH, non-condensing
Working Temp: -25°C to +70°C
Warranty: 3 years

SKU	Input	Output	Wattage	IP Rating
LRS-150-12	85-132V AC	12V DC	150W	IP 20
LRS-350-12	85-132V AC	12V DC	350W	IP 20
LRS-150-24	85-132V AC	24V DC	150W	IP 20
LRS-350-24	85-132V AC	24V DC	350W	IP 20

Certifications:

What is the input voltage for this indoor Mean Well power supply?

The input voltage range is 85-132V AC. It can handle both 85V and 132V AC.

Is this power supply dimmable?

No, but it can be dimmable when used with dimmable controllers such as our R110 remote dimmer, RGB+W Smart Mini Controller, M8 Controller.

Can this power supply be used outdoors?

No, this is rated IP20 and is compatible for indoor applications only

What are the dimensions of this 350W, 24V LRS-Series power supply?

The dimensions are 8.5 × 4.5 × 1.2 inches (215 × 115 × 30 mm)

How long is the warranty of this power supply?

This power supply comes with a 2-year warranty from HitLights.

Does this power supply work with RGB/RGBW LED strips?

Yes, as long as the RGB/RGBW LED strips are 24V rated and it is best paired with an RGB/ RGBW controller to control your lights.

What devices can I use this 24V power supply for?

It can power 24V LED strip lights, LED controllers, and other 24V DC low-voltage devices like CCTV cameras, mini amplifiers, setup boxes, speakers, etc

DATA SHEET

350 Watt LRS-Series Mean Well Indoor Power Supply - 24 Volt
