Name: SleekTone CV, 12-24V DC RF/ Smart LED Controller, Tunable White
Brand: HitLights
SKU: CTR-STCV-ATSA
Price: 97.47 USD
Availability: InStock

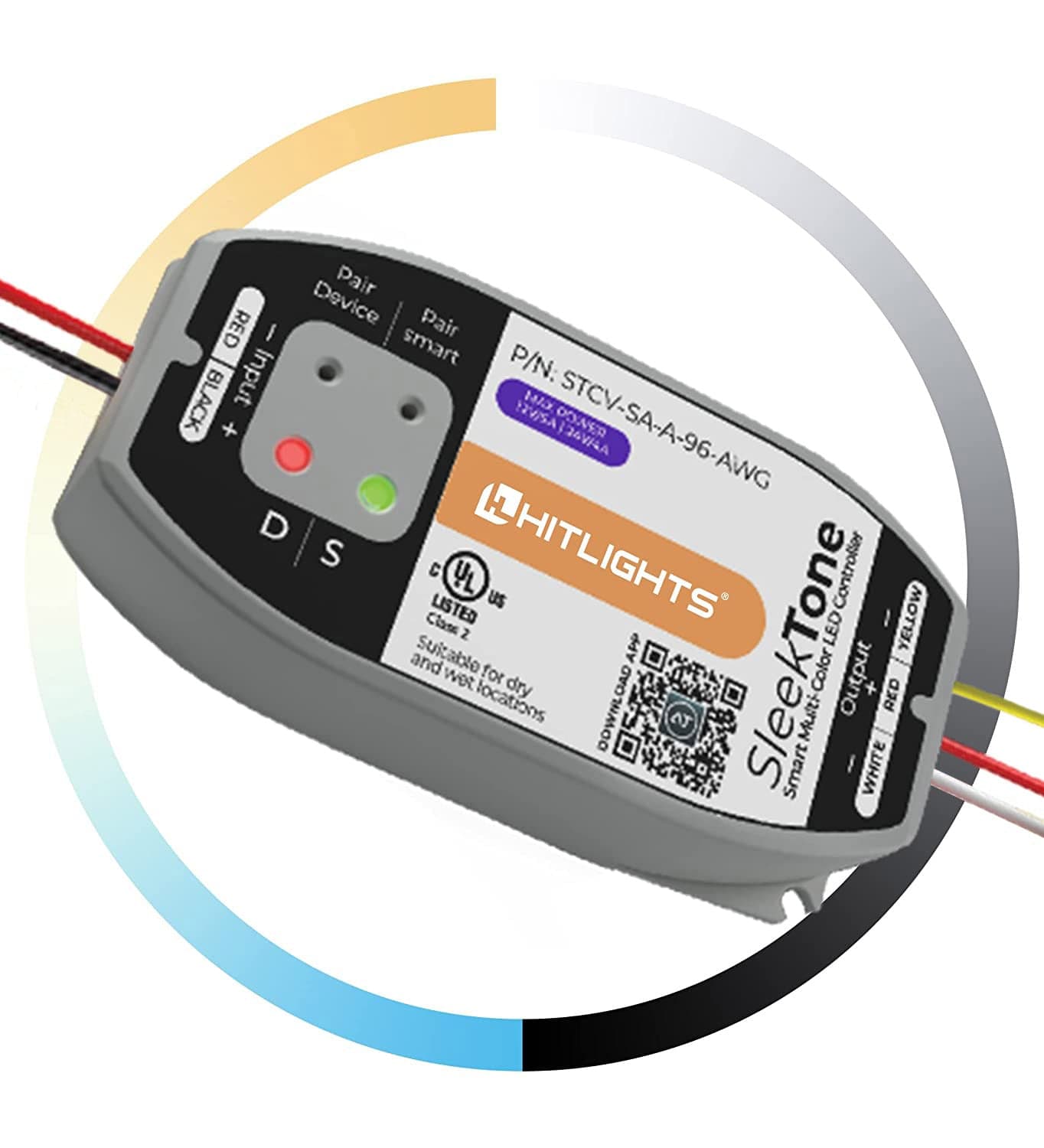

HitLights SleekTone CV, 12-24V DC RF/ Smart LED Controller, Tunable White

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

WHAT STANDS OUT

Tunable white, dim-to-warm, and dimming in one: Switch between tunable white, dim-to-warm, or standard dimming from a single controller.
RF, app, and voice control together: Control via RF remote, SmartAir app, or voice assistants like Alexa, HomeKit, and Google Assistant.
High-performance dimming: 0.1–100% dimming range with 2400 Hz PWM and a logarithmic curve for smooth, flicker-free fades.

PRODUCT DETAILS:

The SleekTone CV, 12–24V DC RF / Smart LED Controller, Tunable White is a constant-voltage controller designed for tunable white LED strip systems that need flexible control options. It combines RF control, app control, and voice control in a compact module that fits easily into tight spaces near power supplies or junction points.

Unlike basic dimmers, SleekTone supports three control modes—Tunable White, Dim-To-Warm, and standard dimming—so the same controller can handle everything from cool-to-warm office lighting to cozy residential dim-to-warm scenes. Using high-efficiency electronics (up to 98% efficiency) and 2400 Hz PWM, it delivers smooth, low-flicker performance from 0.1–100% all the way down to true “dim-to-off.”

The controller communicates via RF, SmartAir app, and voice platforms, allowing it to act as a stand-alone dimmer or tie into a broader smart-lighting ecosystem. Multiple SleekTones can be deployed together as a scalable system to control several tunable white zones or fixture types from the same app and voice assistants. With an IP23 rating, UL Listed Class 2 compliance, and a 2-year HitLights warranty, it is engineered for professional-grade indoor projects.

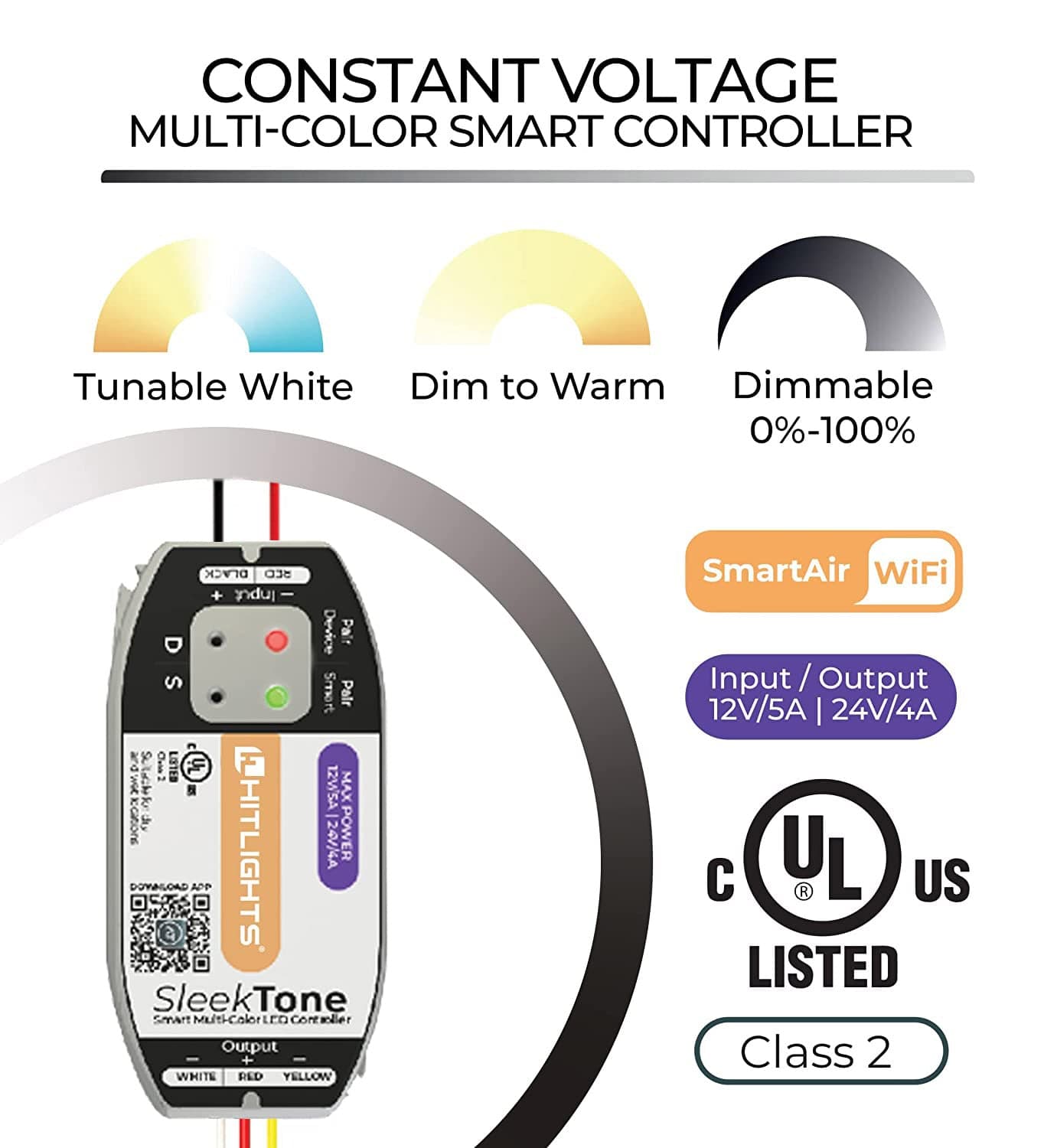

Function: Tunable white LED controller with Tunable White, and Dimming modes
Rated voltage: 12–24V DC constant voltage (Class 2)
Efficiency: Up to 98%
Control protocols: RF, SmartAir app, and voice control (Alexa, HomeKit, Google Assistant integration via app)
Dimming range: 0.1–100%, dim-to-off capable
Ingress rating: IP23 (indoor use)
Controller dimensions: 80 × 16.4 × 40 mm

WHAT'S INCLUDED:

1 × SleekTone CV Tunable White LED Controller

FREQUENTLY ASKED QUESTIONS:

Q: What does the SleekTone CV Tunable White controller do?
A: SleekTone CV is a tunable white constant-voltage LED controller that supports tunable white, dim-to-warm, and standard dimming for 12–24V DC LED lighting. It allows precise control of color temperature and brightness from RF, app, or voice control in one compact unit.

Q: What control modes are available?
A: The controller offers three control options: Tunable White, where color temperature is adjustable; Dim-To-Warm, which warms the color as the light dims; and Dimming, which adjusts brightness only. These modes make it suitable for task lighting, ambiance, and residential dim-to-warm applications.

Q: How is SleekTone controlled (RF, app, voice)?
A: SleekTone can be controlled over RF, via the SmartAir app, and through voice control when integrated with platforms such as Alexa, HomeKit, or Google Assistant. This allows it to operate as a stand-alone RF controller or as part of a larger smart-home lighting system.

Q: What voltage and power range does it support?
A: The controller is rated for 12–24V DC constant-voltage systems and designed for Class 2 applications. The maximum rated output current is 4A at 24V and 5A at 12V, so designers should size the connected LED load accordingly.

Q: How smooth is the dimming performance?
A: SleekTone uses PWM dimming at 2400 Hz with a logarithmic dimming curve, providing 0.1–100% dimming and dim-to-off capability. The high PWM frequency and curve shape help deliver smooth, low-flicker transitions that feel natural to the eye.

Q: Can this controller be used outdoors?
A: No. The SleekTone CV controller is rated IP23, which limits it to indoor applications where it is protected from direct water exposure. For any installation near moisture, it should be placed in a suitable enclosure and used according to its rating.

Q: Is SleekTone CV scalable for multi-zone projects?
A: Yes. The controller is described as scalable, meaning one unit can operate independently or multiple SleekTone controllers can be combined to control several lights and configurations as part of a coordinated system managed through the SmartAir app and integrated voice platforms.

SHIPPING DETAILS:

Standard Shipping (3-5 Days) - Shipping cutoff 3PM (PST).
FREE ground shipping (UPS or FedEx) on orders of $199 or more
Standard Shipping: Flat Rate $9.99 - Cutoff 3PM (PST)
2-Day Shipping: Rate Based on Weight - Cutoff 2PM (PST)
Overnight Shipping: Rate Based on Weight - Cutoff 2PM (PST)

Specifications:

Function: Tunable White
Rated Voltage: 12-24VDC
Efficiency: 98%
Ambient Oparating Temp: -30 °C - + 40 °C / -86°F - + 104°F
Control options: Tunable White, Dim-To-Warm & Dimming
Warranty: 2 Year HitLights Warranty
Control Protocol: RF / SmartAir App/ Voice Control
Dimming Range: 0.1 - 100%
Dim to Off: Yes
Dimming Method: PWM (2400Hz)
Dimming Curve: Logarithmic (Default)

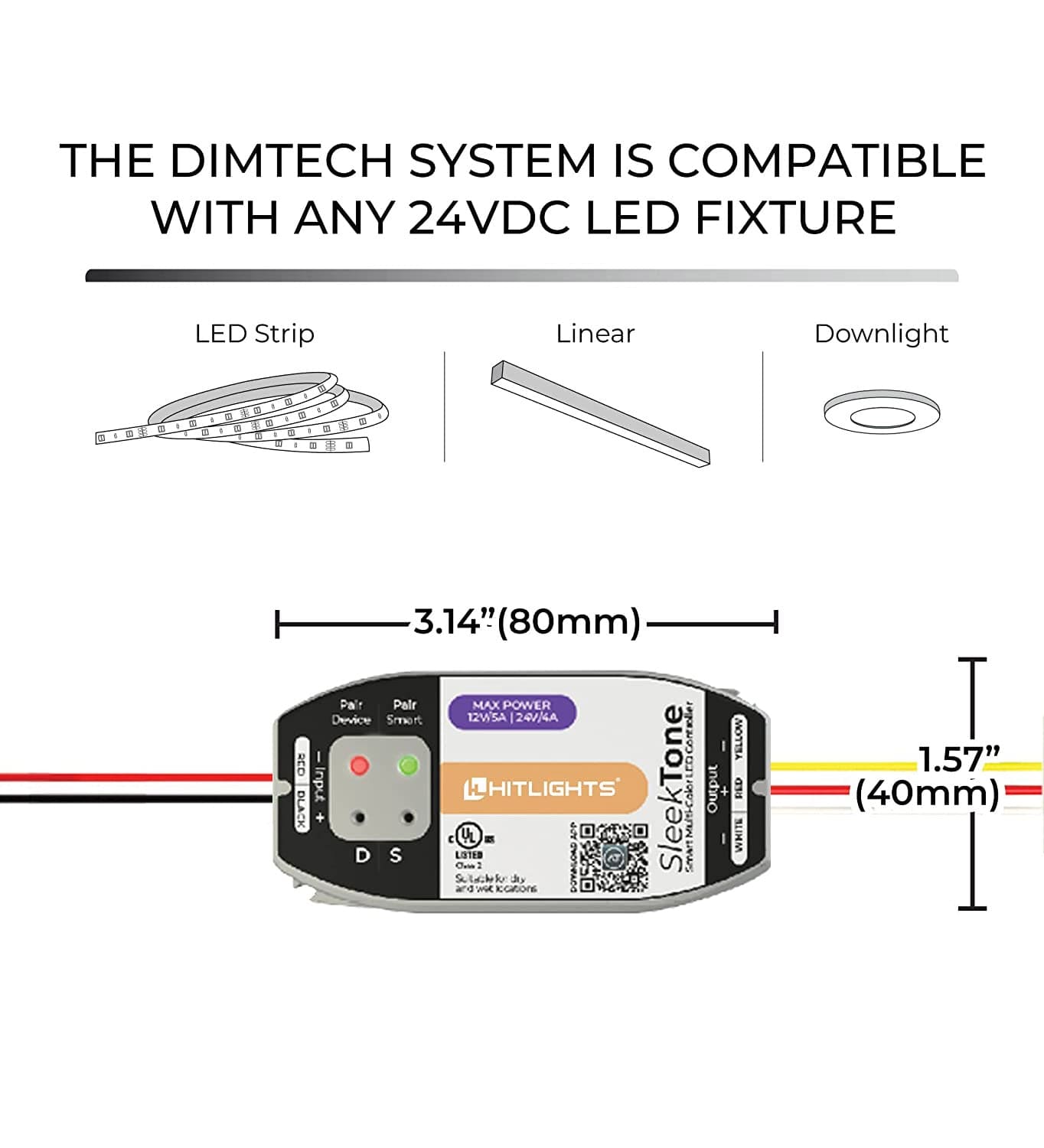

Controller dimension: 80mm x 16.4mm x 40mm

SKU	Function	Working Voltage	Dimensions	Smart Control
CTR-SC-R110Mini	Single Color (White)	DC 5-24V	50 x 15 x 7 mm	No
CTR-STCV-ATSA	Tunable White	DC 12/24V	80 x 16.4 x 40 mm	Yes
CTR-RGBW-NT40	RGBW	DC 5-24V	87 x 24 x 15 mm	Yes
CTR-RGBW-M8	RGBW	DC 5-24V	60 x 104 x 9 mm	No

What are the dimming modes?

The 3 control options are Tunable White, Dim-To-Warm & Dimming

Can this be used outdoors?

No, the controller is rated IP 23, therefore can only be used indoors

Can this be controlled from the app?

Using the SmartAir App you can control one or multiple SleekTones as
well as integrate them with Alexa, HomeKit, or Google Assistant.

What voltage does it support?

The working voltage is DC 5-24V.

What is the maximum power rating?

The maximum rated output current is 4A (24V) 5A (12V)

DATA SHEET

Sleektone CV Smart LED Controller Spec Sheet
