TriFlex Pro Dimmer Switch
TriFlex Pro Dimmer Switch
TriFlex Pro Dimmer Switch
TriFlex Pro Dimmer Switch
TriFlex Pro Dimmer Switch
TriFlex Pro Dimmer Switch
TriFlex Pro Dimmer Switch
TriFlex Pro Dimmer Switch
$20.71


SWX-110V-600-TN-3W


  • SINGLE POLE/ 3-WAY DIMMER: The TriFlex Pro Dimmer Switch is a versatile dimmer switch that can be installed as a single pole or 3-Way circuit, ideal for residential or even for commercial use.

  • 100% BRIGHTNESS CONTROL: Easily adjust the brightness of the light. Whether for leisure, entertainment, sports, reading or working, our versatile led dimmer switch can meet all your lighting needs.

  • UNIVERSAL COMPATIBILITY: 120 Volt dimmer light switches seamlessly with 120V, ≤200W dimmable LED or CFL lamps; and are also compatible with 120V, ≤600W incandescent or halogen lamp bulbs.

  • ENERGY SAVING & SAFETY:  ETL Certified and RoHS Compliance and equipped with over-temperature protection for extended life.

  • SHIPPING DETAILS

    Standard Shipping (3-5 Days) - Shipping cutoff 3pm(PST).

    FREE ground shipping (UPS or FedEx) on orders of $199 or more.

193

Not yet a Professional Partner?



  • Description
  • Specification
  • Applications
  • Compatible Products
  • FAQs
  • Downloads

TriFlex Pro Dimmer Switch: With the Hitlights TriFlex Pro Dimmer Switch, you can directly replace the existing wall switches to power on and off your lights with dimming function.


Product Features:

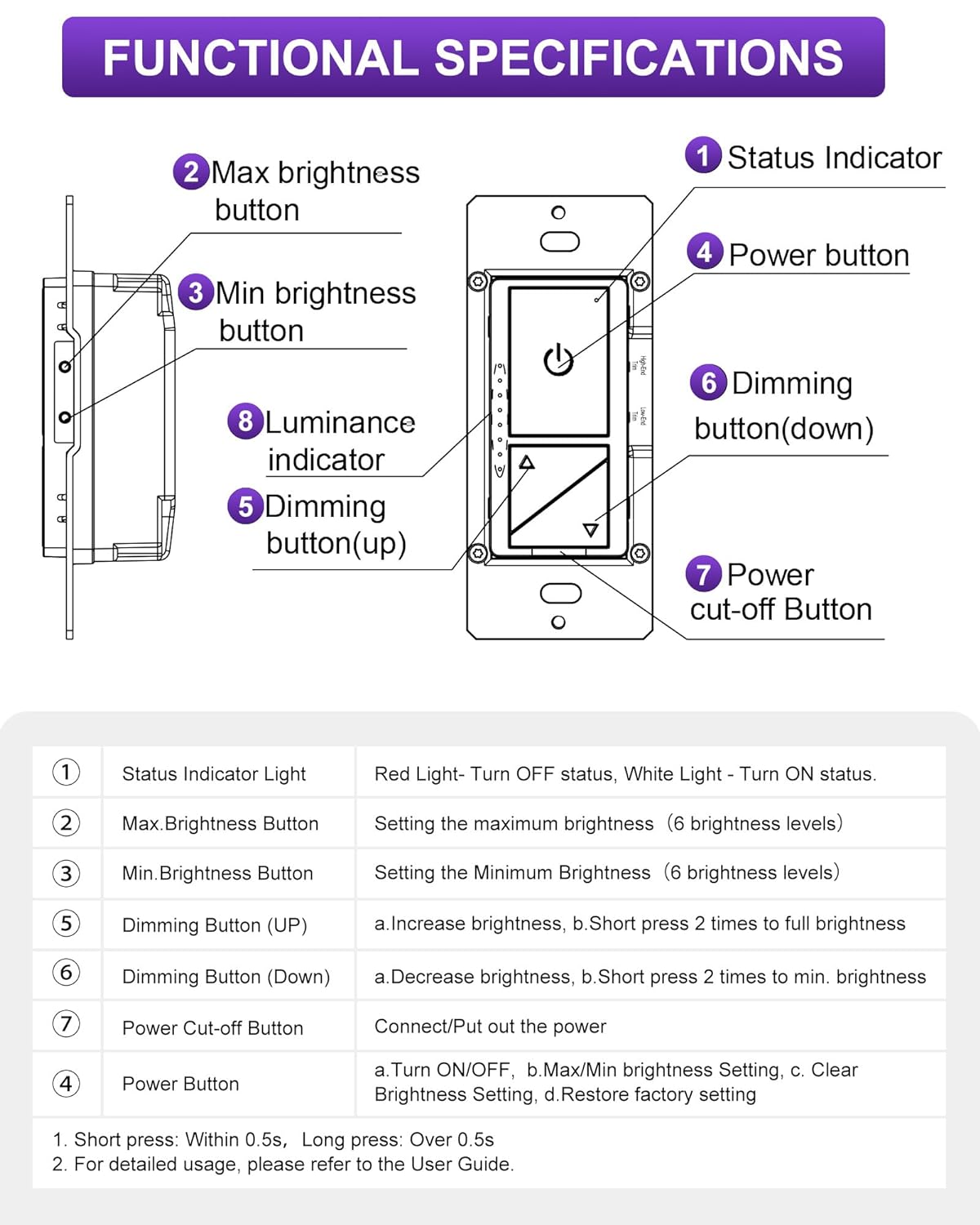

  • Power button with dimming function

  • Compatible with 120V ≤200W LED lights and dimmable CFL lamps; 120V ≤600W incandescent lamps and halogen lamps

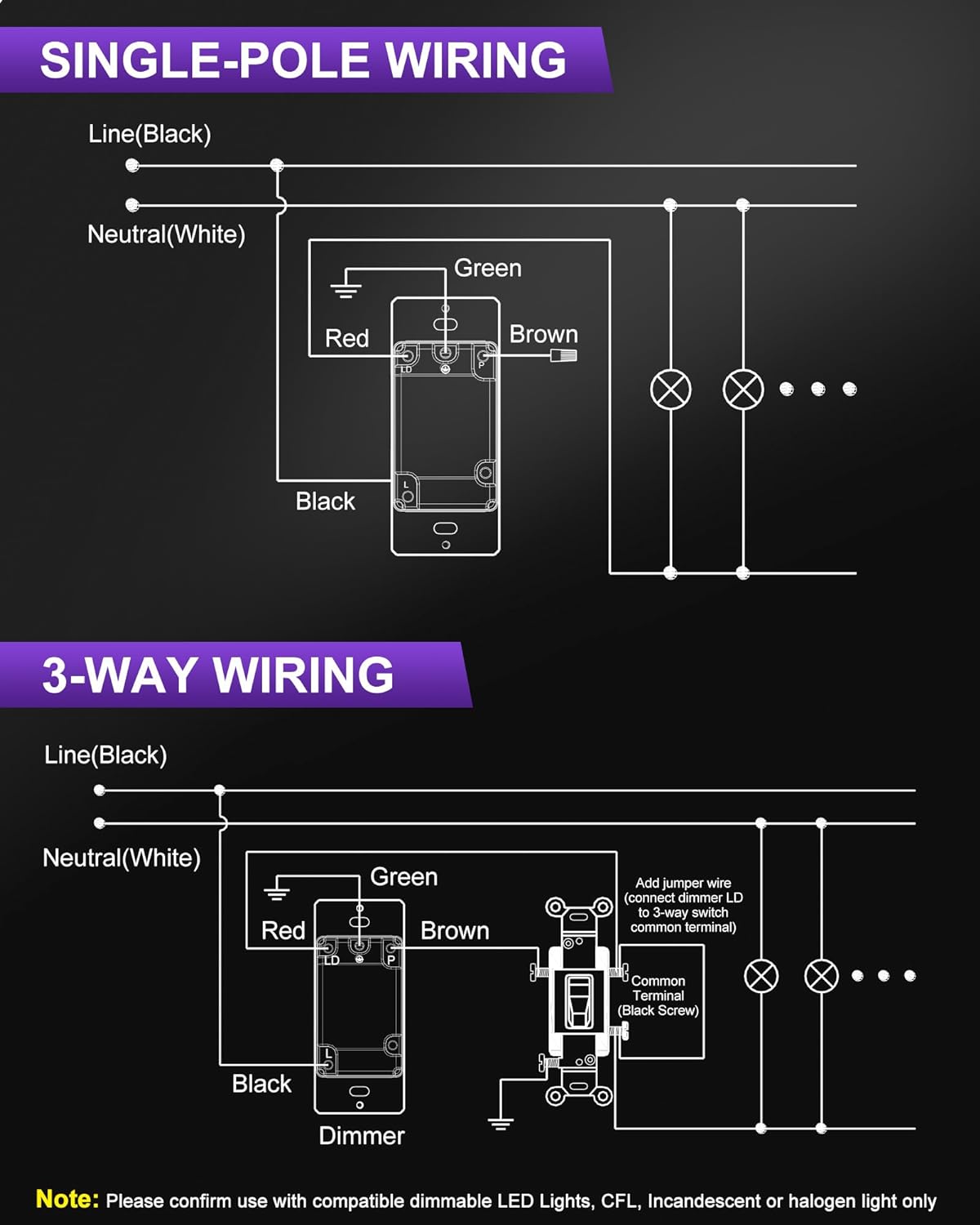

  • Can connect with an external switch to control the light on/off (Single-pole or 3-Way).

  • Dimmable Driver is needed for low voltage lighting installations. (Driver is sold separately)

  • With startup and power off memory function. Set your desired maximum and minimum brightness to quickly achieve the brightness you want every time.

  • With functional indicator light

  • 120VAC wall switch no battery required

  • Made with a robust build and has over heating protection, making it a safe and reliable choice for controlling your lighting.

  • ETL Certified and RoHS Compliance for safety and peace of mind

Specifications:

  • Input Voltage: 120VAC ~ 60Hz

  • Max Load: 600W

  • Rated Frequency: 60Hz

  • Rated Wattage: 600W

  • Dimension:

    4.13 x 1.73 x 1.22 in (104.90 x 43.94 x 30.99 mm)

  • IP Rating: IP23 Dry Location

  • Protections: Overheat protection

  • Power Supply: Live wire

  • Warranty: 3 years

  • Load Range:

    - Dimmable LED Lights 3W-200W

    - Dimmable CFL Lamps 3W-200W

    - Incandescent Lamps 15W-600W

    - Halogen Lamps 15W-600W

  • Switch times: => 40000 times

  • Dim to Off:  No

  • Dimming Range: 0 - 100%

  • Installation method: In-wall

  • Operating Environment:

    - Temperature :0℃ - 40℃  (32F - 104F)

    - Humidity:10% R.H. - 90% R.H

Save Time And Money

Living Room Lighting Control

Become A Makeup Artist

Indoor Task Lighting Control


Learn With Experts

Under Cabinet Lighting Control

Save Time And Money

Indoor Stairs Lighting Control

Become A Makeup Artist
Office Space Lighting Control
Learn With Experts
Store Lighting Control

Power Your 24V COB LED Strip

  • Can power 32ft of this LED strip

  • Simplified Installation

  • No compatibility issues

  • Superior LED Dimming (0-100%)

Dimmer & Driver Combo

  • Super slim, compact design for your custom solutions

  • Wide dimmer compatibility - Forward phase, Reverse phase, Triac, MLV, ELV Dimmers

  • Easy screw terminal wiring connections for fast and simple installation

  • UL listed and Class P for safety and reliability

Sale Off
Vinyl Electrical Tape, EE-100
$8.59

Organize your Wiring Projects

  • Used in wire splicing, cable insulation, wire bundling, and more.

  • Industrial Type Polyvinyl Chloride

  • Primary insulation: Up to 600V

  • Cold Resistant and Flame Retardant

What is the TriFlex Pro Dimmer Switch?

Hitlights TriFlex Pro Dimmer Switch is a power button that also has a function to adjust the brightness of your lights with a simple touch. Ideal for home accent lighting or commercial use.

What is the max load of this wall switch?

The max load of this wall switch is up to 600W

Can this be used outdoors?

No, since this is IP23 rated it is for indoor use only.

It the TriFlex Pro Dimmer Switch dimmable?

Yes, this allows you to dim your lights from it's minimum to maximum

Is a dimmable driver needed for the installation?

Dimmable Driver is needed only for low voltage lighting installations. (Driver is sold separately)

Is this compatible to any lights?

This dimmer switch is compatible with 120V ≤200W LED lights and dimmable CFL lamps; 120V ≤600W incandescent lamps and halogen lamps
