Numbers and LEDs: What does 2835, 3528 and 5050 mean?

December 13, 2016

Numbers and LEDs: What does 2835, 3528 and 5050 mean?

All these numbers! What's going on?

Have you ever been looking for LED light strips and ran across the numbers 2835, 3825 or 5050?

These numbers are less mysterious than you might think.

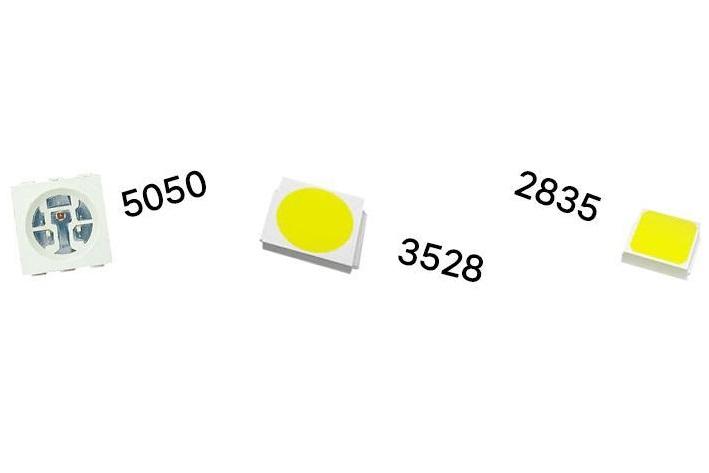

First off, you might have seen the letters "SMD" preceding these enigmatic numbers. The abbreviation SMD refers to a 'Surface Mounted Device'. That means this is an LED Chip (device) mounted directly to a light strip, without using wires. This surface mounting technology is indeed what makes LED Light Strips possible. The numbers after the SMD simply refer to the physical size of the LED Chip. Take SMD 3528 for example, they are 3.5mm wide and 2.8mm long. Note that size is not proportional to output or performance, and it is not the only difference between LED chip types.

SMD 3528

SMD 3528 Chips are perhaps the most common of all LED light strip chips. They are the least bright and least power intensive of the three chips we use at HitLights, and are most commonly used for accent lighting, such as above kitchen cabinets and around the crown moulding below the ceiling.

3528 chips used to be featured in our Luma5 strips, but those now primarily use lower output 2835 chips which offer the same brightness of 3528 chips but with greatly improved efficiency and lifespan. You can shop our selection of Luma5 strips here.

SMD 5050


SMD 5050 Chips are just barely behind the 3528 chips in popularity. These chips are 5.0mm x 5.0mm. 5050 chips are typically 3 times as bright as 3528 chips. Because they're brighter, strips with 5050 chips are typically used for what we call 'task lighting', and commonly used underneath kitchen cabinets where that light will help you see what you're working on. 5050 strips are often also available in color changing styles, meaning that you can select any color you want with a remote or controller.

5050 chips are featured in our Luma10 strips, in both the single color and multicolor versions. You can shop our selection of Luma10 strips here.

SMD 2835

SMD 2835 Chips look very much like 3528 chips, but they use newer technology and are typically much more efficient. This means that for equivalent power, they can be much, much brighter. They're smaller than the 5050 chips (2.8mm x 3.5mm). They make the ultimate in task lighting and even work lighting.

High output 2835 chips are utilized in our Luma20 strips, which are the brightest (and most efficient) strips that we sell. You can shop our selection of Luma20 strips here.

Editor's note: As a final aside, while the Luma designations initially were associated with certain chip types (Luma5 was 3528, Luma10 was 5050, and Luma20 was 2835) with improvements in LED technology these designations quickly became invalid. Instead, our Luma designations should always refer to the amount of lumens per chip - around 5 lumens per chip for Luma5, around 10 lumens per chip for Luma10, and around 20 lumens per chip for Luma20.



Now you should know the difference between the different types of LED chips HitLights offers on our strips. Chip type is just one small factor in choosing the right LED light strip for your project - our free eBook, titled '
How to Choose LED Strip Lights' is an ideal guide in the next stage of your LED lighting journey.
