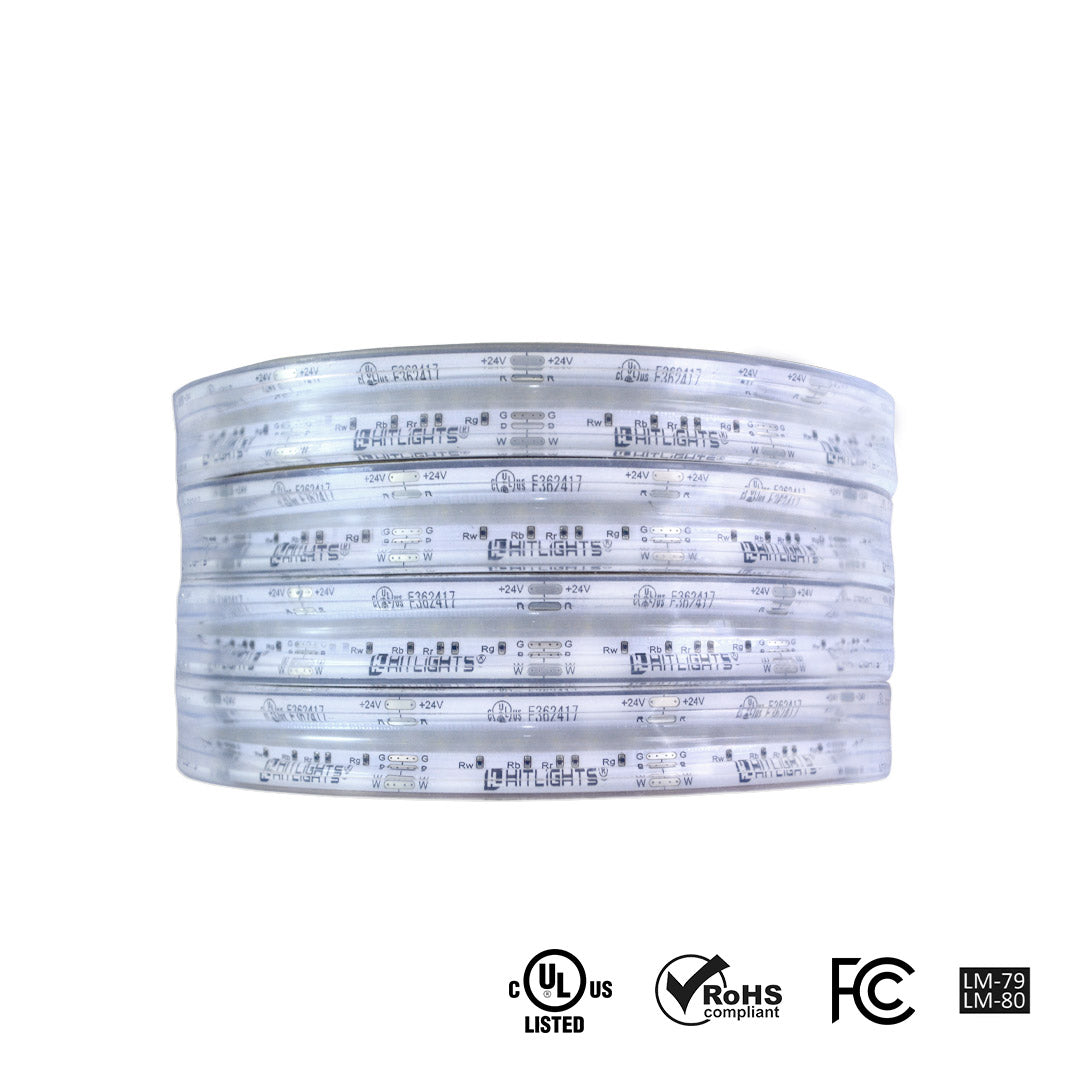

RGB CSP Strip (UL-Listed) 16.4ft [IP67]

The RGB CSP Strip from HitLights is a 24V, 16.4ft IP67-rated RGB LED strip designed for outdoor and professional color-changing installations. It uses Chip Scale Package (CSP) LEDs to deliver bright, even RGB light in a slim, efficient format.

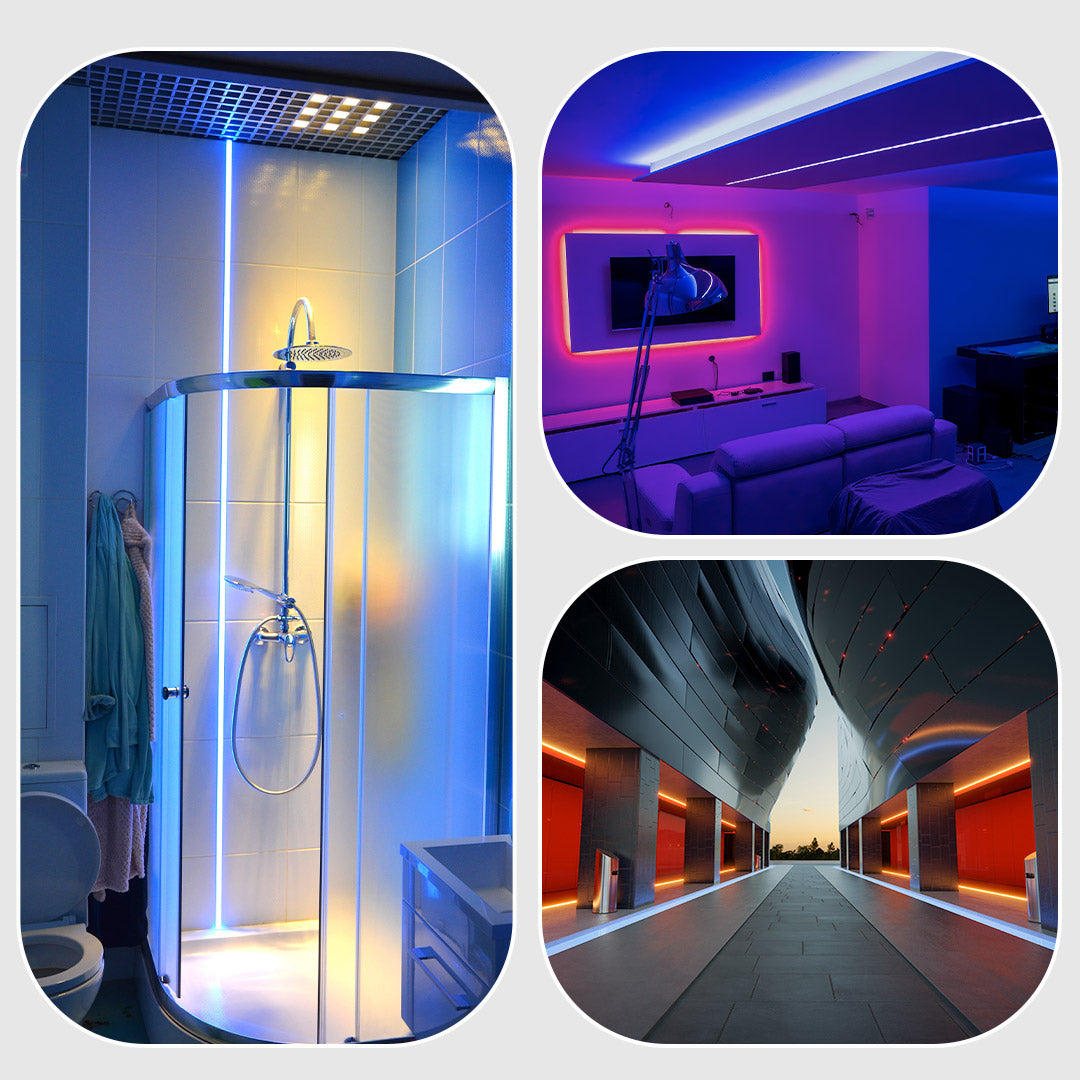

This waterproof RGB strip is fully encapsulated for IP67 protection, meaning it can handle rain, splashes, and dusty environments when installed with properly sealed connections. The 24V DC system supports longer runs with reduced voltage drop, making it ideal for architectural accents, decks, patios, and landscape features.

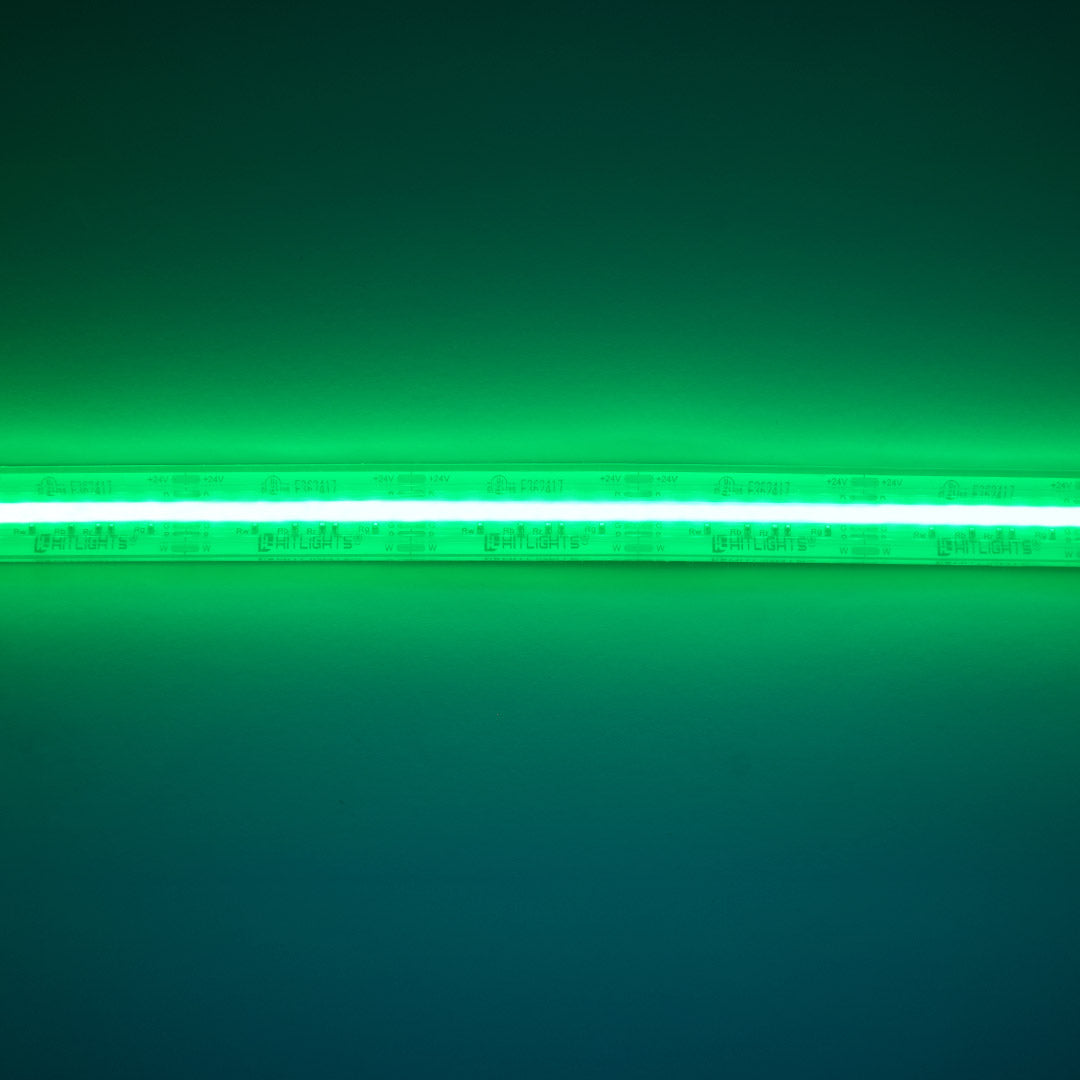

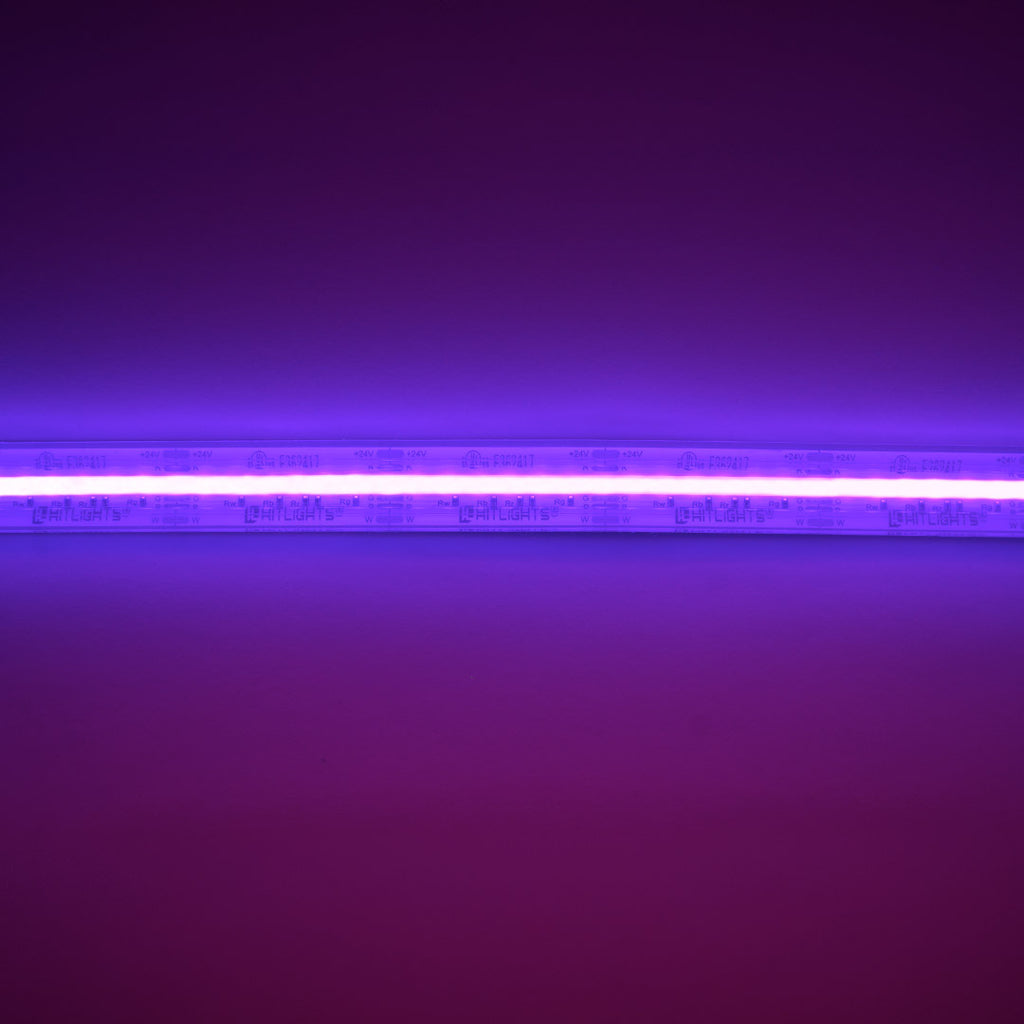

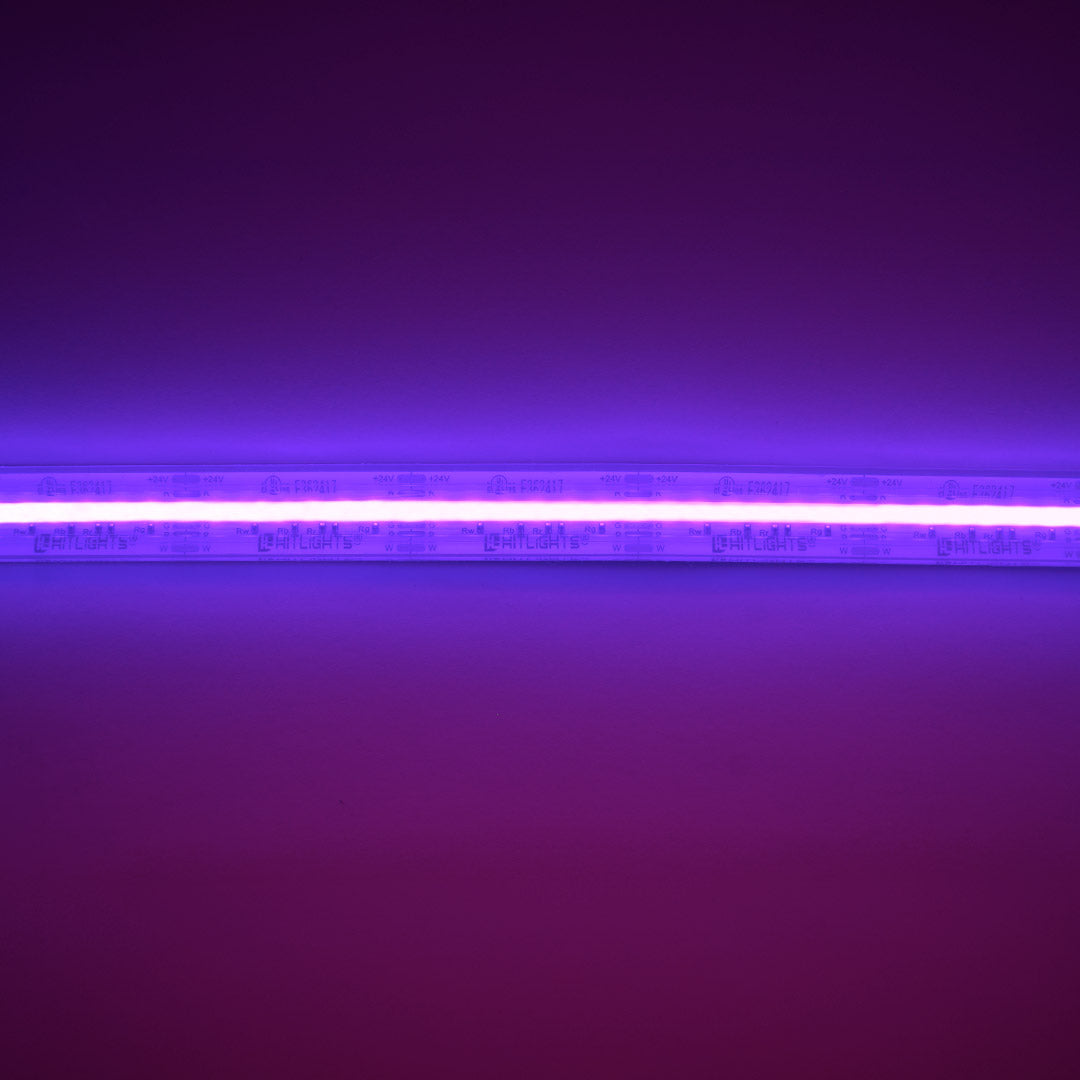

High LED density helps create smooth, uniform color with minimal visible hot spots, especially when used in channels or behind diffusers. This makes the strip suitable for coves, signage, feature walls, and other installations that require a continuous line of color.

• 24V DC RGB CSP LED strip, 16.4ft (5 m) length, 10 mm width, IP67 waterproof and UL Listed.
• Approx. 3.3 watts per foot, about 0.5 amps per meter, with 840 LEDs per meter and a 180° beam angle for smooth output.
• Cuttable every 50 mm (about 2 inches) with 42 LEDs per section for flexible, custom-length installs.
• Rated for 50,000 hours (Tc < 140°F) and backed by a 6-year warranty for long-term, low-maintenance use.

Unlike basic indoor-only RGB strips that use older LED packages, this CSP-based IP67 RGB strip is built as a commercial-grade solution, combining robust environmental protection, high LED density, and long service life. It is a strong fit for lighting designers, contractors, integrators, and advanced DIY users who need reliable outdoor RGB strip lighting that pairs with 24V power supplies and RGB controllers.

WHAT'S INCLUDED:

• 1 × 16.4ft (5 m) 24V RGB CSP LED strip, IP67, 10 mm width, UL Listed

Q: What is the HitLights RGB CSP 24V LED strip?
A: It is a 16.4ft, 24V RGB LED strip using CSP (Chip Scale Package) LEDs with an IP67 waterproof rating and UL Listing. The strip provides full RGB color mixing for outdoor and indoor accent, architectural, and decorative lighting.

Q: Who is this waterproof RGB LED strip designed for?
A: This strip targets lighting professionals, contractors, integrators, and serious DIY users who need reliable, long-life RGB strip lighting for outdoor or demanding environments. Its 50,000-hour rating and six-year warranty make it suitable for permanent installations rather than temporary décor.

Q: Can this RGB LED strip be used outdoors in wet areas?
A: Yes. The strip carries an IP67 waterproof rating, meaning it is protected against dust and immersion in shallow water when correctly sealed at cut points and terminations. It is appropriate for exterior accents, patios, and similar locations when installed to maintain the IP67 protection.

Q: What are the key technical specifications of this strip?
A: The strip runs on 24V DC, uses CSP RGB LEDs, and draws about 3.3 W per foot at 0.5 A per meter. It is 10 mm wide, 16.4ft long, has 840 LEDs per meter, a 180° beam angle, and a specified output of roughly 588 lumens per meter. It is UL Listed and rated for 50,000 hours.

Q: How does this CSP RGB strip differ from standard RGB LED strips?
A: While standard RGB strips often use older LED packages and may only be suitable for dry indoor use, this strip uses CSP LEDs and IP67 encapsulation for better thermal performance, higher density, and outdoor readiness. The result is smoother light, improved reliability, and a longer rated lifetime.

Q: Can the strip be cut and reconnected?
A: Yes. The strip can be cut at marked points spaced about 50 mm apart, with each cut section containing 42 LEDs. After cutting, installers typically use compatible 5-pin RGB connectors or soldered joints, and must reseal any exposed sections to maintain water resistance outdoors.

Q: What is the warranty period for this RGB CSP strip?
A: The RGB CSP Strip is covered by a six-year warranty when used within its rated electrical and environmental conditions, aligning with its 50,000-hour lifetime specification.
